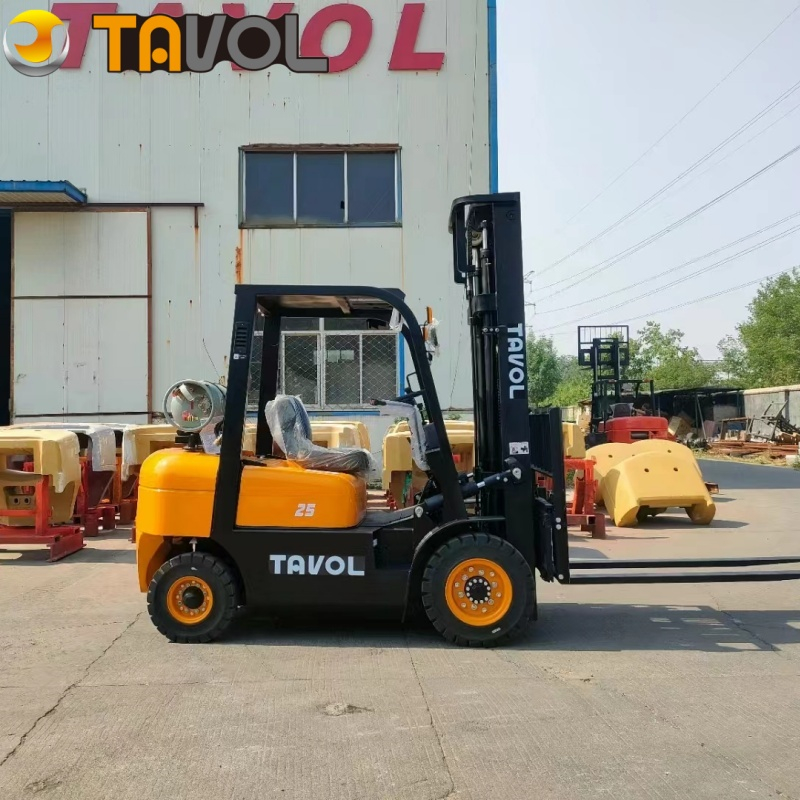

Tavol Warehouse Forklift Price 2.5T LPG Forklift

Share to:

Tavol Warehouse Forklift Price 2.5T LPG Forklift

Name: Tavol Warehouse Forklift Price 2.5T LPG Forklift
Brand: Tavol
SKU: 556758317
Rating: 5.0 (15 reviews)

2.5Ton LPG forklift Intelligent fuel switching technology enables seamless conversion and easy operation. Anti-skid braking system, LED lighting and safety warning devices are standard to ensure safe operation.

Compared with traditional fuel forklifts, energy consumption is reduced by 15%-20% and emissions are cleaner. Optional accessories such as side shifter and extended fork can meet different handling needs.

Capacity(Kg):	2500
Fork size (mm):	1220x122x45
Availability:

Quantity:



Inquire Add to Basket

Model:
CPQYD25
Brand:
Tavol

Product Description

Technical Parameters

Model	CPQYD20	CPQYD25	CPQYD30	CPQYD35	CPQYD40
Rated Loading Capacity(kg)	2000	2500	3000	3500	4000
Load Center Distance(mm)	500	500	500	500	500
Max Lifting Speed(full load)(mm/sec)	400	400	470	470	390
Max Driving Speed(Full/Empty load)(km/h)	17/19	17/19	17/19	17/19	17/19
Fork Lifting Height(mm)	3000	3000	3000	3000	3000
Mast Tilt Angle(Forward and Backward)	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Min. Turning Radius(mm)	2450	2450	2530	2530	2720
Min. Ground Clearance(mm)	110	110	135	135	145
Length(including Fork)(mm)	3720	3720	3970	3970	4100
Width(mm)	1160	1160	1230	1230	1230
Height From Ground to Overhead Guard(mm)	2095	2095	2110	2110	2115
Wheel base(mm)	1640	1640	1775	1775	1900
Front Wheel Track(mm)	970	970	1000	1000	1060
Rear Wheel Track(mm)	970	970	970	970	970
Front Wheel Tire	7.00-12	7.00-12	28*9-15	28*9-15	250-15
Rear Wheel Tire	6.00-9	6.00-9	6.50-10	6.50-10	6.50-10
Self Weight(kg)	3470	3750	4120	4490	4850
Standard Fork Length(mm)	1220	1220	1220	1220	1220
Engine Rated Power(kw)	37.4	37.4	37.4	37.4	37.4
Engine Speed at Rated Power(rpm)	2300	2300	2300	2300	2300
Engine Maximum Torque(Nm)	176.5	176.5	176.5	176.5	176.5
Engine Speed at Maximum Torque(rpm)	1600	1600	1600	1600	1600
