CPQYD40
Tavol
8427209000

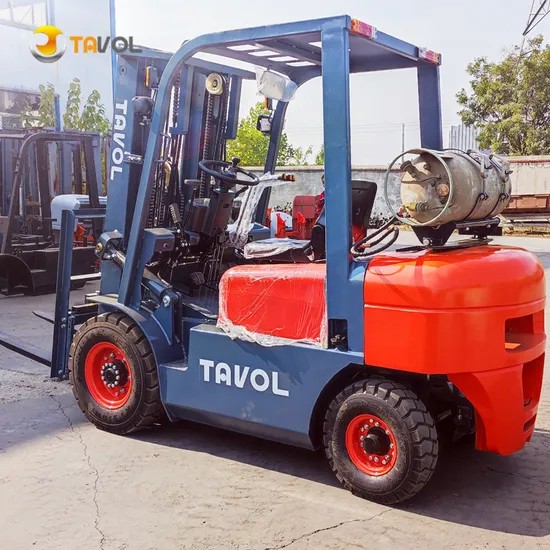

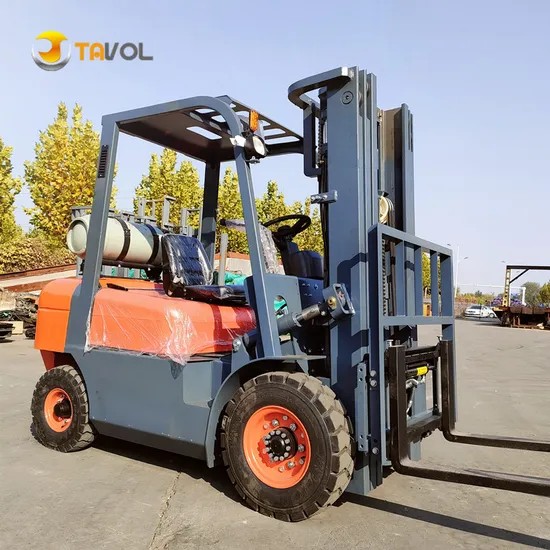

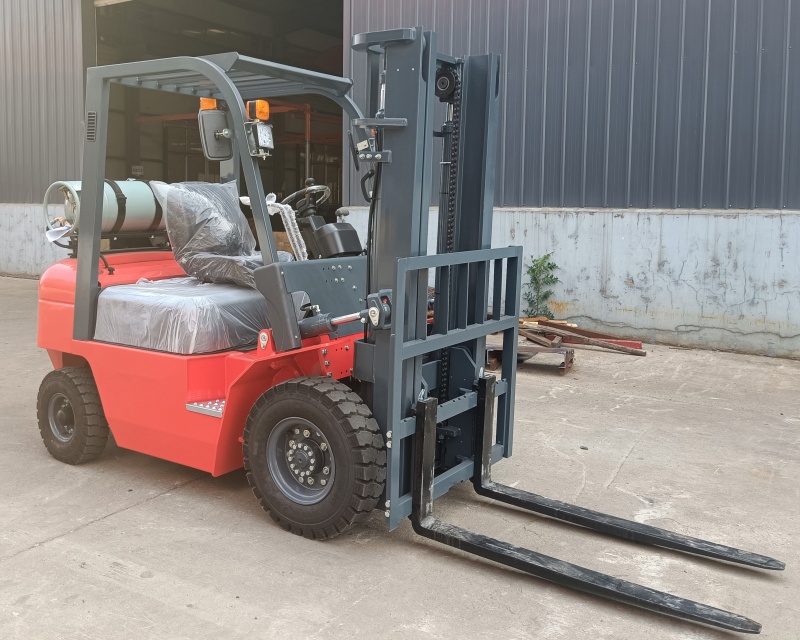

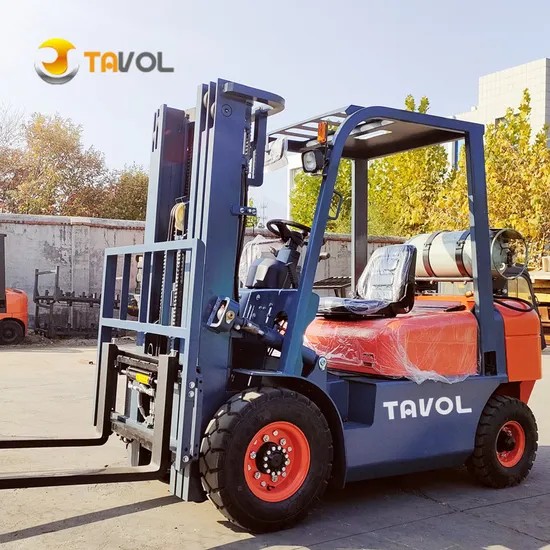

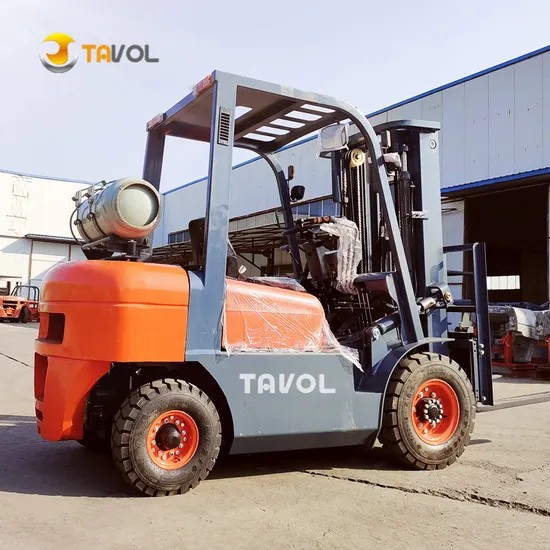

The 4-ton dual-fuel forklift is a special forklift with high efficiency and low emissions. It combines the advantages of diesel and liquefied petroleum gas (LPG), retaining the powerful power of diesel forklifts and the environmental protection features of LPG forklifts. This kind of forklift is widely used in many fields such as warehousing, logistics, and manufacturing, and has become an indispensable handling equipment in modern industry.
Technical Parameters
Model | CPC40 | |
Rated Lifting Load(kg) | 4000 | |
Load Center Distance(mm) | 500 | |
Free lifting Height(mm) | 150 | |
Lifting height :Mast 3Stages(mm) | 6500 | |
Overall Length(With Fork/Without Fork)(mm) | 4000/2930 | |
Width(mm) | 1290 | |
Overhead Guard Height(mm) | 2180 | |
Wheelbase(mm) | 1900 | |
Minimum Ground Clearance(mm) | 140 | |
Mast Tilt Angle(Front/Rear)(%) | 6/12 | |
Tire No(Front ) | 250-15 | |
Tire No(Rear) | 650-12 | |
Minimum Turning Radius(Outside)(mm) | 2710 | |
Minimum Right Angle Aisle Width(mm) | 4750 | |
Fork Size(mm) | 1220X125X50 | |
Maxmum Working Speed(Full-Load/No Load)(km/h) | 19/19 | |
Maxmum Speed Speed(Full-Load/No Load)(mm/s) | 340/380 | |
Maximum Gradeability (Full-Load/No Load)(%) | 15/20 | |
Total Weight(kg) | 4950 | |
Battery | 12V80Ah | |
Engine | Brand and model | Xinchai A495 |
Rated output(R.p.m) | 42/2650 | |
Max torque(N·m/r/min) | 174/1800-2000 | |
No. Of cylinder | 4 | |
Bore X Stroke(mm) | 95X105 | |
Displacement(cc) | 2980 | |
Fuel Tank Capacity(L) | 60 | |
Type of Power Shift | Hydraulic Transmission | |

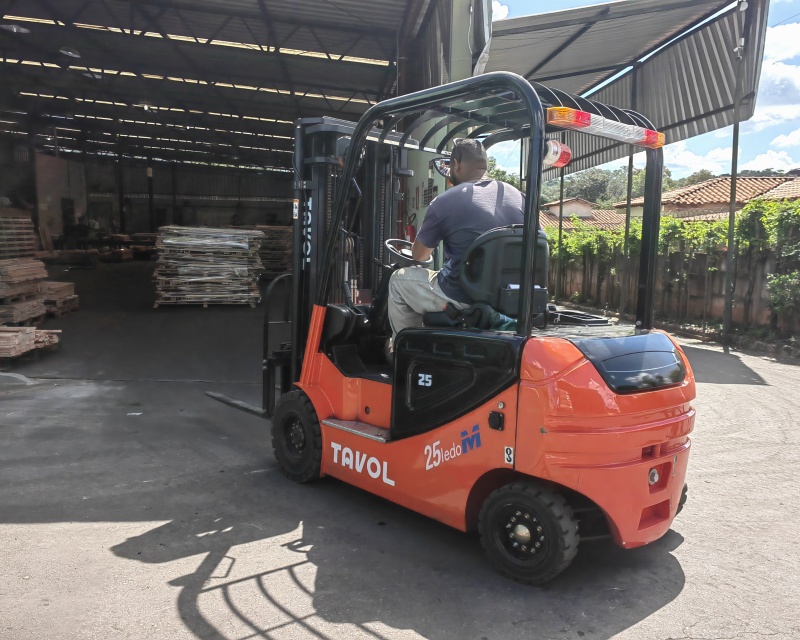

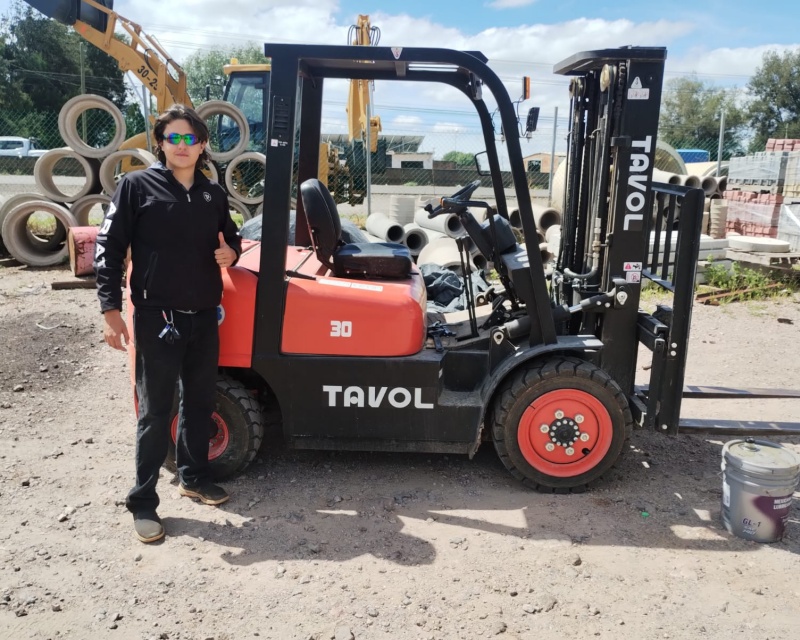

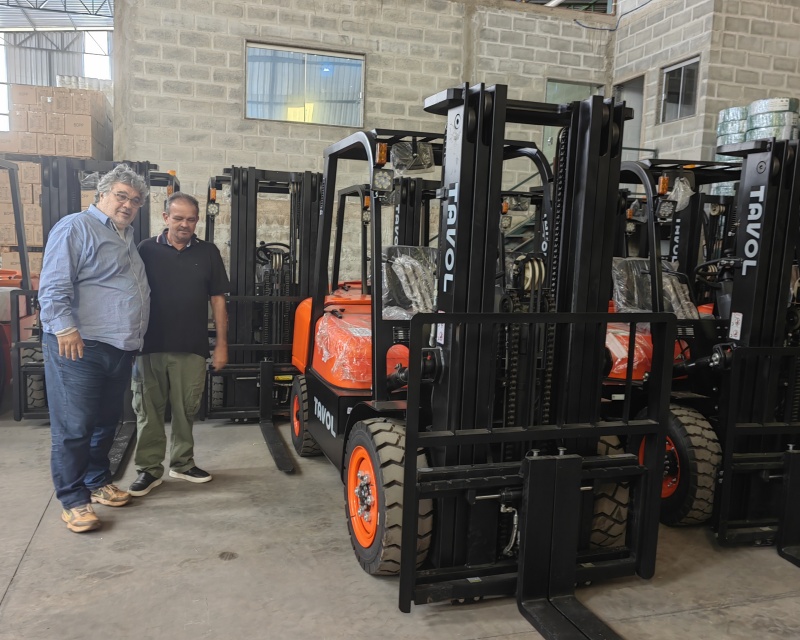

Customer Feedback
 |  |  |
 |
|  |
 |
|  |
Forklift Attachment
Contact us
Shirley Yu, Whatsapp: +86 18953348483, E-Mail: sls36@tavolgroup.com, Mobile/Wechat: +86 18779384380
