CPQYD20
Tavol

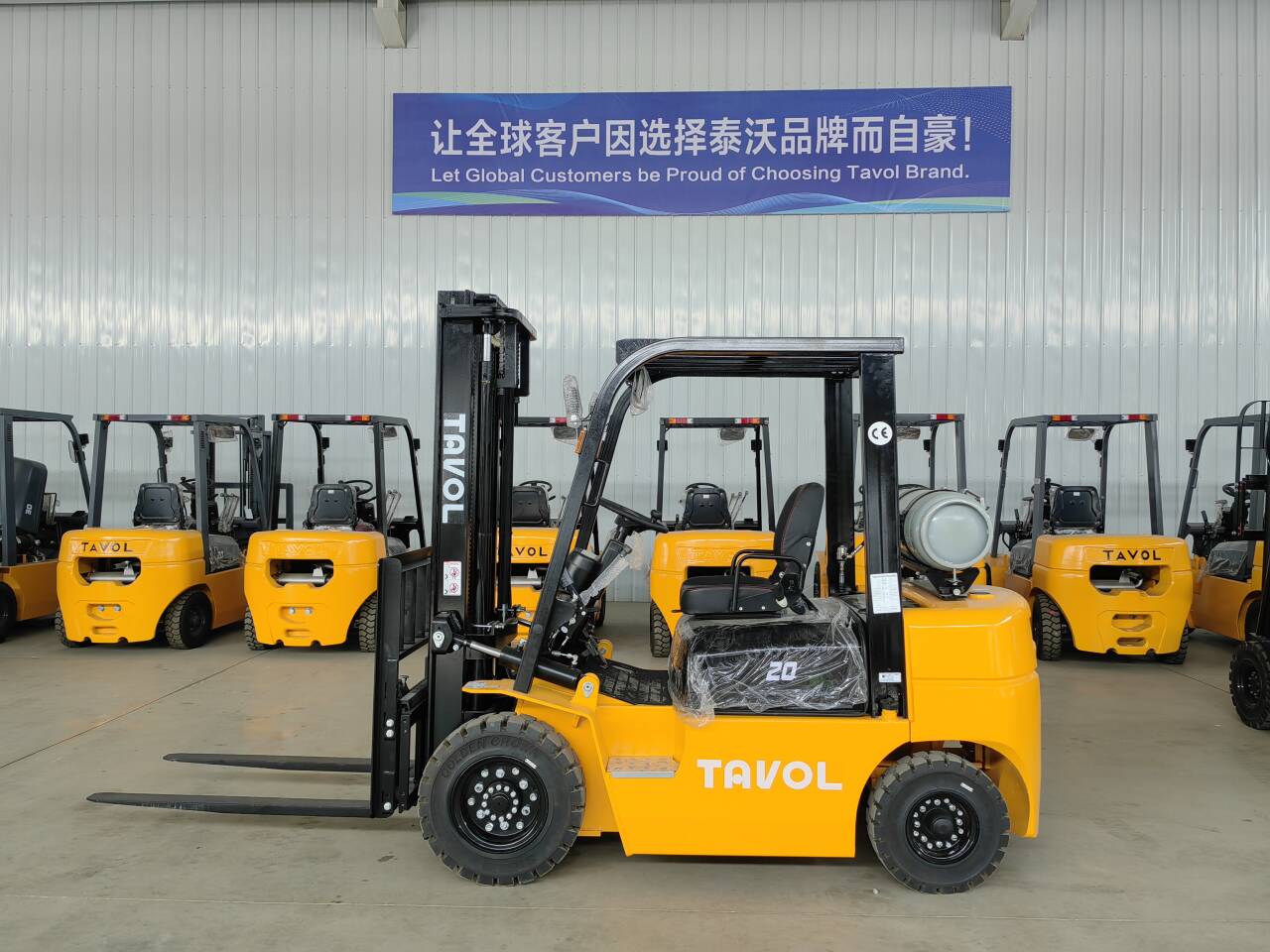

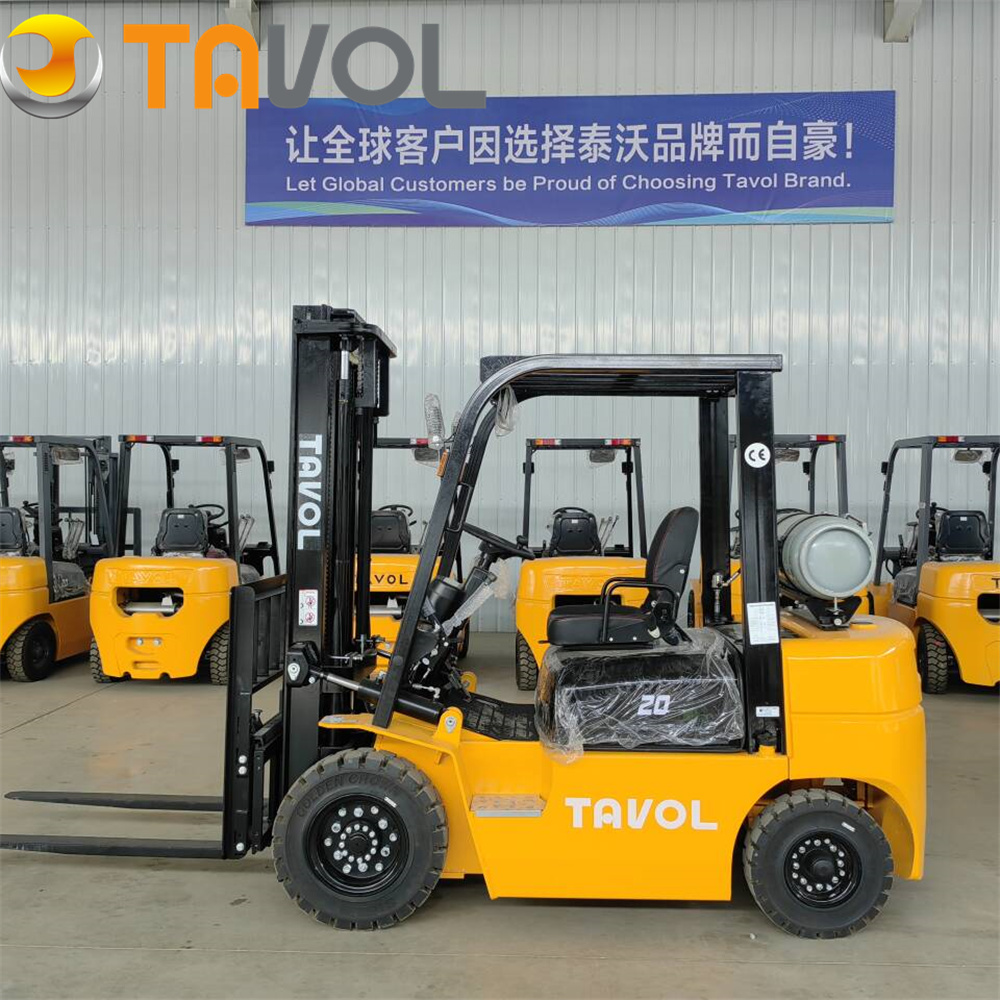

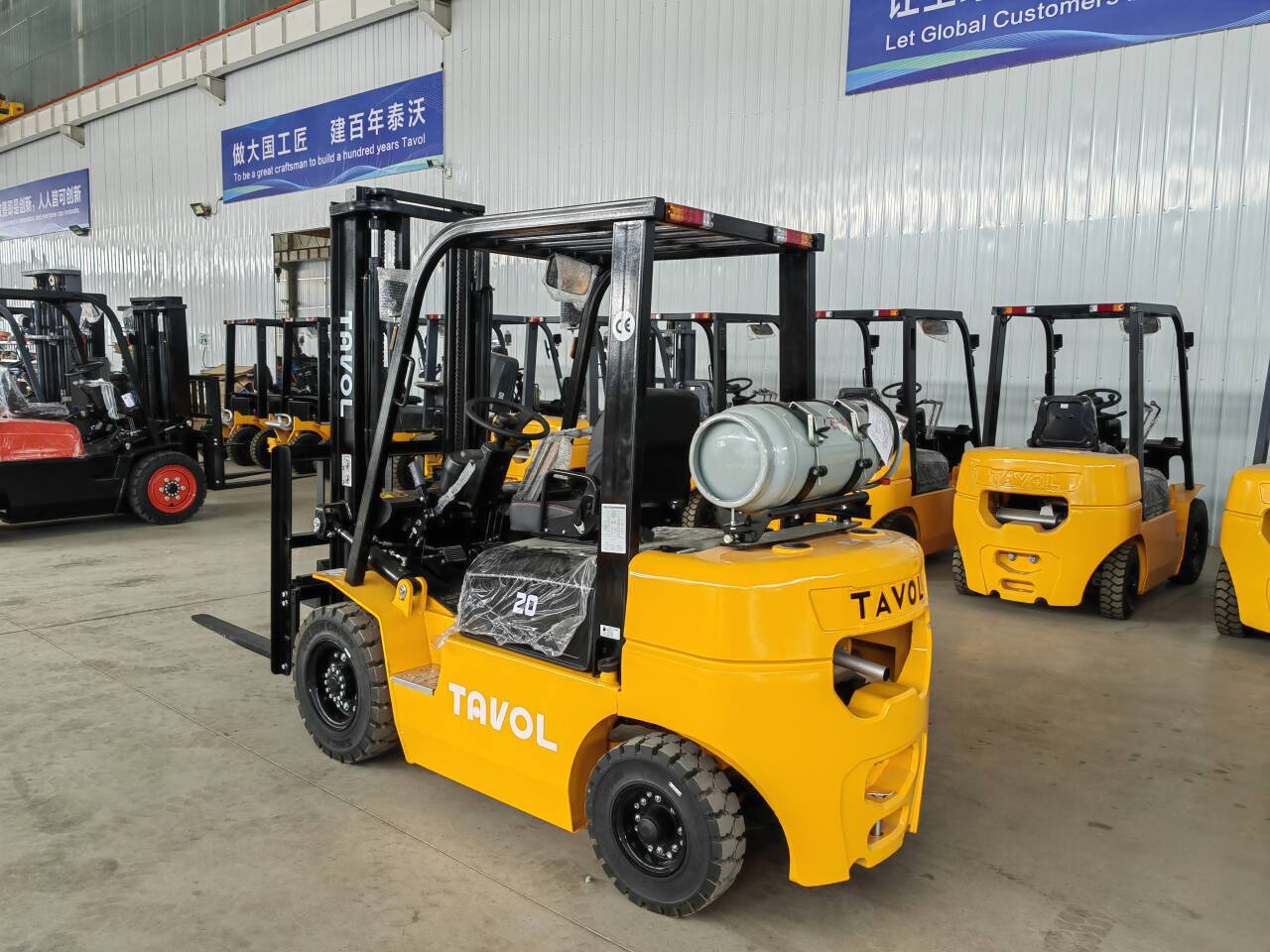

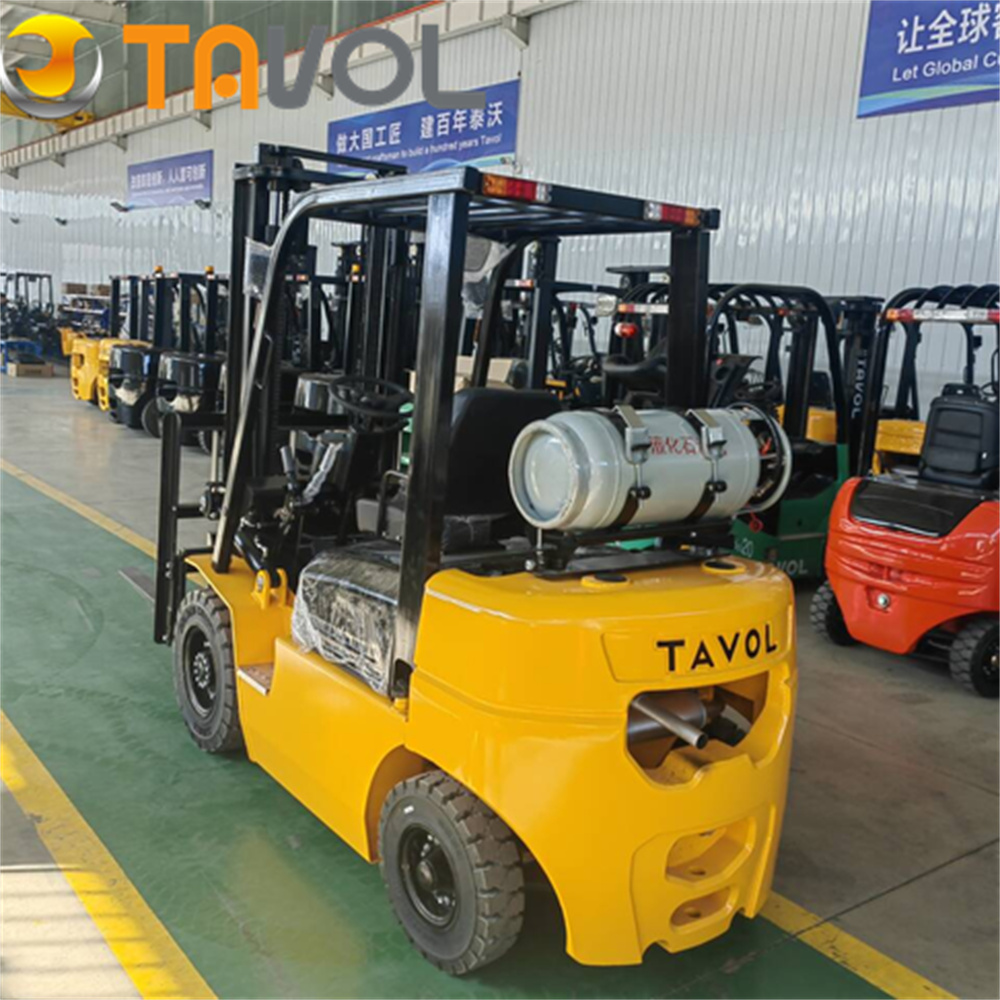

The 2-ton LPG forklift produces almost no harmful emissions during operation, greatly reducing environmental pollution. Its environmentally friendly features not only conform to the global trend of energy conservation and emission reduction, but can also win a good social reputation and brand image for your company.
With a powerful carrying capacity of 2 tons, this forklift can easily handle various heavyweight material handling tasks. Its stable driving performance and high operating efficiency ensure that you can maintain a high-efficiency production rhythm in any working environment.
Model | CPQYD20H | |||||
Rated capacity | KG | 2000 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3470 | ||||
Tire | 2 units | 7.00-12 | ||||
2 units | 6.00-9 | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
Industry Solution
Optimized for Modern Logistics Operations Our LPG forklifts deliver clean, efficient performance perfect for warehousing and logistics applications. Engineered for high-density storage environments, they excel at: ✔ Rapid loading/unloading - 15% faster cycle times Ideal for: Zero-emission indoor capability meets strict warehouse ventilation requirements while maintaining diesel-level power for outdoor yard operations. |
|
 | Efficient Material Handling for Industrial Production Our LPG forklifts optimize factory workflows by enabling seamless material transfer throughout the manufacturing process. Key applications include: ✔ Raw material transport to production lines Designed for factory environments, they feature: 30% more fuel-efficient than diesel alternatives, ensuring continuous production support with minimal downtime. |
Powering Port & Terminal Operations with Clean Efficiency Our LPG forklifts deliver diesel-level performance with cleaner operation for demanding port applications. Engineered for heavy-duty container handling, they excel in: ✔ High-intensity loading/unloading of ISO containers Key port-specific features: 30% lower operating costs than diesel alternatives while meeting strict port emission standards - the sustainable choice for modern harbors. |  |
Company Information
As a key subsidiary of Tavol Group, we leverage decades of industrial expertise and full-chain manufacturing capabilities, including machining, riveting, stamping, forging, electrical processing, heat treatment, painting, and precision mold manufacturing. This integrated production system ensures superior quality control, durability, and performance across every forklift we build.
Our R&D-driven factory specializes in designing and manufacturing a comprehensive range of material handling equipment:
✔ Diesel Forklifts (2-10 tons) – Robust power for heavy-duty operations
✔ Electric Forklifts (1-5 tons) – Eco-friendly solutions for indoor logistics
✔ Dual LPG Forklifts (2-4 tons) – Fuel-flexible and cost-efficient
✔ Off-Road Forklifts – Engineered for challenging terrains
 |  |  |
 |  |  |
More Information Please Tell Us
