CPCD
Tavol
8427209000

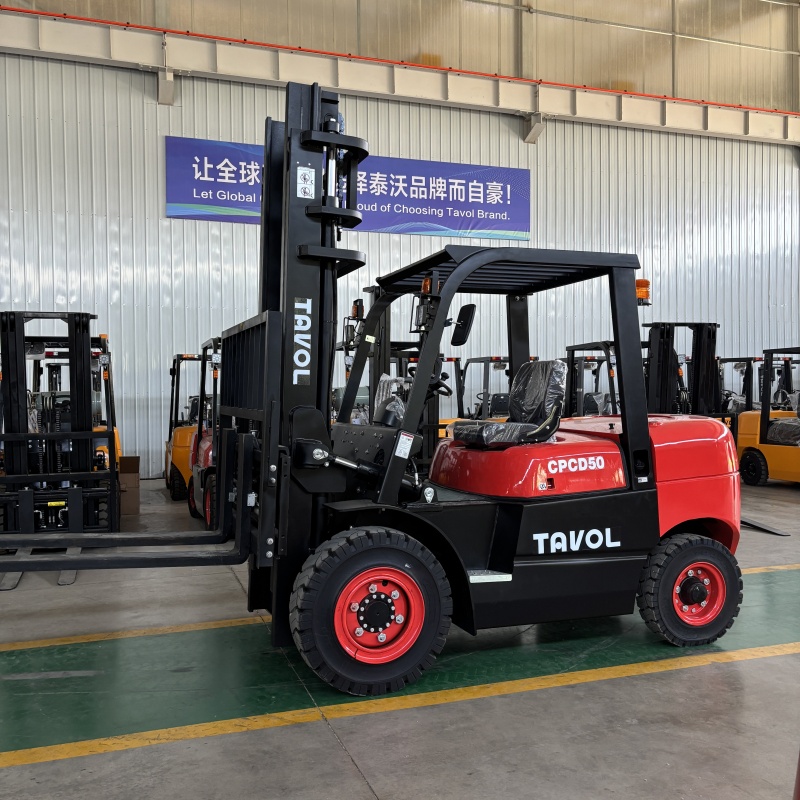

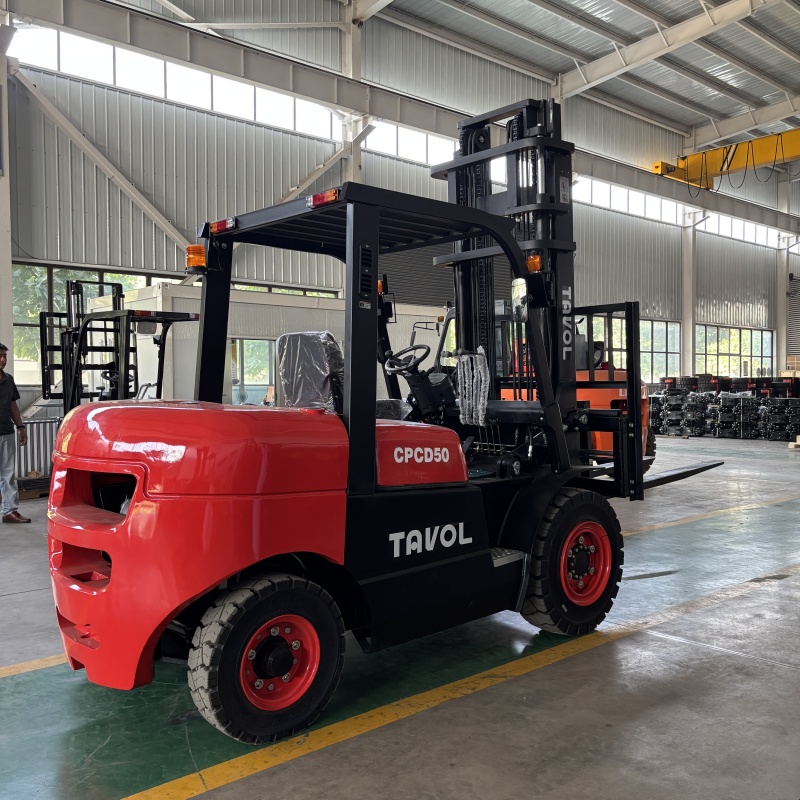

The 5-ton diesel forklift is a heavy-duty material handling equipment that uses a diesel engine as its power source. It has the characteristics of strong carrying capacity, high operating efficiency, and wide application range. It is widely used in various situations that require heavy material handling, such as loading and unloading, stacking, and handling
of warehouse goods, as well as material flow on factory production lines.
Technical Parameters
Model | CPCD50 | |||||
Rated capacity | KG | 5000 | ||||
Load center | MM | 600 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 210 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/h | 450 | |||
Traction(max) | Loaded/Unloaded | KN | 54 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 21/13 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 20/25 | |||
Turning radius(min) | MM | 3450 | ||||
The minimum clearance from the ground | MM | 230 | ||||
Wheelbase | MM | 2250 | ||||
Wheel tread | F/R | MM | 1470/1700 | |||
front overhang | MM | 610 | ||||
Dimensions | Length | With fork | MM | 4850 | ||
Width | MM | 1995 | ||||
Closed mast height | MM | 2500 | ||||
Overhead guard height | MM | 2420 | ||||
Max. Height at work | With/without backrest | MM | 4420 | |||
Fork size | LXWXT | MM | 1220x150x65 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 8500 | ||||
1. Strong carrying capacity: The rated lifting capacity of 5 tons allows the forklift to easily handle various heavy material handling tasks.
2. High operating efficiency: The diesel engine provides sufficient power, combined with the efficient transmission system and hydraulic system, so that the forklift can complete various actions quickly and accurately during operation.
3. Wide range of applications: Whether it is a flat warehouse floor or a rugged factory workshop, the 7-ton diesel forklift can operate stably and reliably.
Customer feedback from Germany
Customer feedback from Belgium
Customer feedback from Colombia
The 5-ton diesel forklift is a heavy-duty material handling equipment that uses a diesel engine as its power source. It has the characteristics of strong carrying capacity, high operating efficiency, and wide application range. It is widely used in various situations that require heavy material handling, such as loading and unloading, stacking, and handling
of warehouse goods, as well as material flow on factory production lines.
