CPQYD35
Tavol
Technical parameters

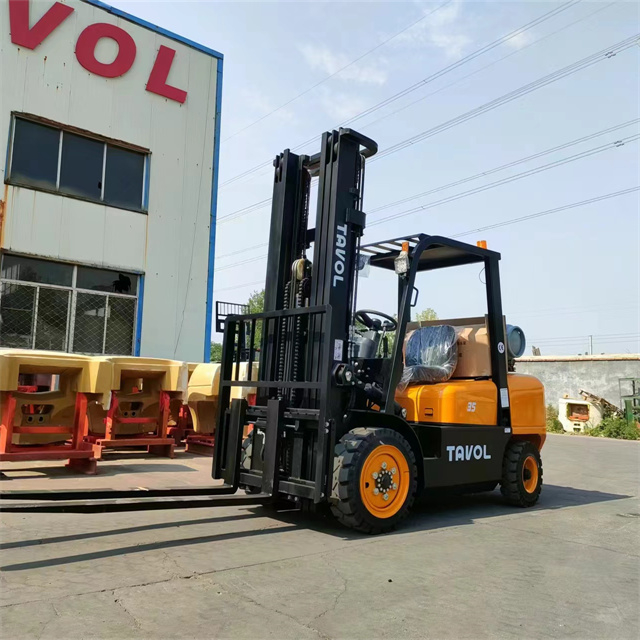

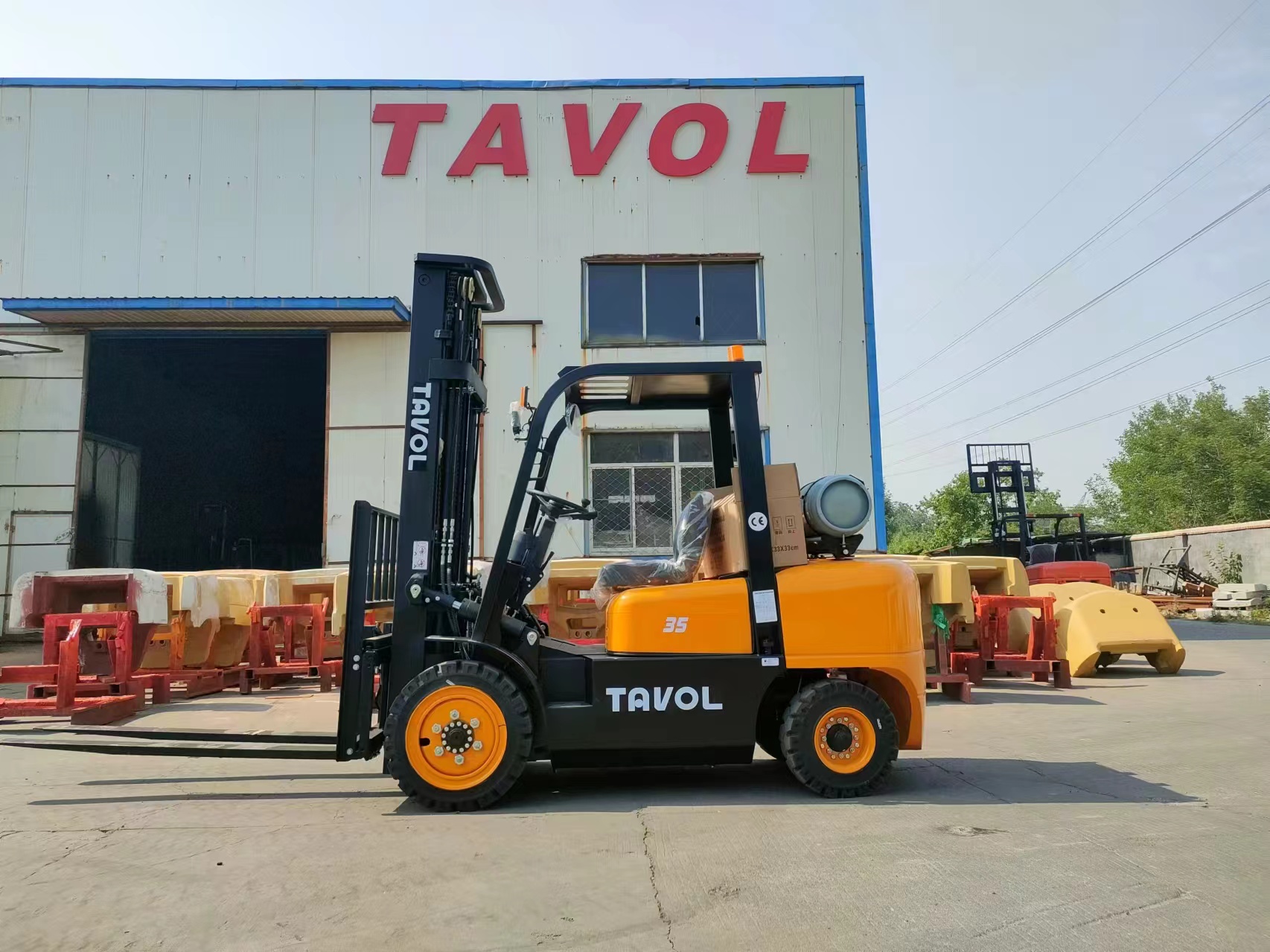

| 3.5 ton LPG forklift specifications | |||||
| type | CPQYD35 | ||||
| Rated capacity | kg | 3500 | |||
| Load center | mm | 500 | |||
| Lifting height (max) | mm | 3000 | |||
| Mast tilt angle | F/R | degree | 6°/12° | ||
| Lifting speed (max) | load | mm/s | 470 | ||
| Travel speed (max) | Loaded/uninstalled | km/h | 18/20 | ||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | ||
| Load (max) | |||||
| Turning radius (minimum) | mm | 2530 | |||
| Minimum clearance from the ground | mm | 110 | |||
| Ground to upper frame height | mm | 2110 | |||
| wheelbase | mm | 1775 | |||
| Car tread covers | F/R | mm | 1000/970 | ||
| size | length | With forks | mm | 3605 | |
| width | mm | 1160 | |||
| Enclosed mast height | mm | 2110 | |||
| Overhead guard height | mm | 2110 | |||
| Fork size | LXWXT | mm | 1220x122x40 | ||
| Standard fork length | mm | 1220 | |||
| dead weight | kg | 4490 | |||
| tired | F | 2 units | 25*9-15 | ||
| R | 2 units | 6.50-10 | |||
| motor | brand | Guangqing/Nissan K25 engine | |||
Industry Solutions
| Warehousing and logistics: In large warehouses, logistics centers and other places, 3.5-ton dual-fuel forklifts are used to transport and stack various goods to improve the efficiency of warehousing and logistics. These sites often handle large volumes of cargo and require high load-carrying capacity and flexibility of forklifts. | |
 | Manufacturing: On the manufacturing production line, forklifts are used to transport raw materials, semi-finished products and finished products. The 2.5-ton dual-fuel forklift can meet these needs, and its dual-fuel system helps reduce operating costs. |
| Agricultural mines: transportation of agricultural products or processing raw materials on farms; Transporting heavy loads, such as ores, in mines. The 2.5 ton dual fuel forklift truck is suitable for these environments because of its load capacity and durability. |  |
Optional
Company Information
TAVOL Group is a leading global integrated service provider of mechanical equipment, focusing on investment, financing and global marketing in the fields of lifting machinery, material handling machinery, construction machinery, engineering machinery and agricultural machinery.
As an integrator of the industrial value chain, the group owns 5 modern production bases, 1 intelligent technology factory and Hainan TAVOL International Trade Co., Ltd., and has built a complete industrial ecology from R&D and manufacturing to global sales. Through strict quality control and continuous innovation, TAVOL products have successfully entered the markets of more than 100 countries and regions around the world, and have successfully registered the Madrid international trademark, establishing a significant brand advantage in key markets such as Southeast Asia and Eastern Europe.
With a diversified mechanical equipment product line and an international marketing network, TAVOL is continuing to provide global customers with reliable equipment solutions and high-quality after-sales services to promote industrial upgrading and sustainable development.
