CPCD30
Tavol
Tavol 3Ton 3m-6m Mast Lithium Electric Forklift Truck with Side Shift
| Model | CPD30 |
| Loading Capacity (kg) | 3000 |
| Load Center Distance (mm) | 500 |
| Drive From | battery |
| Fork Lifting Height (mm) | 3000 |
| Length (Including Fork) (mm) | 4120 |
| Width (mm) | 1230 |
| Height (Door Frame Indented) (mm) | 2105 |
| Max working Height (mm) | 4270 |
| Wheel Base (mm) | 1700 |
| Wheel Track (Front/Rear) (mm) | 1000/970 |
| Front Overhang (mm) | 465 |
| Wheel Tyre (Front/Rear) | Pneumatic tire |
| Self Weight (kg) | 4650 |
| Fork Width (mm) | 122 |
| Fork Thickness (mm) | 45 |
| Standard Fork Length (mm) | 1070 |
| Battery (Voltage/Capacity) | 76.8V/205AH |
 |  |  |

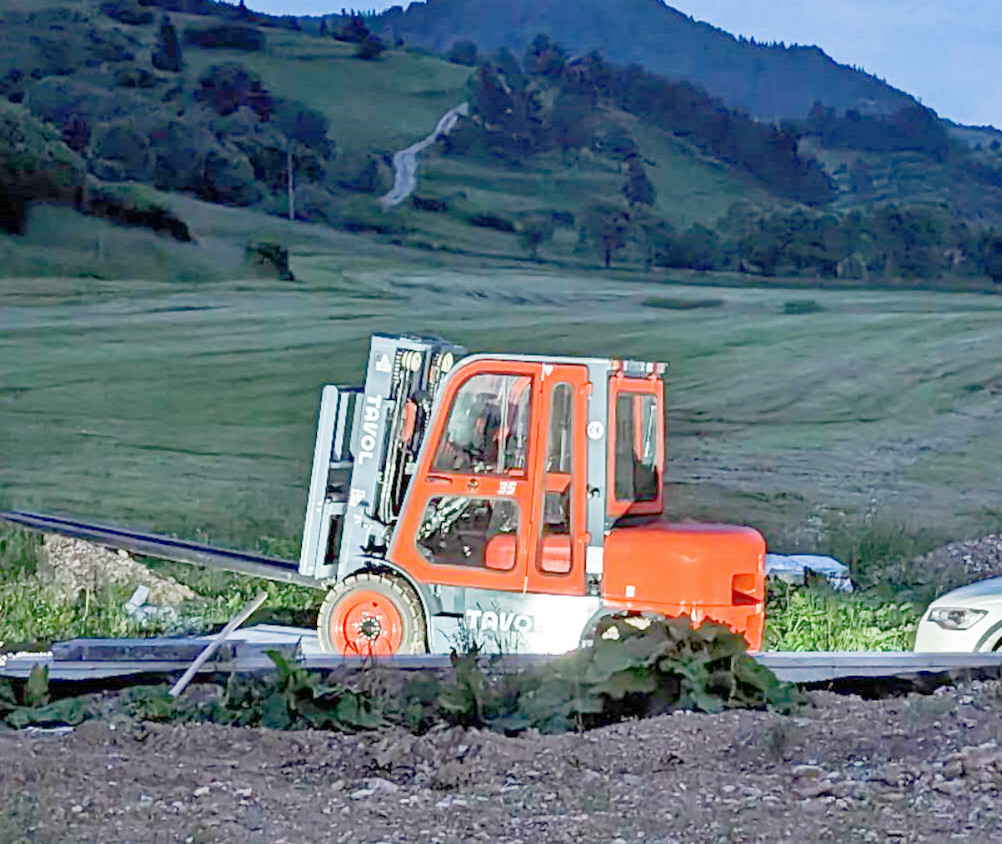

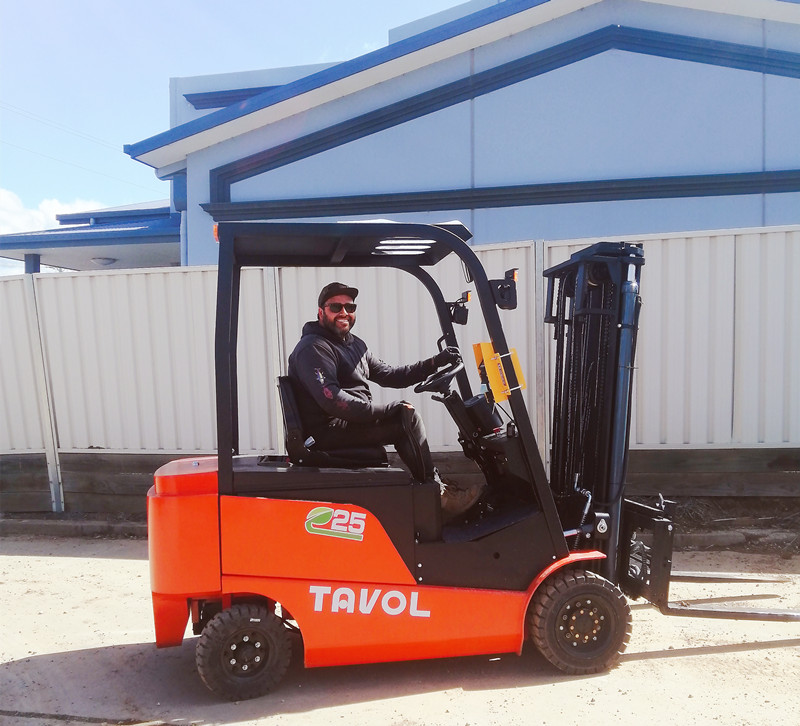

| Project in Australia | Project in Slovakia | Project in Belgium |
Ms.Joily
WhatsApp/WeChat:+8615166062329
Email:joily@tavolgroup.com
Tavol 3Ton 3m-6m Mast Lithium Electric Forklift Truck with Side Shift
| Model | CPD30 |
| Loading Capacity (kg) | 3000 |
| Load Center Distance (mm) | 500 |
| Drive From | battery |
| Fork Lifting Height (mm) | 3000 |
| Length (Including Fork) (mm) | 4120 |
| Width (mm) | 1230 |
| Height (Door Frame Indented) (mm) | 2105 |
| Max working Height (mm) | 4270 |
| Wheel Base (mm) | 1700 |
| Wheel Track (Front/Rear) (mm) | 1000/970 |
| Front Overhang (mm) | 465 |
| Wheel Tyre (Front/Rear) | Pneumatic tire |
| Self Weight (kg) | 4650 |
| Fork Width (mm) | 122 |
| Fork Thickness (mm) | 45 |
| Standard Fork Length (mm) | 1070 |
| Battery (Voltage/Capacity) | 76.8V/205AH |
| | |
| Project in Australia | Project in Slovakia | Project in Belgium |
Ms.Joily
WhatsApp/WeChat:+8615166062329
Email:joily@tavolgroup.com
