CPQYD
Tavol
 |  |  |
Technical parameters
Model | CPQYD30 |
Load Capacity | 3000 |
Load Center Distance | 500 |
Free lifting Height | 160mm |
Overall Length(With Fork/Without Fork) | 3752/2682 |
Width | 1225mm |
Overhead Guard Height | 2090mm |
Wheelbase | 1700mm |
Minimum Ground Clearance | 135mm |
Mast Tilt Angle(Front/Rear) | 6/12% |
Tire No(Front ) | 28X9-15-14PR |
Tire No(Rear) | 6.5-10-10PR |
Minimum Turning Radius(Outside) | 2400mm |
Minimum Right Angle Aisle Width | 4260mm |
Fork Size | 1220X125X45mm |
Minimum turning radius | 2450 |
Fork size | 1070mm*120mm*40mm |
Maxmum Working Speed(Full-Load/No Load) | 18/19km/h |
Maxmum Speed Speed(Full-Load/No Load) | 440/480mm/s |
Maximum Gradeability (Full-Load/No Load) | 15/20% |
Total Weight | 4250kg |

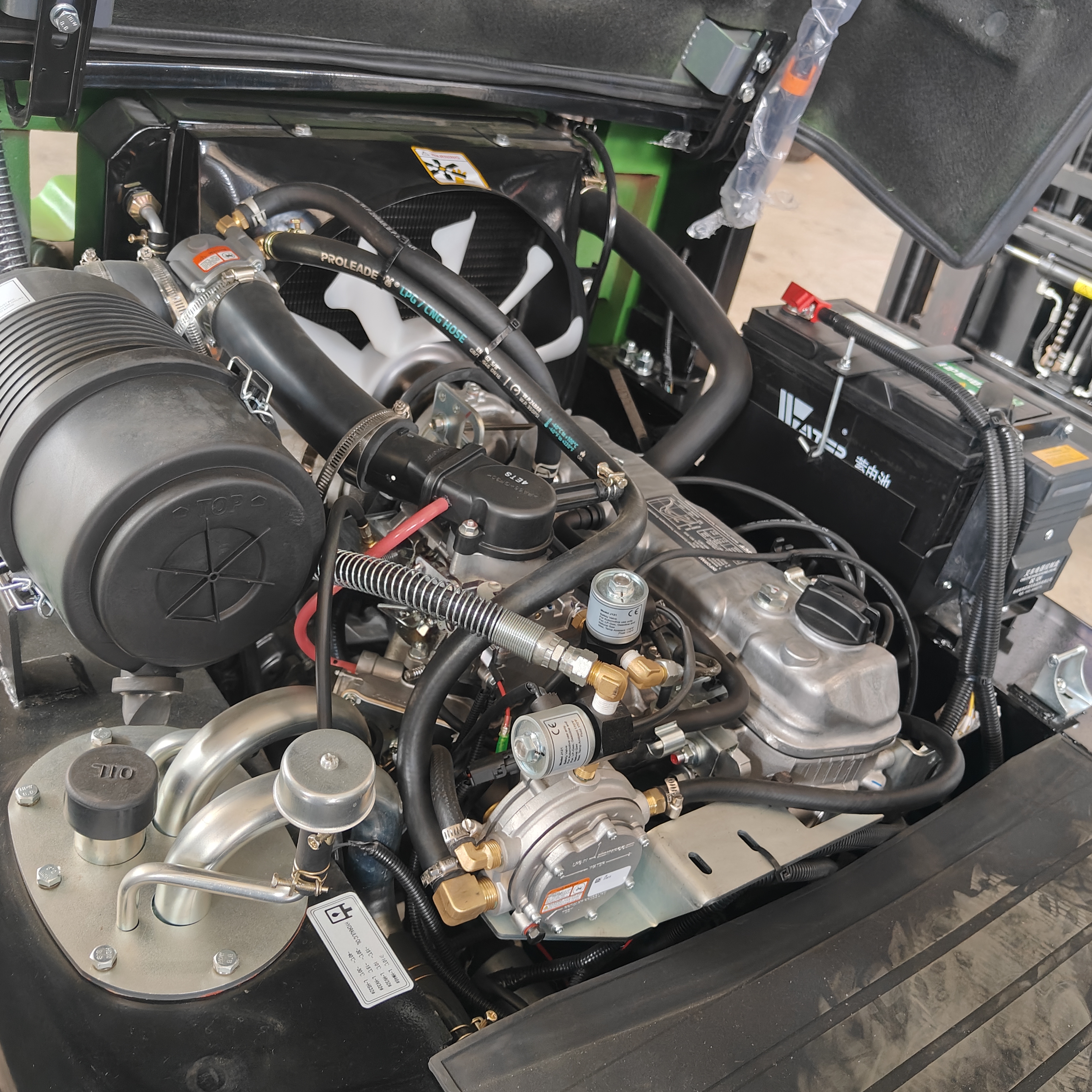

Engine | NISSAN ENGINE 37.4/35KW |
Type Of Power Shift | Hydraulic Transmission/Automatic |
>>> Attachment for Fork Lift
Optional side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
 |  |  |
| fork positioner side shifter | paper roll clamp | 360 Degree Rotator |
1. Extra-wide step pedal
The step pedal width is increased by 55%, which improves the sense of security when getting on and off the vehicle.
2. Half-moon-shaped small-diameter steering wheel
The outer diameter of the steering wheel is reduced to 300mm, which reduces the driver's operating fatigue and improves the driver's operating comfort.
3. One-piece structure overhead guard
The front legs, ceiling assembly, and rear legs of the overhead guard are welded together to increase the strength of the overhead guard.
4. Spacious floor
The tilt cylinder is stored under the floor, which increases the floor area by 45%, making it very easy to operate at the foot and get on and off the vehicle.
 |
|  |
|
| Project in Mexico | Project in Slovakia | Project in Germany | Project in Morocco |
 |  |  |
 |  |  |
Welcome you Contact US:
Ms.Joily Sun
Wechat/WhatsApp :+8615166062329
Email:joily@tavolgroup.com
| | |
