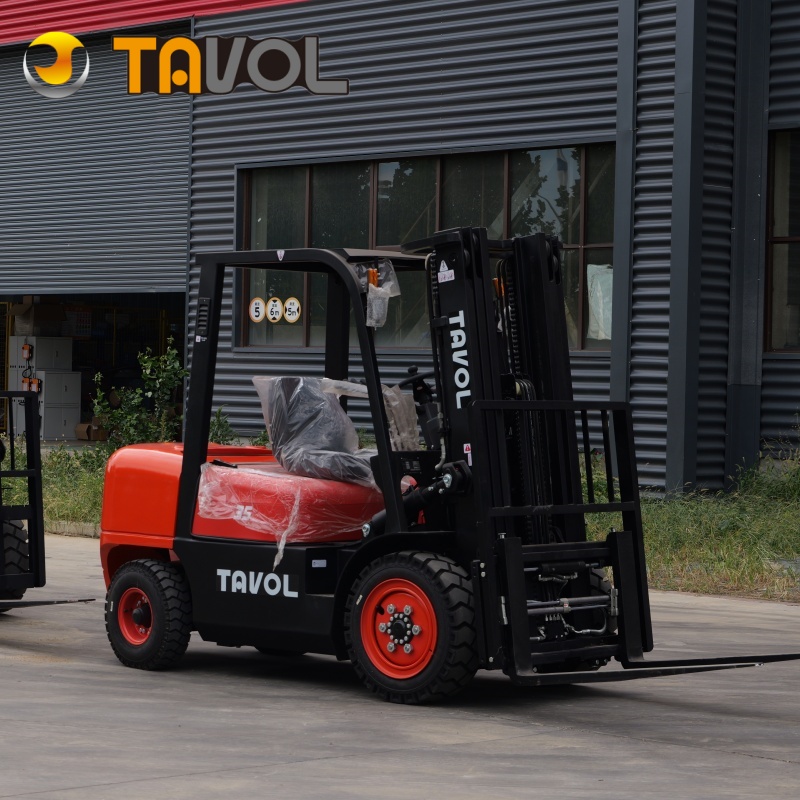

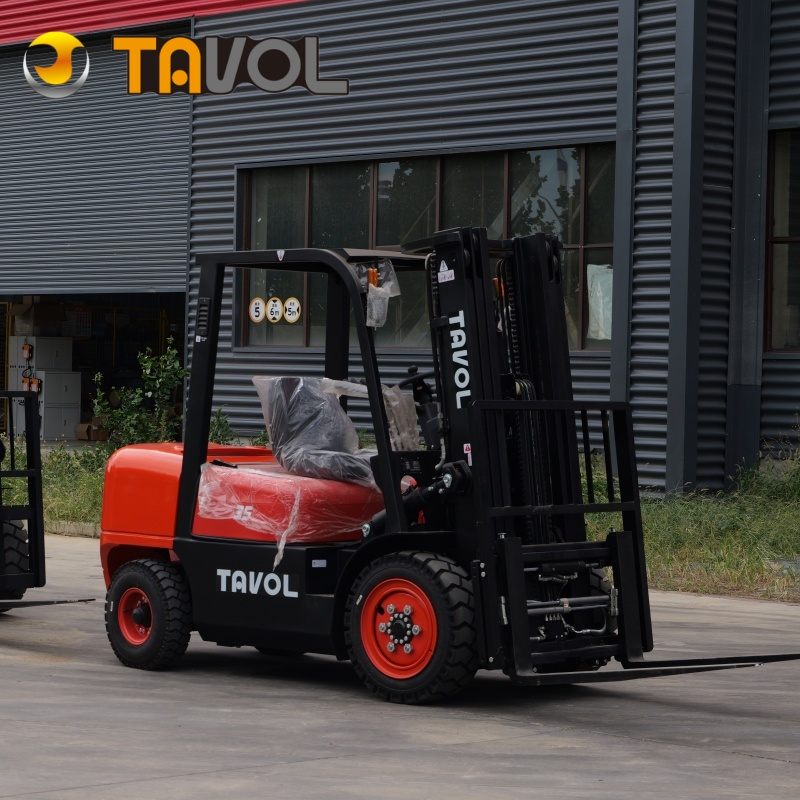

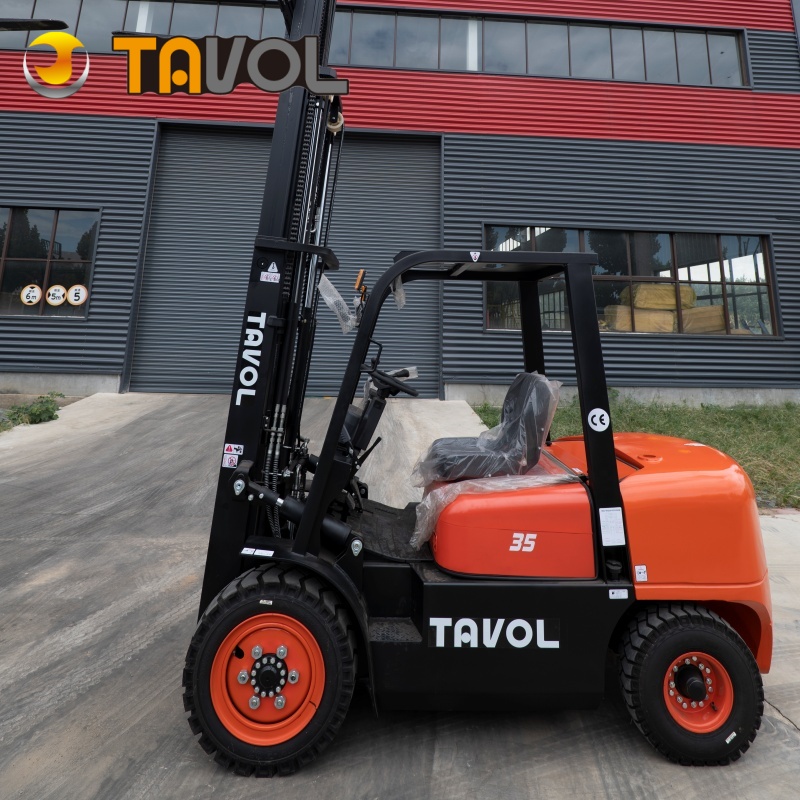

Tavol Warehouse 3.5T Diesel Forklift

Name: Tavol Warehouse 3.5T Diesel Forklift
Brand: Tavol
SKU: 507320317
Rating: 5.0 (81 reviews)

This 3.5-ton diesel forklift uses a high-efficiency diesel engine with strong power and good fuel economy. It is suitable for high-intensity handling operations, especially for outdoor and harsh working conditions.

The hydraulic system is responsive and precise, and the standard side-shift adjustable forks improve loading and unloading efficiency. The user-friendly cab features a shock-absorbing seat, a clear instrument panel, and an ergonomic control layout to reduce operator fatigue.

Capacity(kg):	3500kg
Fork size(mm）:	1220mm
Lifting height:	3m
Availability:

Quantity:



Inquire Add to Basket

Model:
CPCD35
Brand:
Tavol

Product Description

Mast and Lift Height for Fork Lift

/	2- Stage Mast 2-	Triplex Mast
1	3 m	4.5m
2	3 m with full free mast	5m
3	3.5m	5.5m
4	4m	6m
5	4.5m	7m
6	5m	/

Product specifications

Model	CPCD35
Rated Loading Capacity(kg)	3500
Load Center Distance(mm)	500
Drive Form	Diesel
Fork Lifting Height(mm)	3000
Mast Tilt Angle (Forward and Backward)	6°/12°
Length (Including Fork)(mm)	3970
Width(mm)	1230
Height(Door Frame Indented)	2110
Front Overhang(mm)	465
Wheel Base(mm)	1775
Front Wheel Track(mm)	1000
Rear Wheel Track(mm)	970
Front Wheel Tyre	28*9-15
Rear Wheel Tyre	6.50-10
Self Weight(kg) (kg)	4600
Fork Width(mm)	122
Standard Fork Length(mm)	1220
Engine Rated Power(kw)	36.8
Transmission form	Hydraulic
