CPQYD3
Tavol

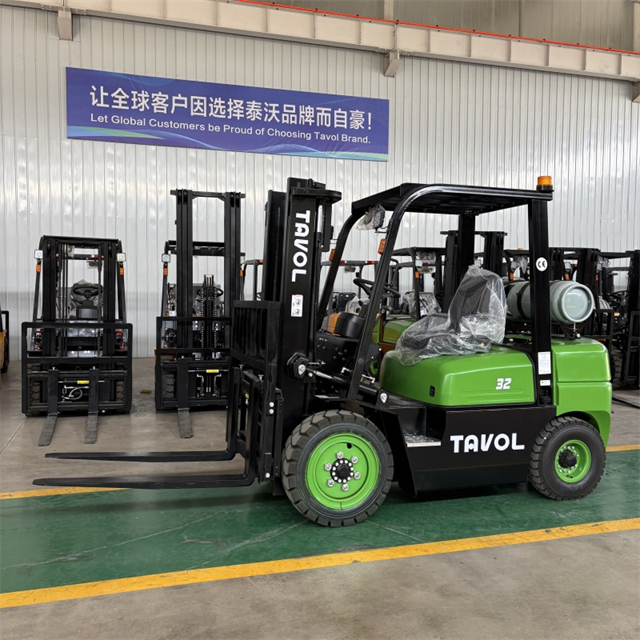

The 3.0 ton LPG forklift is a forklift that combines traditional fuels (such as diesel) and clean energy (such as LPG, LPG or natural gas, CNG) to provide efficient and environmentally friendly material handling solutions. With its compact design and strong load capacity, the forklift truck is suitable for a variety of industrial and commercial environments, such as warehouses, factories, docks, etc.
Technical parameters
| 3.0 ton LPG forklift specifications | |||||
| type | CPQYD30 | ||||
| Rated capacity | kg | 3000 | |||
| Load center | millimetre | 500 | |||
| Lifting height (max) | millimetre | 3000 | |||
| Lift the height freely | millimetre | 60 | |||
| Mast tilt angle | F/R | degree | 6°/12° | ||
| Lifting speed (max) | load | mm/s | 400 | ||
| Traction (max) | Loaded/uninstalled | KN (English) | 15/10 | ||
| Travel speed (max) | Loaded/uninstalled | km/h | 17/19 | ||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | ||
| Load (max) | |||||
| Turning radius (minimum) | millimetre | 2450 | |||
| Minimum clearance from the ground | millimetre | 110 | |||
| Ground to upper frame height | millimetre | 2050 | |||
| wheelbase | millimetre | 1640 | |||
| Car tread covers | F/R | millimetre | 970/970 | ||
| Front overhang | millimetre | 451 | |||
| size | length | With forks | millimetre | 3605 | |
| width | millimetre | 1160 | |||
| Enclosed mast height | millimetre | 2095 | |||
| Overhead guard height | millimetre | 2095 | |||
| Maximum working height | with/without backrest | millimetre | 4080 | ||
| Fork size | LXWXT | millimetre | 1220x122x40 | ||
| Standard fork length | millimetre | 1070 | |||
| dead weight | kg | 4250 | |||
| tired | 2 units | Pneumatic tires | |||
| 2 units | Pneumatic tires | ||||
| motor | brand | Guangqing/Nissan K25 engine | |||
Successful Cases in the World
With global sales exceeding 10,000+ units, our forklifts are helping warehousing and logistics on five continents! Our quality footprint is spread across 60+ countries including the United Kingdom, France, Italy, Poland, Czech Republic, Bulgaria, Romania, Georgia, Turkey, Brazil, Chile, Argentina, Peru, Mexico, Belize, Colombia, Australia, the United States, Algeria, the United Arab Emirates, Saudi Arabia, Indonesia, Ghana, Guinea, South Africa, etc. Mutual benefit and common development.
Ten thousand lifts, ten thousand trusts. Our forklifts are becoming the tireless porters of the global village. Whether it is the extremely cold Nordic warehouses, the hot Middle Eastern construction sites, or the dust-free workshops of the precision electronics industry, we provide full-scenario material handling solutions.
 |  |  |
|  |  |
