CPCD25
Tavol

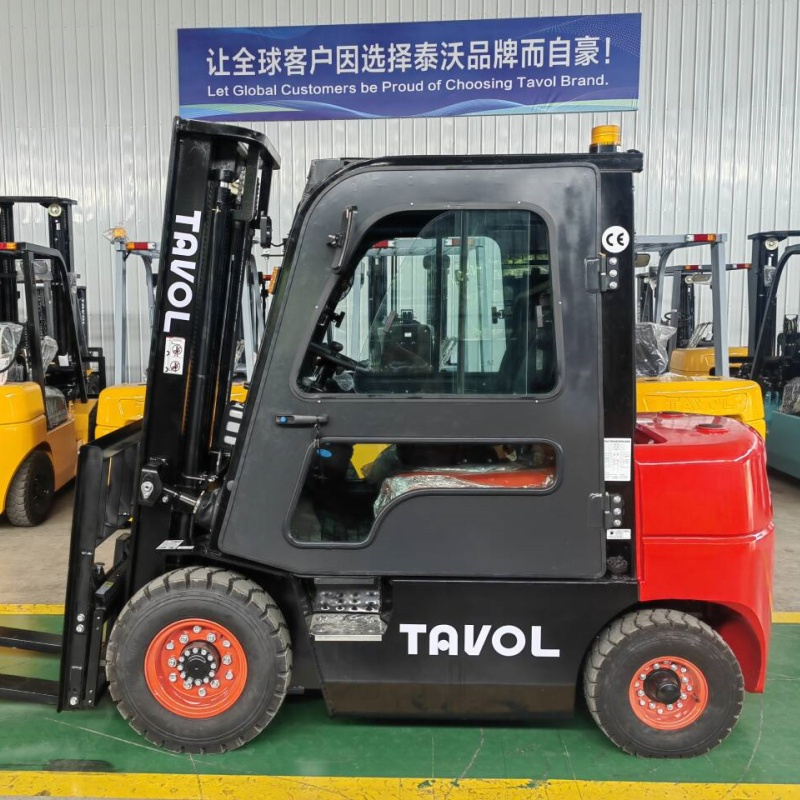

The 2.5-ton diesel forklift is a heavy-duty handling equipment specially designed for logistics, warehousing, manufacturing and other industries. It uses diesel as its power source and has the characteristics of strong carrying capacity, high operating efficiency and strong adaptability, and can meet the material handling needs under various complex working conditions.
Technical Parameters
Model | CPCD25 | |||||
Rated capacity | KG | 2500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3600 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Xinchai 4D29V41 | ||||
Maximum output power(Kw) | 36.8 | |||||
Rated speed(rpm) | 2400 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600-1800 | |||||
The engine form | Hydraulic | |||||
Product details:
1. All-weather operation capability: The fully enclosed cab completely solves the pain points of outdoor workers, significantly improving attendance rates and operational continuity in harsh weather conditions, ensuring project progress.
2. Extremely high overall economic efficiency: "Powerful and worry-free." The diesel engine offers low fuel costs, high torque, and robust durability. Combined with a low failure rate and convenient maintenance design, its long-term total cost of ownership is significantly lower than electric models of the same tonnage, resulting in a higher return on investment.
3. Excellent driver retention appeal: "Comfort is competitiveness." In today's labor shortage, a safe, comfortable, and low-fatigue working environment significantly improves driver satisfaction and loyalty, helping customers attract and retain skilled operators, indirectly improving operational safety and efficiency.
4. Strong environmental adaptability: "Go wherever needed." It does not rely on charging facilities and has relatively lenient requirements for road surfaces. This multi-functional vehicle can handle both precise warehouse handling and rough site transfers, making it an ideal choice for customers with high mobility and complex working conditions.
5. Robust and reliable investment protection: Thanks to its sturdy body, reliable powertrain, and proven durability, this model retains its value well, representing a reliable asset that can create long-term value for customers.
Side Shifter: Allows the forks to move horizontally left and right.
Benefits: Enables precise alignment with racks or pallets without repeatedly adjusting the entire forklift's position, significantly improving stacking efficiency and accuracy, especially advantageous in high-bay warehouses.
Adjustable Forks: Adjusts the distance between the two fork arms using a hydraulic system.
Benefits: Quickly adapts to different pallet sizes, eliminating the need for manual fork replacement, saving time and labor.
Project in Armenia
Project in Azerbaijan
Project in Mexico
Q1: Are you the factory or the trading company ?
A1: We are the factory, we located in Taian City, Shandong Province, China.
Q2: How long is the warranty period? Can you provide spare parts for free ?
A2: 1 Years warranty period, of course. We can provide spare parts for free.
Q3: How about the delivery time?
A3: 5-15 days around.
Q4: What your term of payment?
A4: TT and L/C.
Q5. Can you customize and design as the clients' requirement?
A5: TAVOL will try its best to meet all kinds of clients' special requirements.
