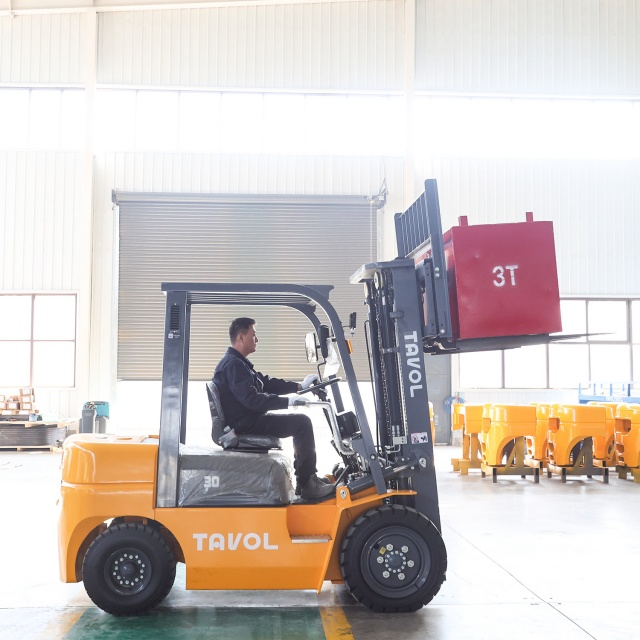

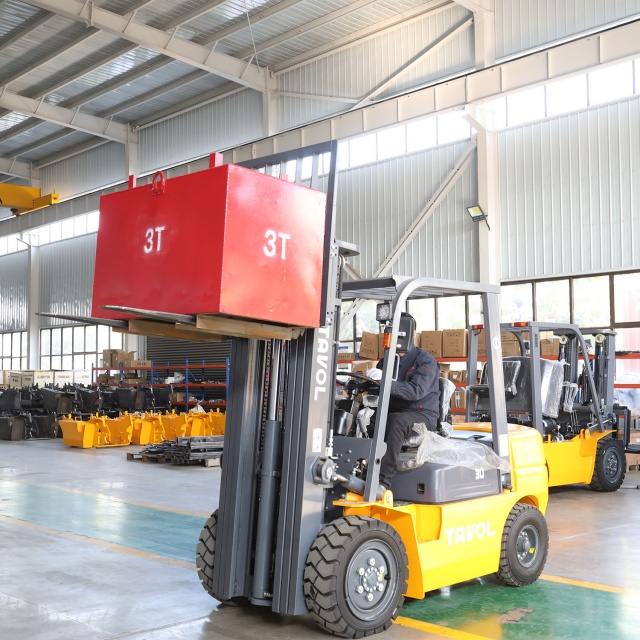

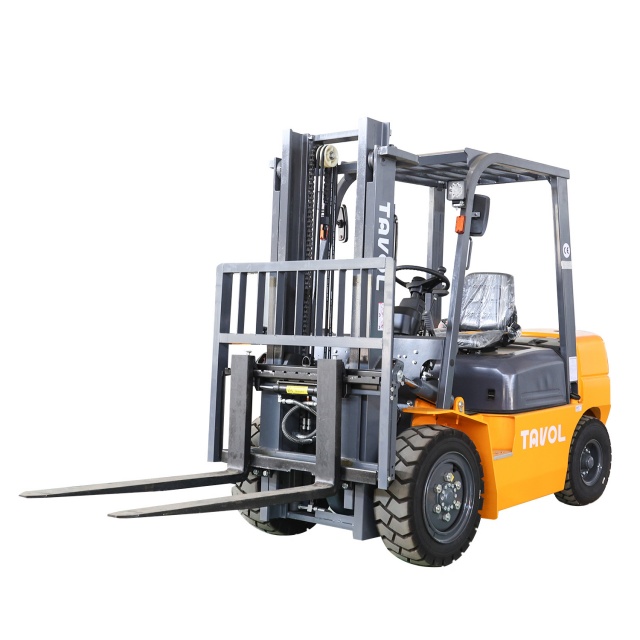

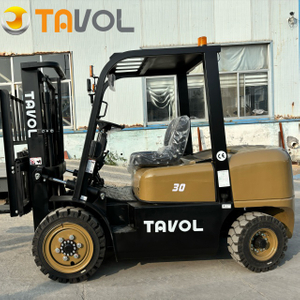

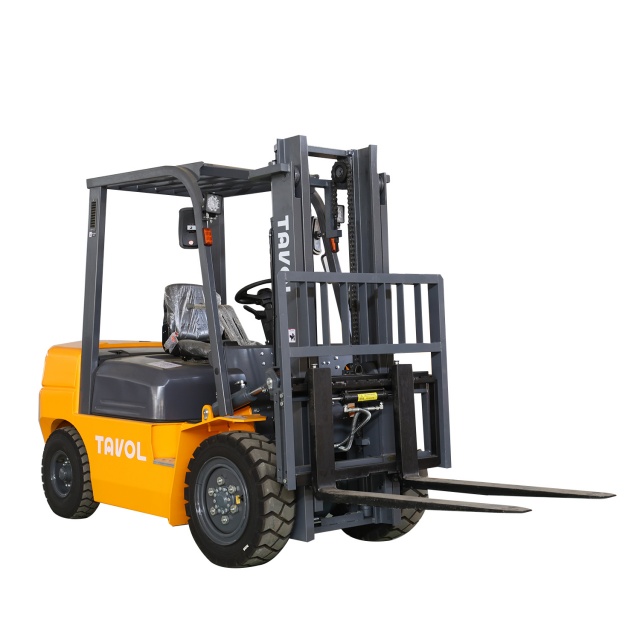

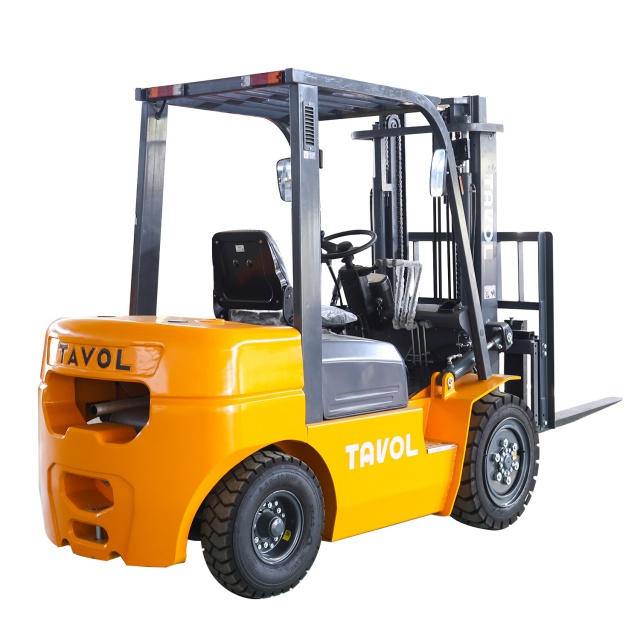

CPCD30
Tavol
TAVOL brand forklift applied CE certificate, the performance & technical specification is advanced in China, has reached the international advanced level .We have exported to many countries, such as Germany, Brazil, Mexico, Spain, Moldova, Albania, Paraguay, El Salvador, Argentina, Bosnia, Kuwait, Turkey, Cyprus, Saudi Arabia, Indonesia,Georgia, Bangladesh, Philippines, Australia etc.
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Fork Length for Forklift
1. Standard: 1070 mm for 2t & 2.5t forklift
2. Standard: 1220 mm for 3t & 3.5t forklift
3. Optional: 1370mm, 1520mm, 1670mm, 1820mm for forklift

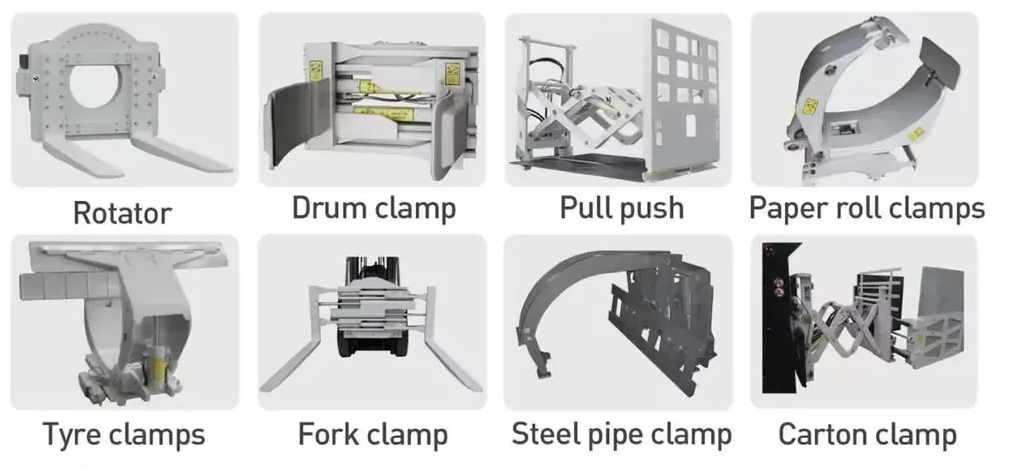

Attachment for Fork Lift
Optional side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
Other Optional for Forklift
1. Solid tyre
2. 1.8- 2m fork sleeve
3. Alarm
4. Cabin etc
Product specifications
| Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | CPCD50 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Drive Form | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | 4100 | 4350 |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 | 1400 |
| Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | 2120 | 2330 |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | 2115 | 2330 |
| Front Overhang(mm) | 451 | 451 | 465 | 465 | 465 | 585 |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 | 2150 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 |
| Front Wheel Tyre | 7:00-12 | 7:00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 |
| Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 |
| Self Weight(kg) (kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | 4810/4850 | 6800 |
| Fork Width(mm) | 122 | 122 | 122 | 122 | 122 | 150 |
| Fork Thickness(mm) | 40 | 40 | 45 | 45 | 50 | 55 |
| Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 62.5 |
| Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 | 2500 | 2200 |
| Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 | 190 | 320 |
| Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 | 1600-1800 | 1800 |
| Transmission form | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Product details

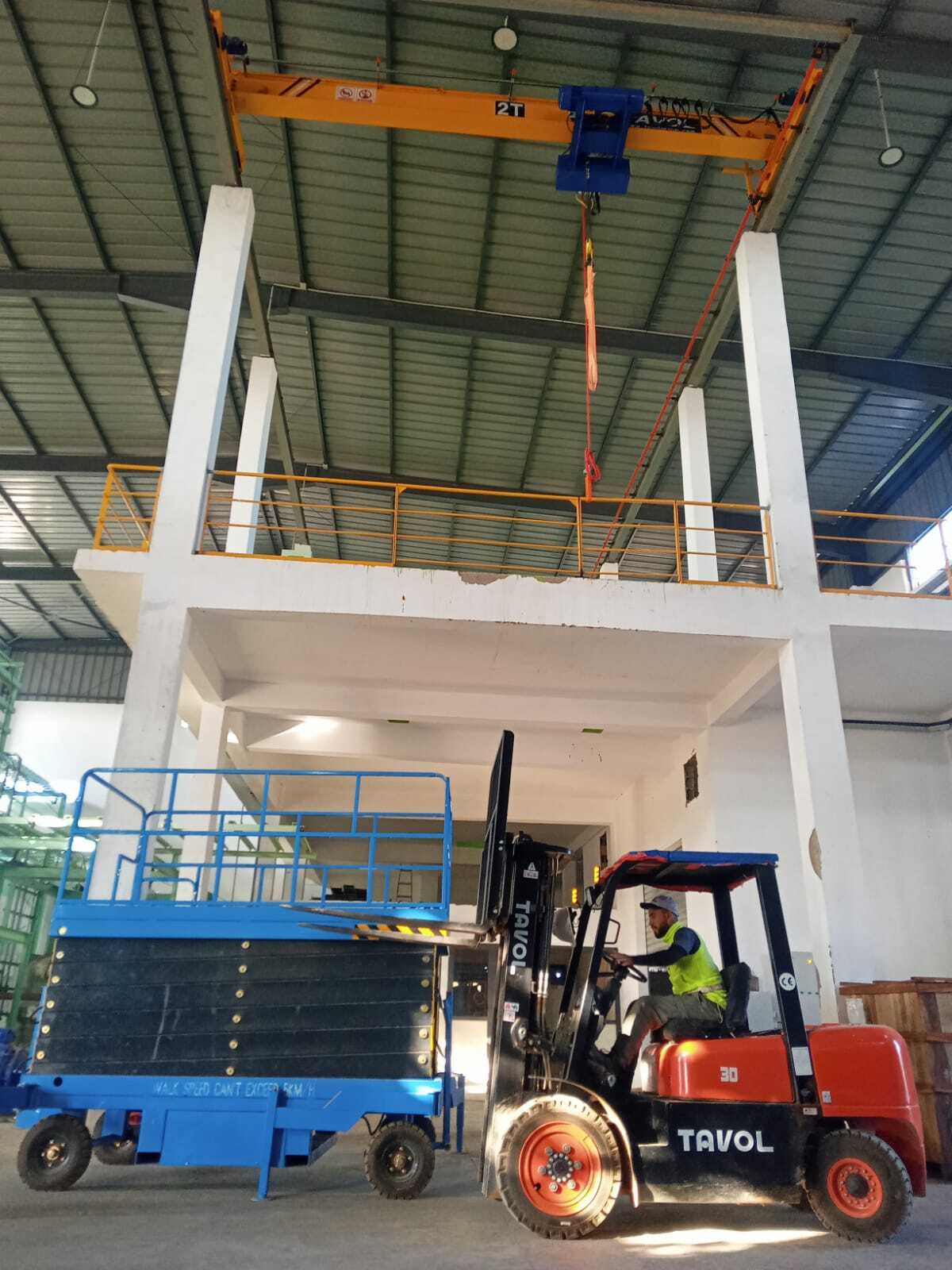

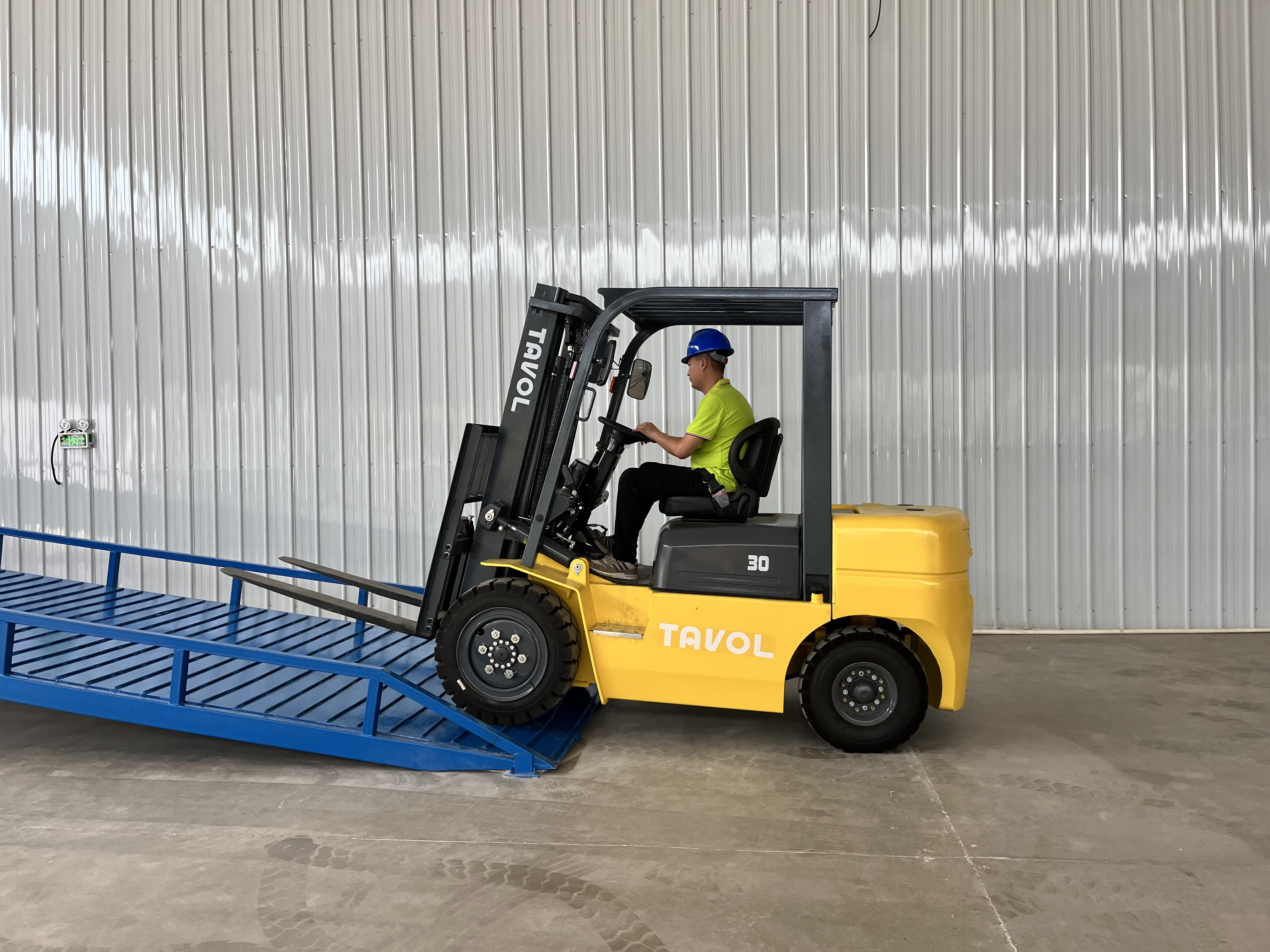

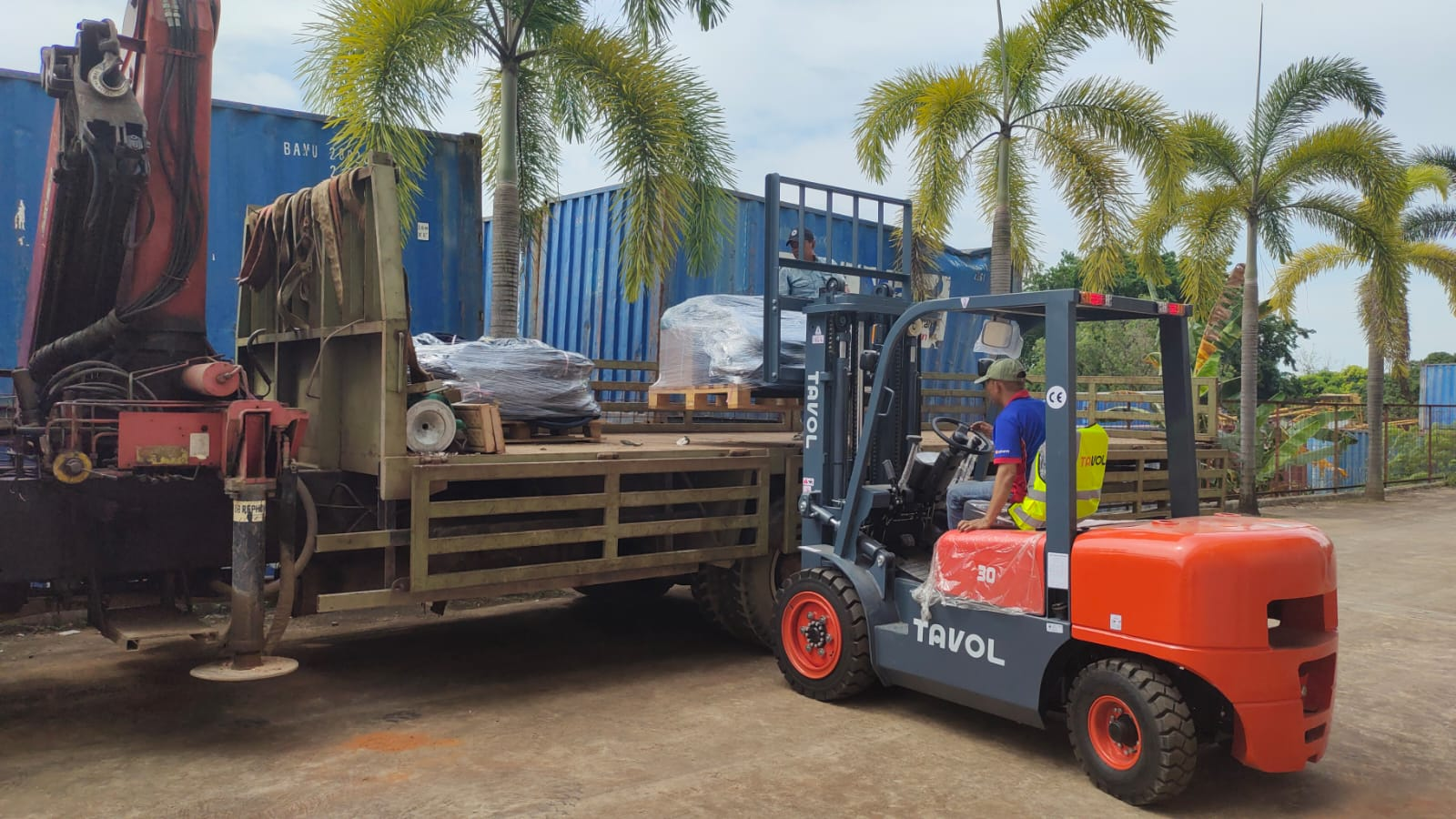

Since its launch, Tavol forklifts have successfully delivered more than 10,000 units worldwide, becoming a reliable partner for warehousing logistics, leasing industry and industrial handling. Our products span five continents and serve more than 60 countries. From precision manufacturing in Europe to port freight in South America, from large-scale infrastructure in the Middle East to rapidly developing e-commerce warehousing in Southeast Asia, Tavol forklifts are winning the trust of global customers with their excellent performance!
Global coverage, local service - Tavol forklifts help upgrade world logistics
✔ High-end market in Europe: the first choice for automated warehousing in the UK, France, Germany and other countries
✔ Efficient logistics in the Americas: core equipment for e-commerce and port logistics in Brazil, Mexico, the United States and other countries
✔ Harsh environment in the Middle East: stable operation in high-temperature construction sites and heavy-duty handling scenarios in the UAE and Saudi Arabia
✔ Emerging economies in Asia and Africa: the backbone of logistics in fast-growing markets such as Indonesia, Ghana and South Africa
 |  |
|
 |  |  |
