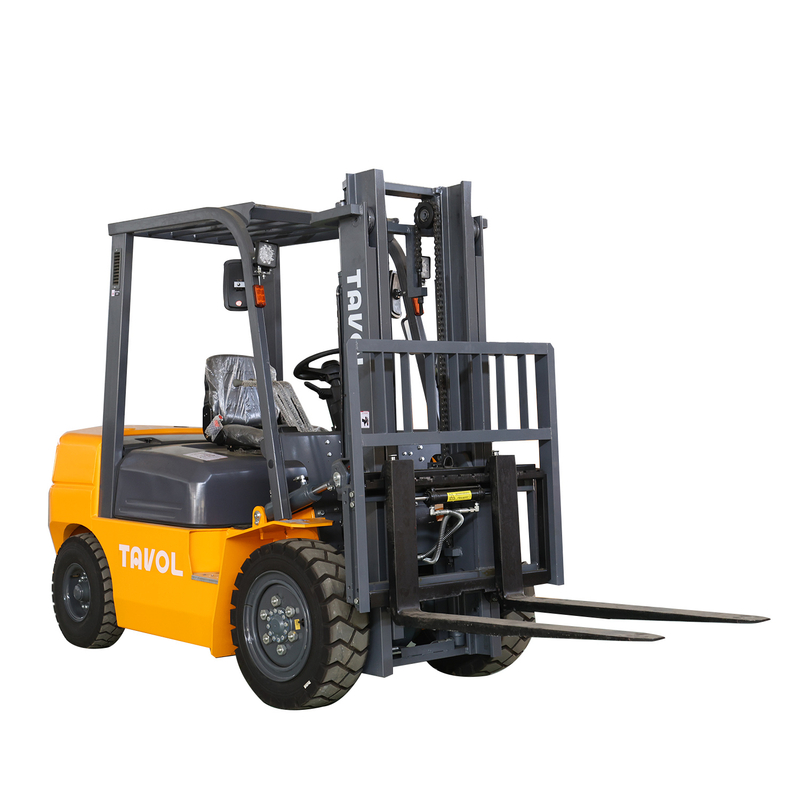

CPCD30
Tavol
Tavol forklifts are equipped with internationally renowned engines, which are powerful, energy-saving and environmentally friendly, and meet strict emission standards.
The humanized cockpit design and optimized joystick and pedal layout make long-term operation easy and comfortable.
The core structure adopts high-strength integral welding technology. The frame, mast and fork frame are all made of top-grade steel, 100% independently produced, ensuring super strong load-bearing capacity and super long service life, meeting the requirements of various working conditions!
Technical Parameters
| Model | CPC30/ CPCD30 |
| Rated Loading Capacity (kg) | 3200 |
| Load Center Distance (mm) | 500 |
| Max Lifting Speed (Full load) (mm/h) | 475 |
| Max Driving Speed (Empty/Full load) (km/h) | 18/20 |
| Fork Lifting Height (mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Min. Turning Radius (mm) | 2530 |
| Min. Ground Clearance (mm) | 135 |
| Length (Including Fork) (mm) | 3970 |
| Width (mm) | 1230 |
| Height From Ground to Overhead Guard (mm) | 2105 |
| Front Overhang (mm) | 465 |
| Wheel Base (mm) | 1775 |
| Front Wheel Track (mm) | 1000 |
| Rear Wheel Track (mm) | 970 |
| Front Wheel Tyre | 28*9-15 |
| Rear Wheel Tyre | 6.50-10 |
| Self Weight (kg) | 4250/4290 |
| Standard Fork Length (mm) | 1220 |
| Engine Rated Power (kw) | 36.8 |
| Engine Speed At Rated Power (rmp) | 2500 |
| Engine Maximum Torque (Nm) | 165 |
| Engine Speed At Maximum Torque (rpm) | 1600-1800 |
| Variable speed form | Mechanical/ Hydraulic |

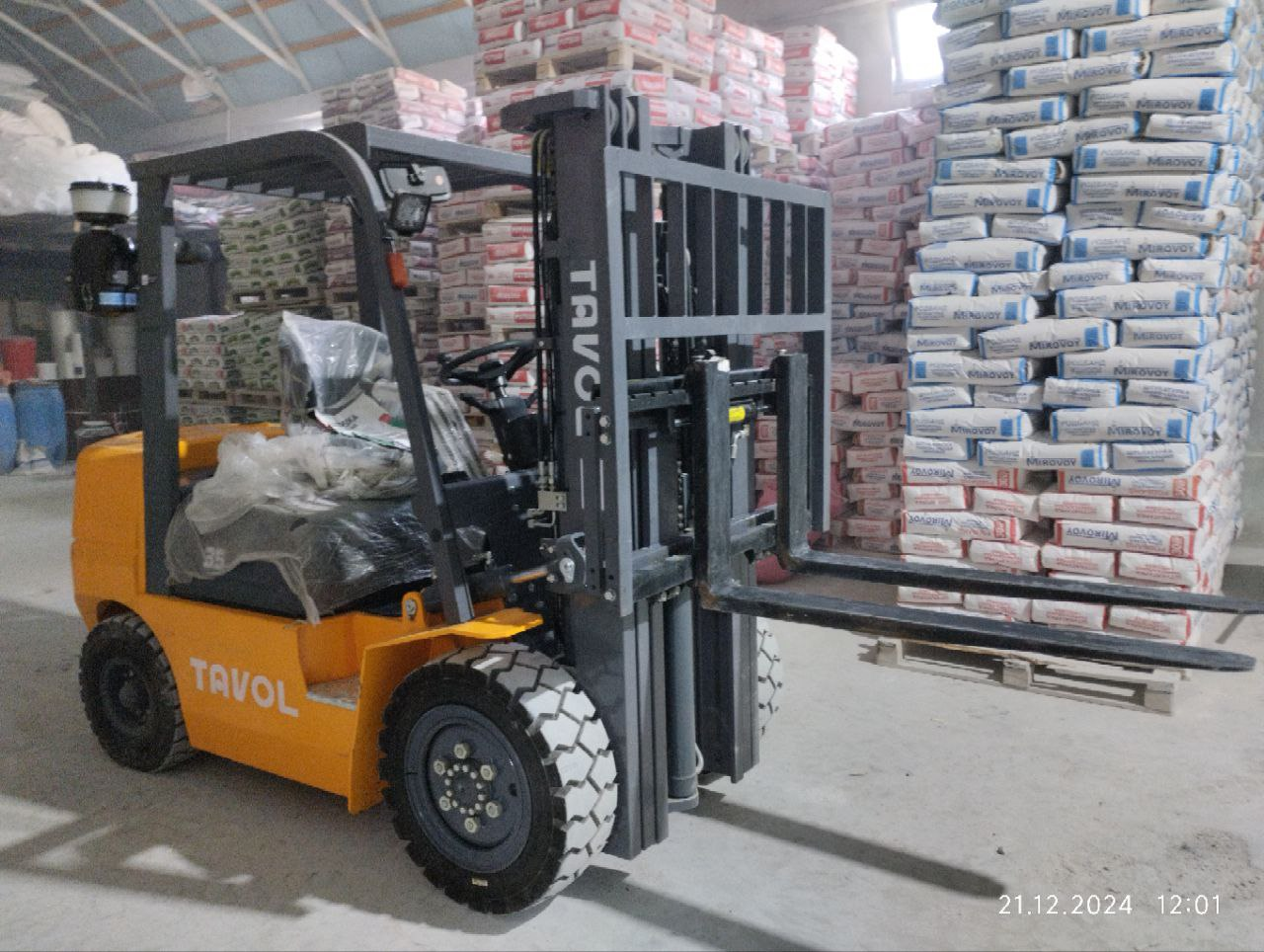

Warehouse management: The Tavol three-ton diesel forklift's powerful carrying capacity and flexible maneuverability can significantly improve the storage density and operating efficiency of the warehouse. |  |

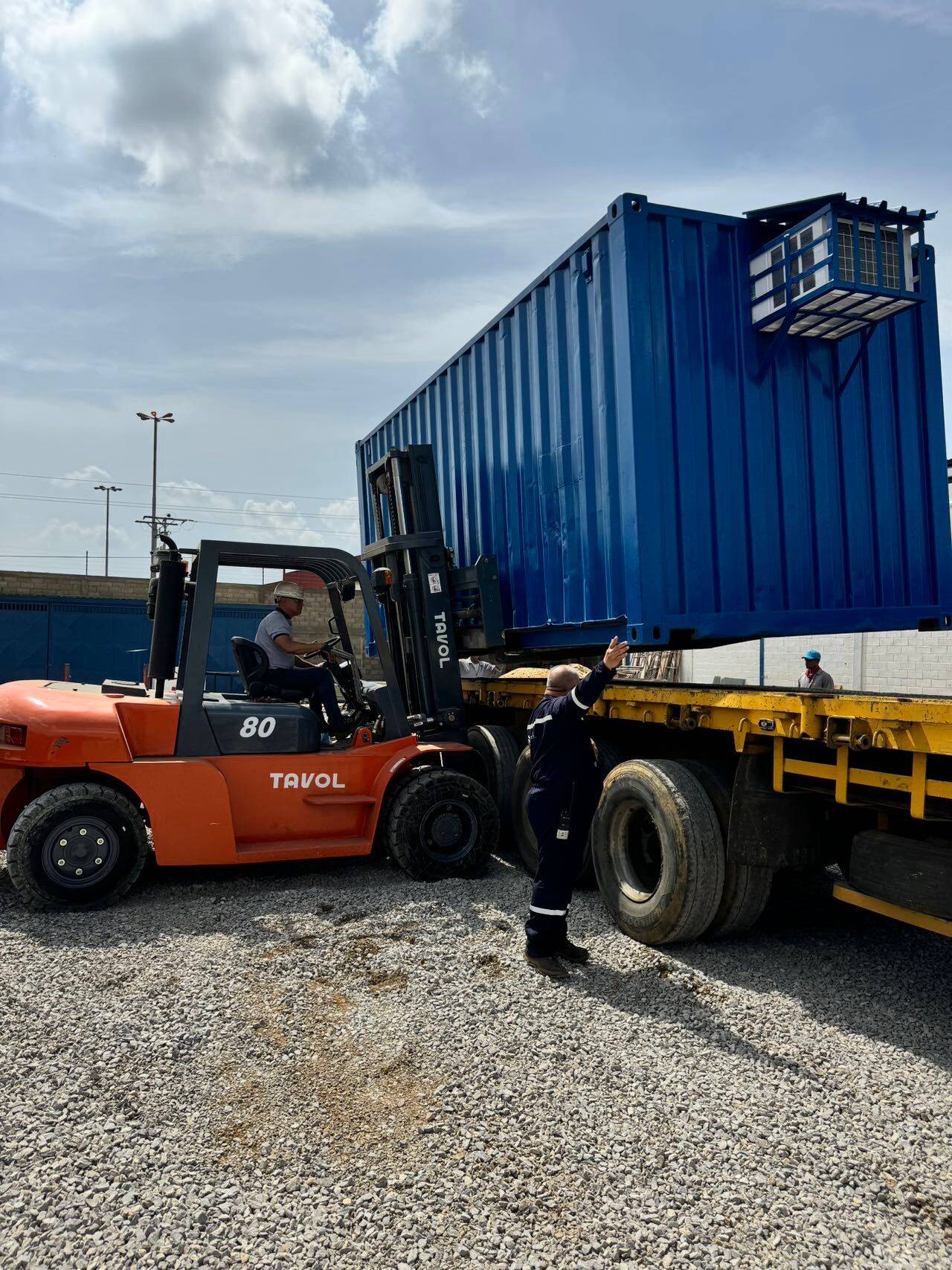

 | Terminal loading and unloading: In logistics hubs such as terminals, Tavol three-ton diesel forklifts can be used for loading and unloading of containers and bulk cargo. It can quickly and accurately unload goods from ships and move them to designated areas, or load goods onto ships to ensure smooth logistics. |
Logistics center: In the logistics center, Tavol three-ton diesel forklifts can be used for sorting, handling and distribution of goods. Its stable performance and efficient operating capabilities can significantly improve the processing capacity and distribution efficiency of the logistics center. |  |
 | Factory production line: In factory production lines, Tavol three-ton diesel forklifts are usually used for handling raw materials, transferring semi-finished products, and warehousing finished products. It can quickly respond to production needs and ensure continuous operation and efficient output of the production line. |
Please tell TAVOL your needs - whether it is warehousing and handling, heavy loading and unloading or special environment operations, we can tailor efficient solutions for you!
From a full range of forklifts from 1.5 tons to 25 tons to intelligent warehousing equipment, TAVOL helps you reduce costs and increase efficiency with a professional team, global service network and flexible leasing solutions. Contact us now to get exclusive material handling optimization suggestions!
