CPCD30
Tavol

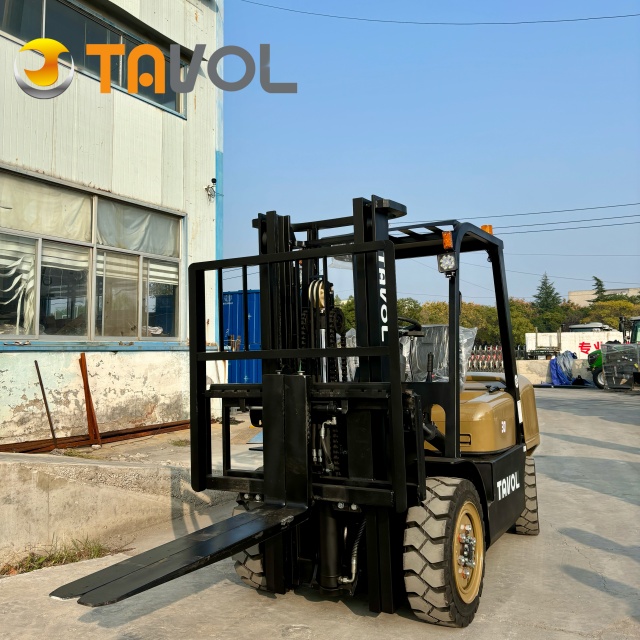

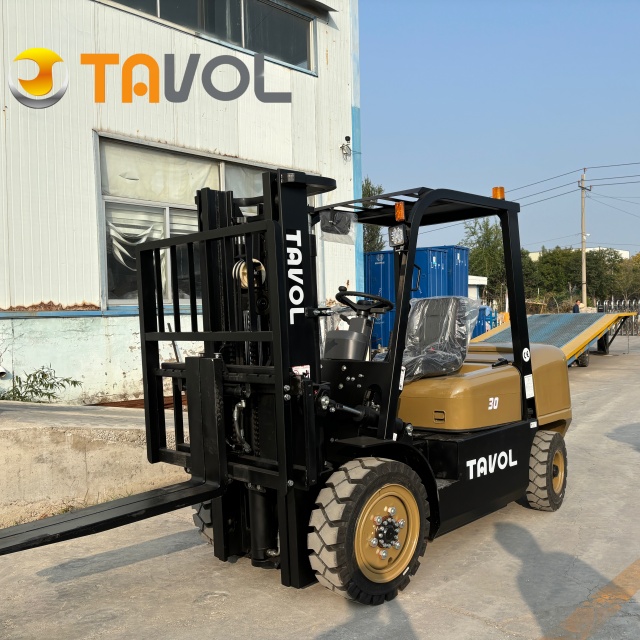

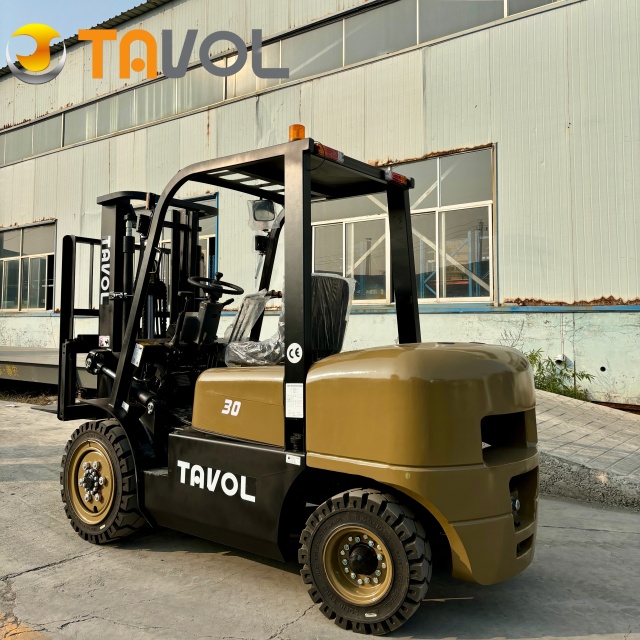

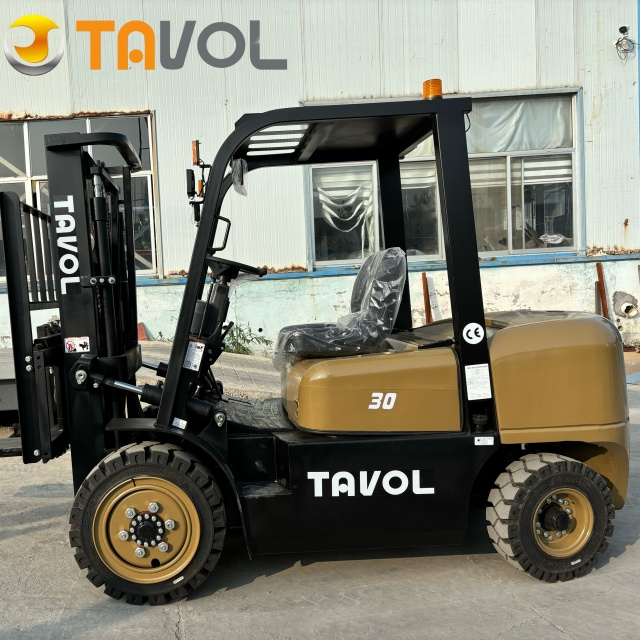

TAVOL 3-Ton Diesel Forklift – Powerful, Durable, and Ready for Heavy-Duty Work
Built for demanding environments, our 3-ton diesel forklift delivers superior strength, reliability, and endurance, making it the ideal choice for heavy-load handling in rugged outdoor and industrial applications. With a high-torque diesel engine, this forklift ensures consistent performance even in challenging conditions, offering longer runtimes and quick refueling for uninterrupted productivity.
Product specifications
| Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | CPCD50 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Drive Form | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | 4100 | 4350 |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 | 1400 |
| Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | 2120 | 2330 |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | 2115 | 2330 |
| Front Overhang(mm) | 451 | 451 | 465 | 465 | 465 | 585 |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 | 2150 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 |
| Front Wheel Tyre | 7:00-12 | 7:00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 |
| Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 |
| Self Weight(kg) (kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | 4810/4850 | 6800 |
| Fork Width(mm) | 122 | 122 | 122 | 122 | 122 | 150 |
| Fork Thickness(mm) | 40 | 40 | 45 | 45 | 50 | 55 |
| Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 62.5 |
| Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 | 2500 | 2200 |
| Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 | 190 | 320 |
| Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 | 1600-1800 | 1800 |
| Transmission form | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Provide Customized Services
TAVOL is well aware that different industries and scenarios have different requirements for forklifts, so we provide a full range of personalized customization services - from load specifications, power configuration to attachment selection, all can be flexibly adjusted according to your actual working conditions to ensure that each forklift can accurately match your operating needs and maximize operational efficiency.
Like side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
If you want to know more details about TAVOL forklift, please contact us：
TAVOL 3-Ton Diesel Forklift – Powerful, Durable, and Ready for Heavy-Duty Work
Built for demanding environments, our 3-ton diesel forklift delivers superior strength, reliability, and endurance, making it the ideal choice for heavy-load handling in rugged outdoor and industrial applications. With a high-torque diesel engine, this forklift ensures consistent performance even in challenging conditions, offering longer runtimes and quick refueling for uninterrupted productivity.
Product specifications
| Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | CPCD50 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Drive Form | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | 4100 | 4350 |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 | 1400 |
| Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | 2120 | 2330 |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | 2115 | 2330 |
| Front Overhang(mm) | 451 | 451 | 465 | 465 | 465 | 585 |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 | 2150 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 |
| Front Wheel Tyre | 7:00-12 | 7:00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 |
| Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 |
| Self Weight(kg) (kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | 4810/4850 | 6800 |
| Fork Width(mm) | 122 | 122 | 122 | 122 | 122 | 150 |
| Fork Thickness(mm) | 40 | 40 | 45 | 45 | 50 | 55 |
| Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 62.5 |
| Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 | 2500 | 2200 |
| Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 | 190 | 320 |
| Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 | 1600-1800 | 1800 |
| Transmission form | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Provide Customized Services
TAVOL is well aware that different industries and scenarios have different requirements for forklifts, so we provide a full range of personalized customization services - from load specifications, power configuration to attachment selection, all can be flexibly adjusted according to your actual working conditions to ensure that each forklift can accurately match your operating needs and maximize operational efficiency.
Like side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
If you want to know more details about TAVOL forklift, please contact us：
