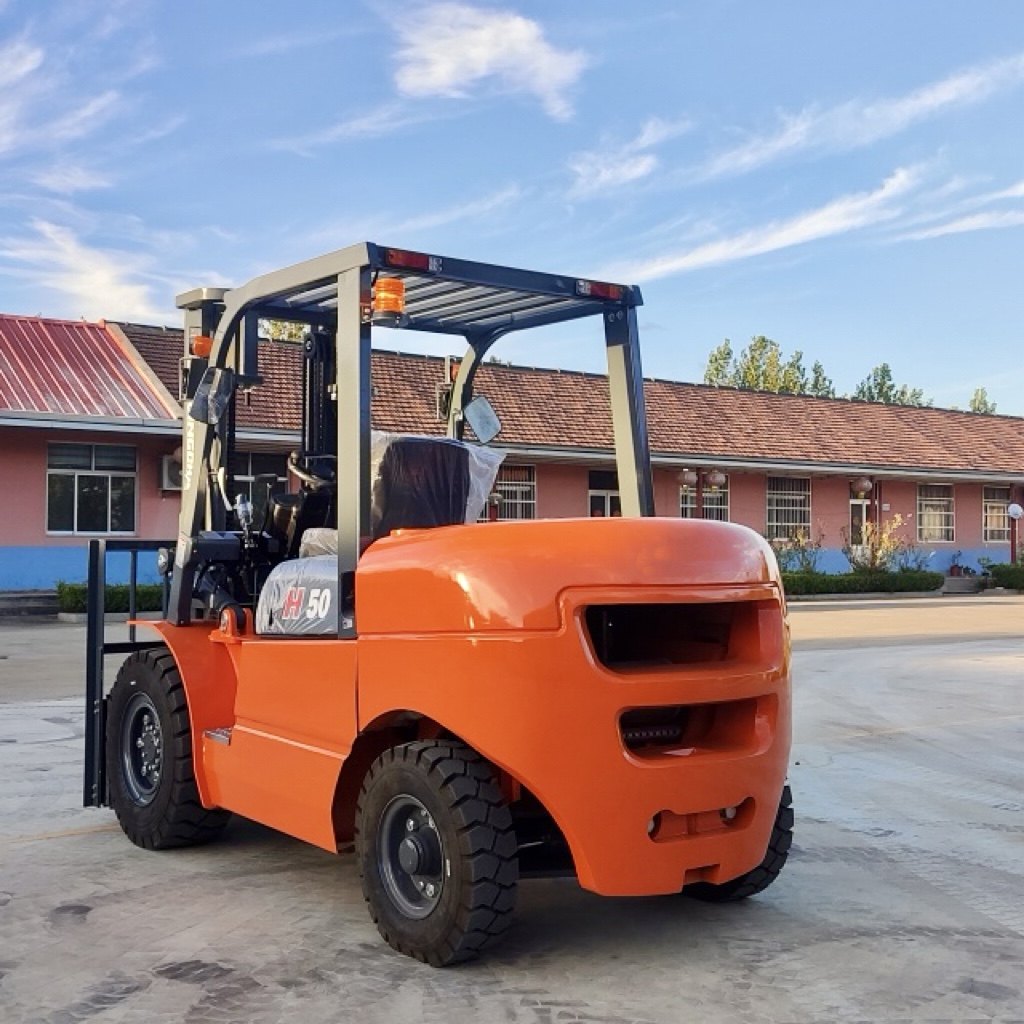

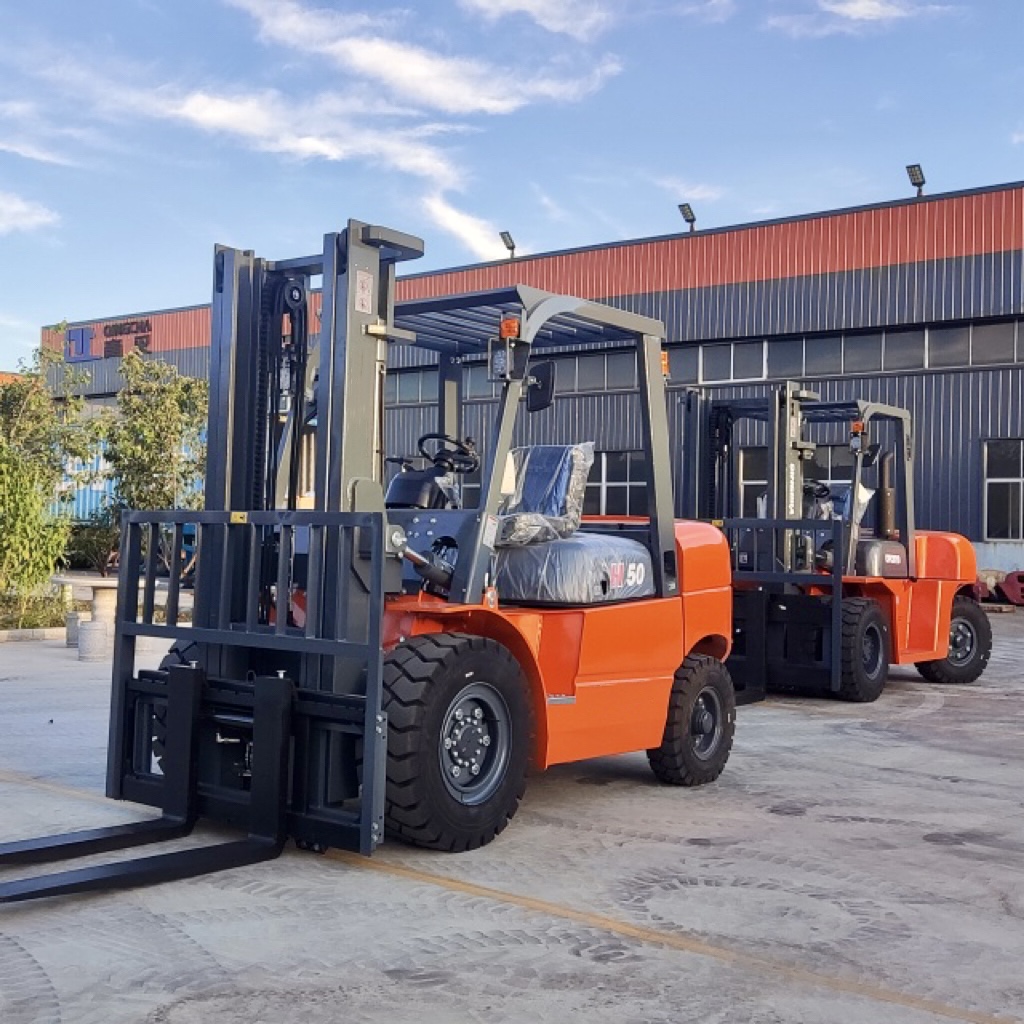

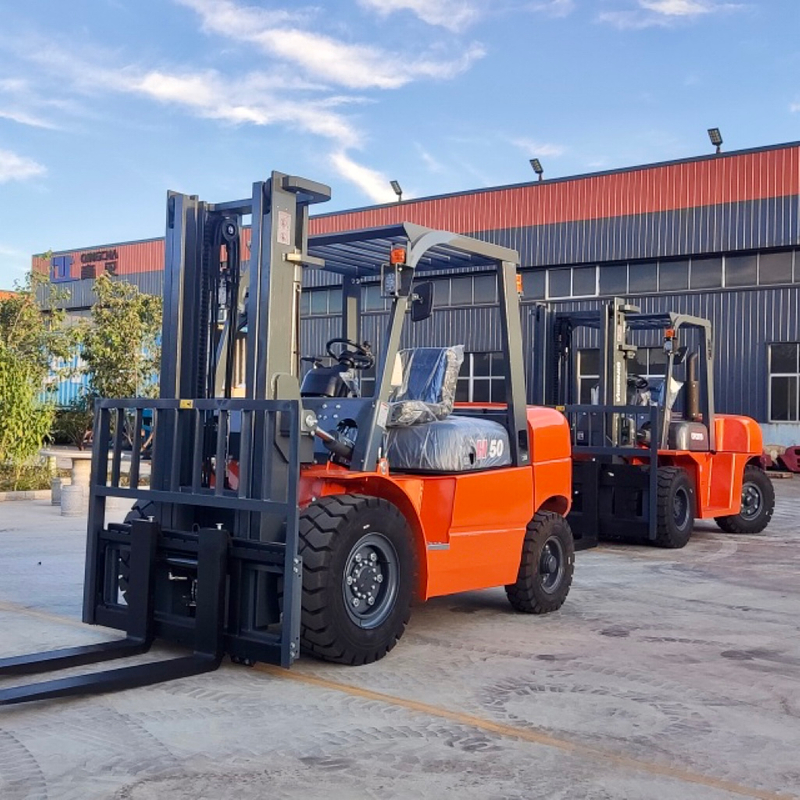

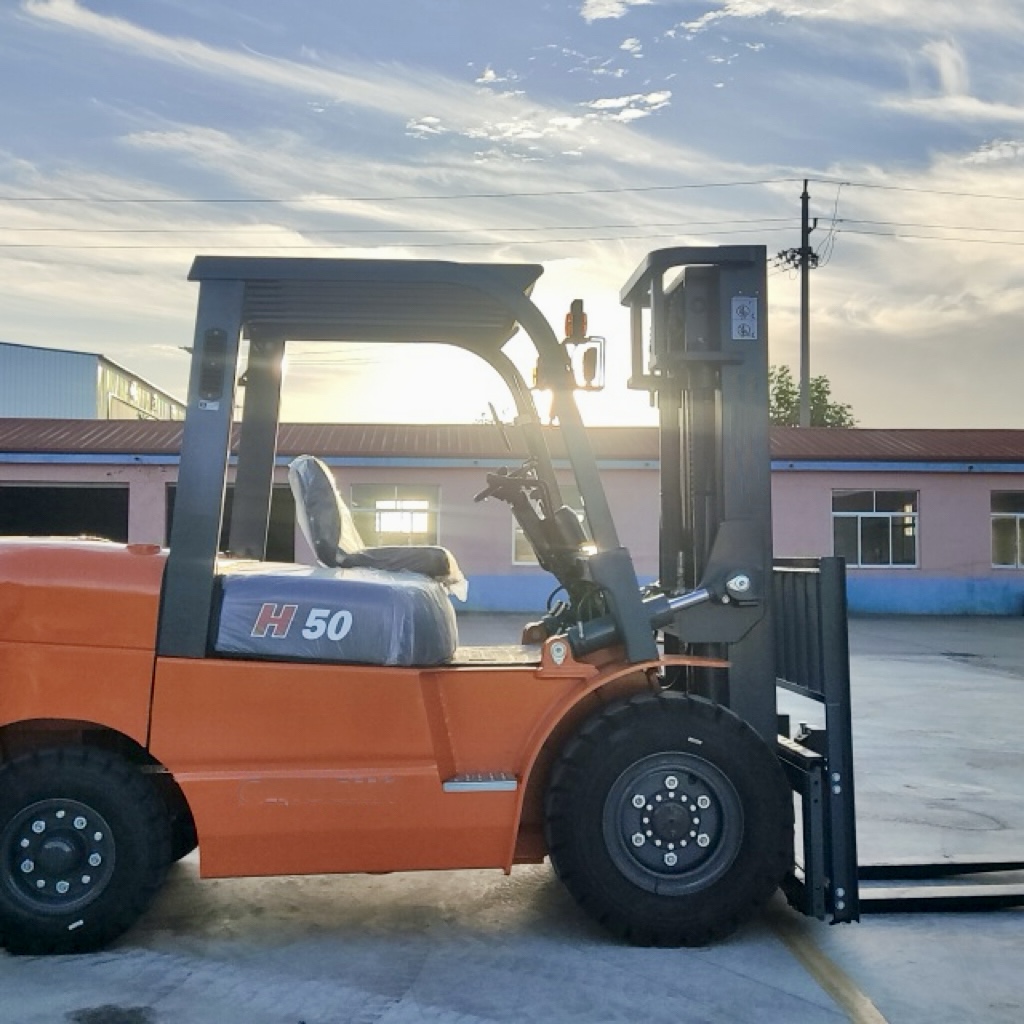

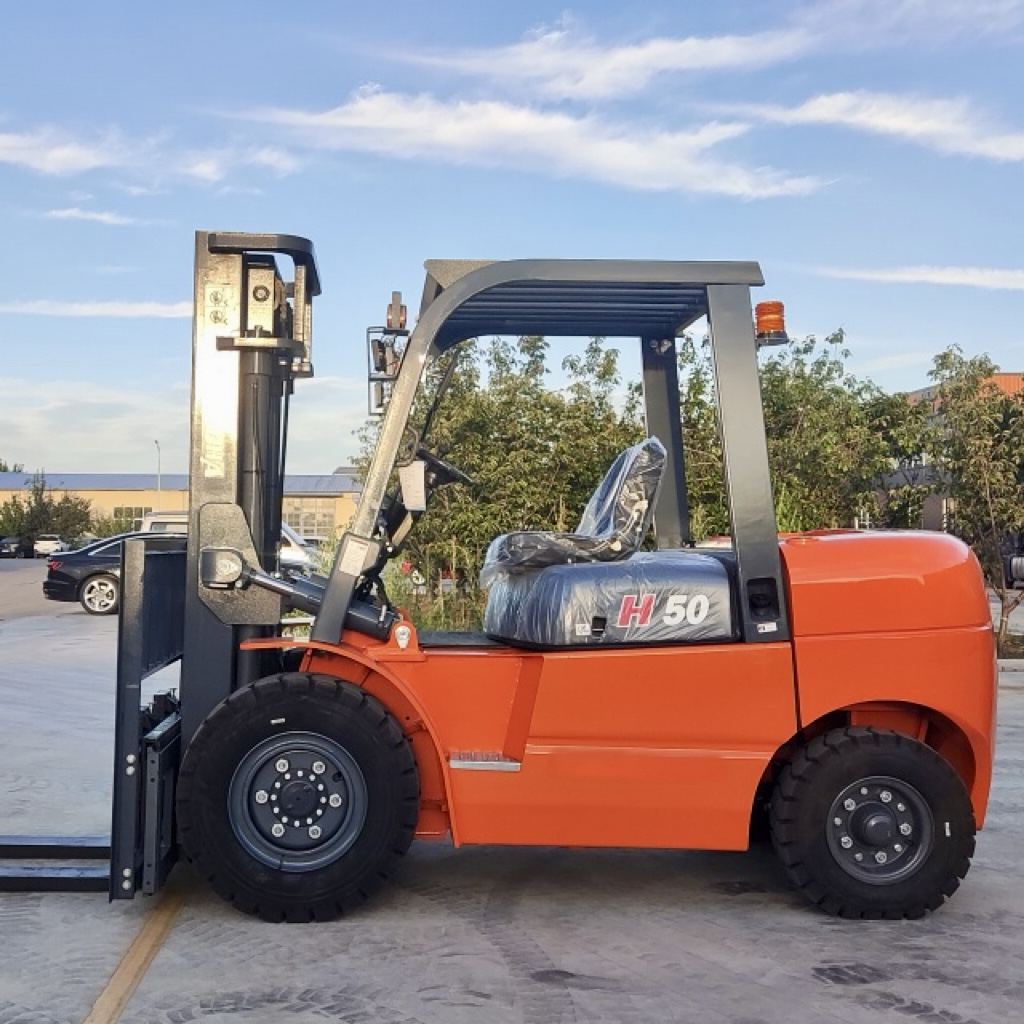

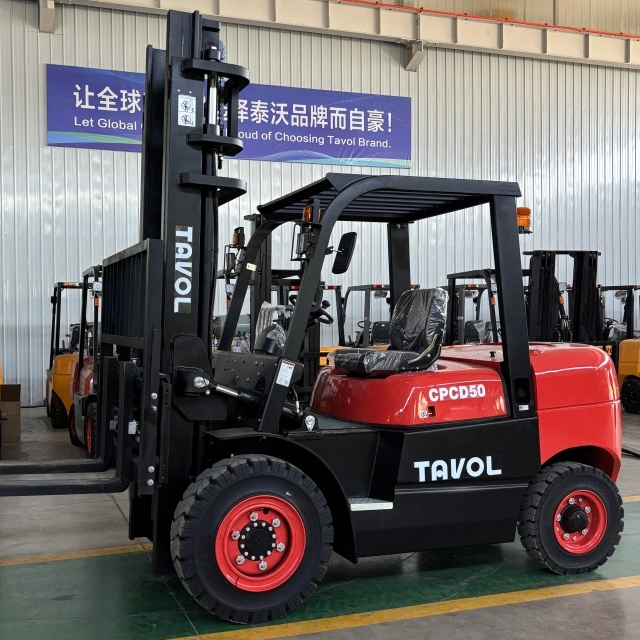

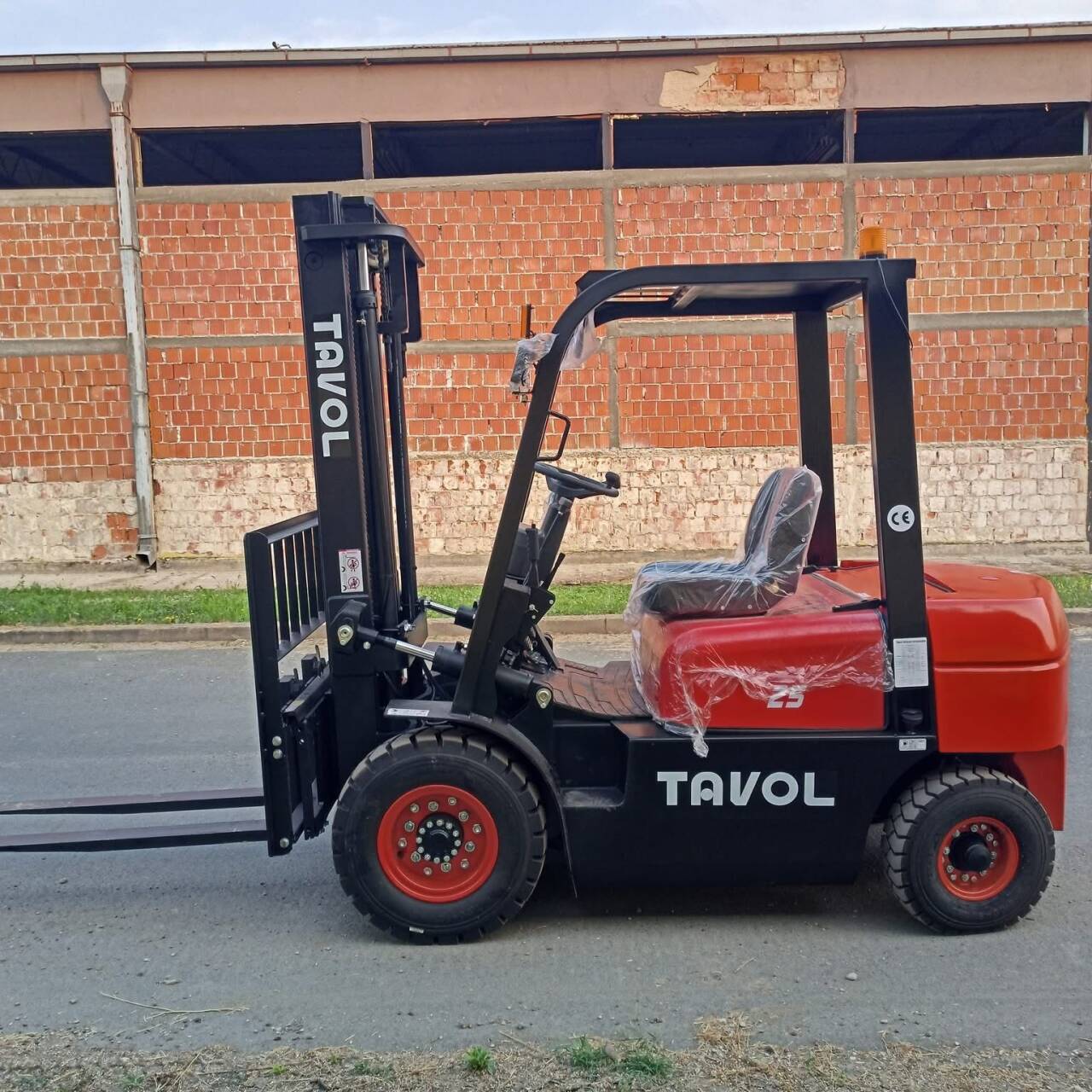

CPCD50
Tavol
TAVOL brand forklift applied CE certificate, the performance & technical specification is advanced in China, has reached the international advanced level .We have exported to many countries, such as Germany, Brazil, Mexico, Spain, Moldova, Albania, Paraguay, El Salvador, Argentina, Bosnia, Kuwait, Turkey, Cyprus, Saudi Arabia, Indonesia,Georgia, Bangladesh, Philippines, Australia etc.

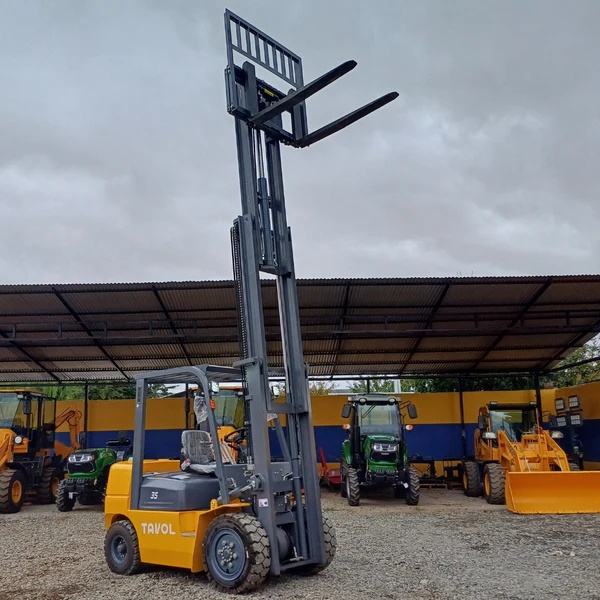

Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Fork Length for Forklift
1. Standard: 1070 mm for 2t & 2.5t forklift
2. Standard: 1220 mm for 3t & 3.5t forkliftProduct specifications
| Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | CPCD40 | CPCD50 |
| Rated Loading Capacity(kg) | 2000 | 2500 | 3200 | 3600 | 4000 | 5000 |
| Load Center Distance(mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| Drive Form | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | 4100 | 4350 |
| Width(mm) | 1160 | 1160 | 1230 | 1230 | 1230 | 1400 |
| Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | 2120 | 2330 |
| Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | 2115 | 2330 |
| Front Overhang(mm) | 451 | 451 | 465 | 465 | 465 | 585 |
| Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | 1900 | 2150 |
| Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | 1060 | 1180 |
| Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | 970 | 1190 |
| Front Wheel Tyre | 7:00-12 | 7:00-12 | 28*9-15 | 25*9-15 | 250-15 | 300-15 |
| Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 7.00-12 |
| Self Weight(kg) (kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | 4810/4850 | 6800 |
| Fork Width(mm) | 122 | 122 | 122 | 122 | 122 | 150 |
| Fork Thickness(mm) | 40 | 40 | 45 | 45 | 50 | 55 |
| Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | 1220 | 1220 |
| Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | 36.8 | 62.5 |
| Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 | 2500 | 2200 |
| Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 | 190 | 320 |
| Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 | 1600-1800 | 1800 |
| Transmission form | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
FAQ
Q1: Are you the factory or the trading company ?
A1: We are the factory, we located in Taian City, Shandong Province, China.
Q2: How long is the warranty period? Can you provide spare parts for free ?
A2: 1 Years warranty period, of course. We can provide spare parts for free.
Q3: How about the delivery time?
A3: 10-20 days around.
