TL504
TAVOL
8701921000

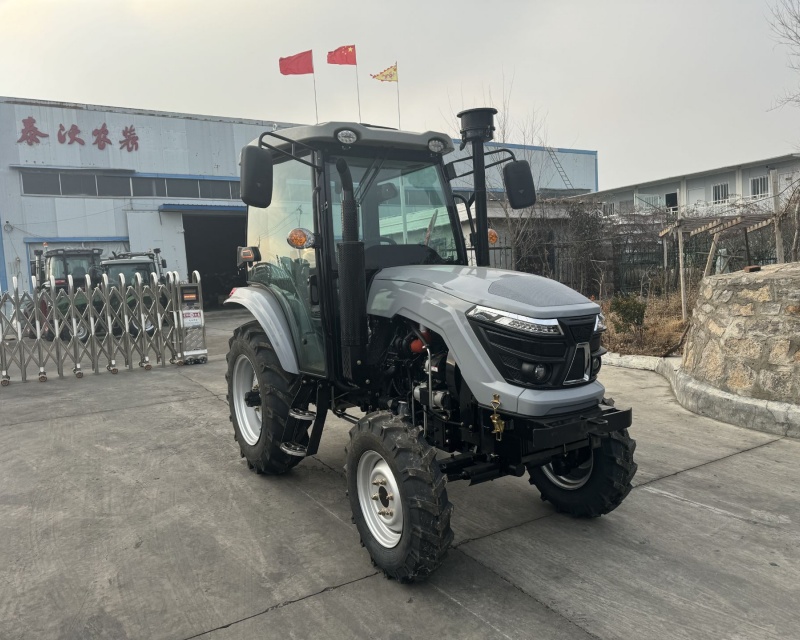

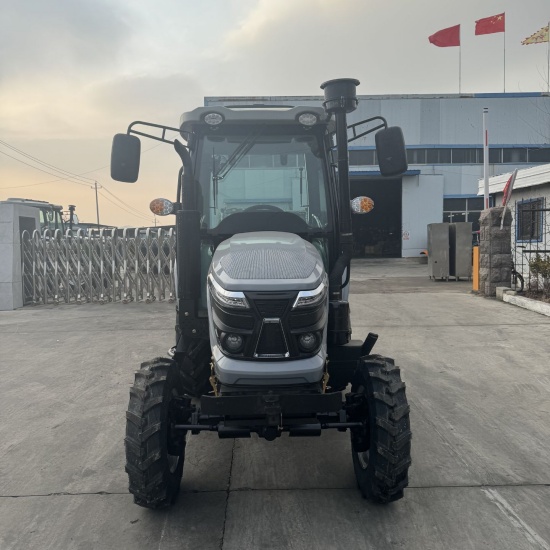

The 50hp tractor is a versatile and cost-effective agricultural machine, ideal for small to medium-scale farming operations. Powered by an efficient and economical engine, it delivers reliable performance for essential tasks such as plowing, harrowing, seeding, and light hauling. With its compact yet sturdy design, this tractor offers excellent maneuverability in confined spaces while maintaining stability on varied terrain.
Technical Parameters
 Model | TL504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 16.2 | |
| PTO Max Power (KW) | 43.8 | |
| Dimensions(mm) | 3560×1650×2350 | |
| Wheelbase(mm) | 1965 | |
| Track(mm) | Front wheel(mm) | 1150 |
| Rear wheel(mm) | 1200-1360 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 330 |
| Minimum turning cricle radius | Use unilateral braking | 2.85±0.20 |
| Not unilateral braking | 3.15±0.30 | |
| Minimum use quality | 1660 | |
| Gearbox | 8F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥10 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760(option: 540/1000) |
| Tire | Front wheel specifications | 6.00-16/6.5-16/7.5-16 |
| Rear wheel specifications | 9.5-24/11.2-24/12.4-24/12.4-28 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 10 |
| Fuel tank(L) | 29 | |
| Engine oil pan(L) | 5 | |
| Driveline oil (L) | 20 | |
| Lifter(L) | 9.5 | |
| This parameter table is for reference only, everything is based on actual products | ||
