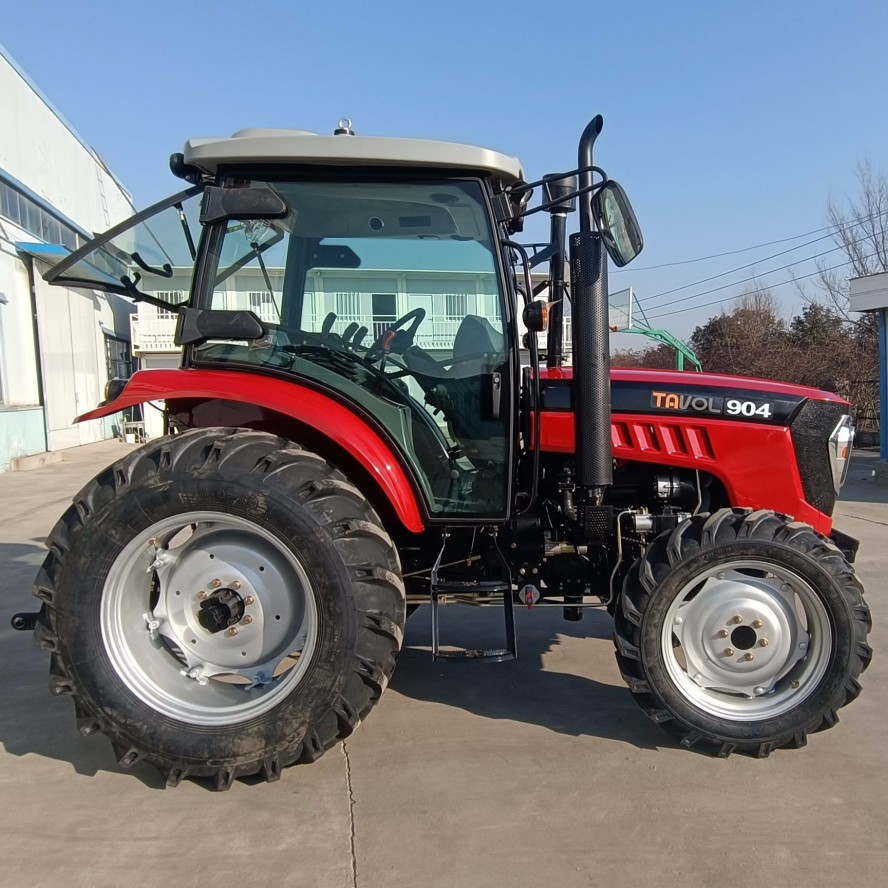

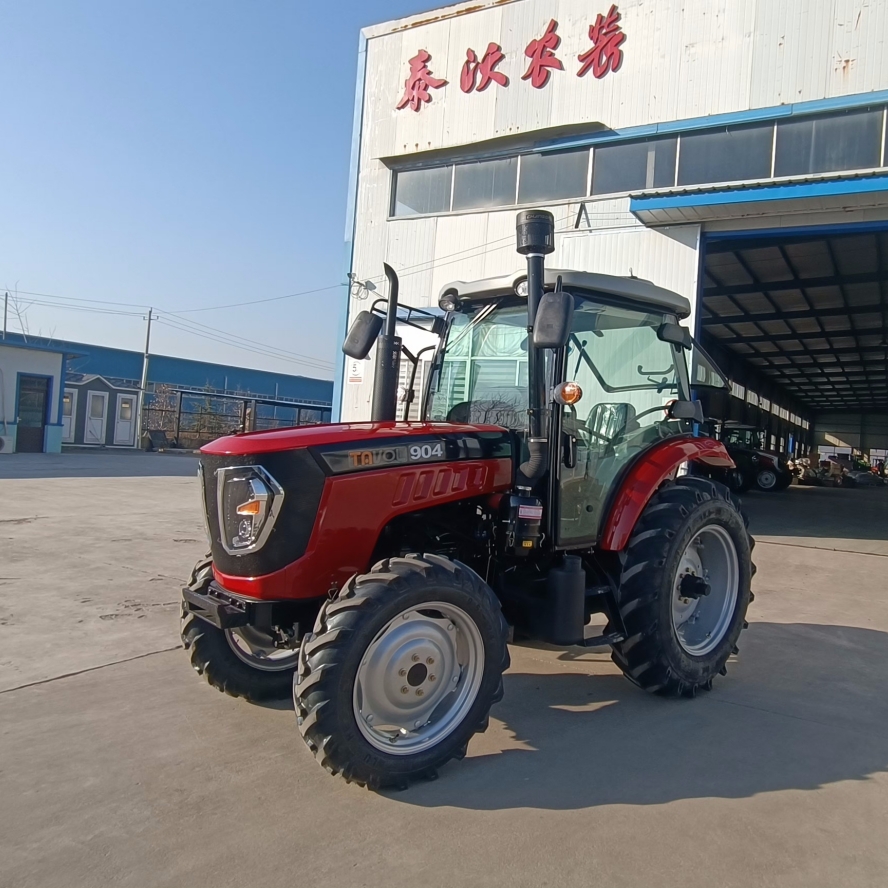

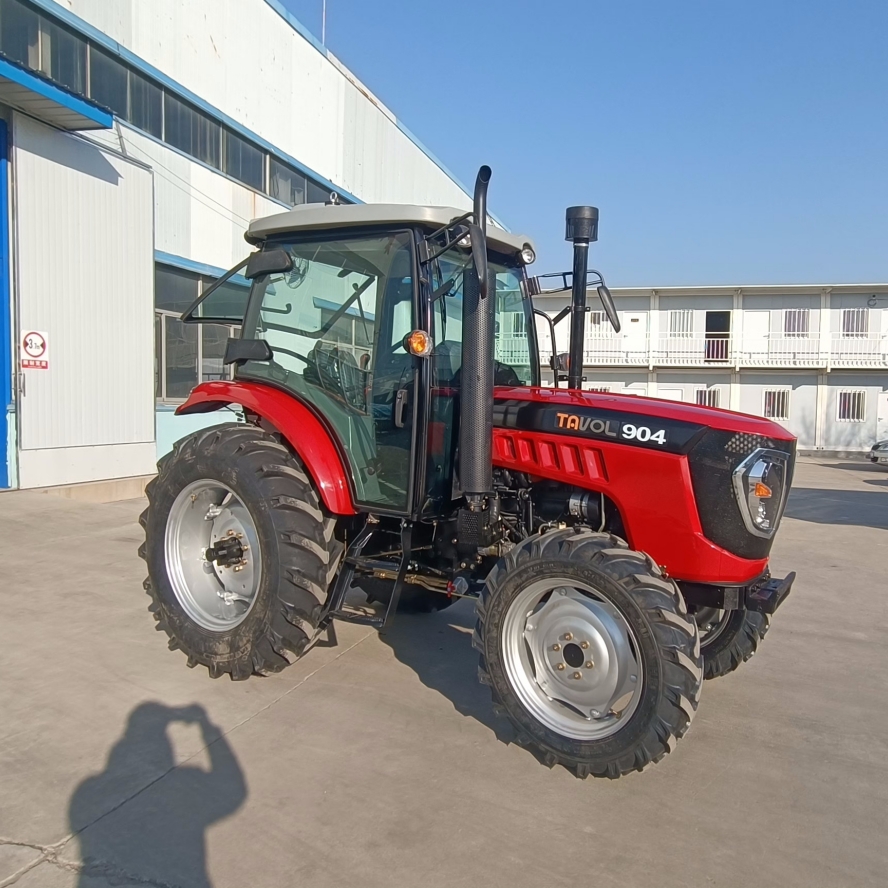

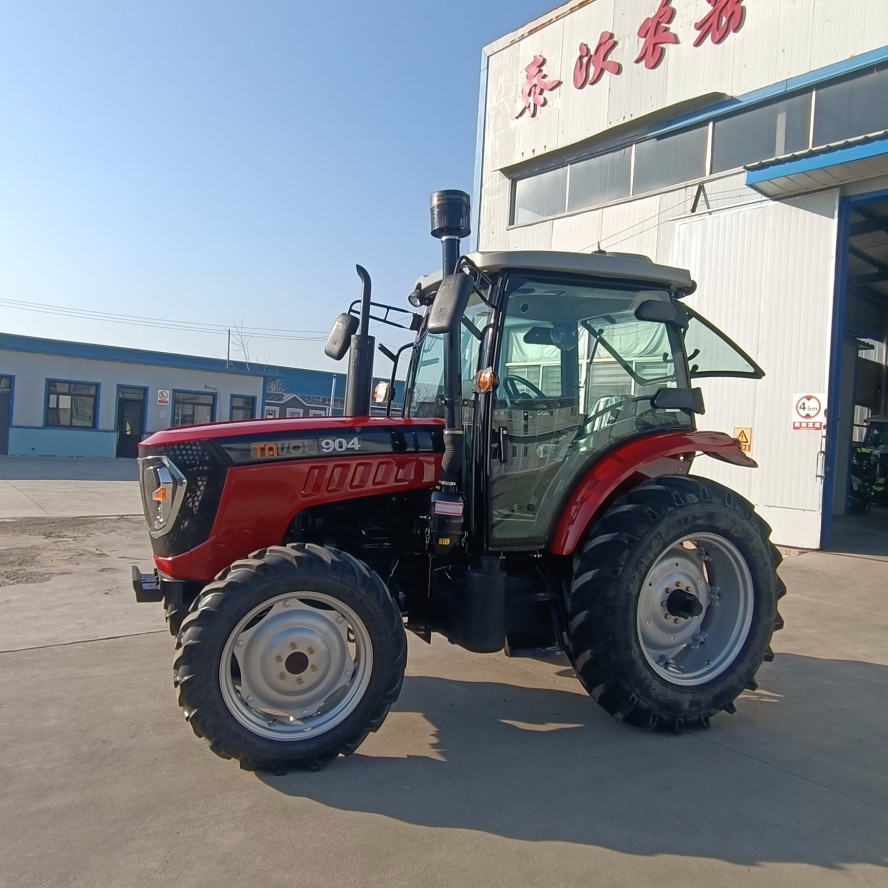

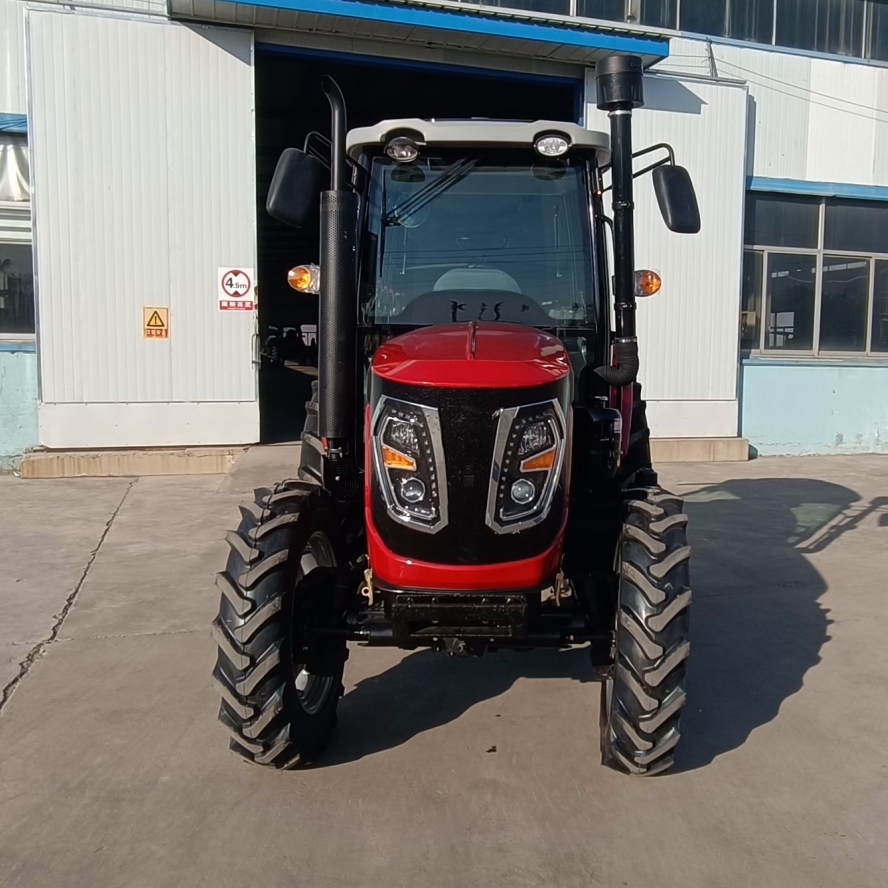

TL904
TAVOL
8701921000
Advantages and Features
1. Powerful power and high efficiency
The 90hp tractor is equipped with an advanced diesel engine, providing a powerful power of up to 90 horsepower, ensuring that it can operate easily in various working environments. Its high efficiency is not only reflected in the rapid completion of the task, but also in the low fuel consumption, saving operating costs for users.
2. Reliable, durable and stable performance
During the manufacturing process, the 90hp tractor focuses on the selection of materials and the refinement of craftsmanship to ensure the durability of the product. Its gearbox body is thickened, the gears are strengthened, and the power output is a gear shift with a meshing sleeve, which works reliably. In addition, the cab is welded with high-strength profiles, with a wide field of view and good sealing, providing users with a comfortable and safe driving environment.
Technical Parameters
Model | Tavol-904 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 14 | |
PTO Max Power (KW) | 56.3 | |
Dimensions(mm) | 3700×1900×2700 | |
Wheelbase(mm) | 1965 | |
Track(mm) | Front wheel(mm) | 1150 |
Rear wheel(mm) | 1200-1300 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 330 |
Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
Not unilateral braking | ≤4.6 | |
Minimum use quality | 3150 | |
Gearbox | 12F+12R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | ≥8.8 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 9.5-24 |
Rear wheel specifications | 14.9-30 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Engine Brand | YTO, XICHAI, LAIDONG; EURO5 4L28V50 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 10 |
Fuel tank(L) | 90 | |
Engine oil pan(L) | 5 | |
Driveline oil (L) | 20 | |
Lifter(L) | 9.5 | |
This parameter table is for reference only, everything is based on actual products | ||

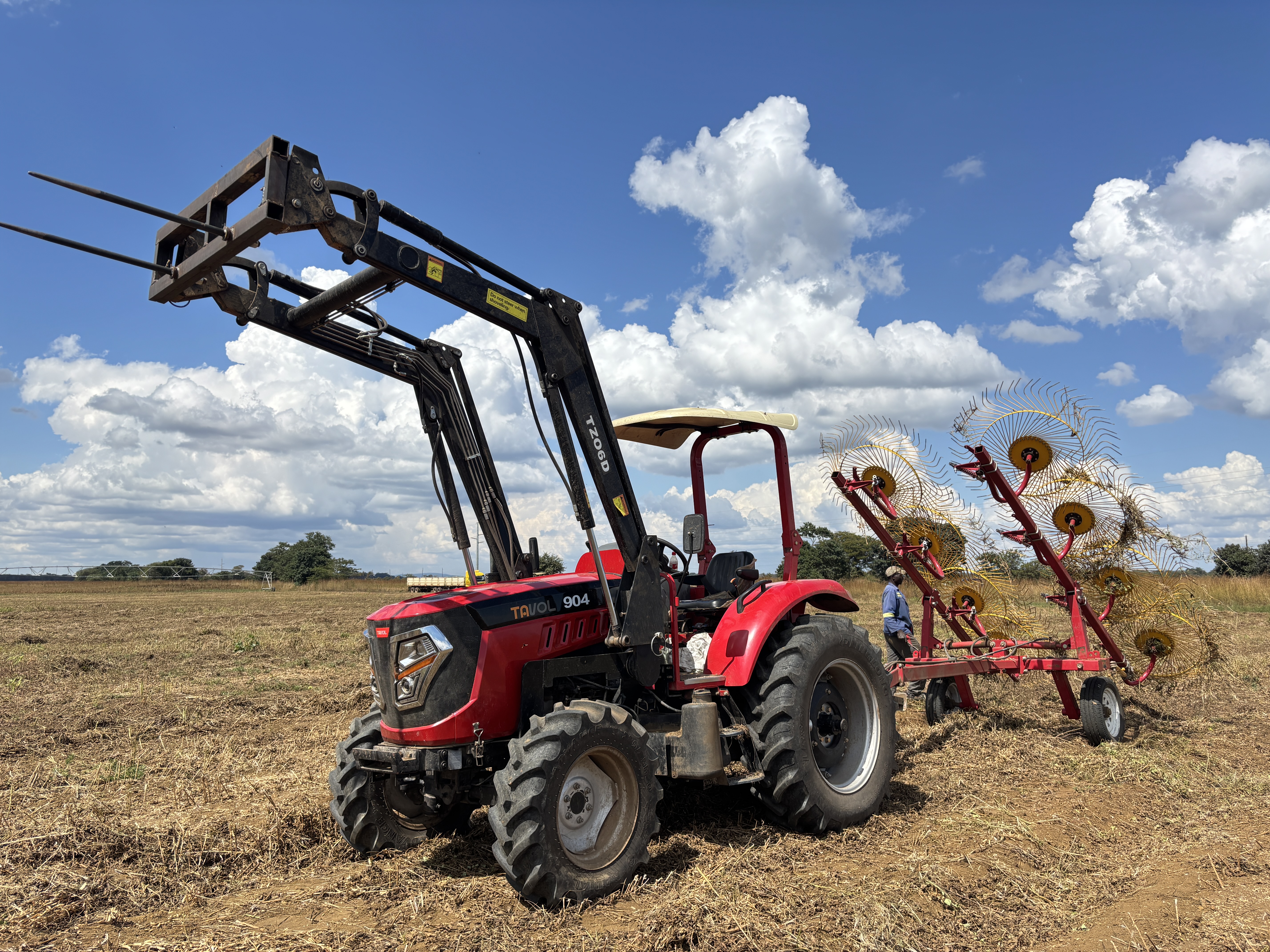

1. Agricultural production: Mainly used for tillage, land preparation, sowing, harvesting and transportation of crops. Its powerful power and versatility make agricultural production more efficient and convenient, which can improve agricultural productivity.
2. Land leveling and finishing: In land development, construction or renovation projects, 90 horsepower tractors can effectively level the land to ensure the flat surface and provide a good foundation for subsequent construction or planting.
3. Fertilization and handling: The tractor can pull or tow fertilization equipment to achieve large-scale precision fertilization and improve crop yield and quality. At the same time, its strong carrying capacity also makes it an ideal choice for transporting various agricultural materials and farm tools.
