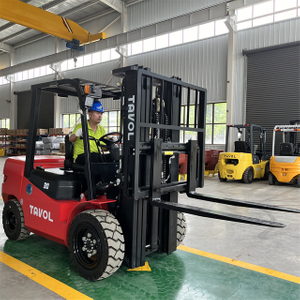

CPCD30
Tavol
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Product specifications
| Model | CPCD30 |
| Rated Loading Capacity(kg) | 3000 |
| Load Center Distance(mm) | 500 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3970 |
| Width(mm) | 1230 |
| Height(Door Frame Indented) | 2110 |
| Front Overhang(mm) | 465 |
| Wheel Base(mm) | 1775 |
| Front Wheel Track(mm) | 1000 |
| Rear Wheel Track(mm) | 970 |
| Front Wheel Tyre | 28*9-15 |
| Rear Wheel Tyre | 6.50-10 |
| Self Weight(kg) (kg) | 4250/4290 |
| Fork Width(mm) | 122 |
| Standard Fork Length(mm) | 1220 |
| Engine Rated Power(kw) | 36.8 |
| Transmission form | Hydraulic |
Attachment for Fork Lift
We can customize and install various attachments like rotator, hydraulic bucket, paper roll clamp, carton clamp, block clamp, bag clamp, bale clamp, steel pipe clamp, fork clamp, single double pallet handlers, hinged fork, etc.
Mexico exhibition site:
The cool forklift attracted many customers. Beautiful models were invited to check in on site, attracting many customers to stop and take photos. The brand exposure was greatly improved, and its innovative design and practical functions became the focus of discussion.
