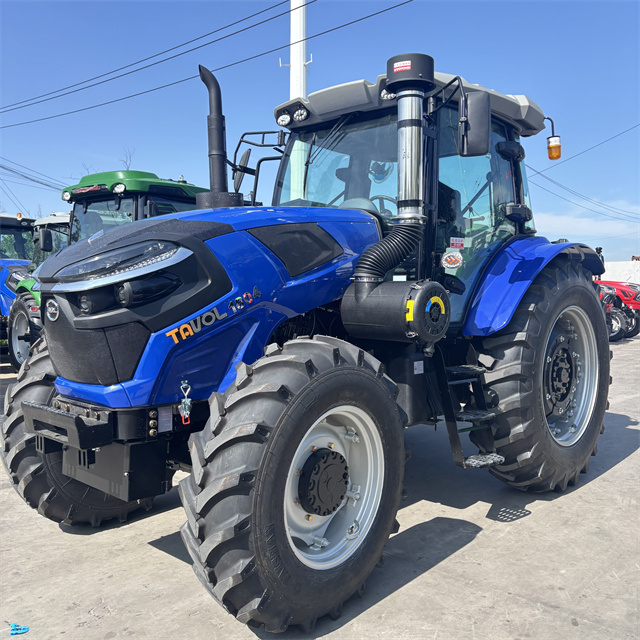

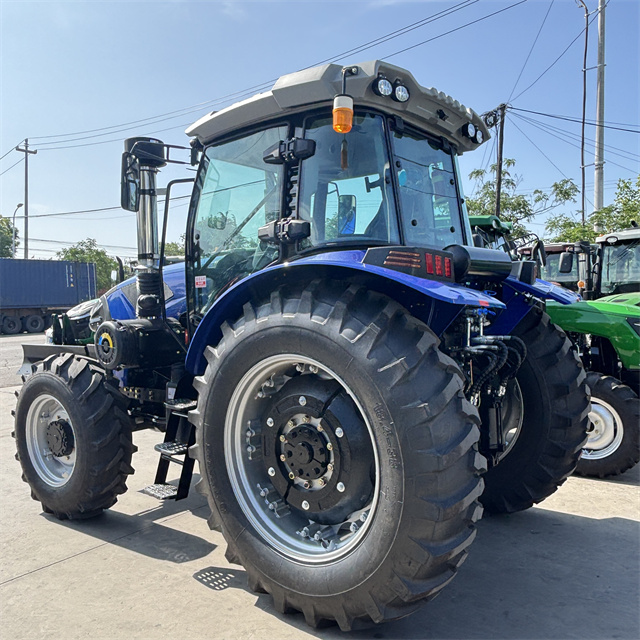

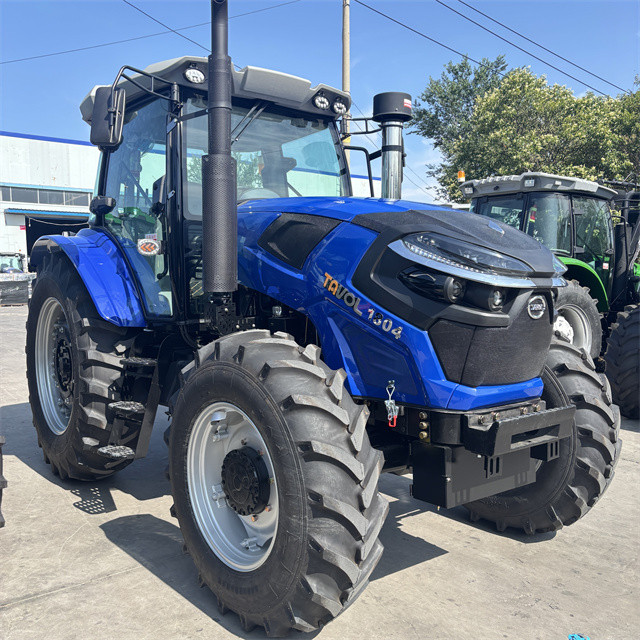

TL1804
TAVOL
8701931000
TAVOL Group is a high-tech conglomerate engaged in the manufacturing of high-end agricultural equipment and engineering machinery. TAVOL has passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, high-tech enterprise certification, and special equipment manufacturing license.
The mission of TAVOL Group is to assemble the best tractors with the best hearts and strive for the smiles of one billion farmers.
TAOVL adheres to the values of tolerance, openness, and win-win, adopts strict production technology and inspection standards, and selects the best quality branded tractor parts. To ensure 100% quality standards, TAVOL will independently develop and produce tractor core components, and continue to increase investment in new models and technologies.
 |  |  |
Technical Parameters
| Model | Tavol-1804 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 34 | |
| PTO Max Power (KW) | 112.6 | |
| Dimensions(mm) | 5050×2180×3000 | |
| Wheelbase(mm) | 1780 | |
| Track(mm) | Front wheel(mm) | 1650-1894 |
| Rear wheel(mm) | 1620-2290 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 425 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.3 |
| Not unilateral braking | ≤5.8 | |
| Minimum use quality | 4800 | |
| Gearbox | 16F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥31.8 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 14.9-26 |
| Rear wheel specifications | 18.4-38 | |
| Engine | Type | Inline, 6stroke, Water cooled |
| Cylinder | 6 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 14 |
| Fuel tank(L) | 150 | |
| Engine oil pan(L) | 17 | |
| Driveline oil (L) | 38 | |
| Lifter(L) | 17 | |
| This parameter table is for reference only, everything is based on actual products | ||
