TL2604
TAVOL
8701951010

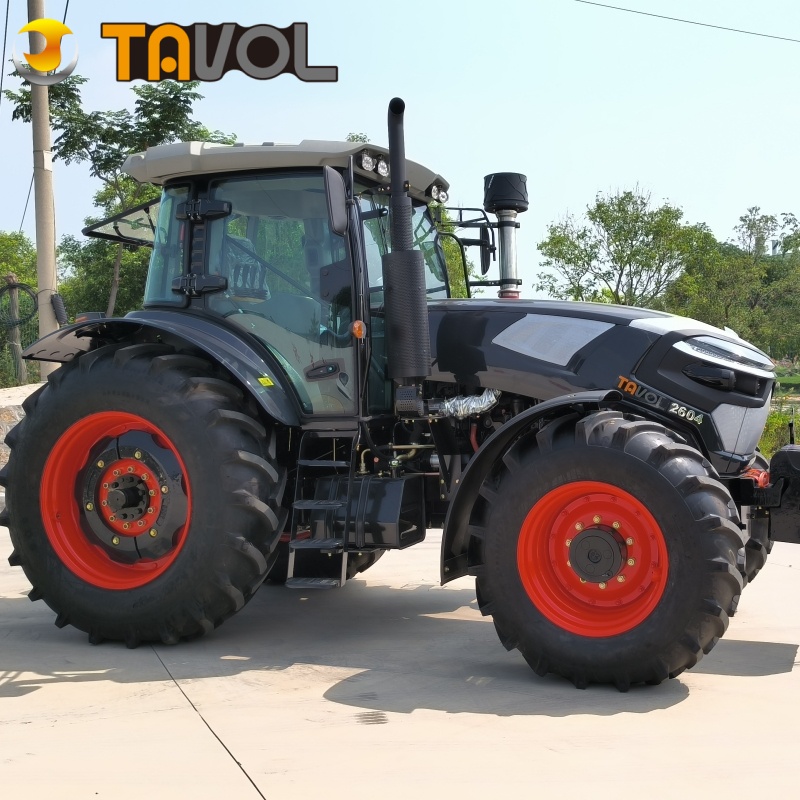

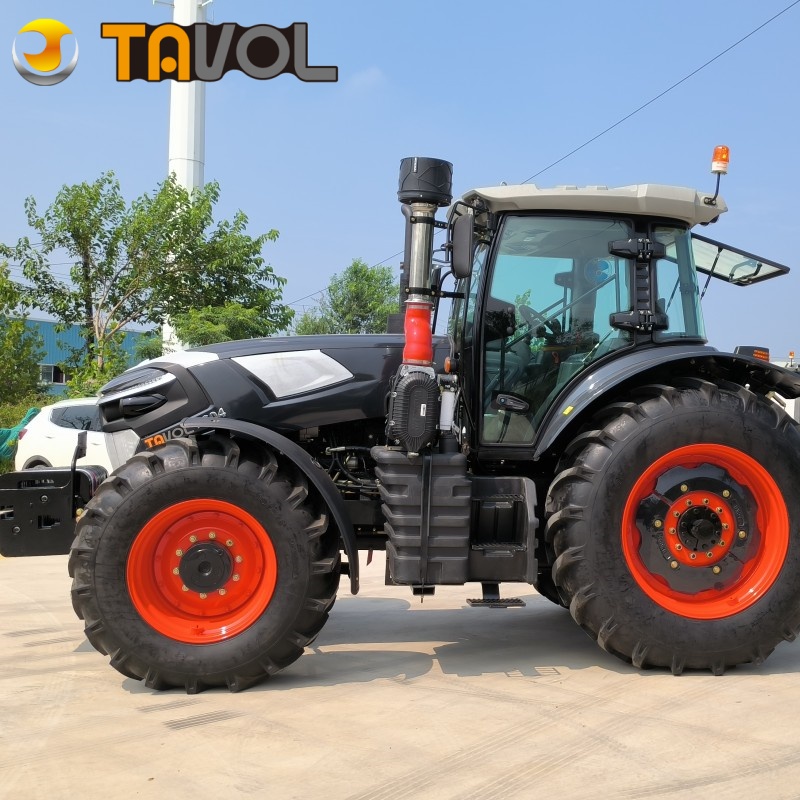

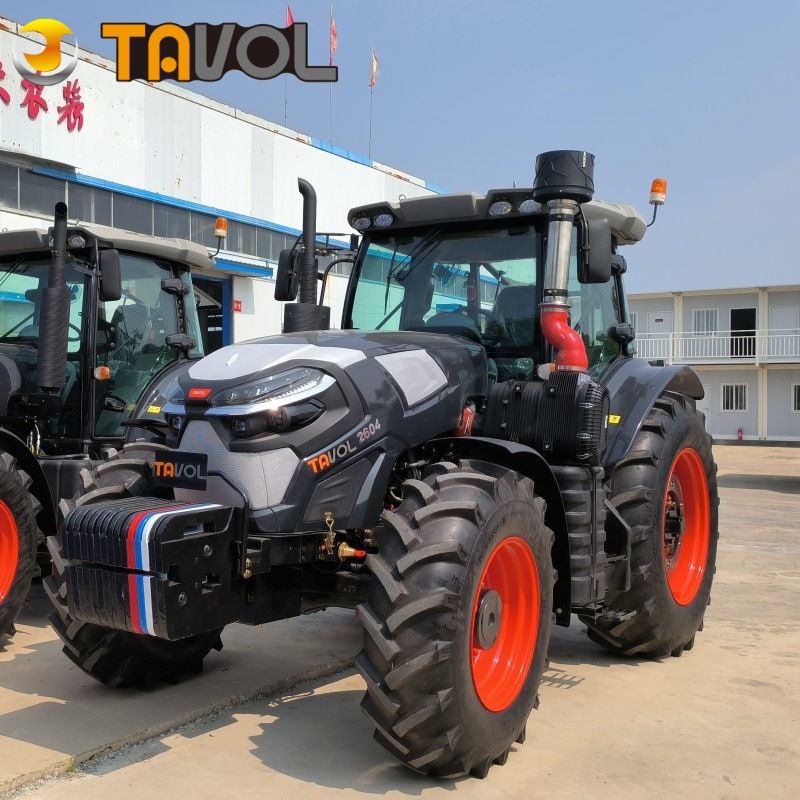

Model | Tavol-2604 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 50 | |
PTO Max Power (KW) | 162 | |
Dimensions(mm) | 5350*2200*3300 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 480 |
Minimum turning cricle radius | Use unilateral braking | ≤6.2 |
Not unilateral braking | ≤7.0 | |
Minimum use quality | 6660 | |
Gearbox | 16F+16R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | 46 |
Suspension mechanism | Three-piont suspension type 3 | |
PTO shaft | PTO Spedd(r/min) | 540/1000 |
Tire | Front wheel specifications | 16.9-28 |
Rear wheel specifications | 20.8-38 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 28 |
Fuel tank(L) | 325 | |
Engine oil pan(L) | 22 | |
Lifter(L) | 110 | |
This parameter table is for reference only, everything is based on actual products | ||
First, super strong power output, equipped with high-performance diesel engine, stable power, strong torque, easy to complete deep ploughing, rotary tillage, sowing, harvesting and heavy traction tasks, even in sticky soil, sloping land and hard land conditions can run efficiently, no power shortage or stalling problems. Second, high operating efficiency, greatly shortening the farming cycle, suitable for hundreds of acres of large farmland, reducing the number of operations and time costs, far exceeding small tractors. Third, stable and durable, made of thickened high-strength frame, wear-resistant parts and reinforced chassis, adapt to long hours of continuous heavy work, low failure rate, long service life.
Multi-functional compatibility, can match ploughs, harrows, planters, harvesters, trailers and other various agricultural and engineering accessories, one machine with multiple uses, save the cost of buying multiple equipment. Comfortable and humanized cab, with shock absorption, noise reduction, air conditioning configuration, reduce operator fatigue, suitable for long-term work. Fuel-efficient design, optimized engine system, reduce fuel consumption under high load, lower daily use cost. Easy maintenance, unified standard parts, simple operation structure, reduce later maintenance time and expense, truly efficient, cost-effective and practical heavy agricultural machinery.
