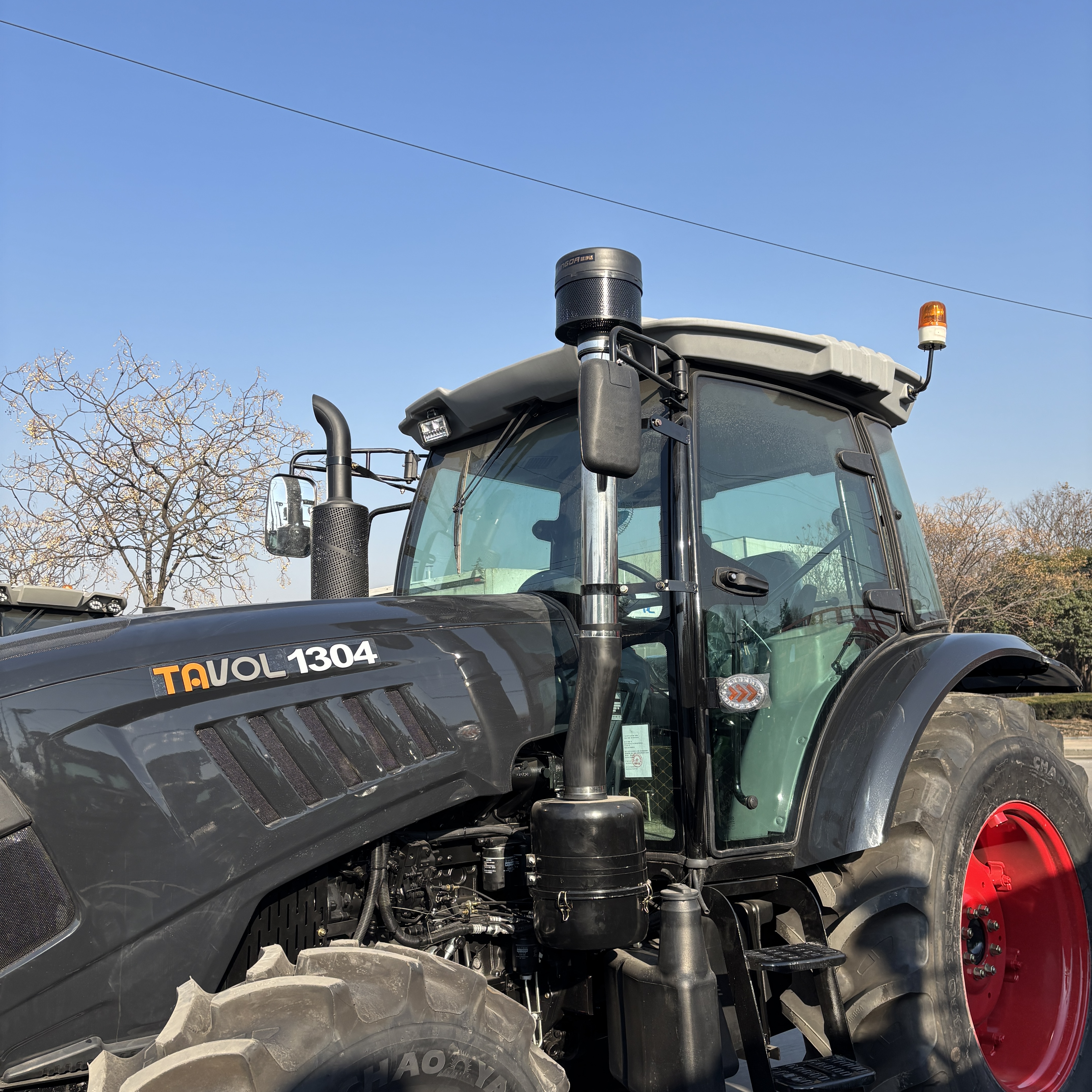

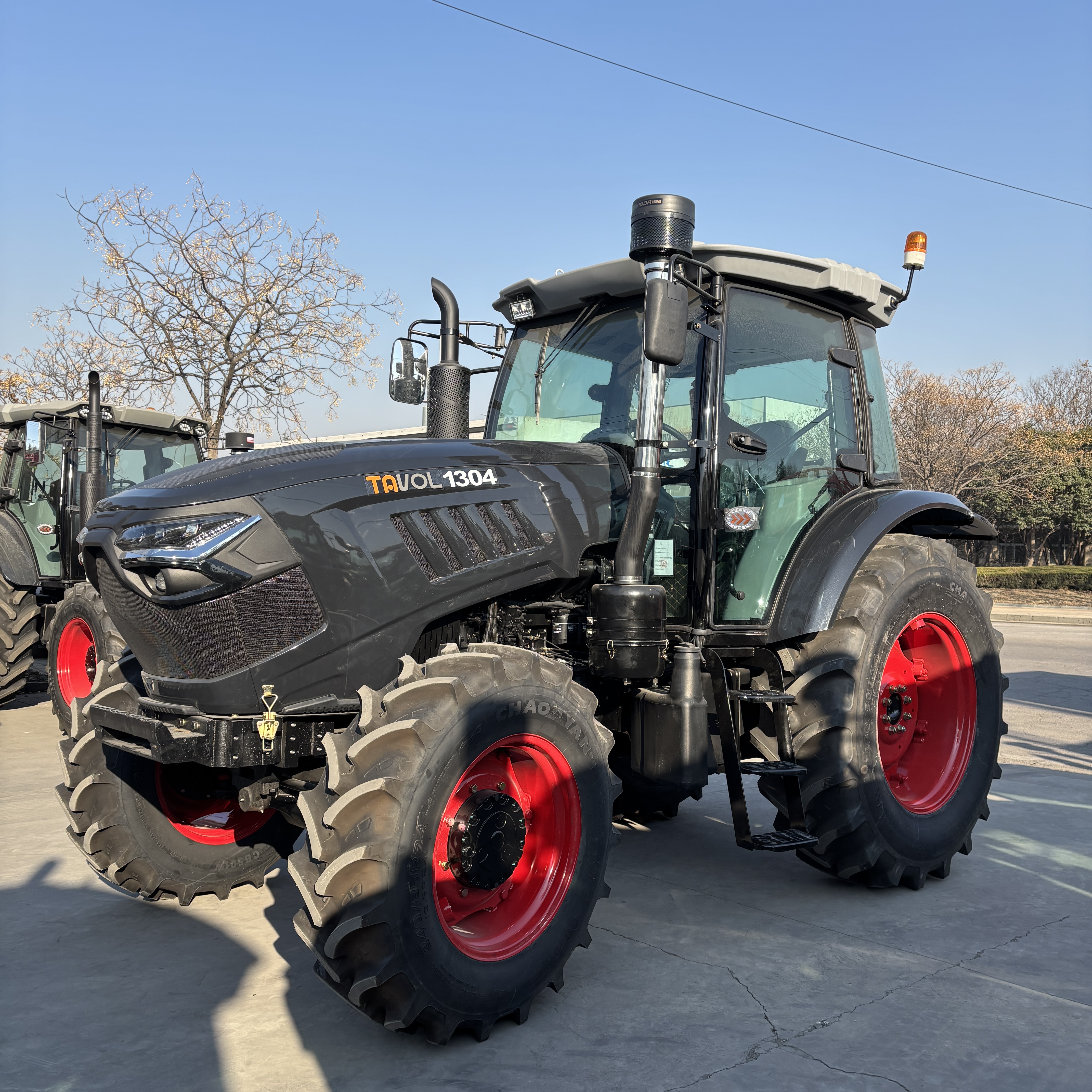

TL1304
TAVOL
8701941090
Technical Parameters
Model | Tavol-1304 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 28 | |
PTO Max Power | 75 | |
Dimensions(mm) | 4510×2050×3010 | |
Wheelbase(mm) | 2475 | |
Track(mm) | Front wheel(mm) | 1620 |
Rear wheel(mm) | 1850 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 365 |
Minimum turning cricle radius | Use unilateral braking | ≤4.3 |
Not unilateral braking | ≤4.8 | |
Minimum use quality | 3970 | |
Gearbox | 16F+8R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | 25 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 12.4-24/16.9-30 |
Rear wheel specifications | 14.9-26/18.4-38 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Engine Brand | YUCHAI, WEICHAI,YTO, EURO5 LR4A150-50 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 14 |
Fuel tank(L) | 60 | |
Engine oil pan(L) | 17 | |
Driveline oil (L) | 38 | |
Lifter(L) | 9.5 | |
This parameter table is for reference only, everything is based on actual products | ||
