| Model | Tavol-904 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 23.7 | |
| PTO Max Power (KW) | 60.8 | |
| Dimensions(mm) | 4350*2100*2850 | |
| Wheelbase(mm) | 2570 | |
| Track(mm) | Front wheel(mm) | 1650 |
| Rear wheel(mm) | 1620 | |
| Quantity: | |
|---|---|

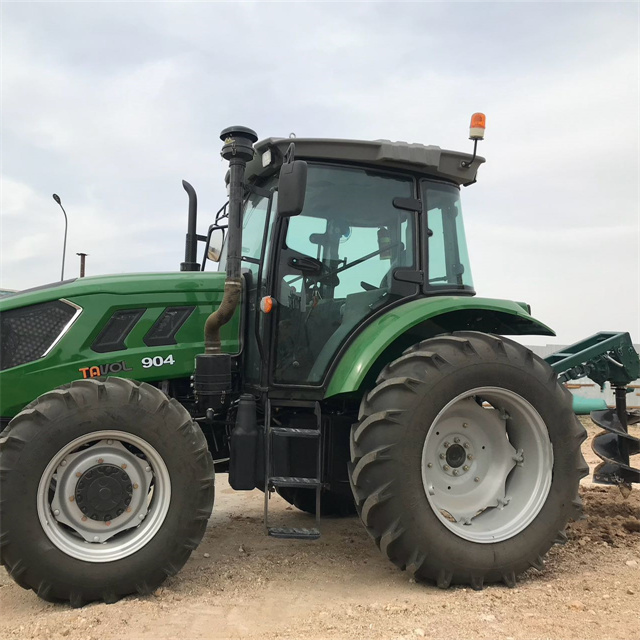

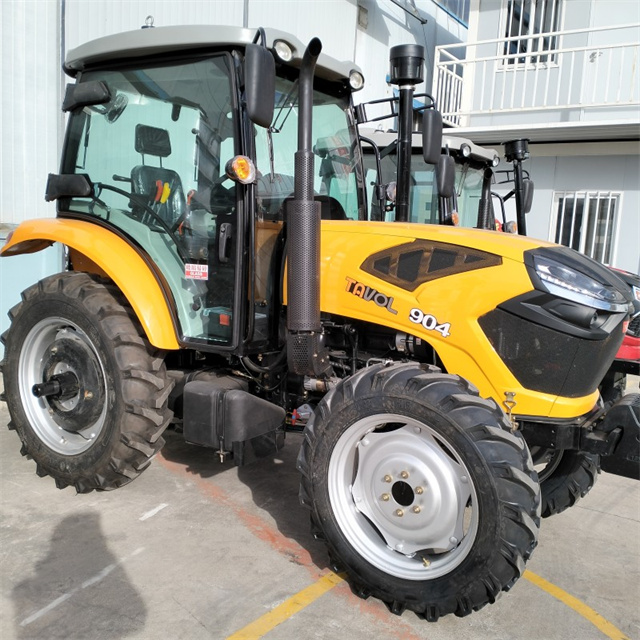

TL904
TAVOL
Technical Parameters
| Model | Tavol-904 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 23.7 | |
| PTO Max Power (KW) | 60.8 | |
| Dimensions(mm) | 4350*2100*2850 | |
| Wheelbase(mm) | 2570 | |
| Track(mm) | Front wheel(mm) | 1650 |
| Rear wheel(mm) | 1620~2020 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 365 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.8 |
| Not unilateral braking | ≤4.3 | |
| Minimum use quality | 4250 | |
| Gearbox | 16F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | 16.8 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/1000 |
| Tire | Front wheel specifications | 12.4-24 |
| Rear wheel specifications | 16.9-34 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 14 |
| Fuel tank(L) | 150 | |
| Engine oil pan(L) | 17 | |
| Driveline oil (L) | 38 | |
| Lifter(L) | 17 | |
| This parameter table is for reference only, everything is based on actual products | ||
 |
|  |  |
| Project in Brazil | Project in Ukraine | Project in Latvia | Project in Australia |
 |  |  |  |
| Project in Congo | Project inTrinidad and Tobago | Project in Mongolia | Project in Russia |
Welcome you Contact US:
Ms.Joily sun
WhatsApp/WeChat：+8615166062329
Email：joily@tavolgroupcom
