Tavol Agricultural Machinery 120hp Farm Wheel Tractor with Front Loader

Name: Tavol Agricultural Machinery 120hp Farm Wheel Tractor with Front Loader
Brand: TAVOL
Rating: 5.0 (21 reviews)

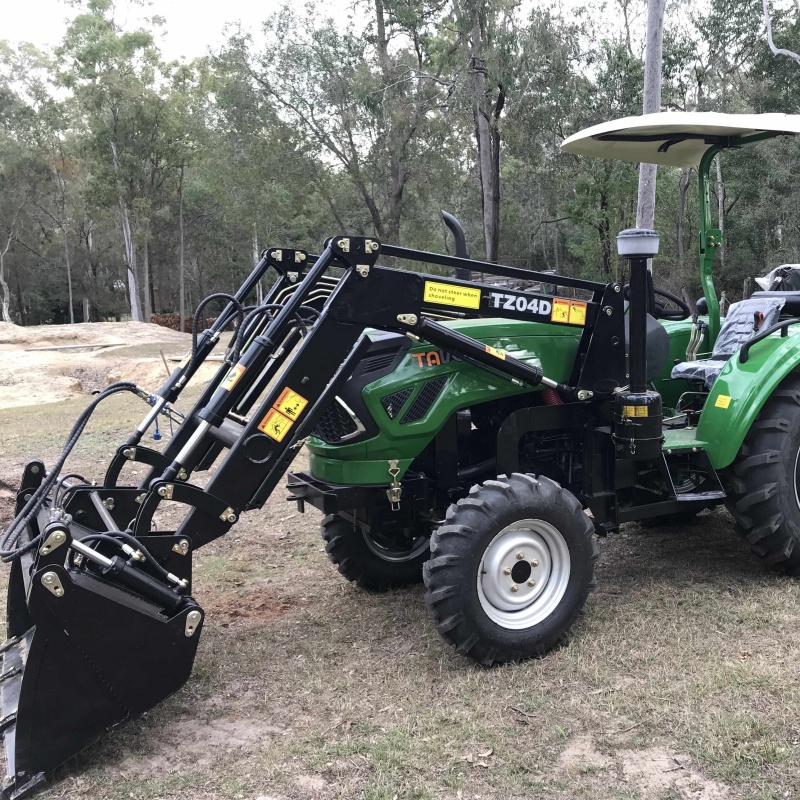

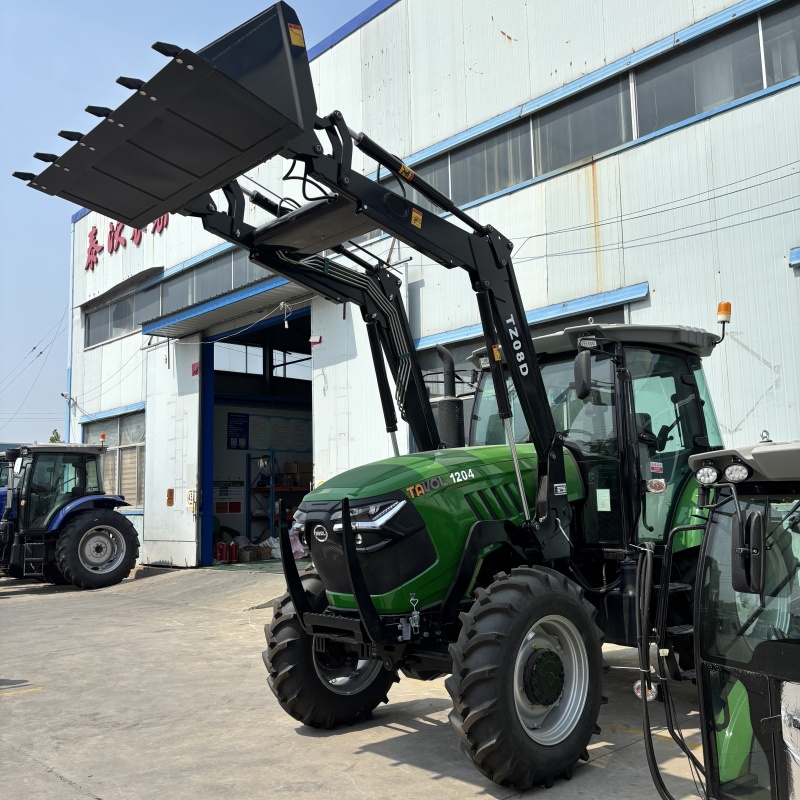

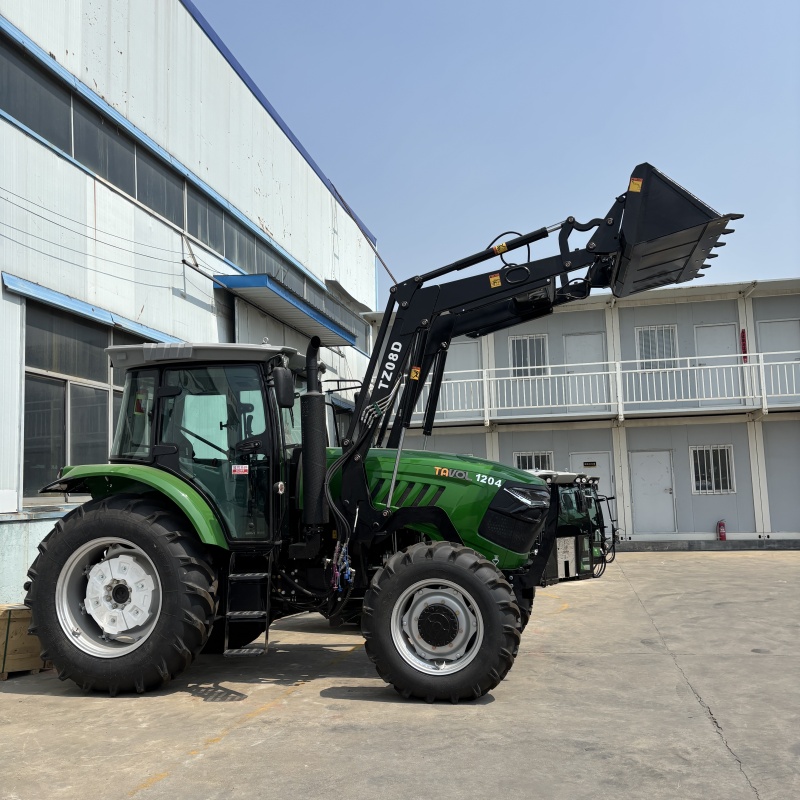

Tavol 120hp Tractor with TZ08 4 in 1 Front Loader

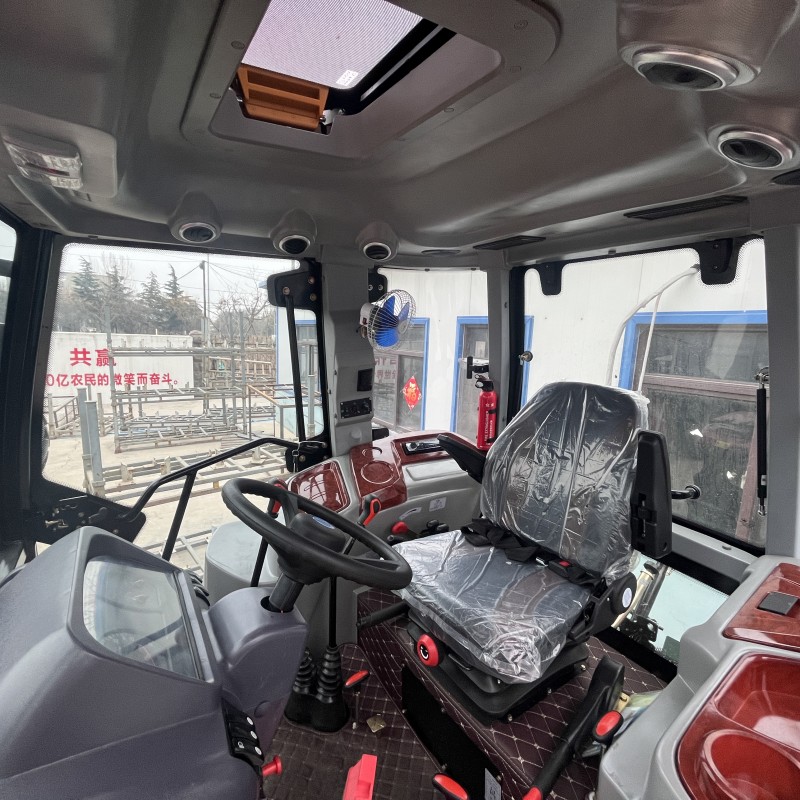

Flat floor cab with heating and air conditioning, Humanized cab design, shock-absorbing seat, air conditioning system and low-noise environment reduce operator fatigue.

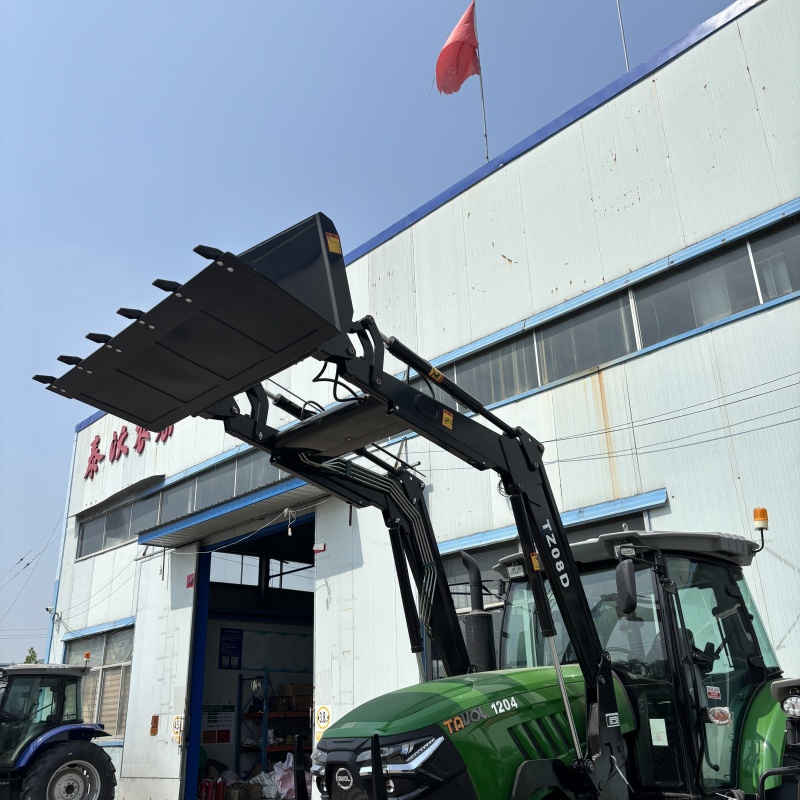

Equipped with a high-performance hydraulic front loader, it can quickly switch between a variety of attachments such as buckets and forklifts to meet the diverse needs of earthmoving, feed loading and unloading, and material stacking.

Availability:

Quantity:



Inquire Add to Basket

Model:
TL1204
Brand:
TAVOL
Code:
8701941090

Product Description

Technical Parameters

Model		Tavol-1204
Machine parameters	Type	4×4
	Rated Traction( KN)	28
	PTO Max Power	75
	Dimensions(mm)	4510×2050×3010
Wheelbase(mm)		2475
Track(mm)	Front wheel(mm)	1620
	Rear wheel(mm)	1850
Ground clearance(mm)	Minimum ground clearance(mm)	365
Minimum turning cricle radius	Use unilateral braking	≤4.3
	Not unilateral braking	≤4.8
Minimum use quality		3970
Gearbox	16F+8R Shuttle Shift
Steering System	hydraulic steering gear
Drive Train	Clutch	double acting clutch
Working equipment	Maximum lifting force at 610mm(KN)	25
	Suspension mechanism	Three-piont suspension type 1
PTO shaft	PTO Spedd(r/min)	540/760/1000
Tire	Front wheel specifications	12.4-24/16.9-30
	Rear wheel specifications	14.9-26/18.4-38
Engine	Type	Inline, 4 stroke, Water cooled
	Cylinder	4
	Engine Brand	YUCHAI, WEICHAI,YTO, EURO5 LR4A150-50
Optional	Cabin	AC/Heater
	Roll bar
	Canopy
Perfusion volume	Radiater(L)	14
	Fuel tank(L)	60
	Engine oil pan(L)	17
	Driveline oil (L)	38
	Lifter(L)	9.5
This parameter table is for reference only, everything is based on actual products
