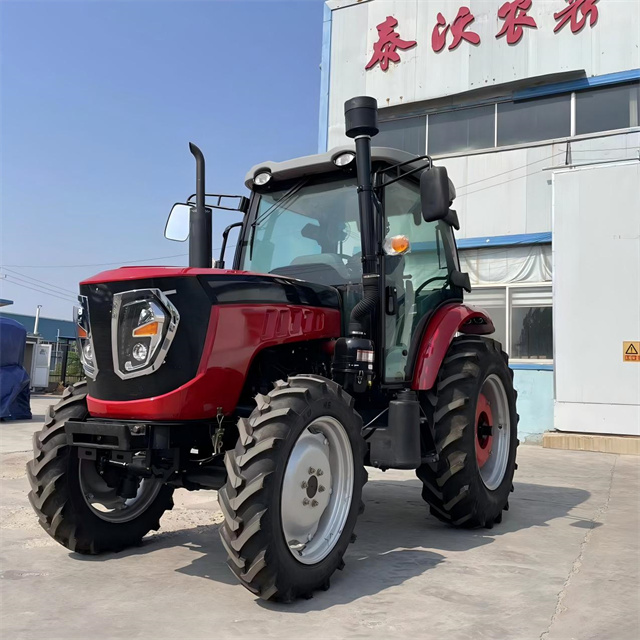

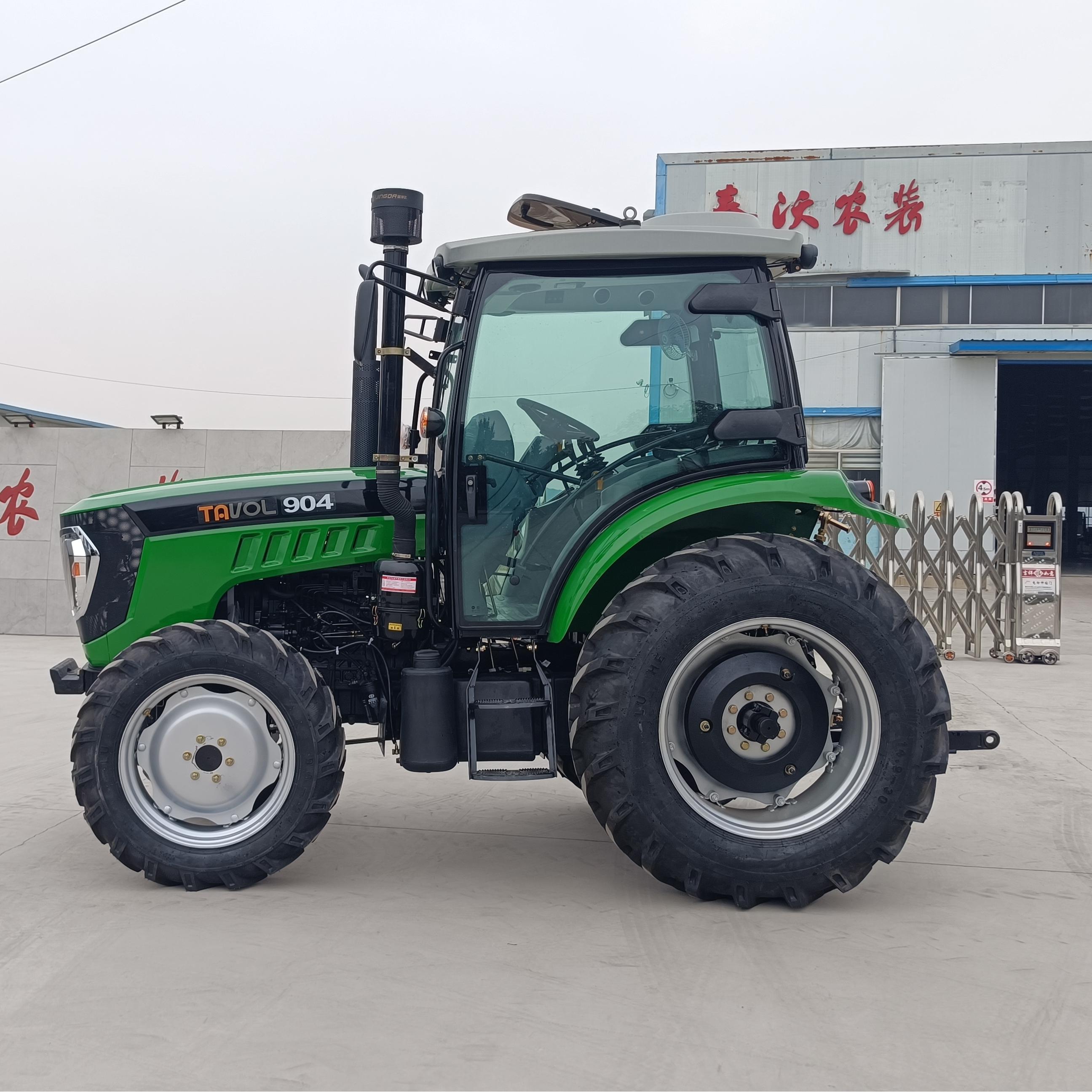

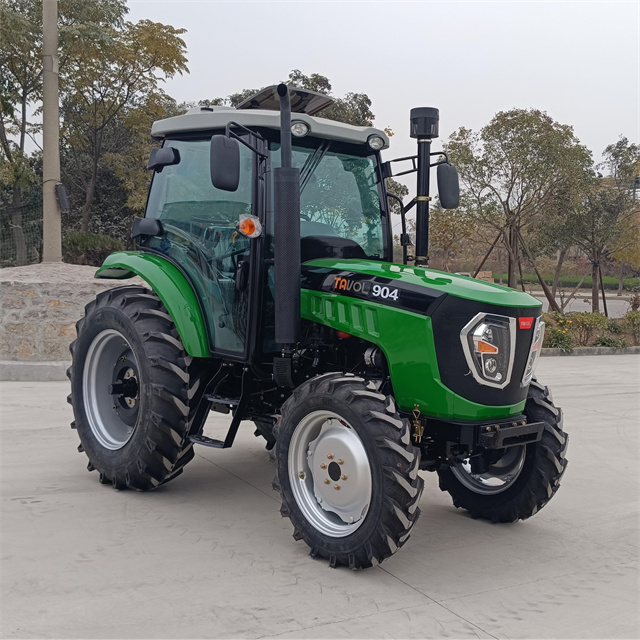

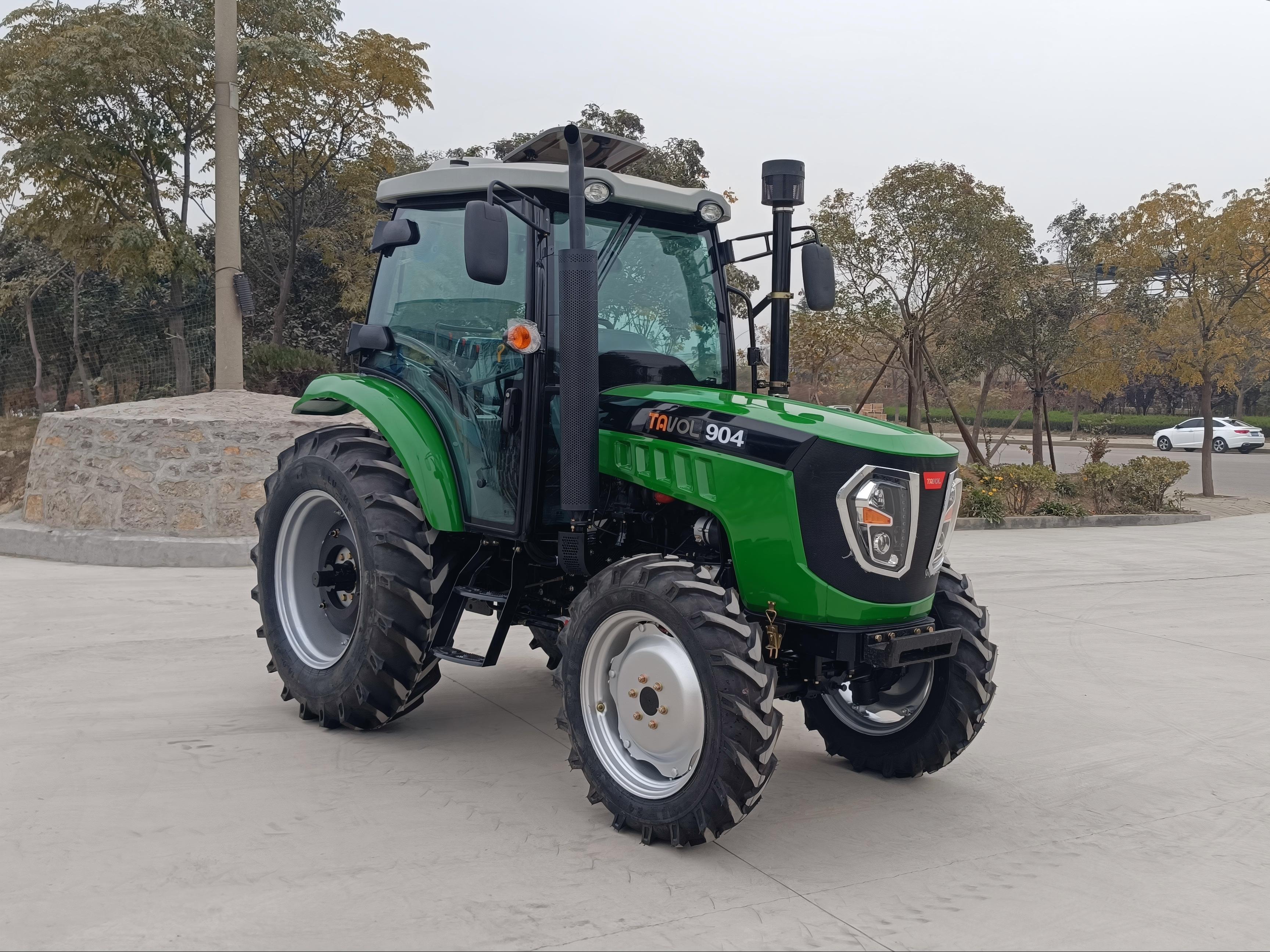

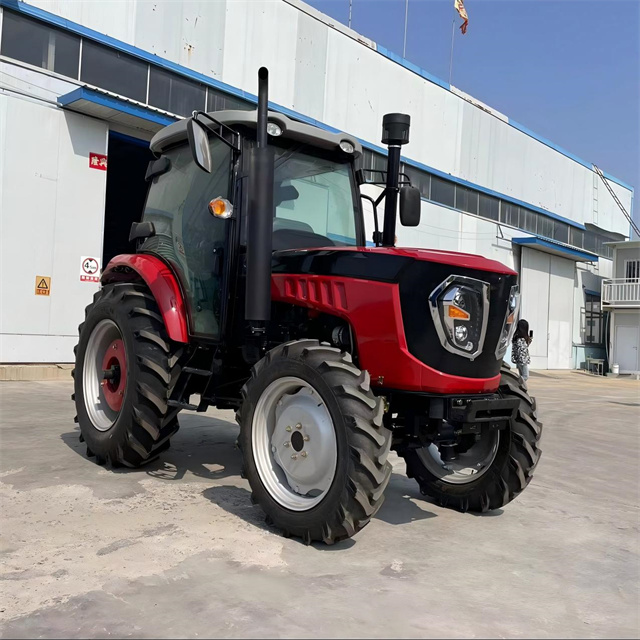

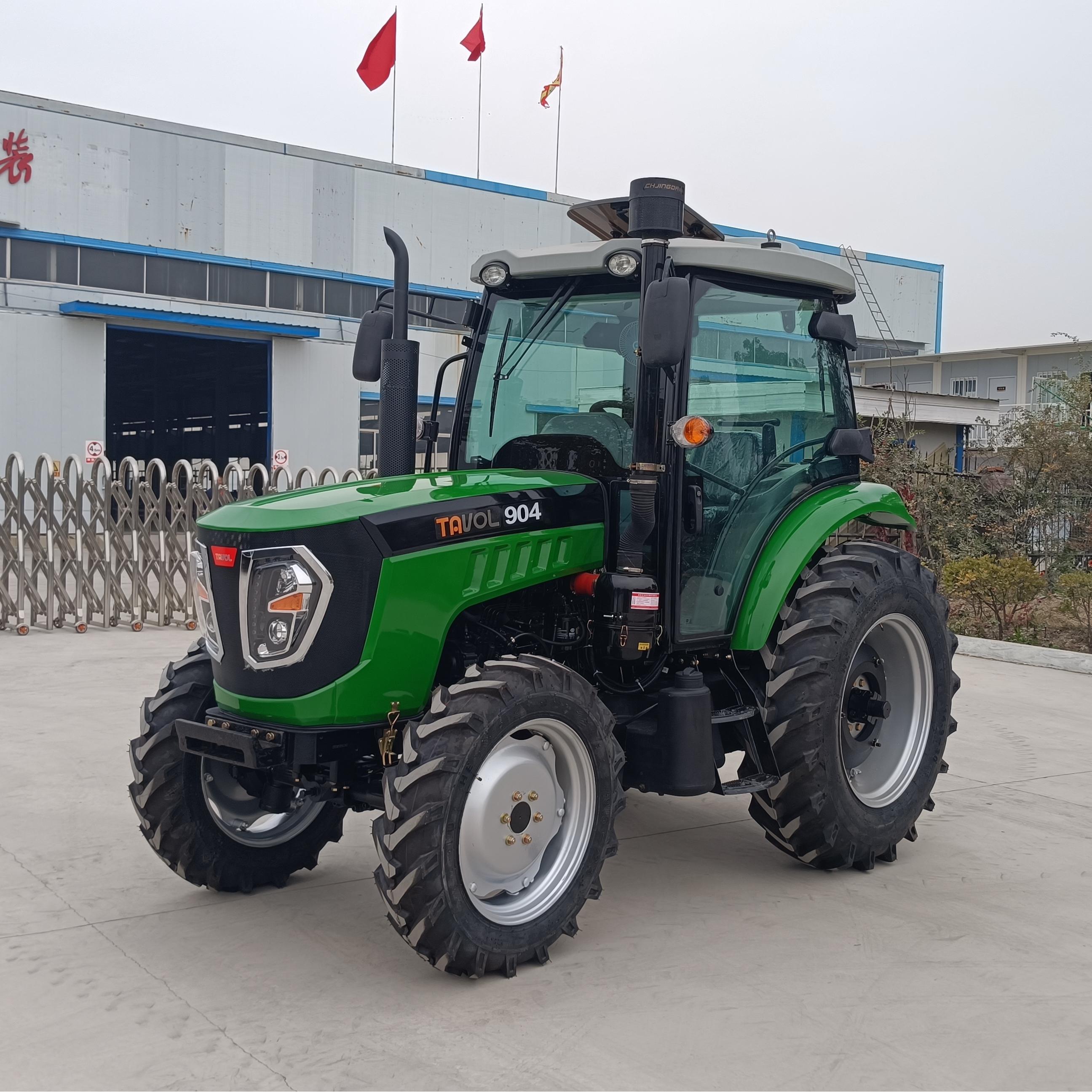

TL904
TAVOL
8701931000
Advantages and Features
| With scientifically designed vehicle counterweight and reinforced structure, and the industry-leading high-flow hydraulic system, TAVOL tractors achieve a 30% increase in traction and a maximum lifting force of 5.2 tons. The optimized center of gravity distribution ensures operational stability, and the hydraulic system response speed is increased by 25%, making it easy to handle heavy-duty operations such as deep plowing and ditching. The patented hydraulic pipeline design reduces pressure loss and provides more efficient power output, making it a comprehensive performance benchmark in the same horsepower segment. |  |
 | The TAVOL tractor is equipped with an intelligent four-wheel drive system that can automatically identify road conditions and switch drive modes. Combined with a multi-plate wet differential lock, the ability to get out of trouble is increased by 40%. The maintenance-free wet clutch uses oil bath cooling technology, has a lifespan of up to 8,000 hours, and a transmission efficiency of up to 95%. Whether it is muddy paddy fields, slope operations or heavy-load transportation, it can maintain stable power output, adapt to the full-scenario operation needs of plowing, sowing, transportation, etc., and take into account both efficient operations and driving safety. |

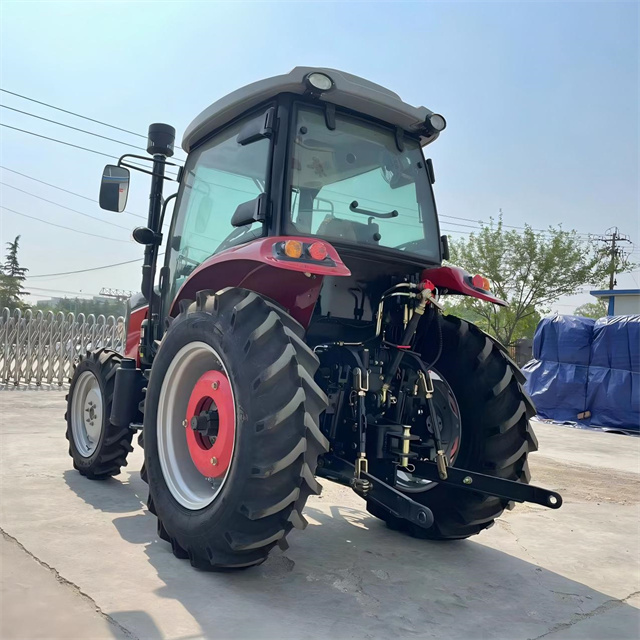

TAVOL tractors are equipped with a multi-mode PTO output system as standard, providing 540/1000 rpm and 540/760 rpm dual-gear options, and supporting 6-key/8-key output shaft specifications. Through hydraulic switching, it can quickly match the needs of various agricultural machinery such as rotary tillers, seeders, balers, etc. The reinforced PTO sleeve design increases the torque output by 20%, ensuring the stable operation of high-power agricultural machinery and achieving the best operating efficiency of agricultural machinery. |  |
 | TAVOL tractors provide all-terrain tire solutions: flat tires are suitable for road transportation, paddy field tires are equipped with triple sealing technology to prevent mud and water intrusion, medium tires adopt widened pattern design to take into account both paddy and dry field operations, and radial tires have stronger load-bearing capacity. Paddy field tires and medium tires are equipped with patented waterproof sealing systems to effectively prevent water ingress and mud and sand wear on the bearings. Different tire types have undergone 2,000 hours of endurance testing and can perfectly adapt to various operating scenarios such as deep plowing of paddy fields, dry land operations, orchard management, etc., to ensure the best traction performance under various working conditions. |
| TAVOL tractors use a fully sealed luxury cab, equipped with a high-power air-conditioning system, and noise is controlled below 72 decibels. The panoramic curved glass design provides a 280° ultra-wide field of view, and with an adjustable suspension seat, long-term operation is more comfortable, making field operations easier and more efficient. |  |
Technical Parameters
| Model | Tavol-9004 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 13.5 | |
| PTO Max Power (KW) | 57 | |
| Dimensions(mm) | 3560×1450×2150 | |
| Wheelbase(mm) | 1780 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
| Not unilateral braking | ≤4.6 | |
| Minimum use quality | 2065 | |
| Gearbox | 12F+12R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥14 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 9.5-24 |
| Rear wheel specifications | 14.9-30 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 10 |
| Fuel tank(L) | 60 | |
| Engine oil pan(L) | 5 | |
| Driveline oil (L) | 20 | |
| Lifter(L) | 9.5 | |
| This parameter table is for reference only, everything is based on actual products | ||
Different Models
Optional Attachment
TAVOL Group is a high-tech conglomerate engaged in the manufacturing of high-end agricultural equipment and engineering machinery. TAVOL has passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, high-tech enterprise certification, and special equipment manufacturing license.
The mission of TAVOL Group is to assemble the best tractors with the best hearts and strive for the smiles of one billion farmers.
TAOVL adheres to the values of tolerance, openness, and win-win, adopts strict production technology and inspection standards, and selects the best quality branded tractor parts. To ensure 100% quality standards, TAVOL will independently develop and produce tractor core components, and continue to increase investment in new models and technologies.
 |  |  |
