CPD
Tavol

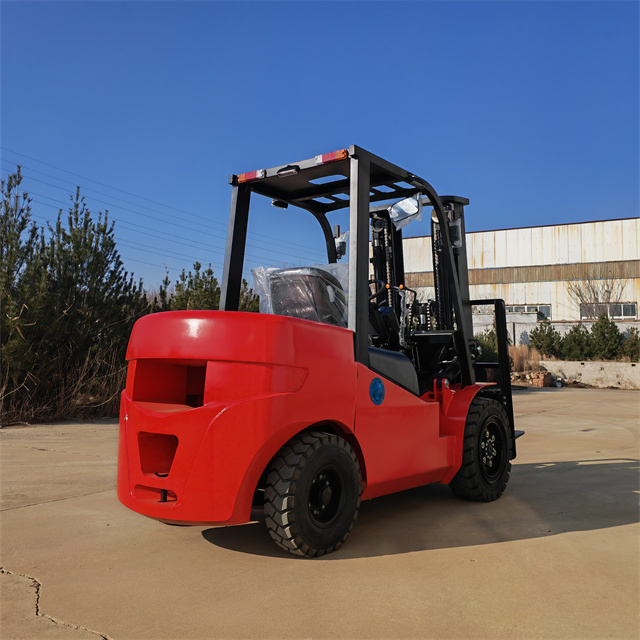

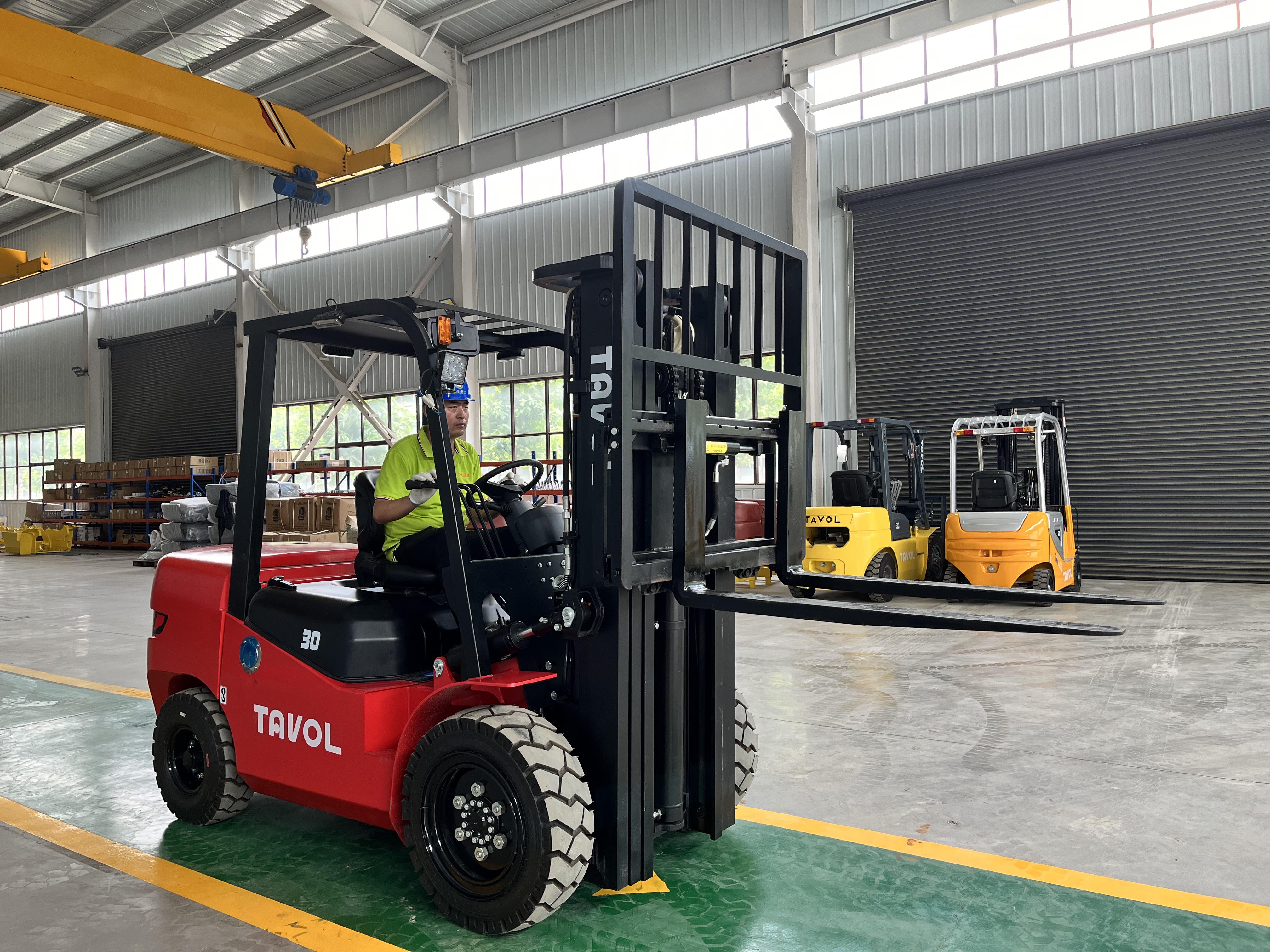

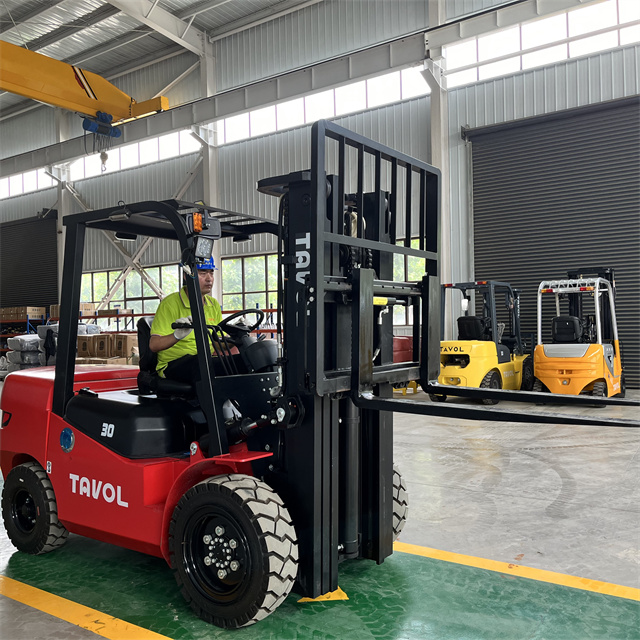

The 3.0-ton electric forklift is an electric industrial vehicle designed for medium and heavy material handling. It combines advanced electric drive technology with a sturdy and durable mechanical structure to provide efficient, environmentally friendly and safe handling solutions for warehousing, logistics, manufacturing and other fields.
Products Advantage
1.Flexible operation: The electric signal control of the electric steering system, acceleration control system and hydraulic control system makes the operation more flexible and convenient, reduces the difficulty of operation and improves the accuracy of work.
2.Low energy consumption: The consumption cost of electric energy is much lower than the consumption cost of diesel and other fuels. Long-term use reduces the cost of enterprises and saves a lot of energy costs.
3.Multiple protection devices: Equipped with a variety of safety protection devices, such as emergency braking, overload protection, etc., to ensure safety during operation and reduce the risk of accidents.
Technical Parameters
| Model | CPD30 |
| Loading Capacity (kg) | 3000 |
| Load Center Distance (mm) | 500 |
| Drive From | battery |
| Fork Lifting Height (mm) | 3000 |
| Length (Including Fork) (mm) | 4120 |
| Width (mm) | 1230 |
| Height (Door Frame Indented) (mm) | 2105 |
| Max working Height (mm) | 4270 |
| Wheel Base (mm) | 1700 |
| Wheel Track (Front/Rear) (mm) | 1000/970 |
| Front Overhang (mm) | 465 |
| Wheel Tyre (Front/Rear) | Pneumatic tire |
| Self Weight (kg) | 4650 |
| Fork Width (mm) | 122 |
| Fork Thickness (mm) | 45 |
| Standard Fork Length (mm) | 1070 |
| Battery (Voltage/Capacity) | 76.8V/205AH |
| Optional: 1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah, 76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional; 2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast. 3.Forks: 1070/1220/1370/1520/1670/1820/1970mm 4.Transmission: Automatic/manual; 5.Tire: pneumatic/Solid/non-mark solid; 6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc.. 7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc. | |
Tavol Forklifts Service Overseas
|  Tavol Forklift in Belgium |
TAVOL klift in Zimbabwe |
Tavol Forklift in Chile |
Tavol Forklift in Mexico |
Tavol Forklift in Azerbaijan |
TAVOL forklifts can provide solutions for different industries.
Please feel free to contact with us for more information .
