CPCD50
Tavol

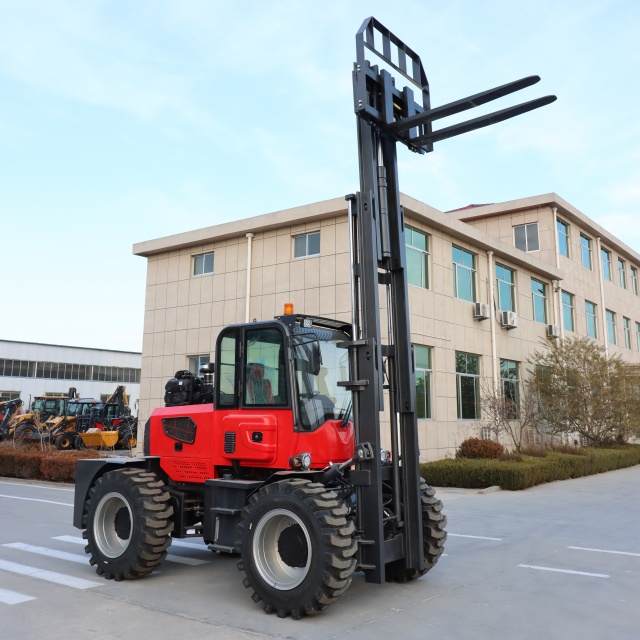

The 5-ton off-road forklift is a robust and versatile material handling solution engineered for extreme conditions. It features a durable chassis, high-flotation tires, and a powerful lifting mechanism capable of handling heavy loads up to five tonnes with precision. Its ergonomic operator cabin is designed for comfort and safety, offering excellent visibility and intuitive controls. Built with superior ground clearance and a rugged frame, this machine excels in navigating uneven terrain, loose surfaces, and challenging outdoor environments where standard forklifts would falter.
This forklift is ideal for demanding sectors such as construction, lumberyards, agriculture, and mining. It is perfectly suited for moving heavy materials like steel beams, concrete pipes, lumber stacks, or large equipment across rough, unpaved, and often muddy or sandy job sites. It is also invaluable for disaster relief operations, infrastructure projects in remote areas, and any application requiring reliable load handling far from smooth, hard surfaces like factory floors or loading docks.
Compared to standard diesel forklifts, the primary advantage is its exceptional off-road capability. It possesses significantly higher ground clearance, superior traction from specialized tires, and a reinforced undercarriage to withstand impacts. While sharing the power and endurance of diesel engines, it is specifically designed for stability and performance on inclines and unstable ground. Standard forklifts are confined to paved, level surfaces, whereas this model delivers power and lifting capacity anywhere, dramatically expanding operational possibilities.
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | / |
| 6 | 5m | / |
Product specifications
| Model | CPCD50 |
| Maximum load | 5000 |
| Standard height | 3 meters |
| Gear | Automatic transmission (dual high and low speed with running gear) |
| Mast width | 180mm |
| Articulation | Rear 200mm / front 300mm (spherical bearing) |
| Leaning angle | 10° |
| Turning radius | 3900mm (outer tire) |
| Wheelbase | 2350mm |
| Gearbox | Jinlite 280 torque converter integrated |
| Steering | Hydraulic power |
| Axle | Heavy cast steel large wheel side bridge |
| Drive mode | Four-wheel drive |
| Hydraulic system | Juliyuan gear pump. Qingchang multi-way valve |
| Tire | 16/70-24 semi-solid |
| Brake | Air brake (four-wheel disc brake) |
| Weight | 5700KG |
| size | 3950 * 2100 * 2640 (mm) |
| Minimum ground clearance | 330 (mm) |
| Lifting chain | Carbon steel forging 7 pieces |
| Fork length | 1.22 meters (optional length and width) |
Product details:
Optional aids：
Client project in Türkiye
Welcome to contact:
