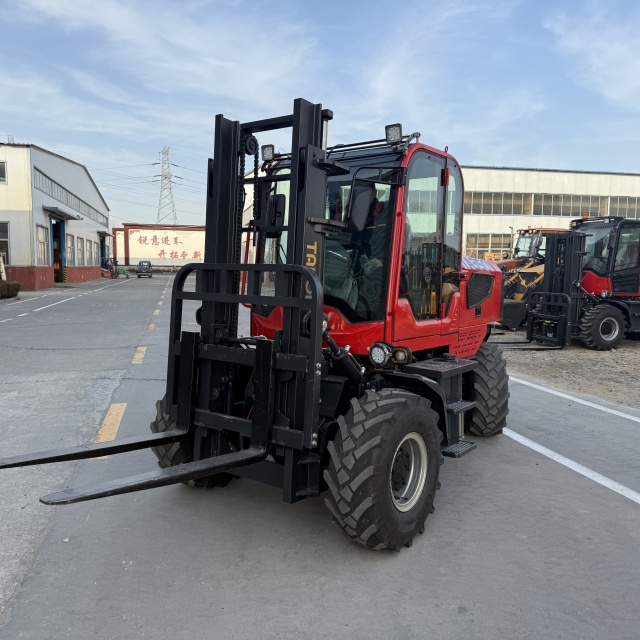

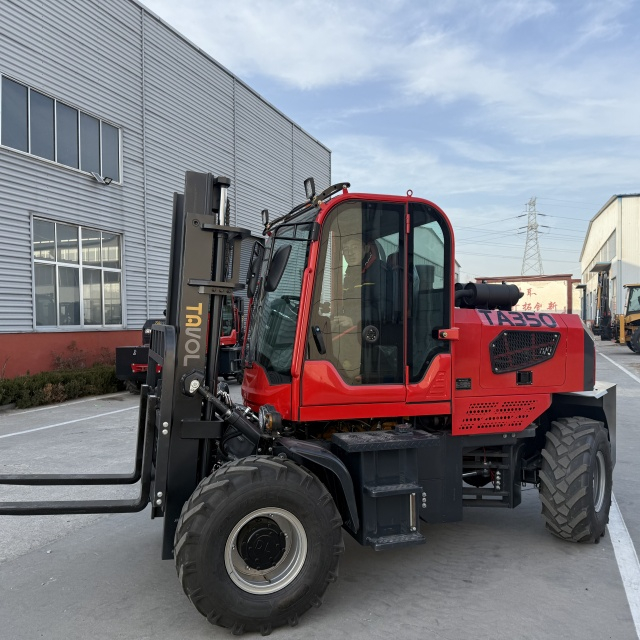

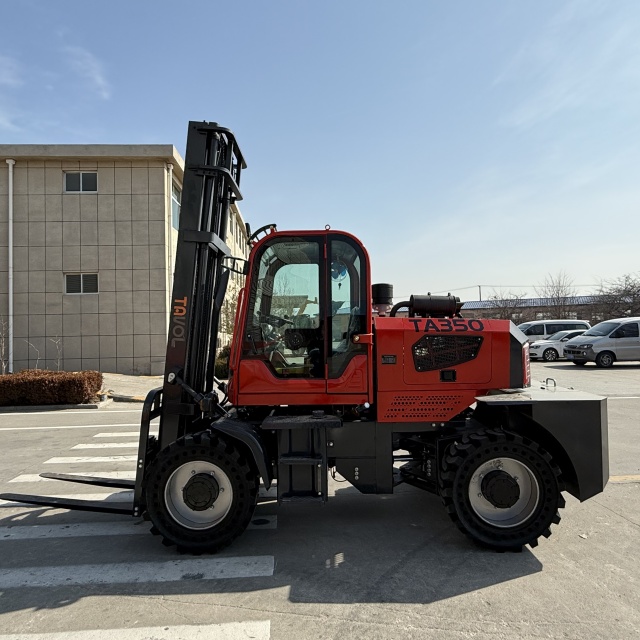

Tavol Hot Sale 3.5Ton Off-road Diesel Forklift

Share to:

Tavol Hot Sale 3.5Ton Off-road Diesel Forklift

Name: Tavol Hot Sale 3.5Ton Off-road Diesel Forklift
Brand: Tavol
SKU: 537589317
Rating: 5.0 (30 reviews)

The forklift is equipped with a high-strength mast, with a maximum lifting height of 3-6 meters (optional) and a load center distance of 500mm, taking into account both lifting capacity and stability. The wide-view cab, roll cage and suspended seat enhance operational safety and comfort. Optional forks, side shifters or special accessories (such as log clamps, brick clamps) can be installed to meet diverse handling needs.

Capacity(kg):	3500kg
Fork size(mm）:	1220mm
Lifting height:	3m
Availability:

Quantity:



Inquire Add to Basket

Model:
CPCD35
Brand:
Tavol

Product Description

Mast and Lift Height for Fork Lift

/	2- Stage Mast 2-	Triplex Mast
1	3 m	4.5m
2	3 m with full free mast	5m
3	3.5m	5.5m
4	4m	6m
5	4.5m	/
6	5m	/

Product specifications

Model	CPCD35
Maximum load	3500
Standard height	3 meters
Gear	Automatic transmission (dual high and low speed with running gear)
Mast width	140mm
Articulation	Rear 12mm / front 20mm (spherical bearing)
Leaning angle	10°
Turning radius	3600mm (outer tire)
Wheelbase	1950mm
Gearbox	Jinlite 265 torque converter integrated
Steering	Hydraulic power
Axle	Weighted small wheel side bridge
Drive mode	Four-wheel drive
Hydraulic system	Juliyuan gear pump. Qingchang multi-way valve
Tire	20.5/70-16
Brake	Air brake (four-wheel disc brake)
Weight	4450KG
size	3700 * 1800 * 2450 (mm)
Minimum ground clearance	260 (mm)
Lifting chain	Carbon steel forging 5 pieces
Fork length	1.22 meters (optional length and width)
