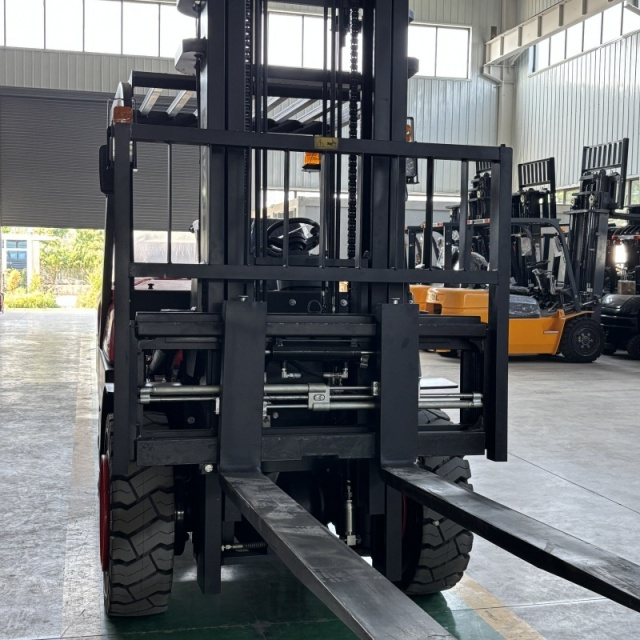

CPCD50
Tavol
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Product specifications
| Model | CPCD50 |
| Rated Loading Capacity(kg) | 5000 |
| Load Center Distance(mm) | 500 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 4350 |
| Width(mm) | 1400 |
| Height(Door Frame Indented) | 2330 |
| Wheel Base(mm) | 2150 |
| Self Weight(kg) (kg) | 6800 |
| Fork Width(mm) | 150 |
| Fork Thickness(mm) | 55 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
Fork Length for Forklift
1. Standard: 1070 mm for 2t & 2.5t forklift
2. Standard: 1220 mm for 3t & 3.5t forklift
3. Optional: 1370mm, 1520mm, 1670mm, 1820mm for forklift
A3: TAVOL will try its best to meet all kinds of clients' special requirements.
Forklift Attachment
