| Capacity(kg): | |
|---|---|
| Fork size(mm）: | |
| Lifting height: | |
| Quantity: | |
CPCD30
Tavol
8427109000

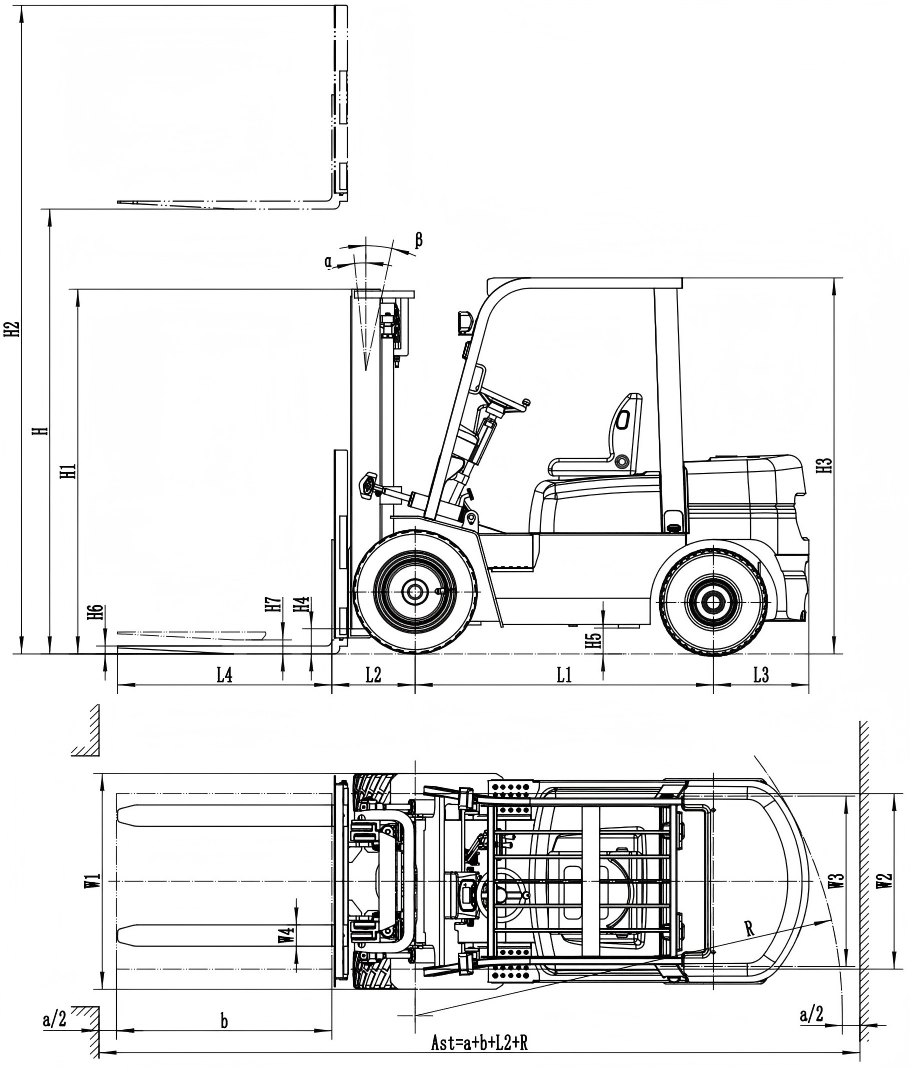

| Model | CPCD30 |
| Rated Loading Capacity(kg) | 3000 |
| Load Center Distance(mm) | 500 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3970 |
| Width(mm) | 1230 |
| Height(Door Frame Indented) | 2110 |
| Height From Ground to Overhead Guard(mm) | 2105 |
| Wheel Base(mm) | 1775 |
| Self Weight(kg) (kg) | 4250/4290 |
| Fork Width(mm) | 122 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Standard China Xinchai engine,optional Japan engine, Yanmar and Mitsubishi engine and others;
Mechanical and Automatic transmission can be choosen.
Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast and others;
Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
Optional side shifter, fork positioner and paper roll clamp,bale clamp ,rotating clamp etc.
Standard pneumatic tire, optional solid tire .
With all LED lights, warning lights,mirror .

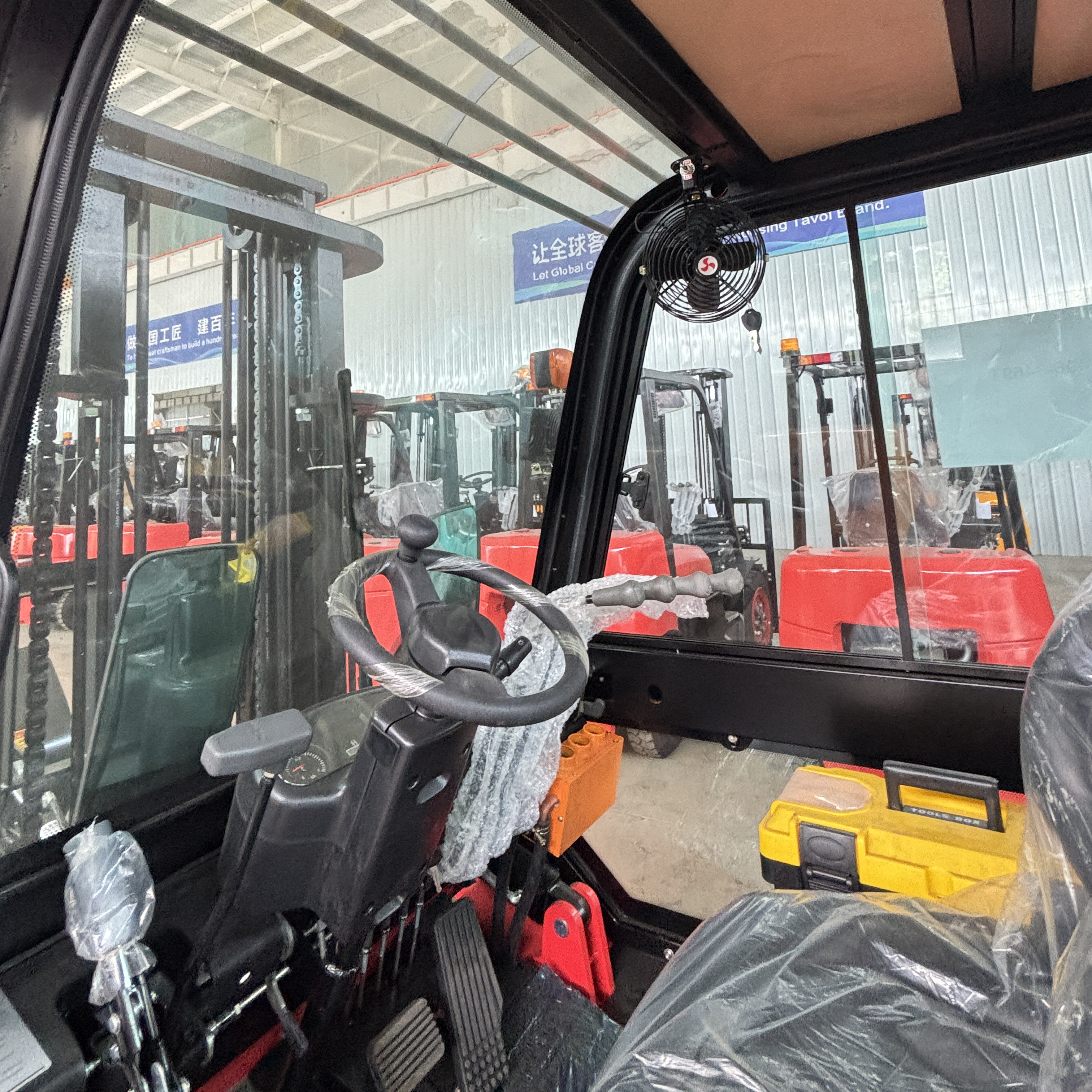

Driver's Cabin, Customized Color,air-conditioner, etc.
* Diesel Forklift: 1.5ton 2ton 2.5ton 3ton 3.5ton 4ton 4.5ton 5ton 6ton 7ton 8ton 10ton 12ton
* Electric Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* LPG Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* Off-road Forklift: 3ton, 3.5ton, 4ton, 5ton
* Telescopic Handler Forklift: 3ton, 3.5ton, 4ton, 5ton, 6ton
If you are interested in our diesel forklifts, please kindly provide the following information so we can recommend the most suitable model for you:
1.What load capacity do you require for the diesel forklift?(e.g., 2.5 ton, 3 ton, 5 ton, etc.)
2.What lifting height do you require?(standard 3m or customized height such as 4.5m, 6m, etc.)
3.Do you require any additional attachments?(e.g., side shifter, fork positioner, clamp, bucket, etc.)
Contact Person: Mr. Jessamine
| Model | CPCD30 |
| Rated Loading Capacity(kg) | 3000 |
| Load Center Distance(mm) | 500 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3970 |
| Width(mm) | 1230 |
| Height(Door Frame Indented) | 2110 |
| Height From Ground to Overhead Guard(mm) | 2105 |
| Wheel Base(mm) | 1775 |
| Self Weight(kg) (kg) | 4250/4290 |
| Fork Width(mm) | 122 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Standard China Xinchai engine,optional Japan engine, Yanmar and Mitsubishi engine and others;
Mechanical and Automatic transmission can be choosen.
Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast and others;
Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
Optional side shifter, fork positioner and paper roll clamp,bale clamp ,rotating clamp etc.
Standard pneumatic tire, optional solid tire .
With all LED lights, warning lights,mirror .
Driver's Cabin, Customized Color,air-conditioner, etc.
* Diesel Forklift: 1.5ton 2ton 2.5ton 3ton 3.5ton 4ton 4.5ton 5ton 6ton 7ton 8ton 10ton 12ton
* Electric Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* LPG Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* Off-road Forklift: 3ton, 3.5ton, 4ton, 5ton
* Telescopic Handler Forklift: 3ton, 3.5ton, 4ton, 5ton, 6ton
If you are interested in our diesel forklifts, please kindly provide the following information so we can recommend the most suitable model for you:
1.What load capacity do you require for the diesel forklift?(e.g., 2.5 ton, 3 ton, 5 ton, etc.)
2.What lifting height do you require?(standard 3m or customized height such as 4.5m, 6m, etc.)
3.Do you require any additional attachments?(e.g., side shifter, fork positioner, clamp, bucket, etc.)
Contact Person: Mr. Jessamine
