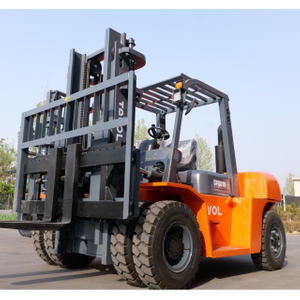

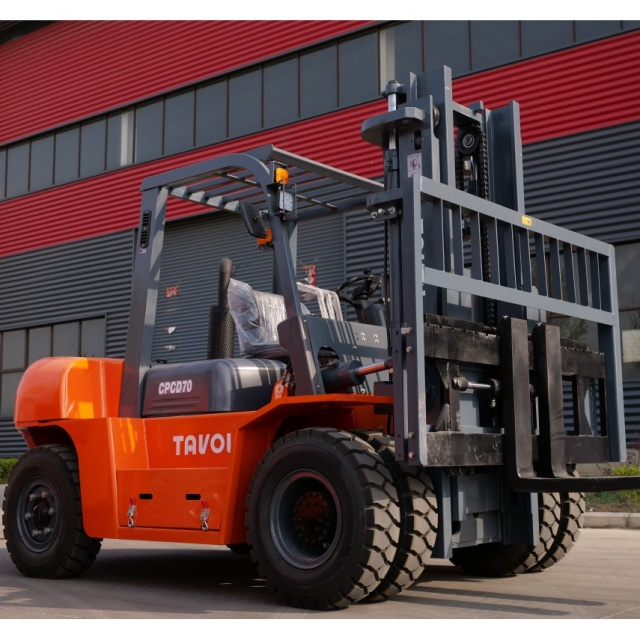

CPCD70
Tavol
TAVOL brand forklift applied CE certificate, the performance & technical specification is advanced in China, has reached the international advanced level .We have exported to many countries, such as Germany, Brazil, Mexico, Spain, Moldova, Albania, Paraguay, El Salvador, Argentina, Bosnia, Kuwait, Turkey, Cyprus, Saudi Arabia, Indonesia,Georgia, Bangladesh, Philippines, Australia etc.
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Product specifications
| Model | CPCD70 |
| Rated Loading Capacity(kg) | 7000 |
| Load Center Distance(mm) | 600 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 4800 |
| Width(mm) | 1995 |
| Height From Ground to Overhead Guard(mm) | 2420 |
| Wheel Base(mm) | 2250 |
| Self Weight(kg) (kg) | 9500 |
| Min. Ground Clearance(mm) | 230 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
TAVOL brand forklift applied CE certificate, the performance & technical specification is advanced in China, has reached the international advanced level .We have exported to many countries, such as Germany, Brazil, Mexico, Spain, Moldova, Albania, Paraguay, El Salvador, Argentina, Bosnia, Kuwait, Turkey, Cyprus, Saudi Arabia, Indonesia,Georgia, Bangladesh, Philippines, Australia etc.
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Product specifications
| Model | CPCD70 |
| Rated Loading Capacity(kg) | 7000 |
| Load Center Distance(mm) | 600 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 4800 |
| Width(mm) | 1995 |
| Height From Ground to Overhead Guard(mm) | 2420 |
| Wheel Base(mm) | 2250 |
| Self Weight(kg) (kg) | 9500 |
| Min. Ground Clearance(mm) | 230 |
| Standard Fork Length(mm) | 1220 |
| Transmission form | Hydraulic |
