Model | Tavol-2004 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 38 | |
PTO Max Power (KW) | 125 | |
Dimensions(mm) | 5350*2350*3030 | |
Wheelbase(mm) | 2668 | |
Track(mm) | Front wheel(mm) | 1900 |
Rear wheel(mm) | 1700-2300 |
Model | Tavol-504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 7.5 | |
PTO Max Power (KW) | 31 | |
Dimensions(mm) | 3560×1450×2150 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 |
Model | 1LYQ-220/222 | 1LYQ-320/322 | 1LYQ-420/422 | 1LY(T)-225/230 | 1LY(T)-325/330 | 1LY(T)-425/430 | 1LY(T)-525/530 | 1LY(T)-625/630 |
Width of cut (mm) | 400/440 | 600/660 | 800/880 | 500/600 | 750/900 | 1000/1200 | 1250/1500 | 1500/1800 |
Depth of cut (mm) | 20-22 | 20-22 | 20-22 | 25-30 | 25-30 | 25-30 | 25-30 | 25-30 |
Dia of disc (mm) | 510/560 | 510/560 | 510/560 | 660/710 | 660/710 | 660/710 | 660/710 | 660/710 |
Q’ty of disc | 2 | 3 | 4 | 2 | 3 | 4 | 5 | 6 |
Weight (kg) | 140 | 170 | 230 | 320 | 380 | 450 | 550 | 680 |
Tractor power (hp) | 20-30 | 30-50 | 40-60 | 35-55 | 70-80 | 80-120 | 120-150 | 150-200 |
Mounted cat | I类三点悬挂Cat I | II类三点悬挂Cat II |

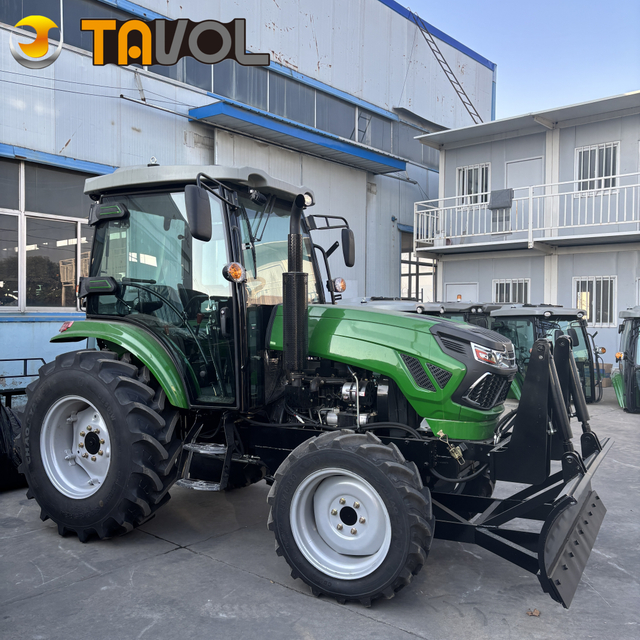

Front end loader | ||||||||
Model | TZ03D | TZ04D | TZ05D | TZ06D | TZ08D | TZ10D | TZ12D | |
Rated lift capacity | kg | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
Max. dump height | mm | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
Digging depth | mm | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
Bucket capacity | m³ | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
Dump angle | (°) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
Weight | kg | 400 | 450 | 500 | 550 | 60 | 700 | 800 |

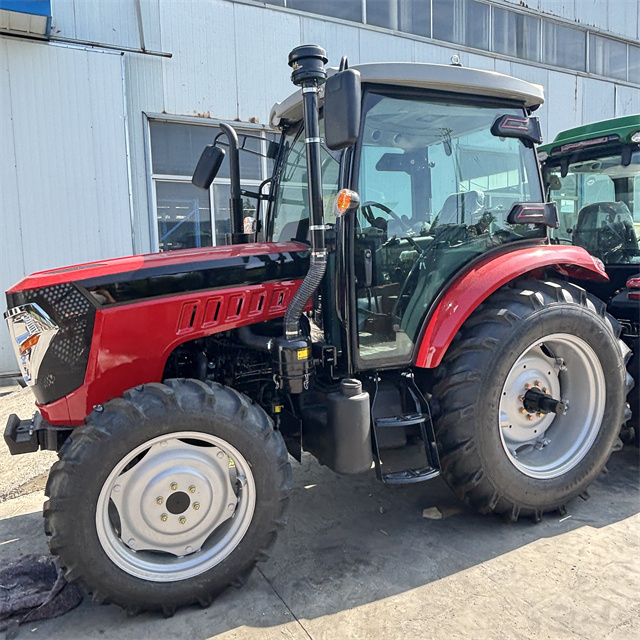

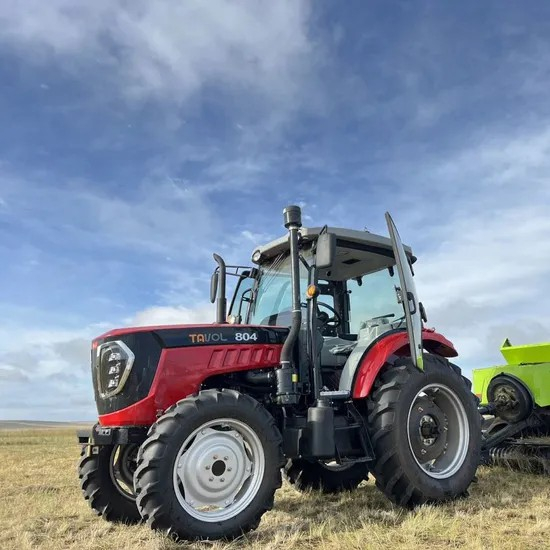

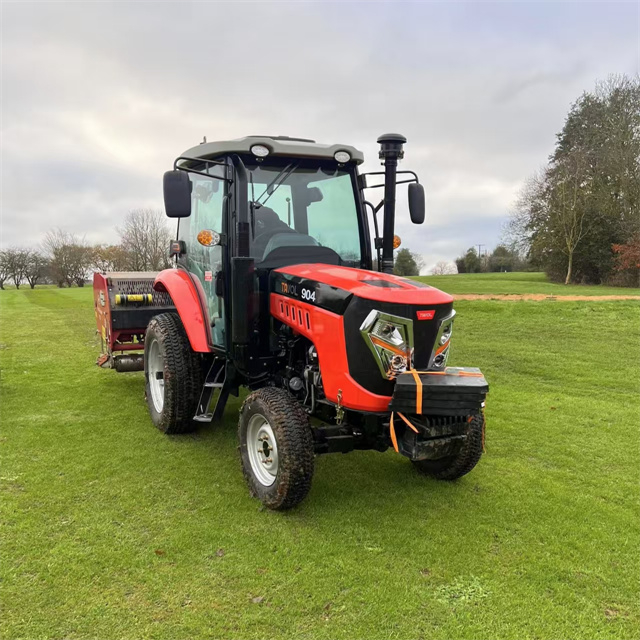

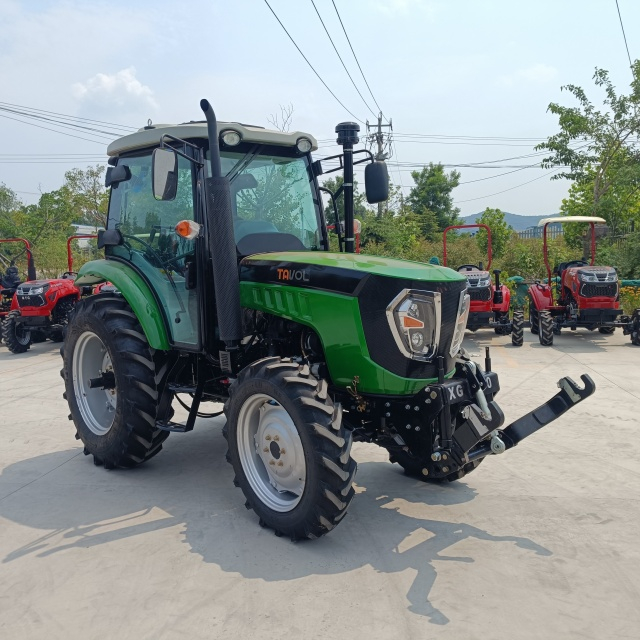

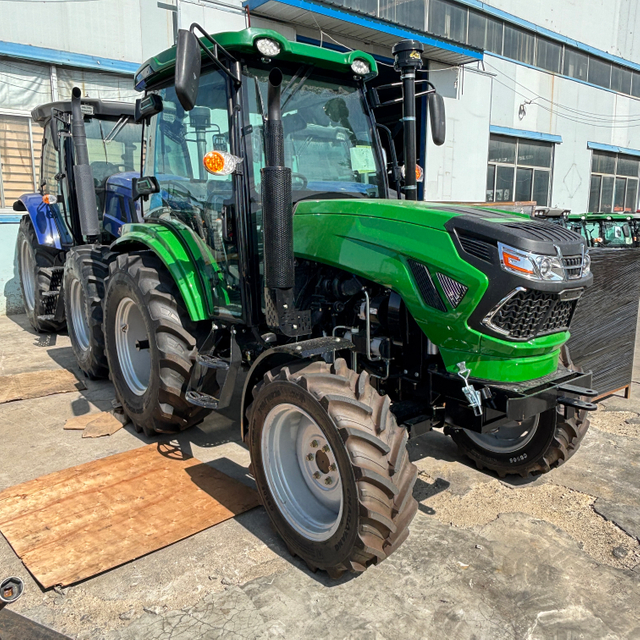

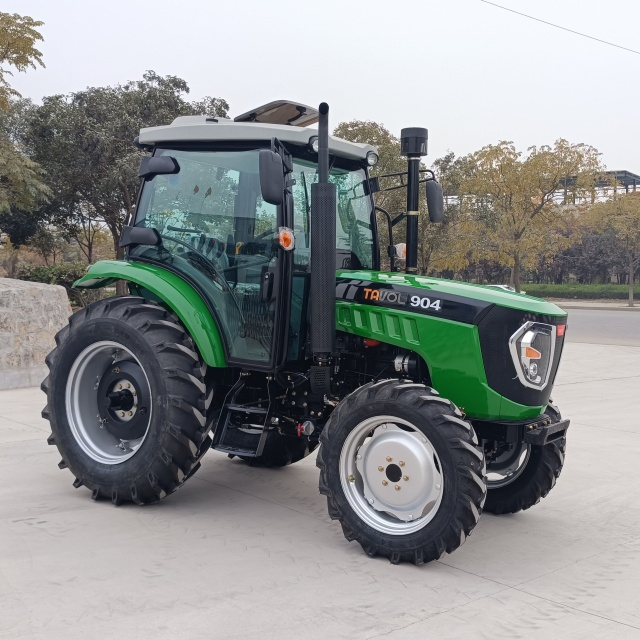

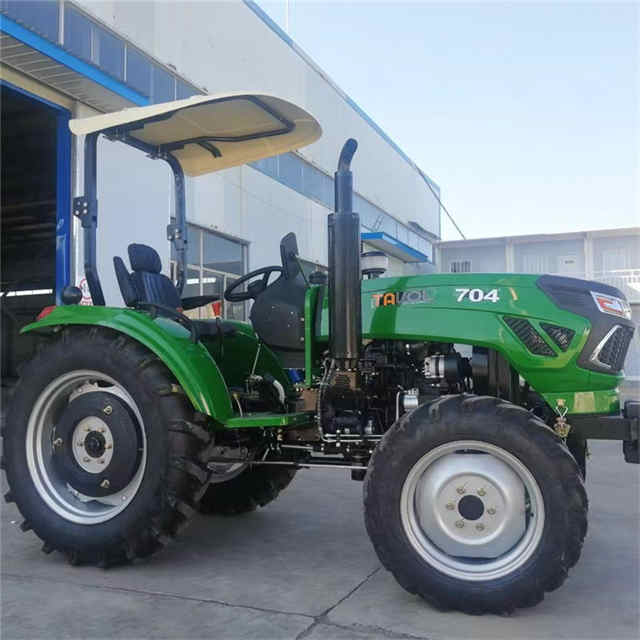

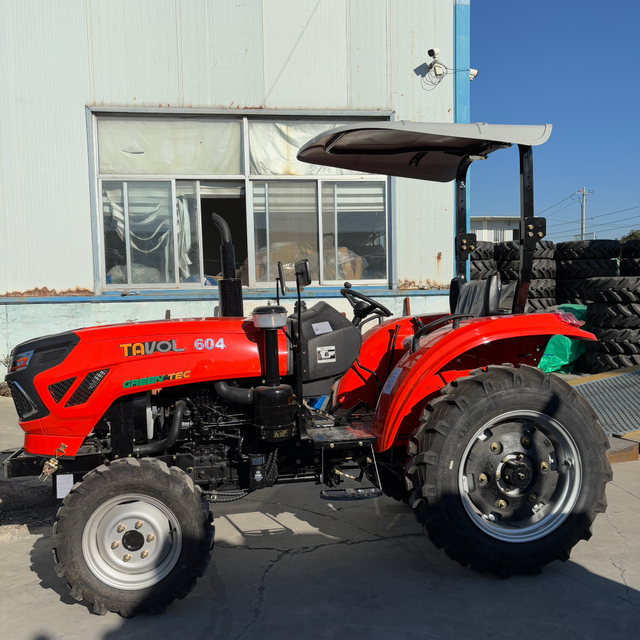

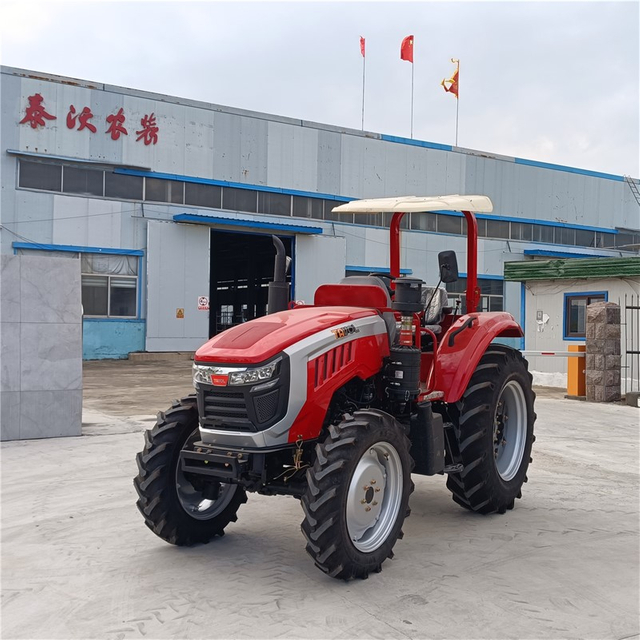

Tavol’s 60hp-100hp tractors provide optimal performance for small to medium-sized agricultural tasks, delivering the power and precision needed for plowing, cultivating, and other field operations. These tractors are fuel-efficient, durable, and equipped with easy-to-use controls for efficient daily work.
Ideal for farms that require versatile machines, our 60hp-100hp tractors are compact yet powerful, and compatible with various attachments. They are designed to minimize maintenance while maximizing functionality, perfect for cost-effective farming.
Get in touch to learn more about our reliable 60hp-100hp tractors and their features.
