| Model | Tavol-504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 7.5 | |
| PTO Max Power (KW) | 31 | |
| Dimensions(mm) | 3560×1450×2150 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Quantity: | |
|---|---|
TL504
TAVOL
8701921000
Model | Tavol-504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 7.5 | |
PTO Max Power (KW) | 31 | |
Dimensions(mm) | 3560×1450×2150 | |
Wheelbase(mm) | 2016 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 295 |
Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
Not unilateral braking | ≤4.6 | |
Minimum use quality | 2140 | |
Gearbox | 8F+8R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | ≥8.8 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 6.00-16 |
Rear wheel specifications | 12.4-28 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Engine Brand | YTO, XICHAI, LAIDONG; EURO5 4L28V50 | |

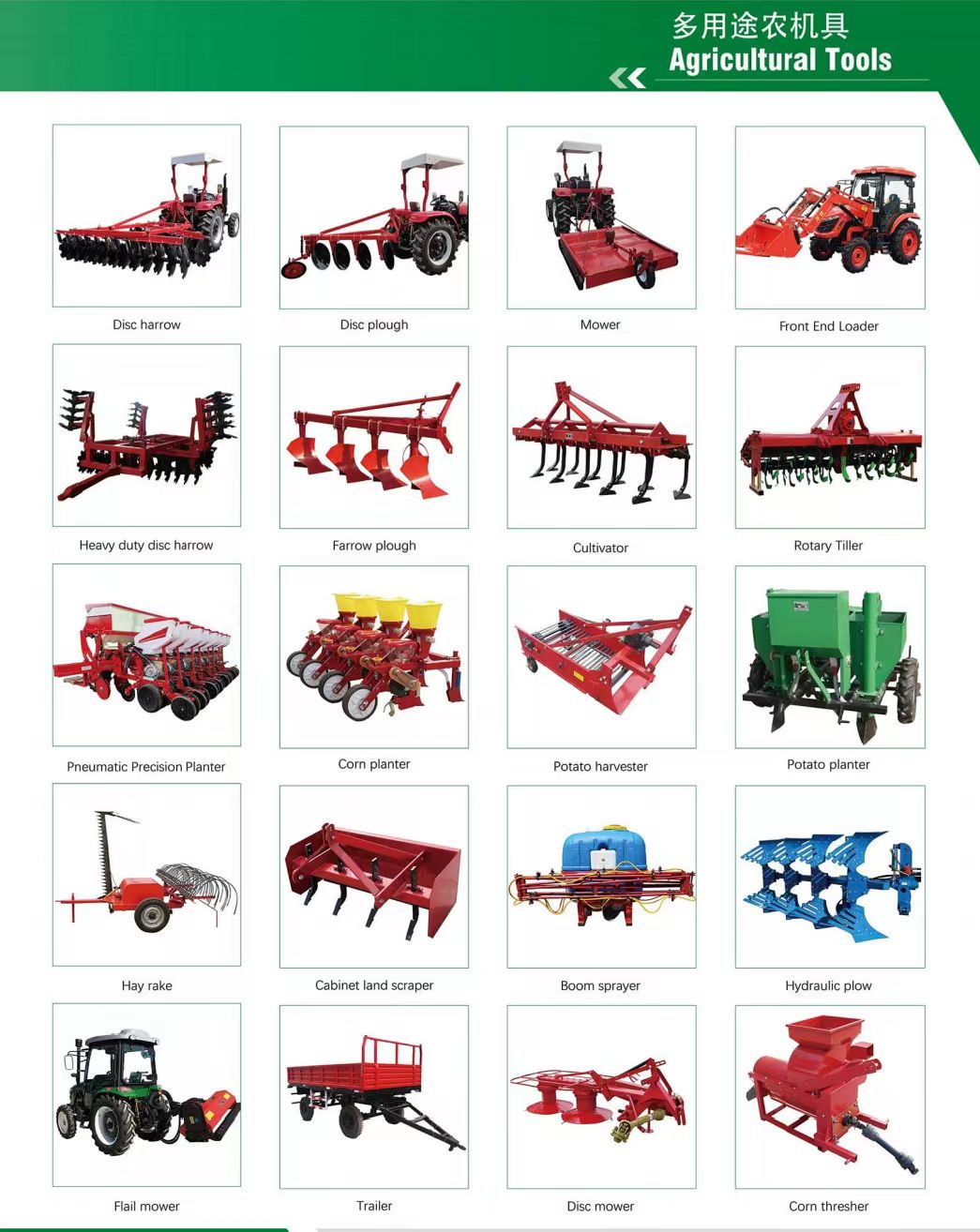

Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 10 |
Fuel tank(L) | 60 | |
Engine oil pan(L) | 5 | |
Driveline oil (L) | 20 | |
Lifter(L) | 9.5 | |
This parameter table is for reference only, everything is based on actual products | ||

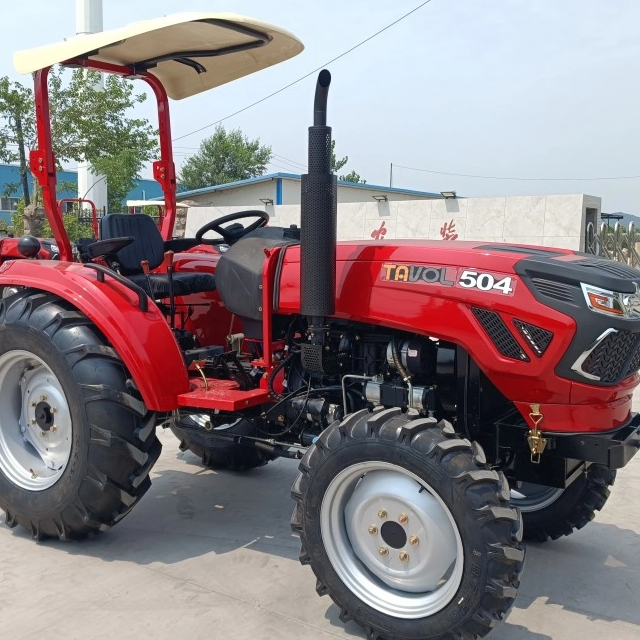

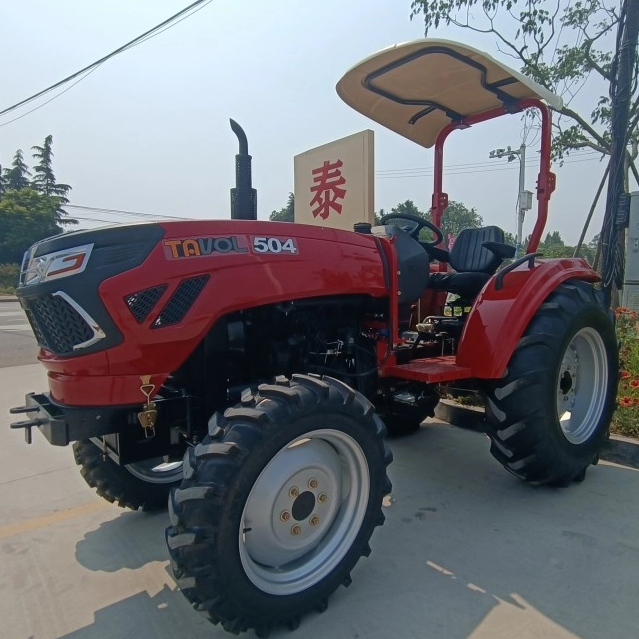

50HP Tractor – Efficient & Versatile Farm Machinery
Power: 50HP diesel engine, stable output for diverse tasks.
Operations: Tillage, sowing, harvesting, transportation.
Features:
Flexible control & wide adaptability.
Durable structure, reliable performance.
Smart operation & easy maintenance.
Advantage: Combines efficiency, durability, and user-friendly design.
 |  |  |

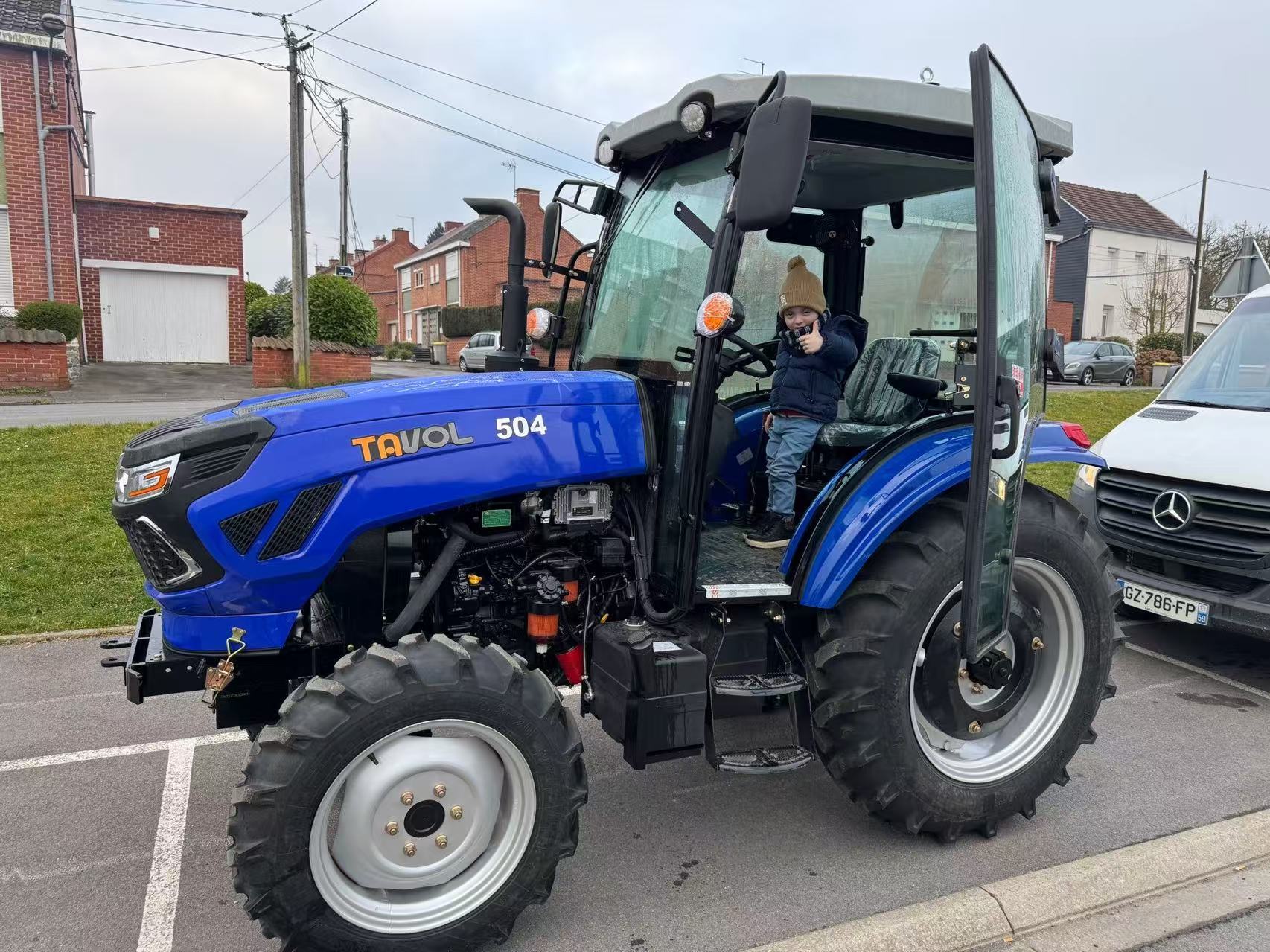

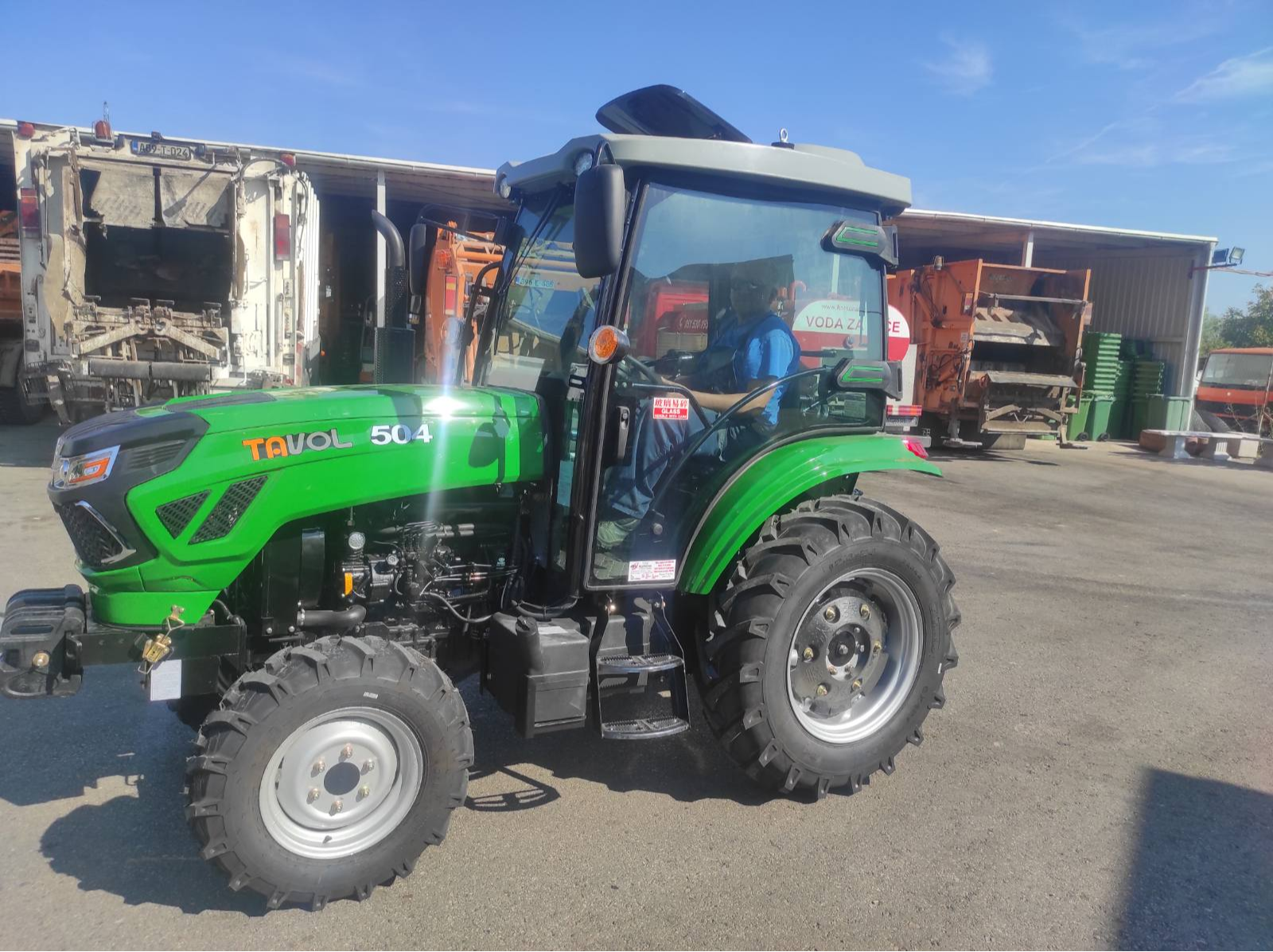

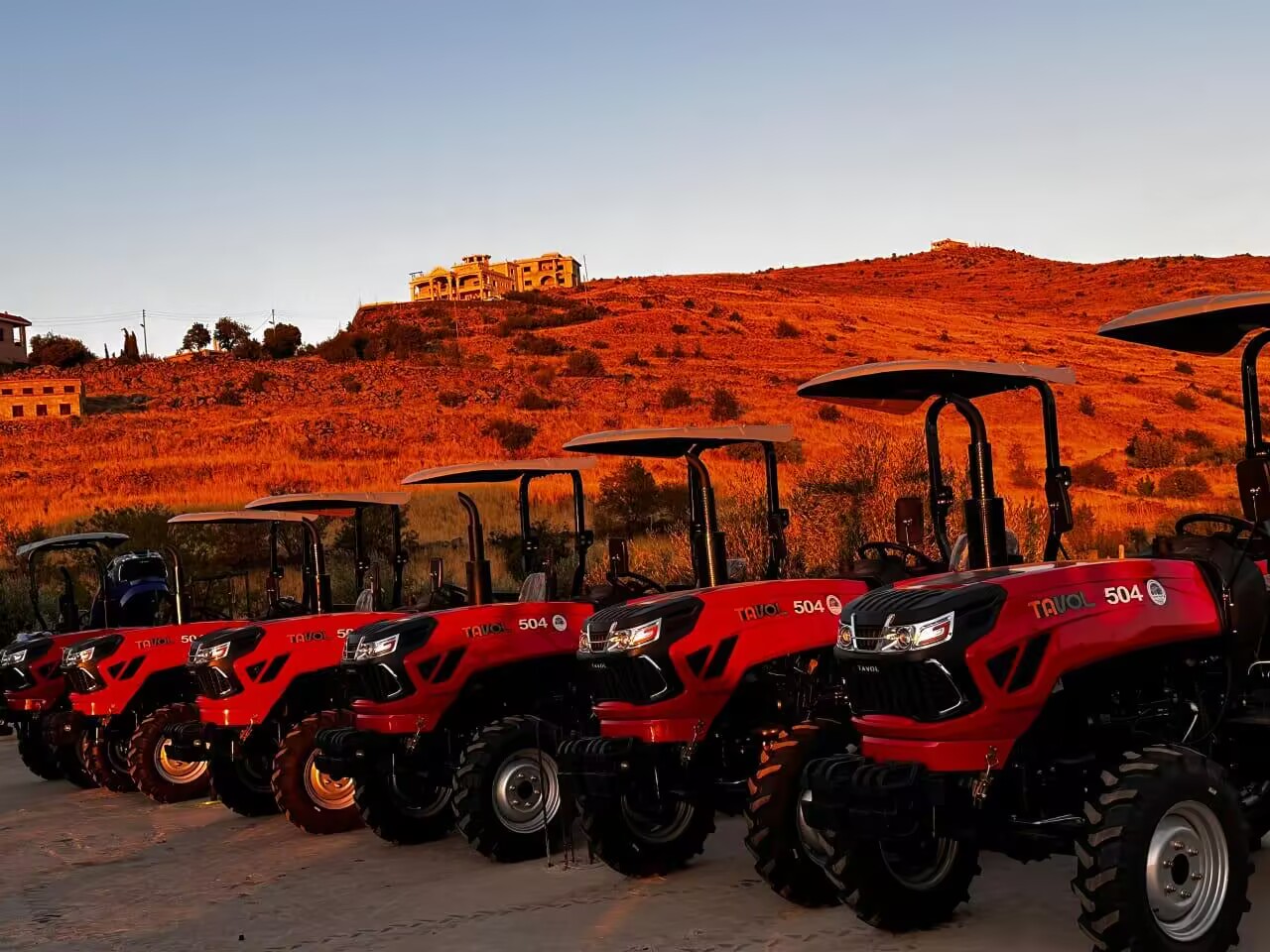

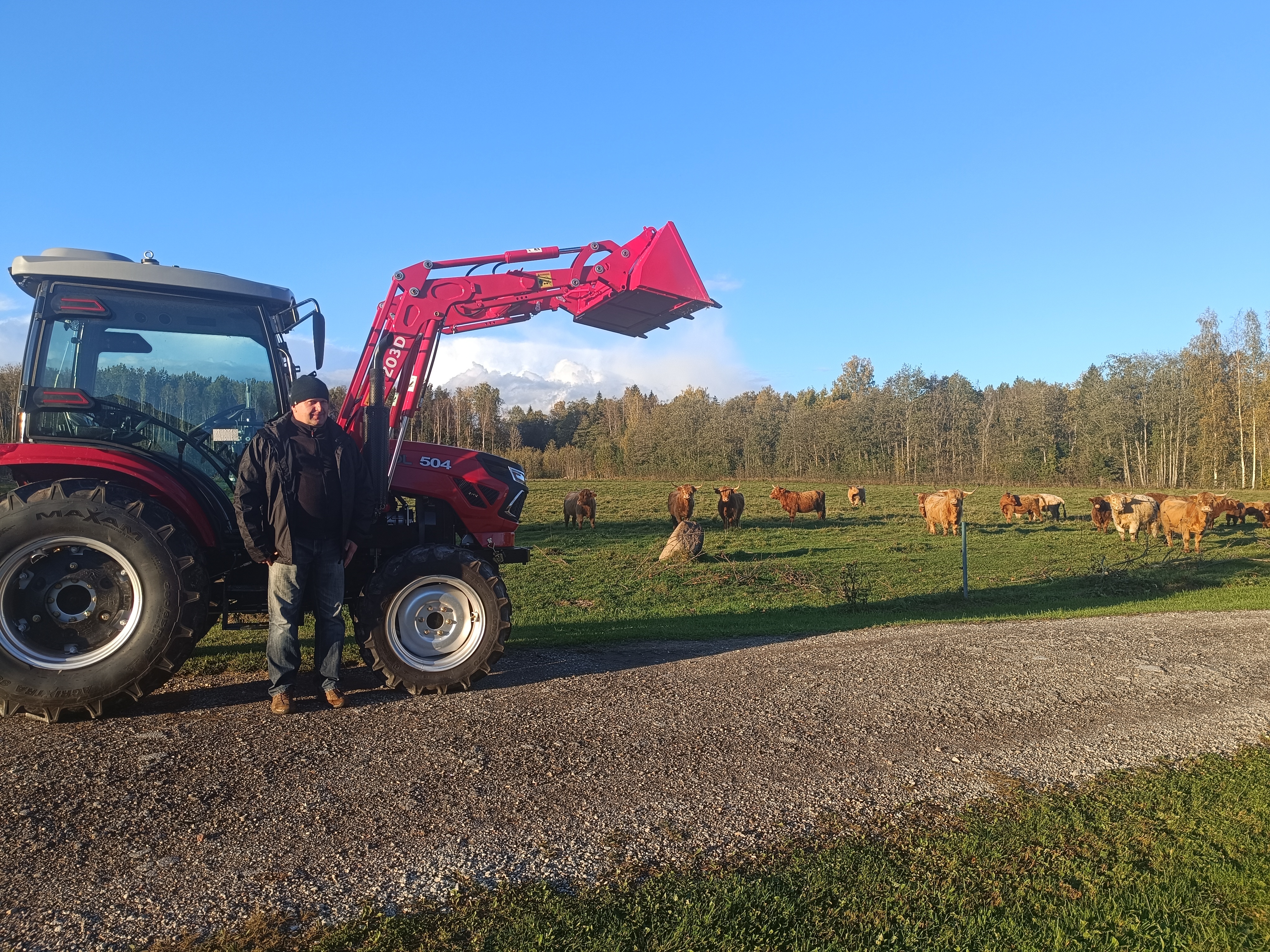

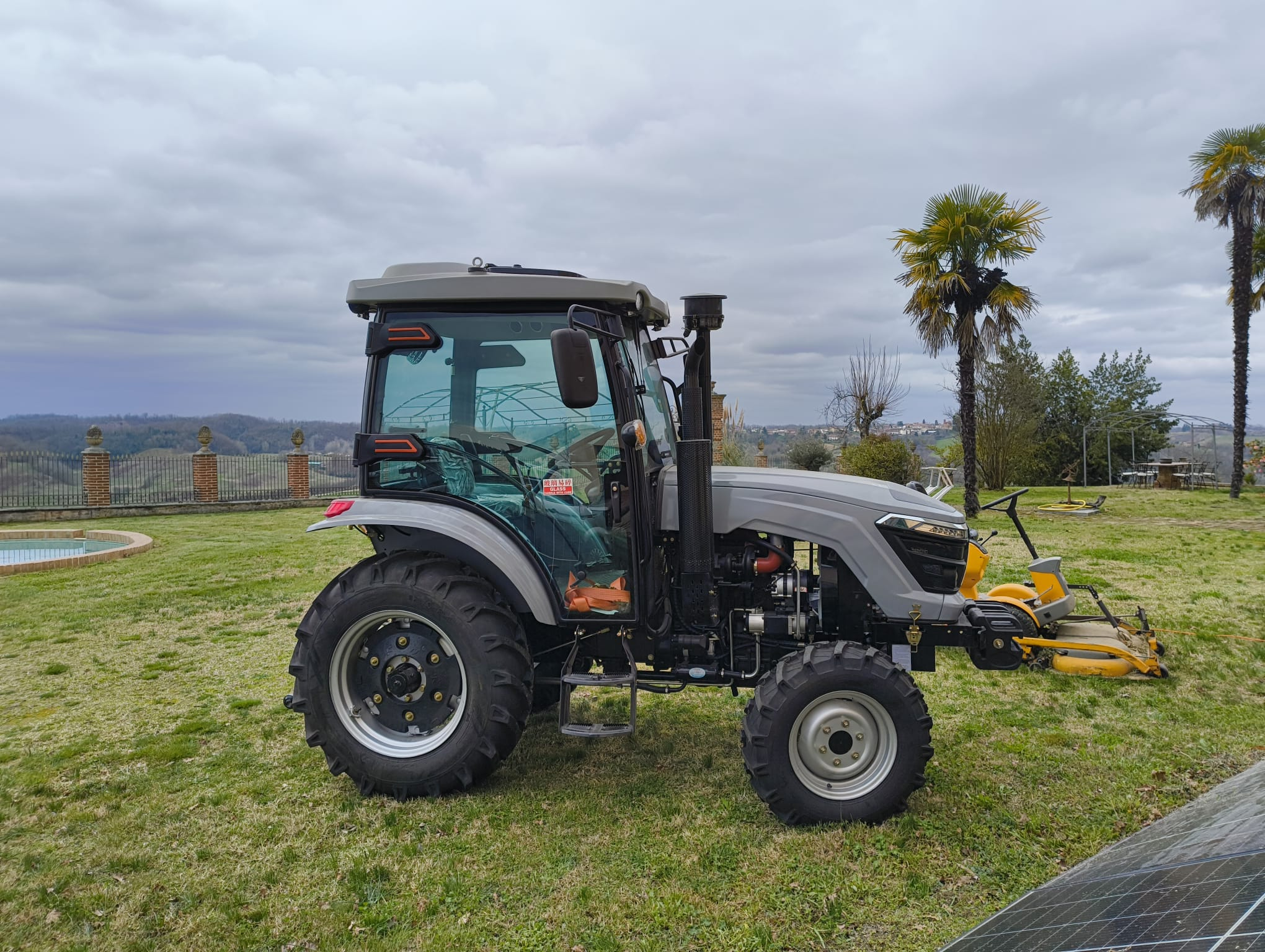

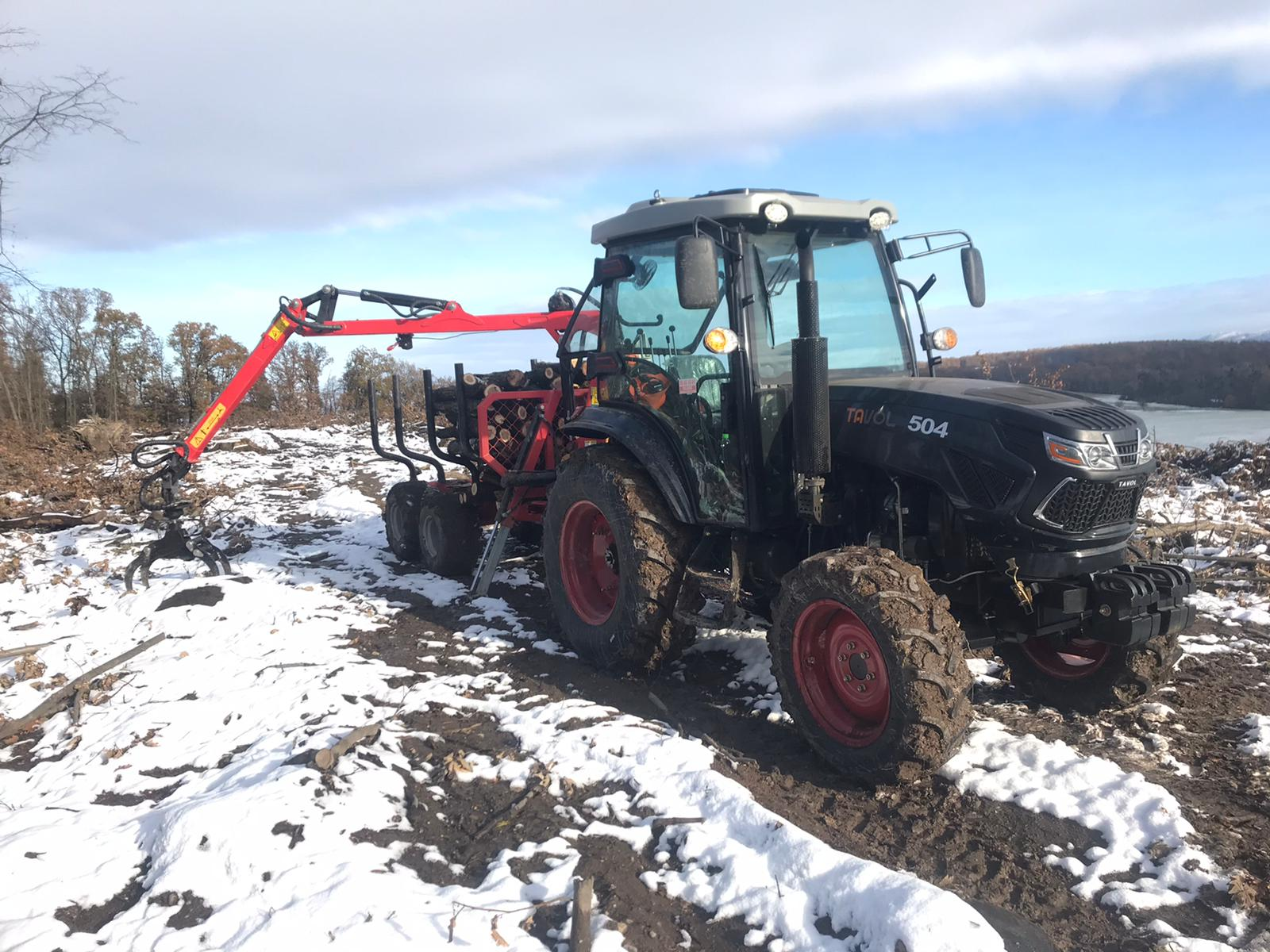

| Project in Czech Republic | Project in Syria | Project in France |
 |  |  |
| Project in Italy | Project in Estonia | Project in Bosnia and Herzegovina |
Optional
