| Model | Tavol-704 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 10.5 | |
| PTO Max Power (KW) | 43 | |
| Dimensions(mm) | 4100×1880×2650 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350/1450/1550 |
| Rear wheel(mm) | 1300-1500 | |
| Quantity: | |
|---|---|
TL704
TAVOL
8701931000

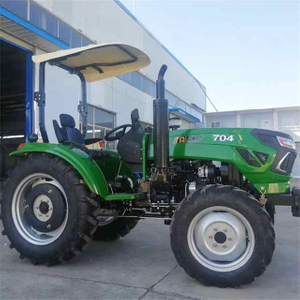

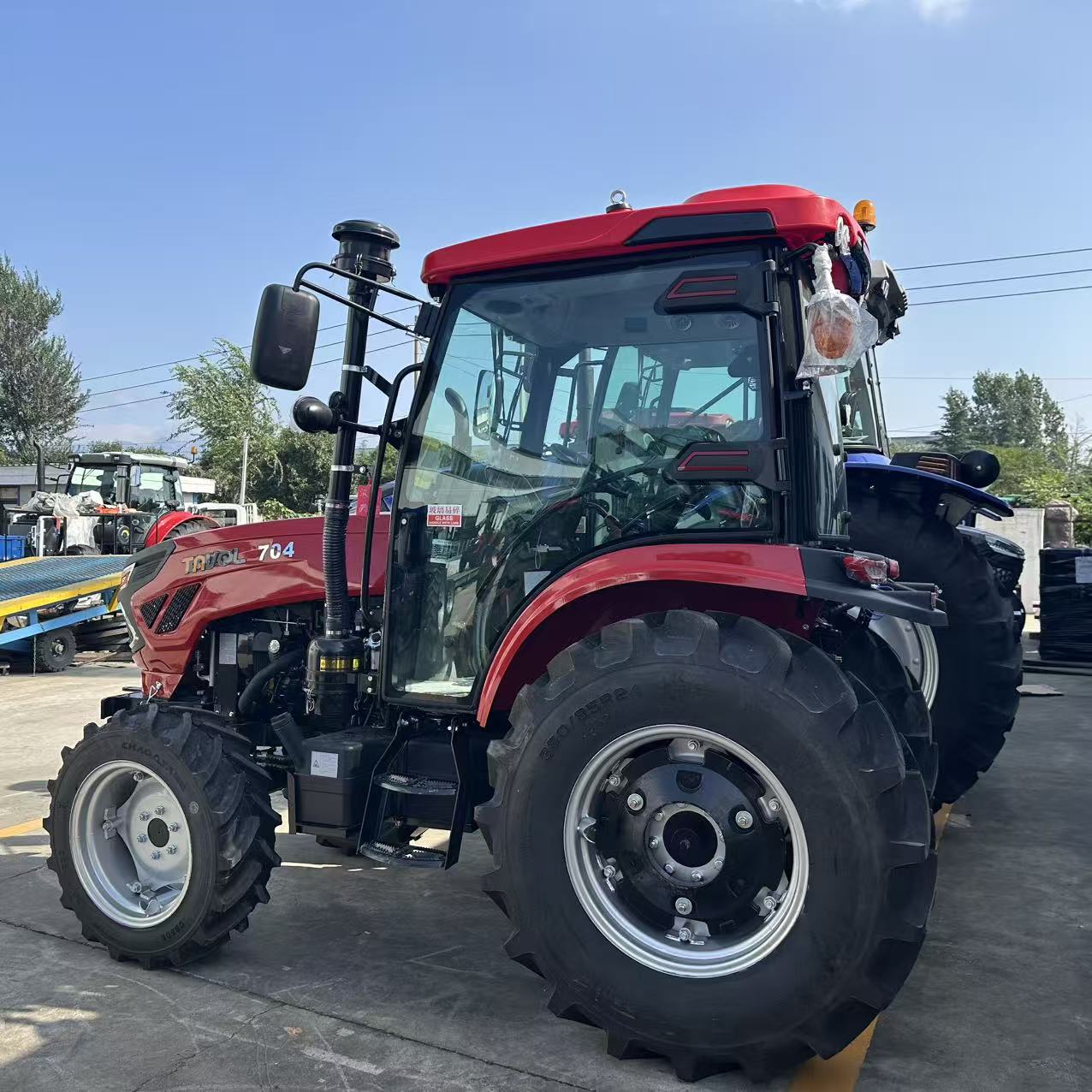

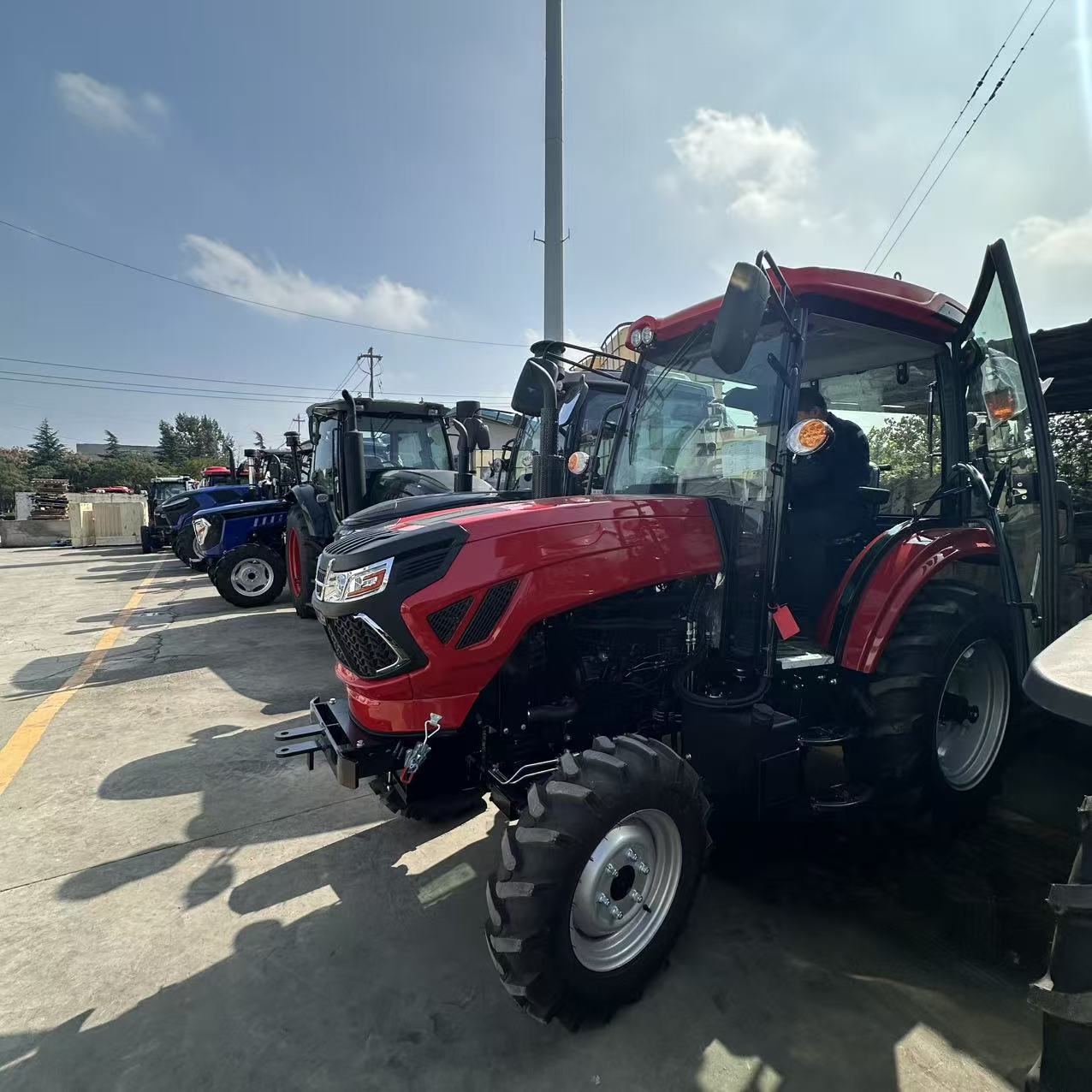

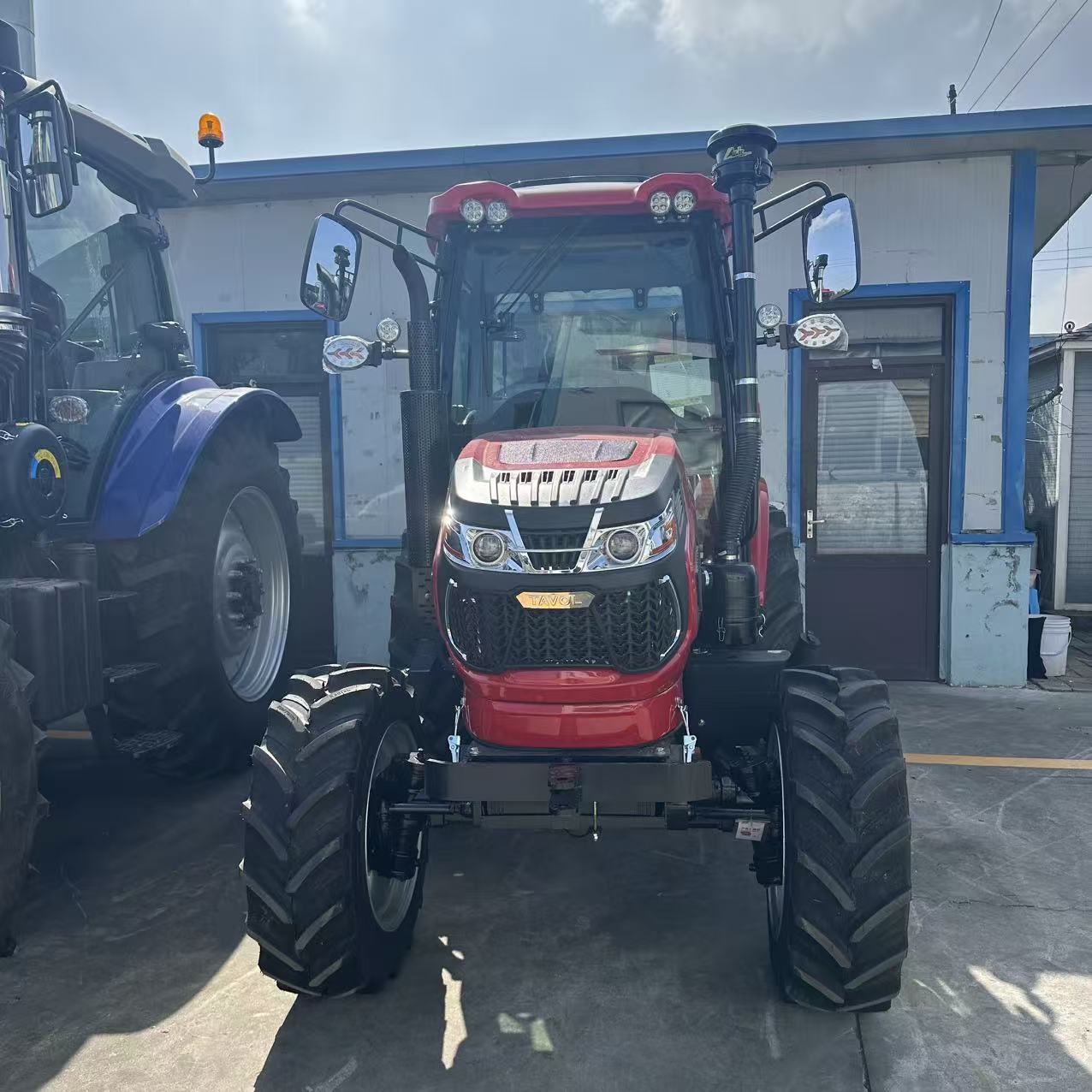

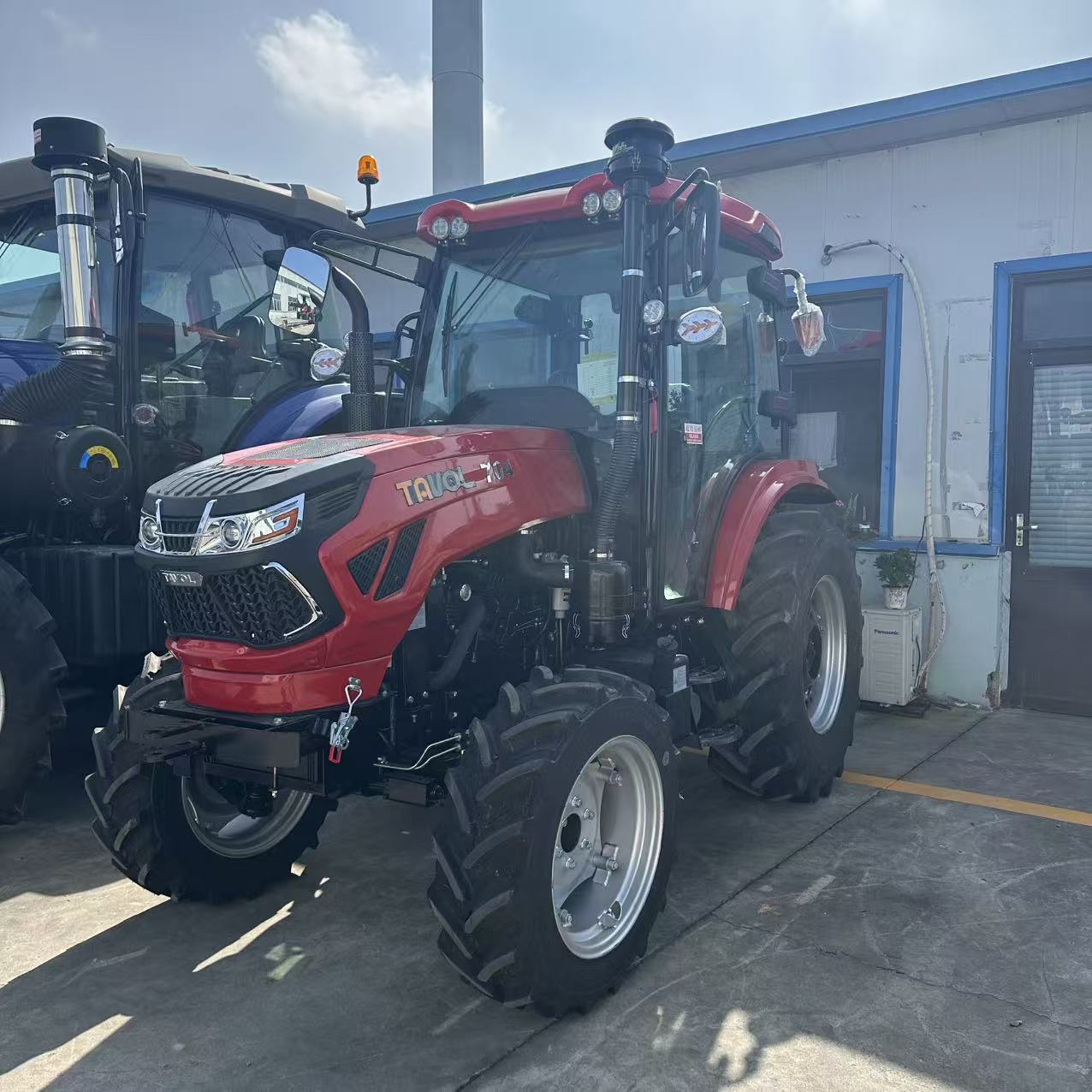

The 70hp tractor is a medium-sized agricultural machinery with strong power and wide adaptability. It is usually equipped with well-known brand engines, such as Dongfanghong, to provide stable and efficient power output.
Technical Parameters
| Model | Tavol-704 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 10.5 | |
| PTO Max Power (KW) | 43 | |
| Dimensions(mm) | 4100×1880×2650 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350/1450/1550 |
| Rear wheel(mm) | 1300-1500 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
| Not unilateral braking | ≤4.6 | |
| Minimum use quality | 2270 | |
| Gearbox | 12F+12R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥12 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 8.3-20 |
| Rear wheel specifications | 12.4-28 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| This parameter table is for reference only, everything is based on actual products | ||
Customized Service
TAVOL is well aware that different regions and crops have different requirements for tractors, so we provide a full range of personalized customization services - from load specifications, power configuration to attachment selection, all can be flexibly adjusted according to your actual situation to ensure that each tractor can accurately match your operating needs and maximize operating efficiency.
Successful Cases in the World
Tavol Tractor has won world recognition with its excellent quality! So far, we have achieved a glorious milestone of more than 10,000 units sold worldwide. Every roaring tractor is witnessing our firm commitment to agricultural modernization.
Our service network has covered more than 60 major agricultural countries on five continents. From the fertile plains of Europe to the vast plantations of South America, from modern farms in North America to emerging agricultural markets in Africa, Tavol's steel steed is helping farmers around the world to open up their hopes for reclamation:
✓ Elite choice in Europe: the preferred brand for large farms in countries such as the United Kingdom, France, and Italy
✓ High-yield partner in the Americas: widely used in core agricultural areas of major grain countries such as Brazil and Argentina
✓ Desert oasis in the Middle East: strong guarantee of smart irrigation systems in the United Arab Emirates and Saudi Arabia
✓ Emerging forces in Asia and Africa: efficient solutions for tropical plantations in Indonesia and cocoa producing areas in Ghana
"Deepen the world and harvest the future" is not only our slogan, but also a commitment in practice.
 |  |  |
 |  |
|
Contact us for more information :
The 70hp tractor is a medium-sized agricultural machinery with strong power and wide adaptability. It is usually equipped with well-known brand engines, such as Dongfanghong, to provide stable and efficient power output.
Technical Parameters
| Model | Tavol-704 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 10.5 | |
| PTO Max Power (KW) | 43 | |
| Dimensions(mm) | 4100×1880×2650 | |
| Wheelbase(mm) | 2016 | |
| Track(mm) | Front wheel(mm) | 1350/1450/1550 |
| Rear wheel(mm) | 1300-1500 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
| Not unilateral braking | ≤4.6 | |
| Minimum use quality | 2270 | |
| Gearbox | 12F+12R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥12 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 8.3-20 |
| Rear wheel specifications | 12.4-28 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| This parameter table is for reference only, everything is based on actual products | ||
Customized Service
TAVOL is well aware that different regions and crops have different requirements for tractors, so we provide a full range of personalized customization services - from load specifications, power configuration to attachment selection, all can be flexibly adjusted according to your actual situation to ensure that each tractor can accurately match your operating needs and maximize operating efficiency.
Successful Cases in the World
Tavol Tractor has won world recognition with its excellent quality! So far, we have achieved a glorious milestone of more than 10,000 units sold worldwide. Every roaring tractor is witnessing our firm commitment to agricultural modernization.
Our service network has covered more than 60 major agricultural countries on five continents. From the fertile plains of Europe to the vast plantations of South America, from modern farms in North America to emerging agricultural markets in Africa, Tavol's steel steed is helping farmers around the world to open up their hopes for reclamation:
✓ Elite choice in Europe: the preferred brand for large farms in countries such as the United Kingdom, France, and Italy
✓ High-yield partner in the Americas: widely used in core agricultural areas of major grain countries such as Brazil and Argentina
✓ Desert oasis in the Middle East: strong guarantee of smart irrigation systems in the United Arab Emirates and Saudi Arabia
✓ Emerging forces in Asia and Africa: efficient solutions for tropical plantations in Indonesia and cocoa producing areas in Ghana
"Deepen the world and harvest the future" is not only our slogan, but also a commitment in practice.
| | |
| |
|
Contact us for more information :
