TL904
TAVOL
8701931000

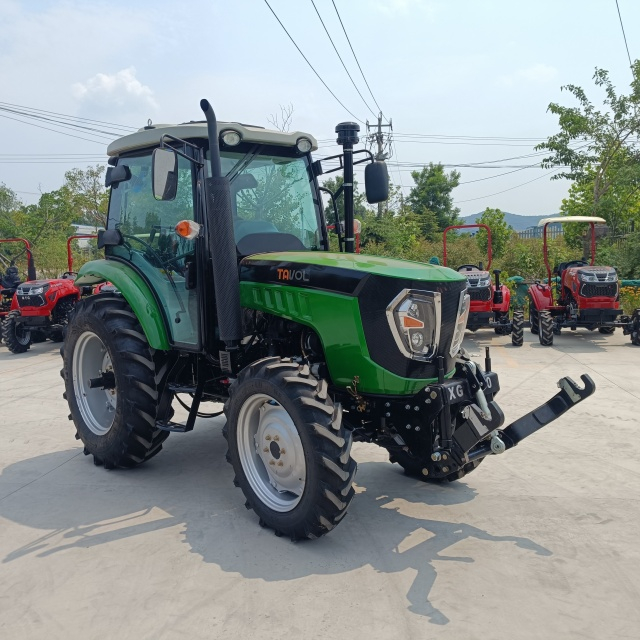

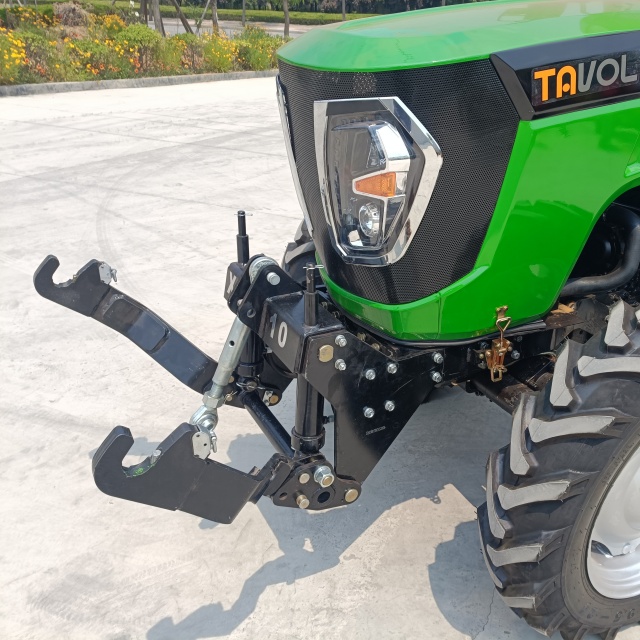

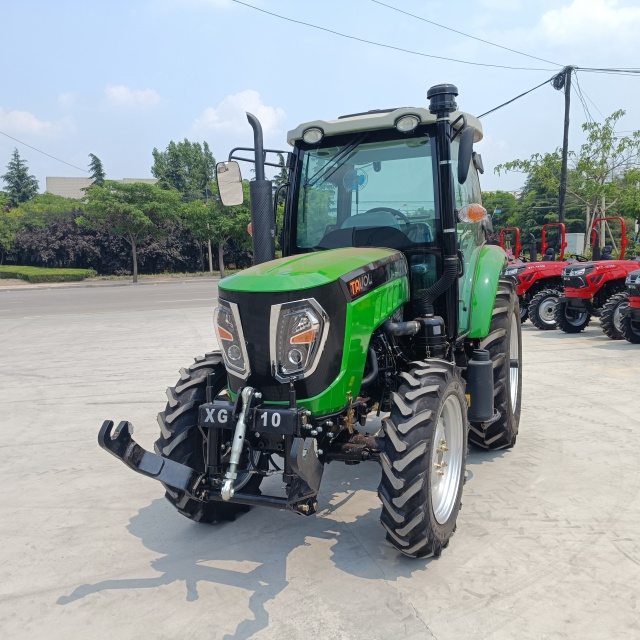

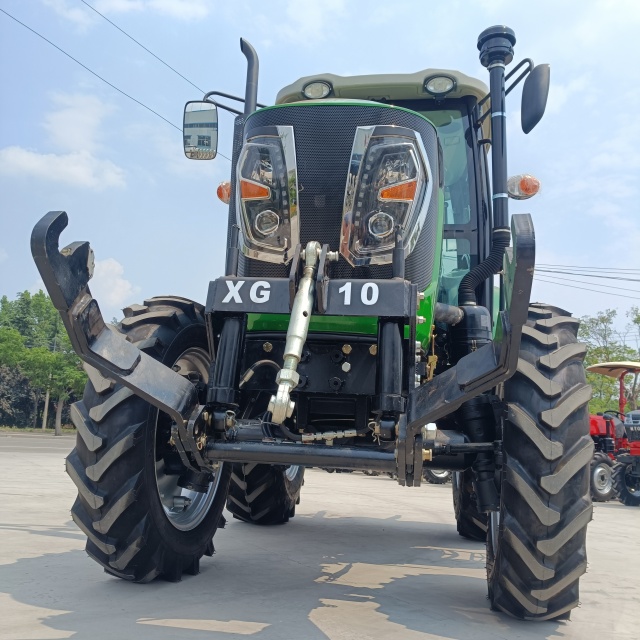

This 90 HP tractor with a front three-point hitch delivers exceptional versatility and efficiency. The unique front-mounted linkage allows simultaneous operation of front and rear implements, dramatically reducing field passes and saving time and fuel. It's ideal for precision tasks like front-mounted seeding, spraying, or handling while performing primary tillage at the rear. This setup enhances load balance, improves visibility, and boosts overall productivity, making it a superior choice for mixed farming and large-scale operations seeking maximum utilization from a single machine.
| Model | Tavol-904 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 13.5 | |
| PTO Max Power (KW) | 57 | |
| Dimensions(mm) | 3910×1720×2720 | |
| Wheelbase(mm) | 2040 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
| Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
| Not unilateral braking | ≤4.6 | |
| Minimum use qu:ality | 2540 | |
| Gearbox | 12F+12R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | 16 |
| Suspension mechanism | Three-piont suspension type 2 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 9.5-24/11.2-24 |
| Rear wheel specifications | 14.9-30/16.9-30 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| This parameter table is for reference only, everything is based on actual products | ||
12+12 gear, side shift; Reinforced chassis:
A: Multiple gear choices to adapt to more work scenarios; Lateral manipulation.The layout and operation are stable, fast, and convenient, with good ergonomics. Strong bearing capacity;
B: More scope of use, bringing more benefits；Higher strength, longer service life
New reinforced front axle
A: End planetary gear structure, more efficient transmission; Center mounted oil cylinder front axle, left and right steering radius.To make steering more flexible: Gear grinding, high strength, low noise; Multi lip composite oil seal with good sealing effect, Anti water ingress, long service life;
B: Better sealing, higher strength, and more Long service life
11-inch double acting clutch, with first-line optimization Quality products
A: First-line large factory with guaranteed quality:
Separate operation of walking and power output, more suitable for broadcasting Planting, harvesting, and using.
B: Good reliability and long service life: More uses and benefits:
Our tractors have been successfully sold to dozens of countries and have received highly positive feedback worldwide. We have established exclusive distributors in Georgia and Ukraine, along with an extensive dealership network across multiple countries, including Bosnia and Herzegovina, the United Kingdom, Poland, Romania, Croatia, Chile, Argentina, Mexico, and many others. This global presence ensures reliable local support and service for our customers everywhere.
This 90-horsepower tractor can be used with various agricultural implements, which can be connected to the rear PTO or the front three-point hitch. Examples include disc plows, disc harrows, rotary tillers, cultivators, trailers, and seeders.
Welcome to contact us:
