TL704
TAVOL
8701931000

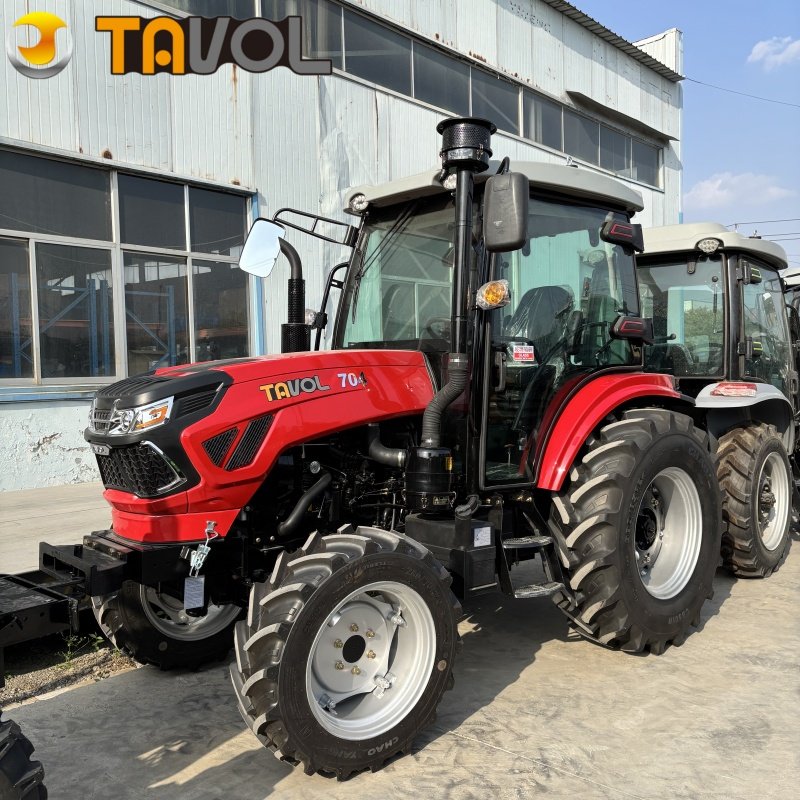

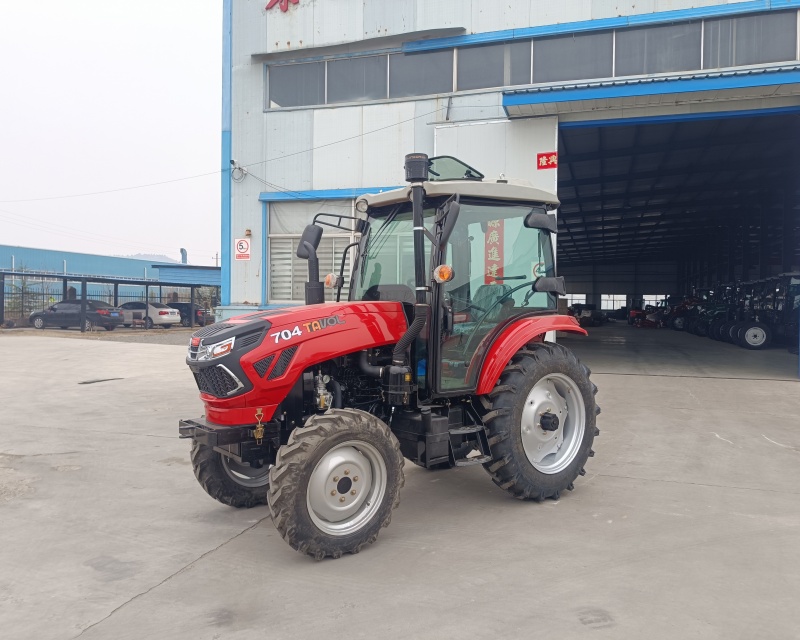

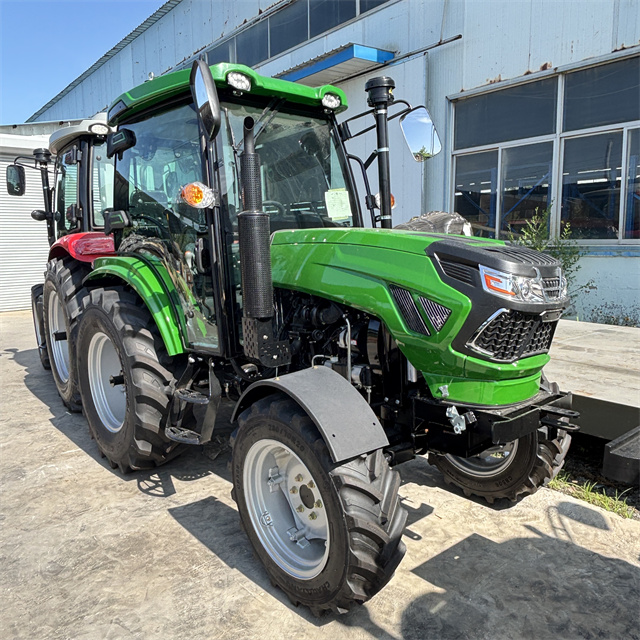

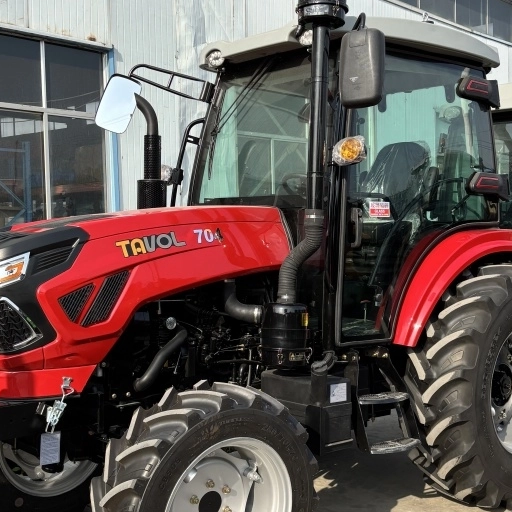

The 70hp tractor is a highly efficient agricultural machine designed for medium to large-scale farming operations. Powered by a reliable and fuel-efficient engine, it delivers consistent performance for tasks such as plowing, tilling, planting, and hauling. Featuring a robust four-wheel drive (4WD) system, it ensures superior traction and maneuverability, allowing smooth operation across uneven terrain and challenging field conditions.
| Model | TL704 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 14 | |
| PTO Max Power (KW) | 43 | |
| Dimensions(mm) | 3910×1720×2600 | |
| Wheelbase(mm) | 1700 | |
| Track(mm) | Front wheel(mm) | 850-1400 |
| Rear wheel(mm) | 850-1400 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 380 |
| Minimum turning cricle radius | Use unilateral braking | 3.6±0.20 |
| Not unilateral braking | 3.8±0.30 | |
| Minimum use quality | 2440 | |
| Gearbox | 8F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | 12 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760(option: 540/1000) |
| Tire | Front wheel specifications | 7.5-16/8.3-20/9.5-20 |
| Rear wheel specifications | 12.4-24/12.4-28/13.6-28 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| This parameter table is for reference only, everything is based on actual products | ||
Customer Feedback
 |  |  |
 |  |  |
 |  |  |
Optional
Contact us
Shirley Yu, Whatsapp: +86 18953348483, E-Mail: sls36@tavolgroup.com, Mobile/Wechat: +86 18779384380
