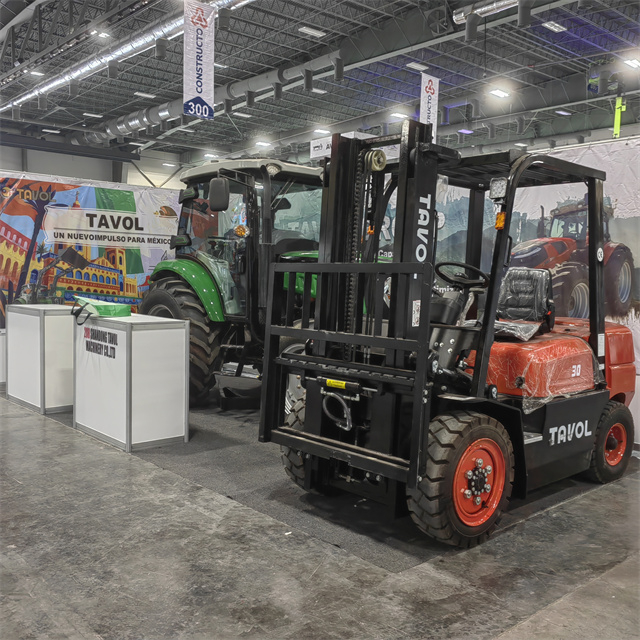

CPCD30
Tavol
Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 |
Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 | 500 | 500 |
Drive From | Diesel | Diesel | Diesel | Diesel |
Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 |
Mast Tilt Angle(Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2540 |
Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 |
Witdth(mm) | 1160 | 1160 | 1230 | 1230 |
Height(Door Frame Indented)(mm) | 2095 | 2095 | 2110 | 2110 |
Max working Height(mm) | 4080 | 4080 | 4270 | 4270 |
Front Overhang(mm) | 451 | 451 | 465 | 465 |
Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 |
Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 | 970 | 970 |
Front Wheel Tyre | 7.00-12 | 7.00-12 | 28*9-15 | 28*9-15 |
Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 |
Self Weight(kg) | 3320 | 3600 | 4290 | 4700 |
Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 |
Fork Width(mm) | 122 | 122 | 122 | 122 |
Fork Thickness(mm) | 40 | 40 | 45 | 45 |
Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 |
Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 |
Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 |
Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 |
Transmission Form | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic |
1.Xinchai engine, Quanchai engine; optional Japan Isuzu, Mitsubishi engine and others;
2.Optional side shifter, fork positioner and other attachments;
3.Standard 2-stages 3000mm mast, optional 2-stages and 3-stages full free 4500mm-7500mm mast;
4.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
5.Mechanical and Automatic transmission can be choosen;
6.Standard pneumatic tire, optional solid tire.
 |  |  |
| Japanese Isuzu Diesel Engine | Japanese Mitsubishi Diesel Engine | Chinese Xinchai/Quanchai Diesel Engine |
 |  |  |
| Standard Configuration | Side Shift | Side Shift and Fork Positioner |
 |  |  |
| Standard 2-stages Mast | 2-stages Full Free Mast | 3-stages Full Free Mast |
 |  |  |
Operating Systom The hydraulic power-assisted operating system is light and labor-saving, improves efficiency, provides precise control and high stability. | Steering Wheel Hydraulic power steering, easy to operate, reduces fatigue, precise steering, sensitive response, and optimized ergonomics. | Comfortable Seat Toyota seats, ergonomic design, reduced fatigue, multi-dimensional adjustment, all-weather durability. |
 |  |  |
Bright LED Light Forklift LED lights have become the standard configuration of modern forklift lighting systems due to their high efficiency, energy saving, ultra-long life and excellent reliability. | Powerful Diesel Enigne Super strong power output, ultra-low fuel consumption, weather resistance performance 30℃ cold start to 50℃ high temperature continuous operation, and ultra-long service life. | Pneumatic tires Excellent shock absorption and cushioning performance, superb ground adaptability, high load-bearing capacity and high-speed stability |
Product Details
TAVOL Diesel Forklift provide you with multiple choice as per your real need,we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide. These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
