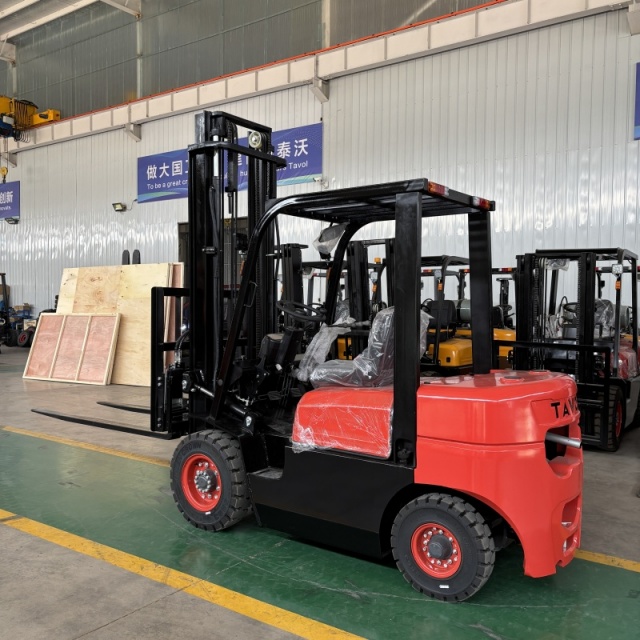

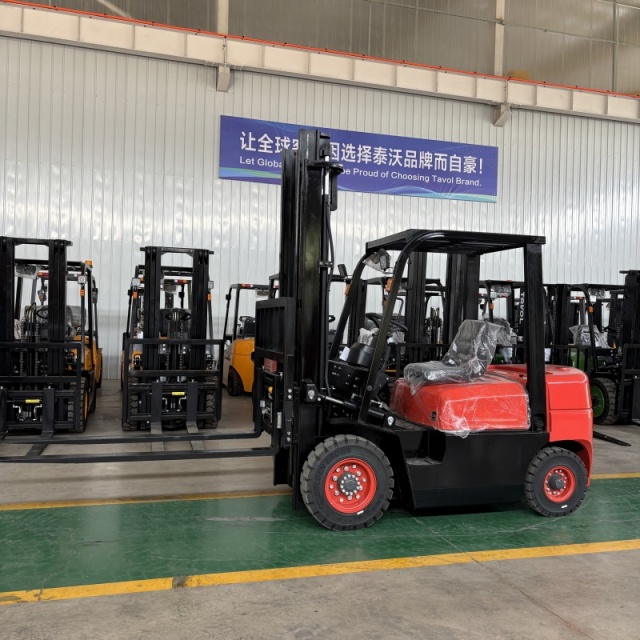

CPC20
Tavol
Product specifications
| Model | CPCD20 |
| Rated Loading Capacity(kg) | 2000 |
| Load Center Distance(mm) | 500 |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3605 |
| Width(mm) | 1160 |
| Height(Door Frame Indented) | 2095 |
| Wheel Base(mm) | 1640 |
| Self Weight(kg) (kg) | 3320 |
| Fork Width(mm) | 122 |
| Fork Thickness(mm) | 40 |
| Standard Fork Length(mm) | 1070 |
| Transmission form | Hydraulic |
OPTIONAL
1.Xinchai engine,optional Japan lsuzu, Mitsubishi engine and others.
2.Mechanical and Automatic transmission can be choosen.
3.Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast;
4.Standard 1220mmfork, optional 1370mm,1520mm, 1670mm and1820mm forks;
5.Optional side shifter, fork positioner and other attachments;6.Standard pneumatic tire, optional solid tire.
Product specifications
| Model | CPCD20 |
| Rated Loading Capacity(kg) | 2000 |
| Load Center Distance(mm) | 500 |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3605 |
| Width(mm) | 1160 |
| Height(Door Frame Indented) | 2095 |
| Wheel Base(mm) | 1640 |
| Self Weight(kg) (kg) | 3320 |
| Fork Width(mm) | 122 |
| Fork Thickness(mm) | 40 |
| Standard Fork Length(mm) | 1070 |
| Transmission form | Hydraulic |
OPTIONAL
1.Xinchai engine,optional Japan lsuzu, Mitsubishi engine and others.
2.Mechanical and Automatic transmission can be choosen.
3.Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast;
4.Standard 1220mmfork, optional 1370mm,1520mm, 1670mm and1820mm forks;
5.Optional side shifter, fork positioner and other attachments;6.Standard pneumatic tire, optional solid tire.
