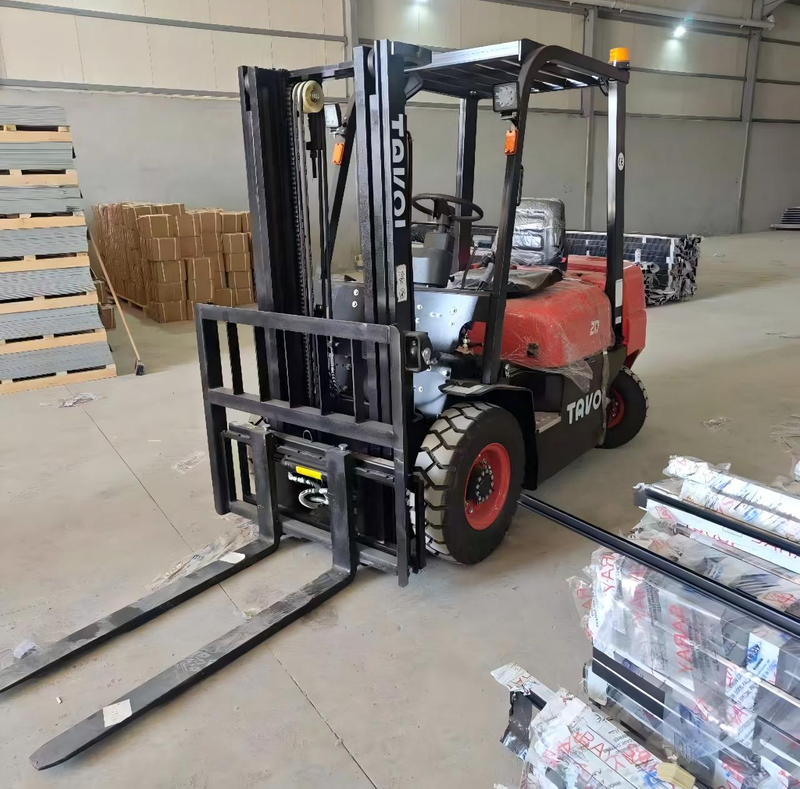

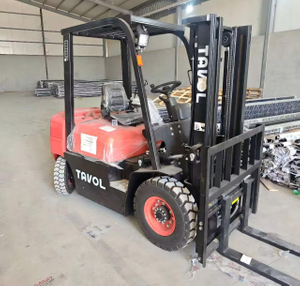

CPCD20
Tavol
Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 |
Rated Loading Capacity(kg) | 2000 | 2500 | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 | 500 | 500 |
Drive From | Diesel | Diesel | Diesel | Diesel |
Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 |
Mast Tilt Angle(Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2540 |
Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 |
Witdth(mm) | 1160 | 1160 | 1230 | 1230 |
Height(Door Frame Indented)(mm) | 2095 | 2095 | 2110 | 2110 |
Max working Height(mm) | 4080 | 4080 | 4270 | 4270 |
Front Overhang(mm) | 451 | 451 | 465 | 465 |
Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 |
Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 | 970 | 970 |
Front Wheel Tyre | 7.00-12 | 7.00-12 | 28*9-15 | 28*9-15 |
Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 |
Self Weight(kg) | 3320 | 3600 | 4290 | 4700 |
Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 |
Fork Width(mm) | 122 | 122 | 122 | 122 |
Fork Thickness(mm) | 40 | 40 | 45 | 45 |
Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 |
Engine Speed At Rated Power(rmp) | 2500 | 2500 | 2500 | 2500 |
Engine Maximum Torque(Nm) | 157 | 157 | 165 | 165 |
Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1600-1800 | 1600-1800 |
Transmission Form | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic |
Optional
1.Xinchai engine, Quanchai engine; optional Japan Isuzu, Mitsubishi engine and others;
2.Optional side shifter, fork positioner and other attachments;
3.Standard 2-stages 3000mm mast, optional 2-stages and 3-stages full free 4500mm-7500mm mast;
4.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
5.Mechanical and Automatic transmission can be choosen;
6.Standard pneumatic tire, optional solid tire.
 |  |  |
| Japanese Isuzu Diesel Engine | Japanese Mitsubishi Diesel Engine | Chinese Xinchai/Quanchai Diesel Engine |
 |  |  |
| Standard Configuration | Side Shift | Side Shift and Fork Positioner |
 |  |  |
| Standard 2-stages Mast | 2-stages Full Free Mast | 3-stages Full Free Mast |
Every component of Tavol forklift, from the core power system to the smallest fastener, has been strictly selected and quality controlled.
As a key equipment in the field of industrial logistics, the reliability of forklifts is directly related to production efficiency and operational safety, so its manufacturing process reflects the ultimate pursuit of details.
At the power system level, whether it is the turbocharger of the diesel engine, the high-pressure common rail injection system, or the lithium battery module and BMS management system of the electric forklift, mature solutions are adopted and have undergone tens of thousands of hours of endurance testing. The matching accuracy of key hydraulic components such as plunger pumps and multi-way valves in the hydraulic system must be controlled at the micron level to ensure smooth lifting and shaking.
 |  |  |
Operating Systom The hydraulic power-assisted operating system is light and labor-saving, improves efficiency, provides precise control and high stability. | Steering Wheel Hydraulic power steering, easy to operate, reduces fatigue, precise steering, sensitive response, and optimized ergonomics. | Comfortable Seat Toyota seats, ergonomic design, reduced fatigue, multi-dimensional adjustment, all-weather durability. |
 |  |  |
Bright LED Light Forklift LED lights have become the standard configuration of modern forklift lighting systems due to their high efficiency, energy saving, ultra-long life and excellent reliability. | Powerful Diesel Enigne Super strong power output, ultra-low fuel consumption, weather resistance performance 30℃ cold start to 50℃ high temperature continuous operation, and ultra-long service life. | Pneumatic tires Excellent shock absorption and cushioning performance, superb ground adaptability, high load-bearing capacity and high-speed stability |
Client Feedback
| TAVOL Forklift in Brazil | TAVOL Forklift in Belgium | TAVOL Forklift in Philippines |
| TAVOL Forklift in Germany | TAVOL Forklift in Saudi Arabia | TAVOL Forklift in Poland |
Ms.Joily Sun
Wechat/WhatsApp :+8615166062329
Email:joily@tavolgroup.com
