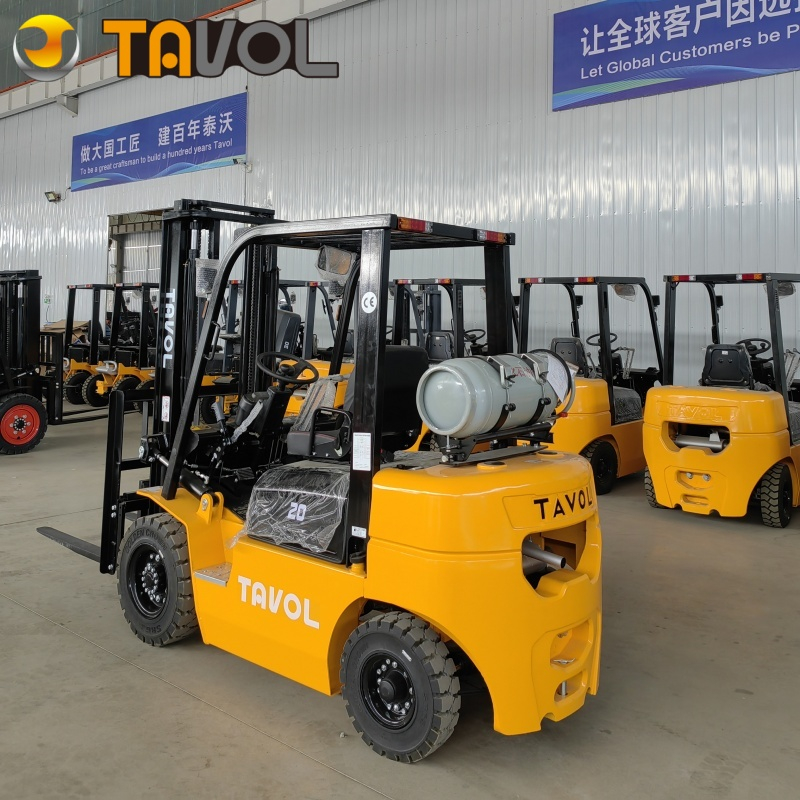

CPQYD
Tavol
1. Extra-wide step pedal
The step pedal width is increased by 55%, which improves the sense of security when getting on and off the vehicle.
2. Half-moon-shaped small-diameter steering wheel
The outer diameter of the steering wheel is reduced to 300mm, which reduces the driver's operating fatigue and improves the driver's operating comfort.
3. One-piece structure overhead guard
The front legs, ceiling assembly, and rear legs of the overhead guard are welded together to increase the strength of the overhead guard.
4. Spacious floor
The tilt cylinder is stored under the floor, which increases the floor area by 45%, making it very easy to operate at the foot and get on and off the vehicle.
Parameter
 |  | |
Technical parameters
Parameter
Model | CPCD30 | CPCD20 |
Rated Loading Capacity(kg) | 3000 | 2000 |
Load Center Distance(mm) | 500 | 450 |
Max Lifting Speed (Full load)(mm/h) | 475 | 465 |
Max Driving Speed (Empty/Full load)(km/h | 18/20 | 18/20 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2710 | 2710 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 860 |
Front Wheel Tyre | 28x9-15-12PR | 25x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 3200 |
Standard Fork Length(mm) | 1220 | 1220 |
Engine Rated Power(kw) | 36.8 | 36.8 |
Engine Speed At Rated Power (rmp) | 2500 | 2500 |
Engine Maximum Torque(Nm) | 177 | 177 |
Engine Speed At Maximum Torque(rpm) | 1600-1800 | 1600-1800 |
Variable speed form | Mechanical/ Hydraulic | Mechanical/ Hydraulic |
>>> Attachment for Fork Lift
Optional side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
 |  |  |
| fork positioner side shifter | paper roll clamp | 360 Degree Rotator |
 |
|  |
|
| Project in Mexico | Project in Slovakia | Project in Germany | Project in Morocco |
 |  |  |
 |  |  |
Welcome you Contact US:
Ms.Joily Sun
Wechat/WhatsApp :+8615166062329
Email:joily@tavolgroup.com
