TL1504
TAVOL
8701951010
Core features:
✔ Powerful power: 150 horsepower engine, low fuel consumption and high torque, suitable for heavy-duty operations such as deep plowing, plowing, and sowing.

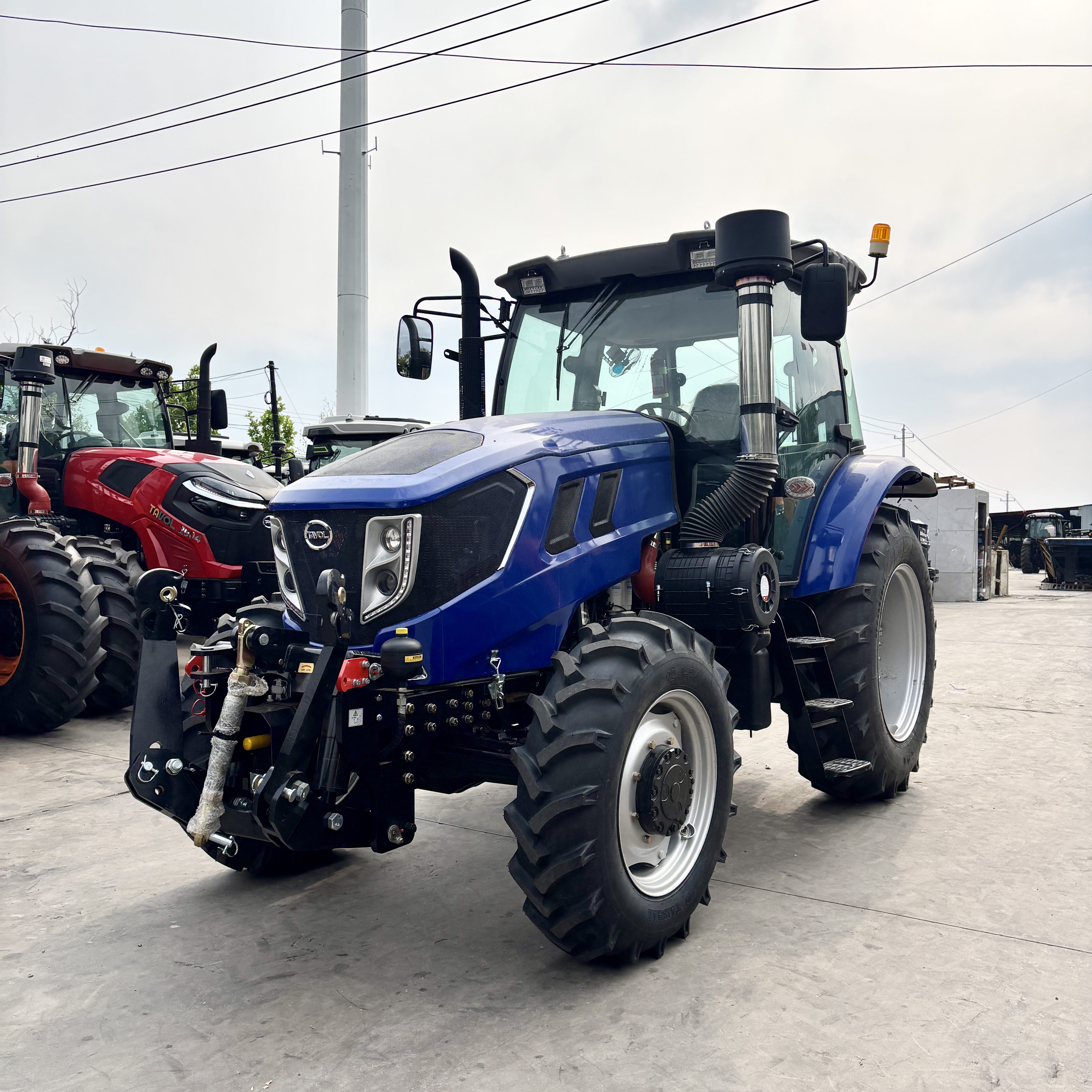

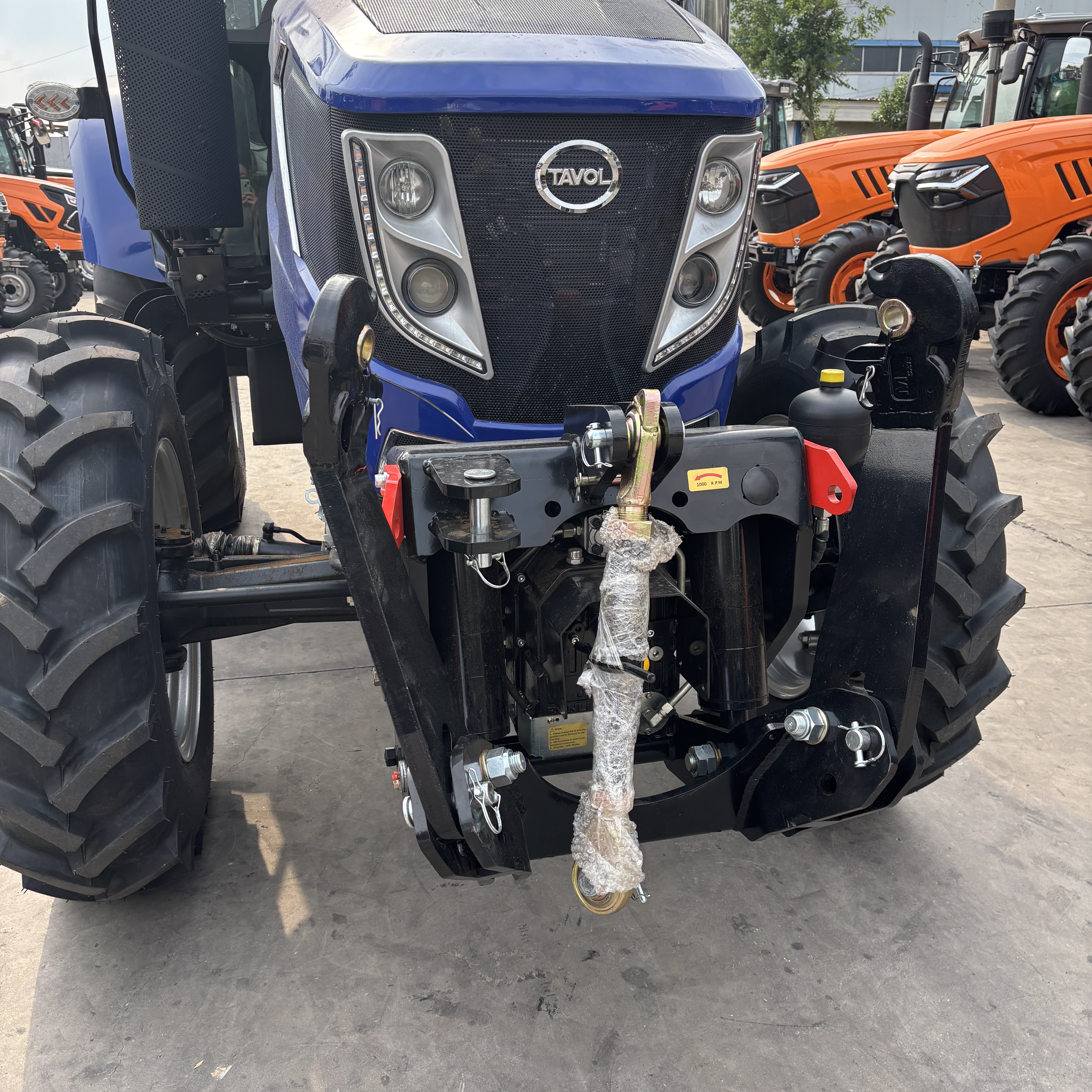

✔ Front three-point suspension: supports front-loading equipment (such as mowers, buckets, etc.), realizes front and rear dual power output, and improves work efficiency.
✔ 16+8 gear shifting: 16 forward gears + 8 crawling gears in the main gear, with a wide speed range (0.3-40 km/h), meeting the needs of fine farming and high-speed transportation.
✔ High passability: four-wheel drive (4WD) + differential lock, easy to deal with muddy and sloped land.
✔ Comfortable control: hydraulic steering, shock-absorbing seat, air-conditioned cab (optional), reduce fatigue after long-term operation.
Technical Parameters:
Model | Tavol-1504 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 28 | |
PTO Max Power (KW) | 93.8 | |
Dimensions(mm) | 5050*2180*3000 | |
Wheelbase(mm) | 2520 | |
Track(mm) | Front wheel(mm) | 1650-1894 |
Rear wheel(mm) | 1620-2290 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 425 |
Minimum turning cricle radius | Use unilateral braking | ≤4.3 |
Not unilateral braking | ≤4.8 | |
Minimum use quality | 4800 | |
Gearbox | 16F+8R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | 26.5 |
Suspension mechanism | Three-piont suspension type 2 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 14.9-26 |
Rear wheel specifications | 18.4-38 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 14 |
Fuel tank(L) | 150 | |
Engine oil pan(L) | 17 | |
Driveline oil (L) | 38 | |
Lifter(L) | 17 | |
This parameter table is for reference only, everything is based on actual products | ||
