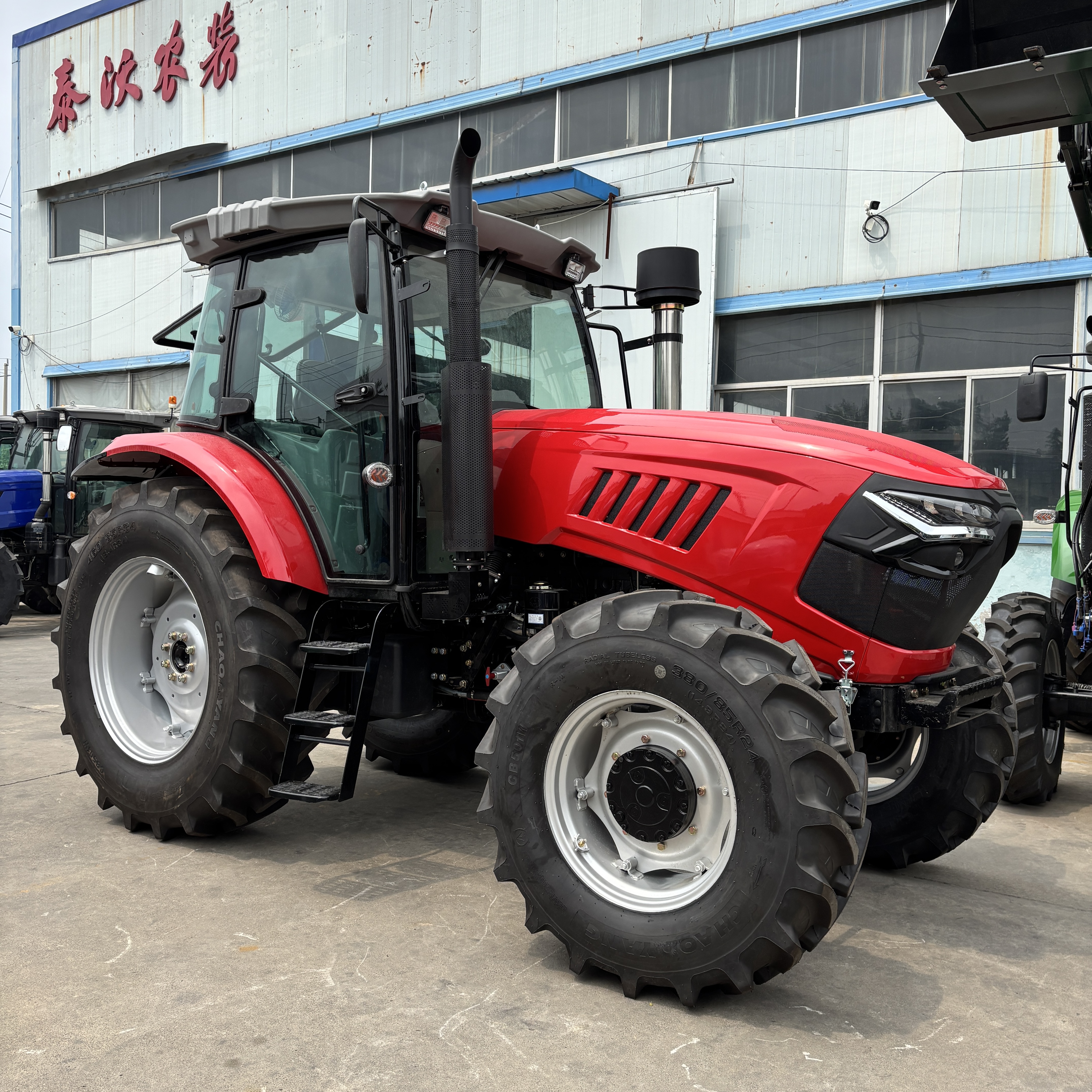

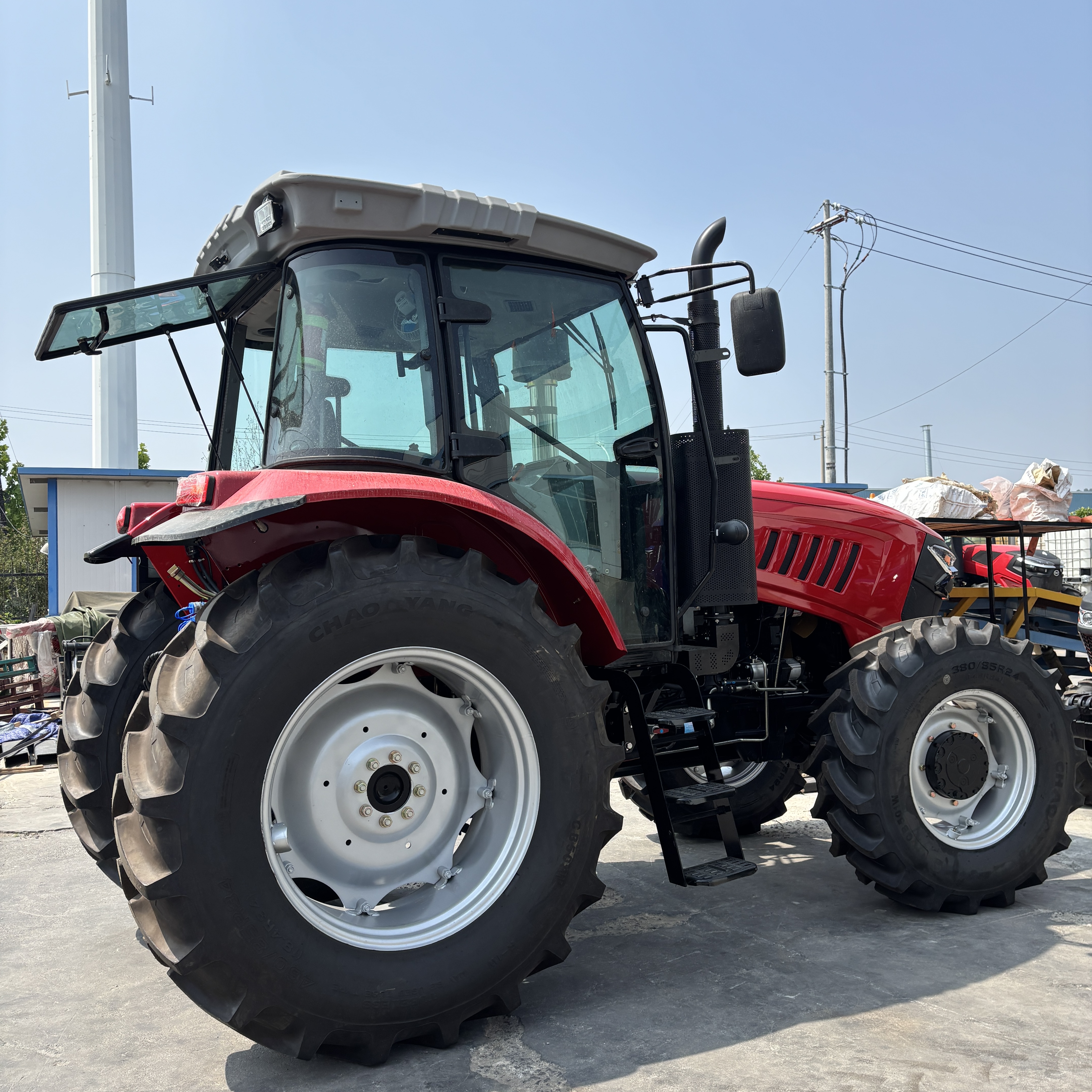

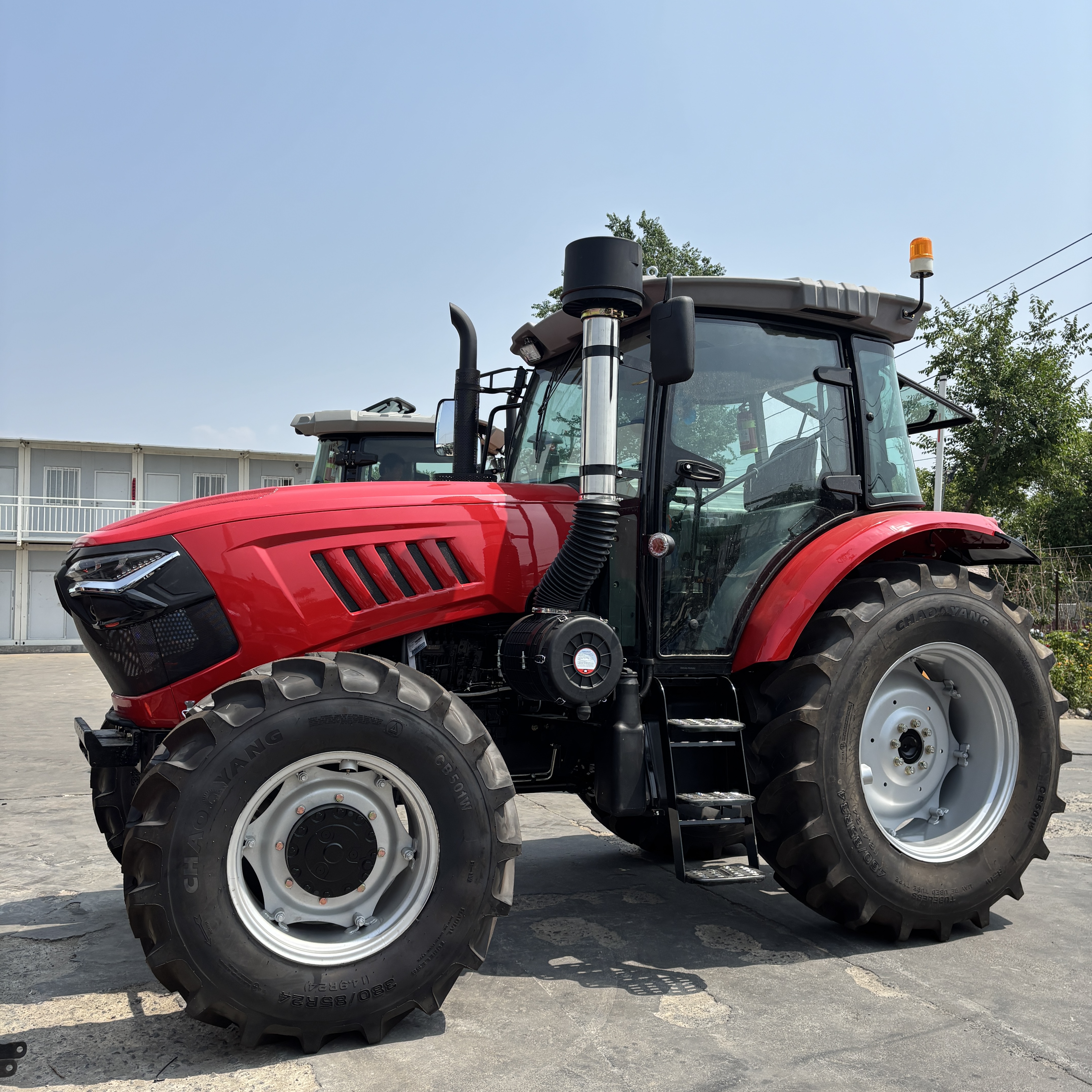

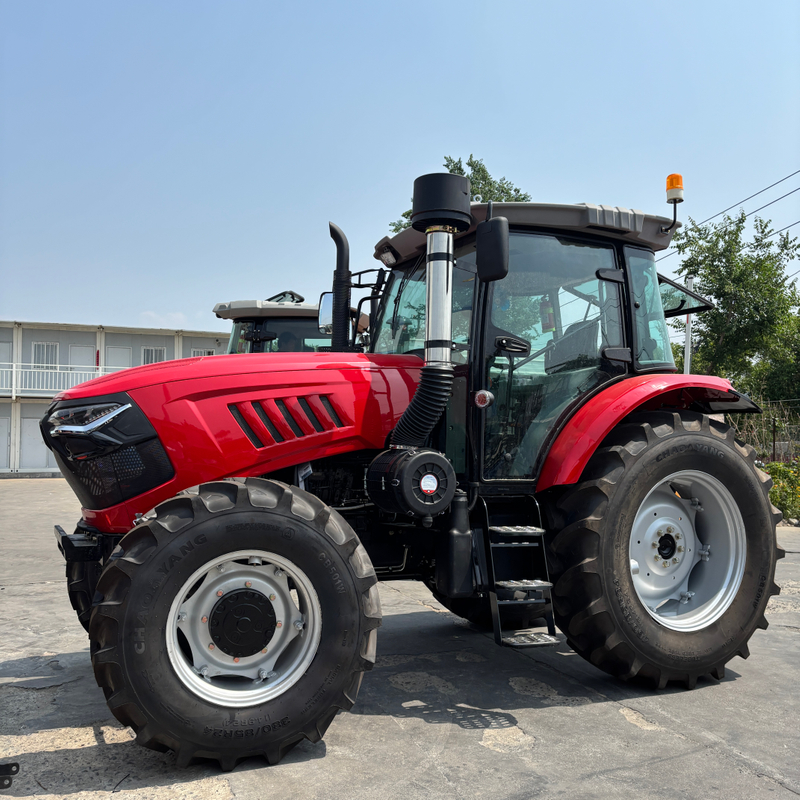

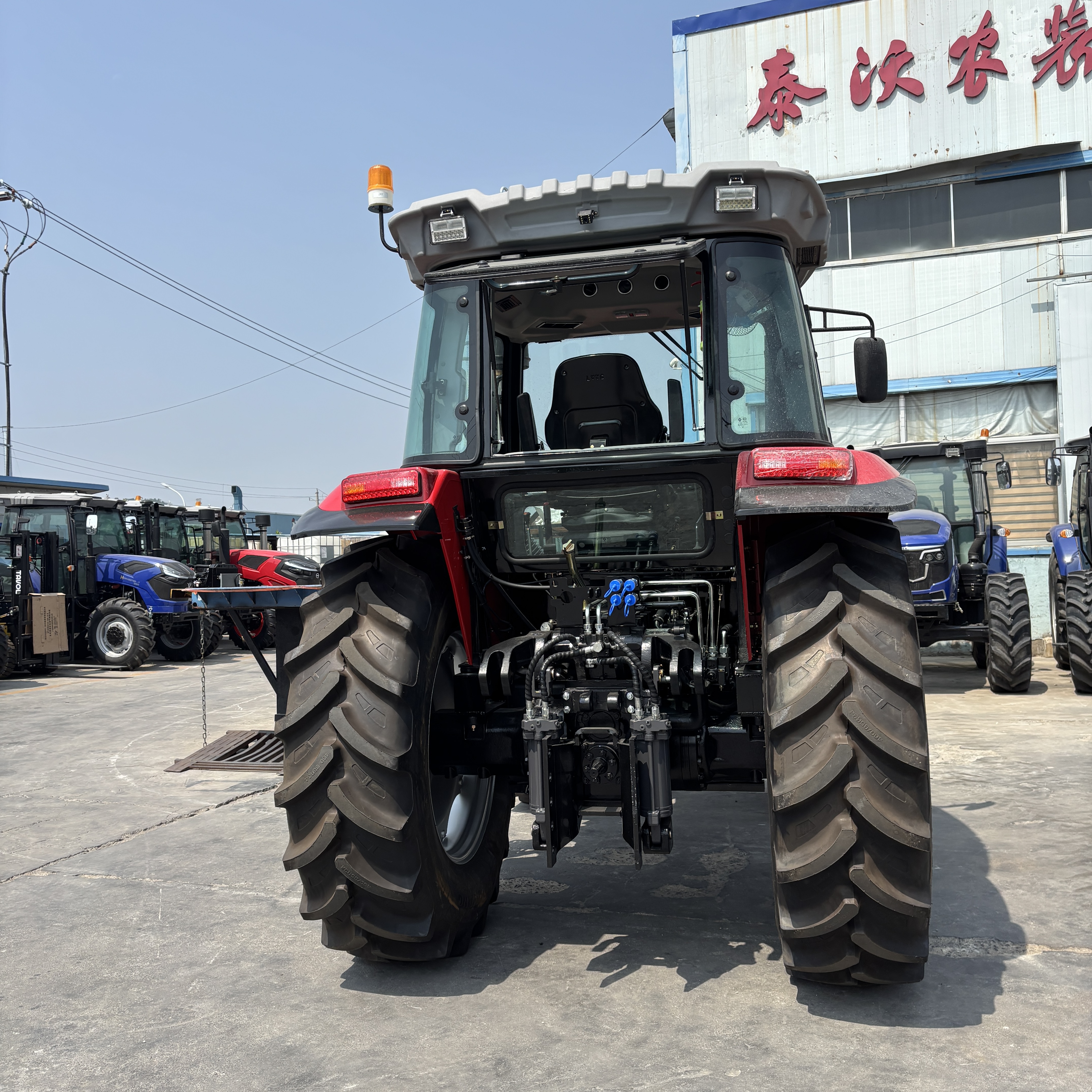

Large Full Container 150hp Agricultural Wheel Tractor

Name: Large Full Container 150hp Agricultural Wheel Tractor
Brand: TAVOL
Rating: 5.0 (20 reviews)

Tavol 150hp Tractor 16+8 gear. It is equipped with four-wheel drive and differential lock as standard, and with a reinforced chassis, it has excellent passability in muddy, sloping and other complex terrains. The hydraulic system has a large flow rate and can control multiple sets of intelligent agricultural machinery at the same time, supporting the needs of precision agriculture. The spacious and sealed cab is equipped with air conditioning, shock-absorbing seats and digital instruments, which greatly improves the comfort of operation.

Availability:

Quantity:



Inquire Add to Basket

Model:
TL1504
Brand:
TAVOL
Code:
8701951010

Product Description

The 150hp tractor is equipped with a high-performance engine from famous domestic brands such as Dongfanghong or Weichai, which provides continuous power support. Its powerful horsepower output (150hp) ensures efficient operation capabilities under various complex operating conditions, such as deep plowing, rotary tillage, sowing, harvesting, etc., significantly improving agricultural production efficiency.

Technical Parameters

Model		Tavol-1504
Machine parameters	Type	4×4
	Rated Traction( KN)	28
	PTO Max Power (KW)	93.8
	Dimensions(mm)	505021803000
Wheelbase(mm)		2520
Track(mm)	Front wheel(mm)	1650-1894
	Rear wheel(mm)	1620-2290
Ground clearance(mm)	Minimum ground clearance(mm)	425
Minimum turning cricle radius	Use unilateral braking	≤4.3
	Not unilateral braking	≤4.8
Minimum use quality		4800
Gearbox	16F+8R Shuttle Shift
Steering System	hydraulic steering gear
Drive Train	Clutch	double acting clutch
Working equipment	Maximum lifting force at 610mm(KN)	26.5
	Suspension mechanism	Three-piont suspension type 2
PTO shaft	PTO Spedd(r/min)	540/760/1000
Tire	Front wheel specifications	14.9-26
	Rear wheel specifications	18.4-38
Engine	Type	Inline, 4 stroke, Water cooled
	Cylinder	4
Optional	Cabin	AC/Heater
	Roll bar
	Canopy
Perfusion volume	Radiater(L)	14
	Fuel tank(L)	150
	Engine oil pan(L)	17
	Driveline oil (L)	38
	Lifter(L)	17
This parameter table is for reference only, everything is based on actual products
