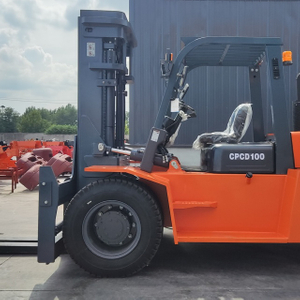

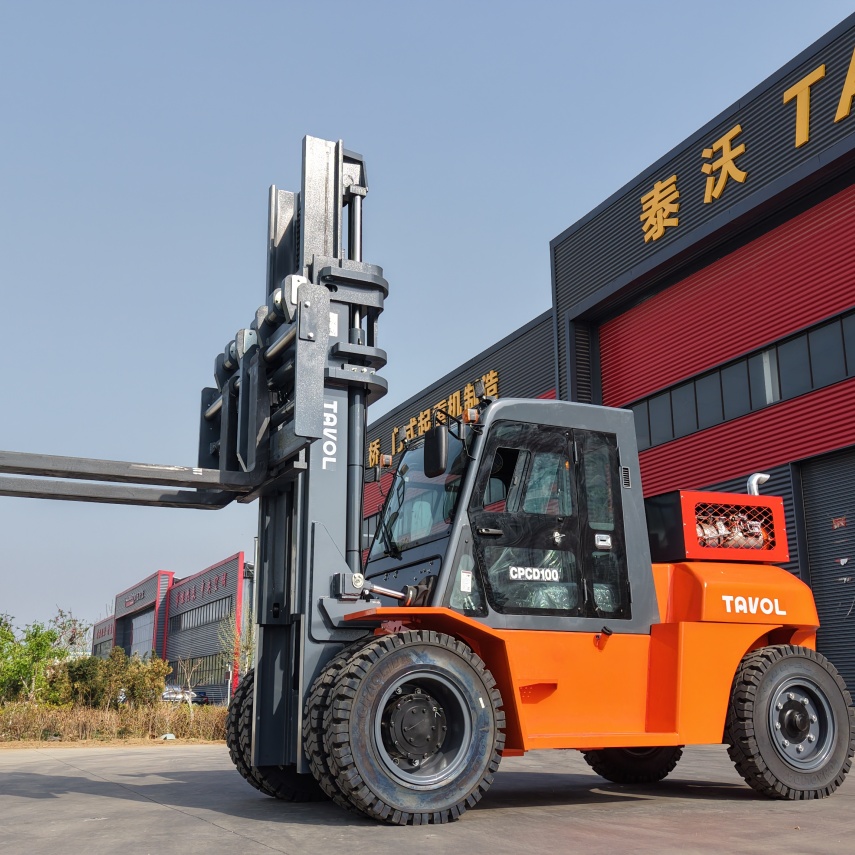

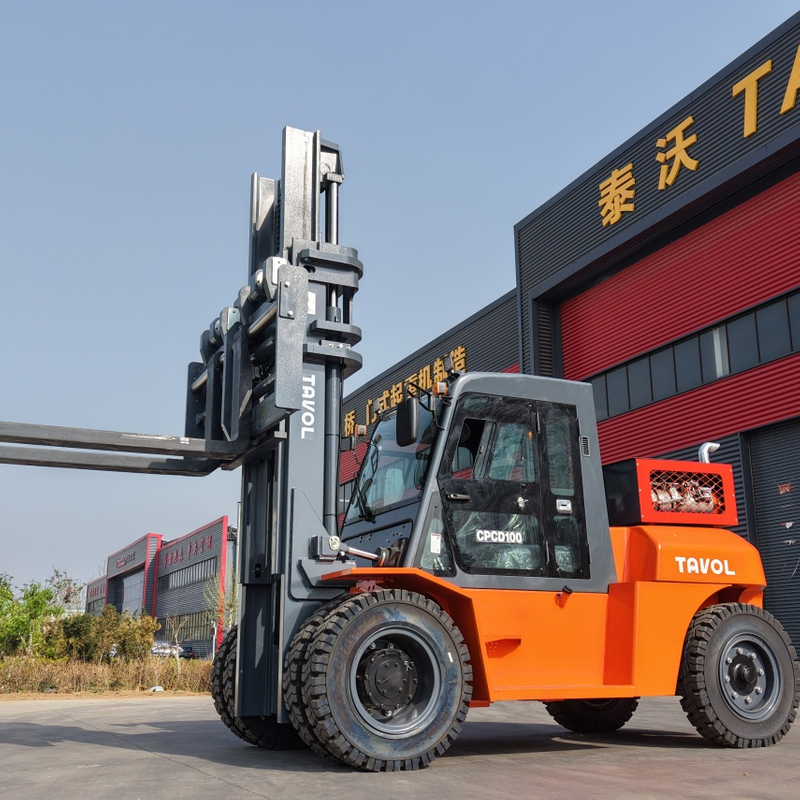

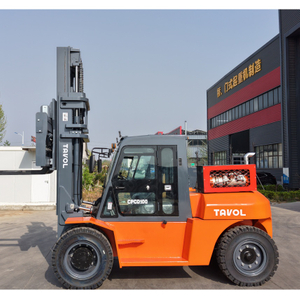

CPCD100
Tavol
Mahsulot parametrlari
| Model | CPCD100 | |
| Nominal ko'tarish yuki | kg | 10000 |
| Yuklash markazi masofasi | mm | 600 |
| Erkin ko'tarish balandligi | mm | 200 |
| Yuqori uzunlik (vilkalar bilan/vilkalarsiz) | mm | 5497/4277 |
| Kengligi | mm | 2245 |
| Yuqori himoya balandligi | mm | 2570 |
| G'ildirak bazasi | mm | 2800 |
| Minimal erni tozalash | mm | 250 |
| Mastning egilish burchagi (old/orqa) |
% | 10°/12° |
| Shina yo'q (oldin) | 9.00-20 NHS | |
| Shina yo'q (keyin) |
9.00-20 NHS | |
| Minimal burilish radiusi (tashqi tomon) | mm | 4150 |
| Minimal to'g'ri burchakli yo'lak kengligi | mm | 6010 |
| Vilka o'lchami | mm | 1520x175x85 |
| Forkliftning og'irligi | kg | 12410 |
| Dvigatel | Quanchai4J1-115C32 |
