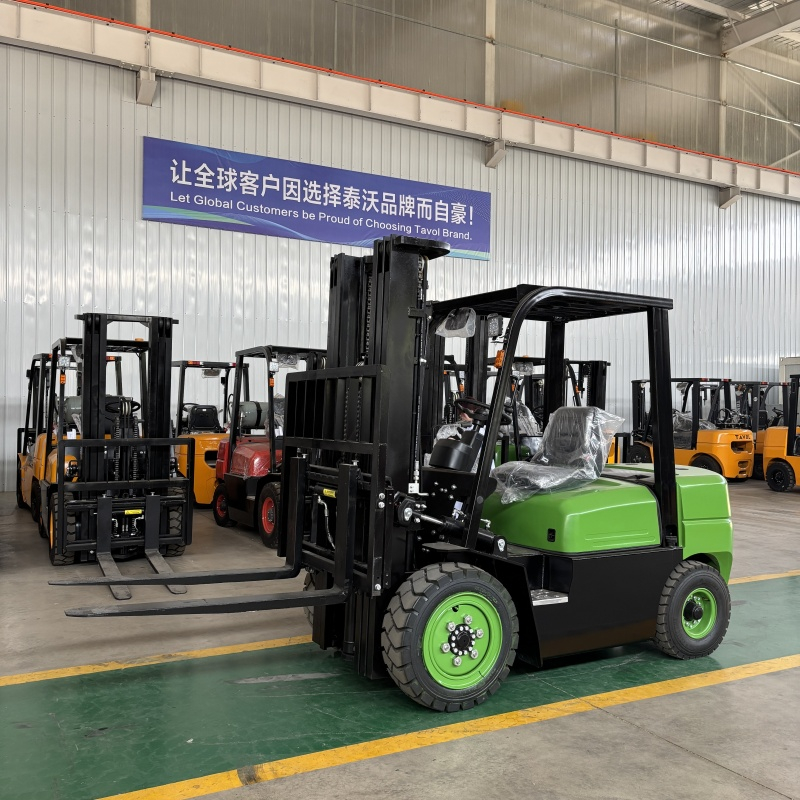

CPCD30
Tavol
Mast and Lift Height for Fork Lift
| / | 2- Stage Mast 2- | Triplex Mast |
| 1 | 3 m | 4.5m |
| 2 | 3 m with full free mast | 5m |
| 3 | 3.5m | 5.5m |
| 4 | 4m | 6m |
| 5 | 4.5m | 7m |
| 6 | 5m | / |
Attachment for Fork Lift
Optional side shifter, fork positioner, paper roll clamp, bale clamp ,rotating clamp etc.
Product specifications
| Model | CPCD30 |
| Rated Loading Capacity(kg) | 3000 |
| Load Center Distance(mm) | 500 |
| Drive Form | Diesel |
| Fork Lifting Height(mm) | 3000 |
| Mast Tilt Angle (Forward and Backward) | 6°/12° |
| Length (Including Fork)(mm) | 3970 |
| Width(mm) | 1230 |
| Height(Door Frame Indented) | 2110 |
| Height From Ground to Overhead Guard(mm) | 2105 |
| Front Overhang(mm) | 465 |
| Wheel Base(mm) | 1775 |
| Front Wheel Track(mm) | 1000 |
| Rear Wheel Track(mm) | 970 |
| Front Wheel Tyre | 28*9-15 |
| Rear Wheel Tyre | 6.50-10 |
| Self Weight(kg) (kg) | 4250/4290 |
| Fork Width(mm) | 122 |
| Fork Thickness(mm) | 45 |
| Standard Fork Length(mm) | 1220 |
| Engine Rated Power(kw) | 36.8 |
| Engine Speed At Rated Power(rmp) | 2500 |
| Engine Maximum Torque(Nm) | 165 |
| Engine Speed At Maximum Torque(rpm) | 1600-1800 |
| Transmission form | Hydraulic |
Optional:
Mexico Exhibition
Project in Chile
Welcome to contact
