| Model | Tavol-904 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 13.5 | |
| PTO Max Power (KW) | 57 | |
| Dimensions(mm) | 3400×1900×2620 | |
| Wheelbase(mm) | 2070 | |
| Track(mm) | Front wheel(mm) | 1350-1550 |
| Rear wheel(mm) | 1300-1500 | |
| Quantity: | |
|---|---|

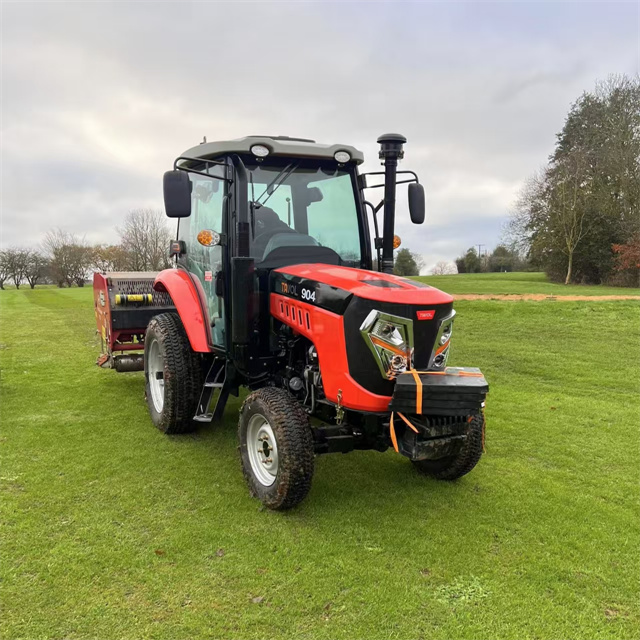

TL904
TAVOL
Technical Parameters
Model | Tavol-904 | |
Machine parameters | Type | 4×4 |
Rated Traction( KN) | 13.5 | |
PTO Max Power (KW) | 57 | |
Dimensions(mm) | 3400×1900×2620 | |
Wheelbase(mm) | 2070 | |
Track(mm) | Front wheel(mm) | 1350-1550 |
Rear wheel(mm) | 1300-1500 | |
Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
Minimum turning cricle radius | Use unilateral braking | ≤4.0 |
Not unilateral braking | ≤4.6 | |
Minimum use quality | 3000 | |
Gearbox | 12F+12R Shuttle Shift | |
Steering System | hydraulic steering gear | |
Drive Train | Clutch | double acting clutch |
Working equipment | Maximum lifting force at 610mm(KN) | 17 |
Suspension mechanism | Three-piont suspension type 1 | |
PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
Tire | Front wheel specifications | 9.5-24 |
Rear wheel specifications | 14.9-30 | |
Engine | Type | Inline, 4 stroke, Water cooled |
Cylinder | 4 | |
Engine Brand | YTO, XICHAI, LAIDONG; EURO5 4L28V50 | |
Optional | Cabin | AC/Heater |
Roll bar | ||
Canopy | ||
Perfusion volume | Radiater(L) | 12 |
Fuel tank(L) | 64 | |
Engine oil pan(L) | 17 | |
Driveline oil (L) | 38 | |
Lifter(L) | 17 | |
This parameter table is for reference only, everything is based on actual products | ||

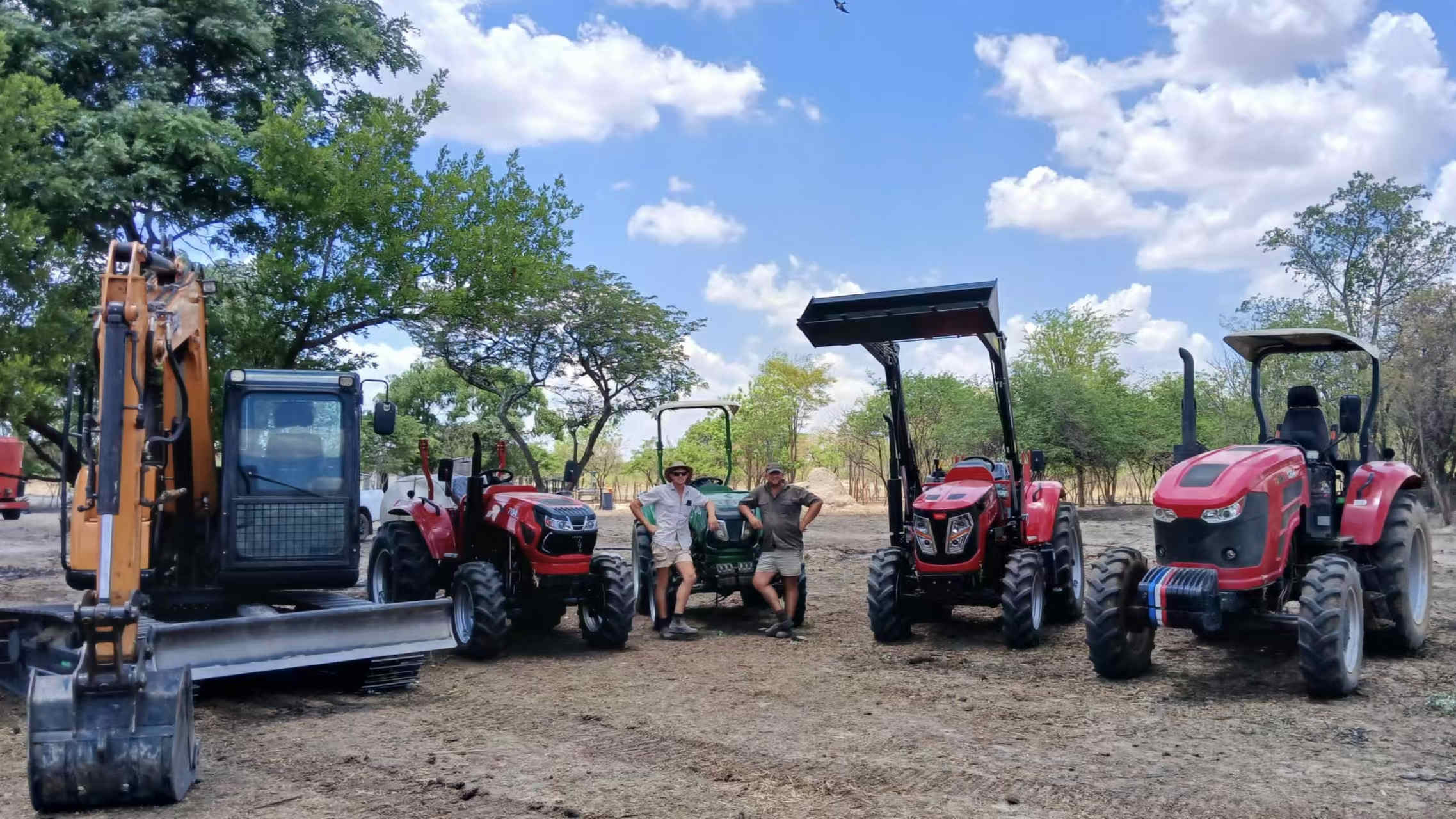

Client feedback
 |  |  |
| Project in Syria | Project in Estonia | Project in Bosnia and Herzegovina |
 |  |  |
| Project in France | Project in Czech Republic | Project in Italy |
12+12 gearbox
Main and auxiliary gear design (12 forward gears + 12 reverse gears), covering low-speed crawling gear to high-speed transport gear.
Efficient operation
Multi-gear matches different agricultural implements (such as plowing, sowing, and transportation), reducing power waste and improving fuel economy.
Multi-function expansion
Adapt to more agricultural machinery (such as harvesters and sprayers) through PTO and hydraulic interfaces, one machine for multiple uses.
Comfort and safety
Some models are equipped with shock-absorbing cabs and air conditioners to improve the experience of long-term operation.
