TL504
TAVOL
8701921000

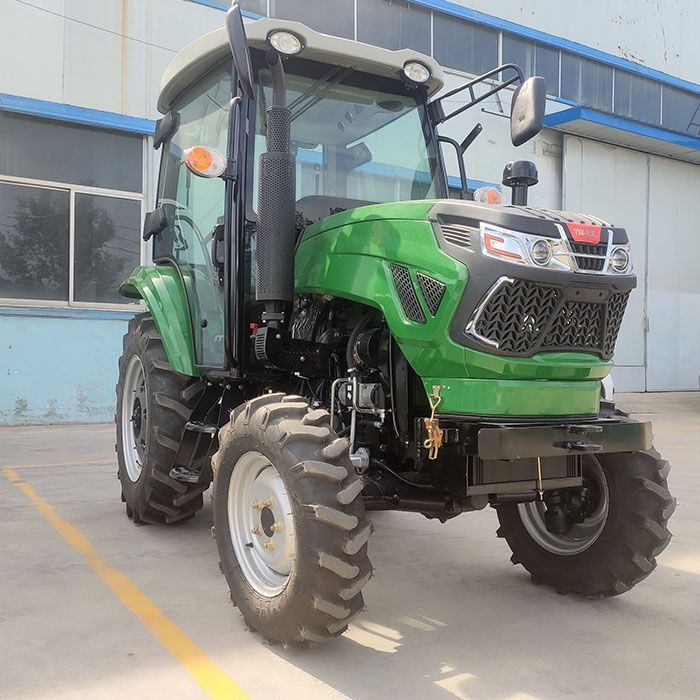

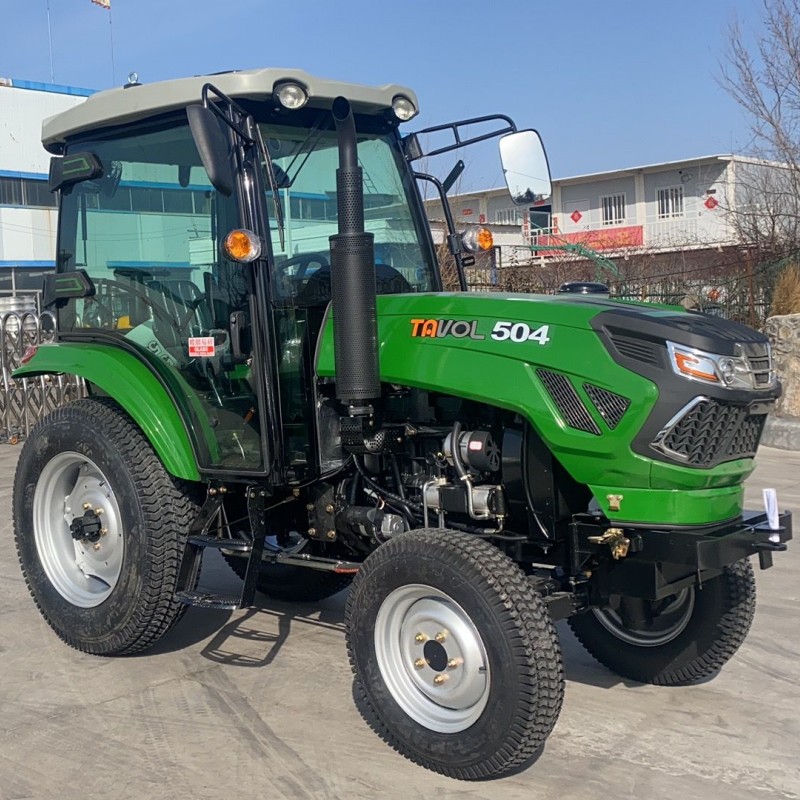

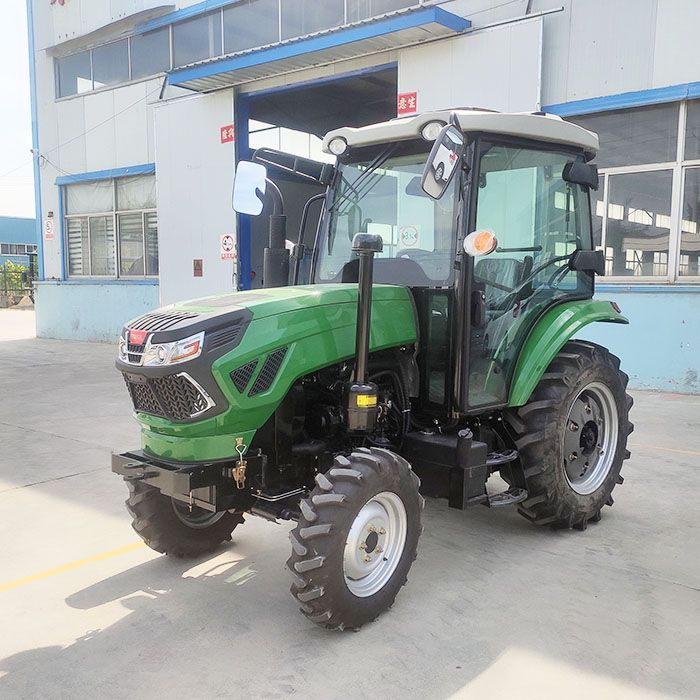

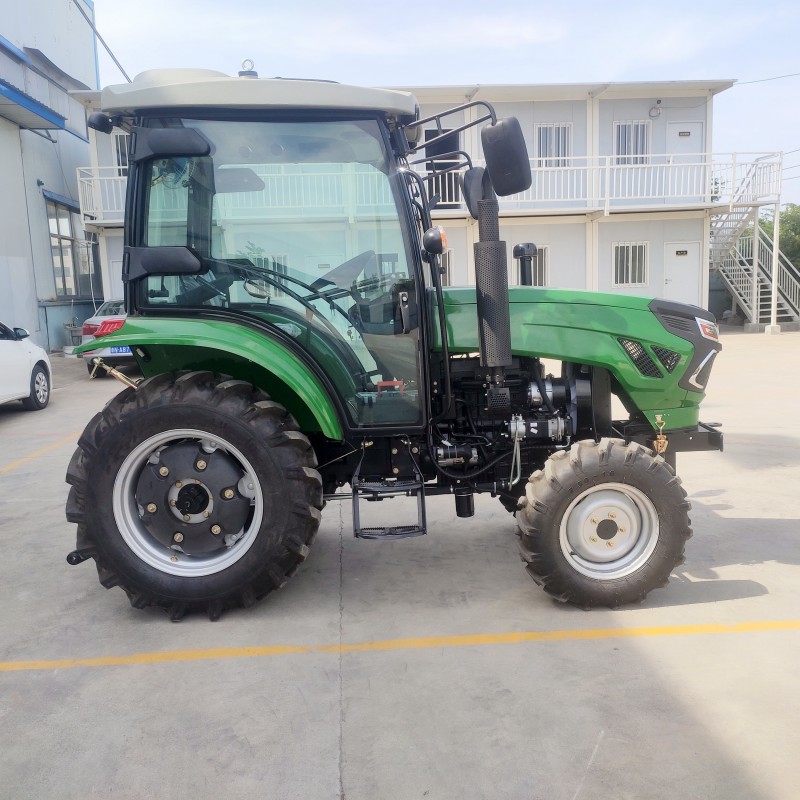

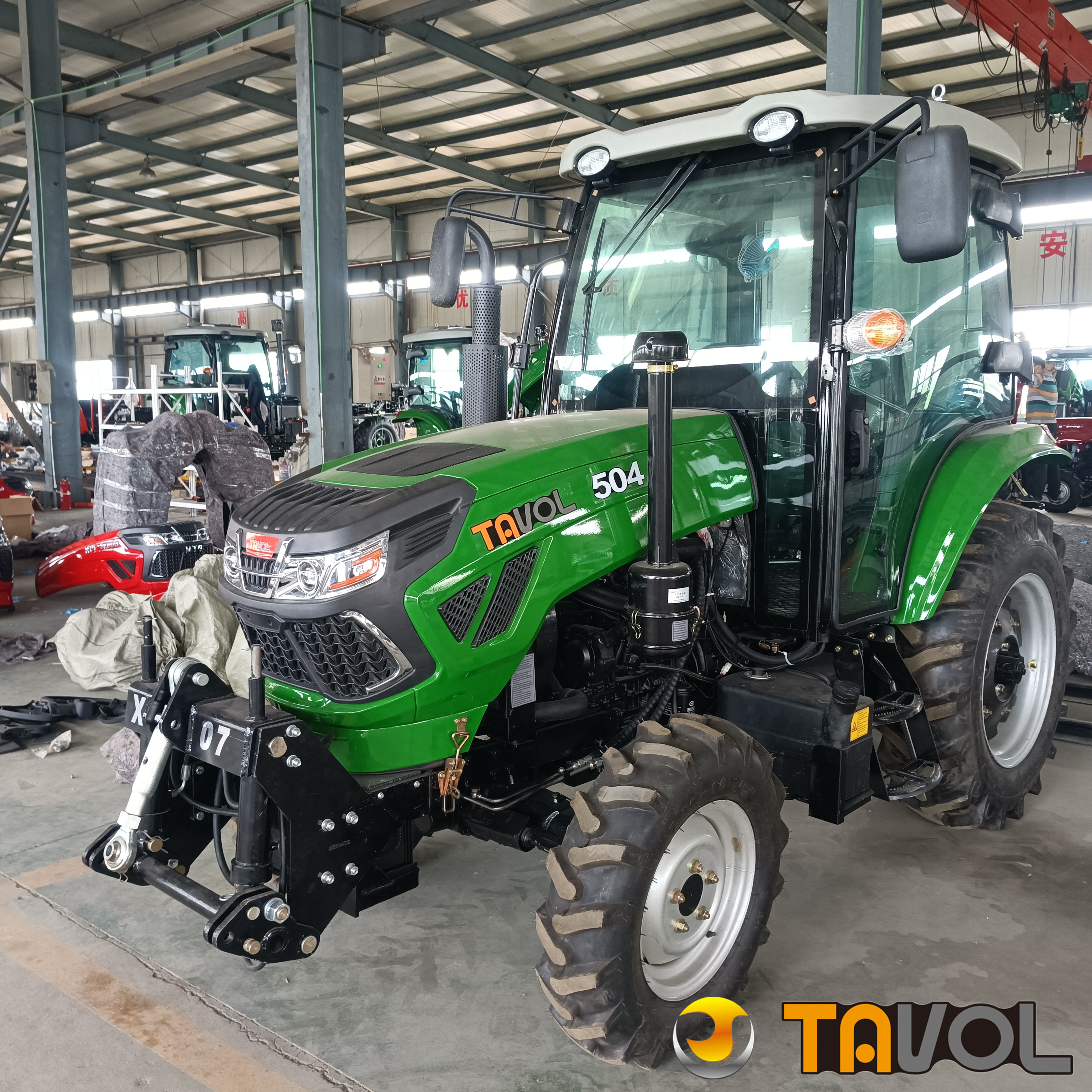

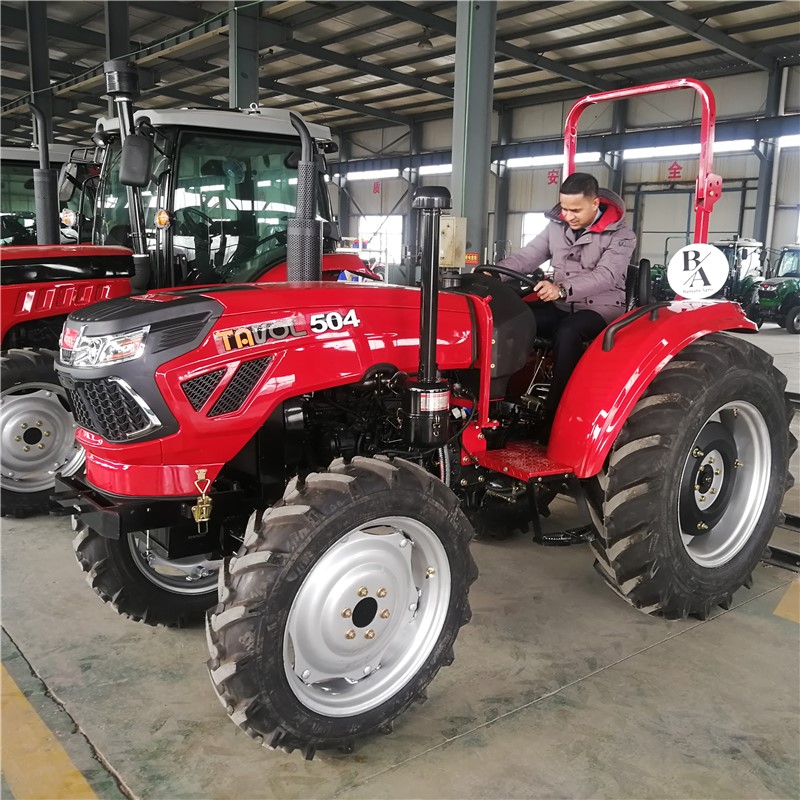

The 50hp tractor is a versatile agricultural machinery designed for medium-scale farming operations. Powered by a high-performance 4-cylinder diesel engine, it delivers strong power output while maintaining excellent fuel efficiency. With its 4-wheel drive system and optimized transmission, this tractor can handle various farming tasks including plowing, planting, harvesting, and transportation with outstanding performance in different field conditions.
Main Features
Powerful Performance
Equipped with advanced 4-cylinder diesel engine
50HP rated power output (36.8kW)
Large torque reserve for heavy-duty operations
Excellent acceleration response and working efficiency
Advanced Transmission System
F8+R8 gearbox for smooth shifting
Multiple speed options for different working conditions
Optimized gear ratio for both power and fuel efficiency
Superior Maneuverability
Hydraulic power steering system
Small turning radius (2.5m with unilateral braking)
Adjustable wheel track for different row spacing
Comfortable Operation
Ergonomic operator platform
Reduced vibration design
Spacious and comfortable driving space
Multi-functional Applications
Compatible with various agricultural implements
Three-point linkage system
Independent PTO (540/760 rpm options)
Technical Parameters
| Model | TL504 | ||
| Type | 4x4 | ||
| Machine parameters | PTO power (KN) | 31 | |
| Rated Traction (KN) | 10.5 | ||
| Dimensions (mm) | 3315×1570×2230 | ||
| Wheelbase (mm) | 1885 | ||
| Track (mm) | Front wheel | 1250 | |
| Rear wheel | 1000-1300 | ||
| Minimum ground clearance (mm) | 295 | ||
| Turning circle radius | Unilateral braking | 3.5 | |
| Not unilateral braking | 4 | ||
| Weight (KG) | 1700 | ||
| Drive Train | Clutch | Single stage cluth | |
| Gearbox | 8+2 shift | ||
| Walking steering | Tire | Front wheel | 6.00-16/6.5-16 |
| Rear wheel | 9.4-24/11.2-24 | ||
| Braking system | Service brake | Mechanical hoof type | |
| Parking brake | Locking pedal type | ||
| Working equipment | Maximum lifting force at 610mm(KN) | 10.5 | |
| Suspension mechanism | Three-point suspension type 1 | ||
| PTO shaft | PTO speed r/min | 540/760 | |
| Engine | Engine brand | YTO | |
| Engine type | Diesel engine | ||
| Engine cylinder | 4 | ||
| Start | Start method | Electric | |
| Main fill volume (L) | Radiater | 10 | |
| Fuel tank | 21 | ||
| Engine sump | 3.5 | ||
| Gearbox oil | 11 | ||
| Lifter | 9 | ||
| This parameter table is for reference only, everything is based on actual products | |||
Product Applications
Field Preparation
Plowing and harrowing operations
Land leveling and soil cultivation
Excellent performance in various soil conditions
Planting Operations
Precision seeding and transplanting
Fertilizer application
Suitable for row crops and field crops
Harvesting Work
Compatible with various harvesters
Efficient crop collection
Post-harvest field management
Transportation
Farm product transportation
Equipment towing
Material handling
Specialized Operations
Orchard and vineyard management
Vegetable farming
Small-scale construction work
Product Operate Guide
A brief description of the tractor operation process: In the preparation phase, check the machine and wear safety equipment. Start smoothly after starting and adjust the speed according to needs. Adjust the tillage depth during operation and connect the farm implements to operate. After completion, slow down and stop, put the gear in neutral and turn off the engine. Safety first, regular maintenance.
Product Video
FAQ
Q1: Are you the factory or the trading company?
A1: The factory, which located in Taian City, Shandong Province, China.
Q2: How long after-sales service can your company provide?
A2: Two years.
Q3: Can you provide spare parts for free?
A3: Yes.
Q4: Can you provide OEM?
A4: Yes.
Q5:How about the delivery time?
A5: Usually 5-15 days, up to the models and quantity.
