TL504
TAVOL
8701931000
Technical Parameters
| Model | Tavol-504 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 10 | |
| PTO Max Power (KW) | 31 | |
| Dimensions(mm) | 3910×1720×2600 | |
| Wheelbase(mm) | 1700 | |
| Track(mm) | Front wheel(mm) | 850-1400 |
| Rear wheel(mm) | 850-1400 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 380 |
| Minimum turning cricle radius | Use unilateral braking | ≤3.6 |
| Not unilateral braking | ≤3.8 | |
| Minimum use qu:ality | 2340 | |
| Gearbox | 8F+8R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | 8.8 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 7.5-16 |
| Rear wheel specifications | 12.4-24 | |

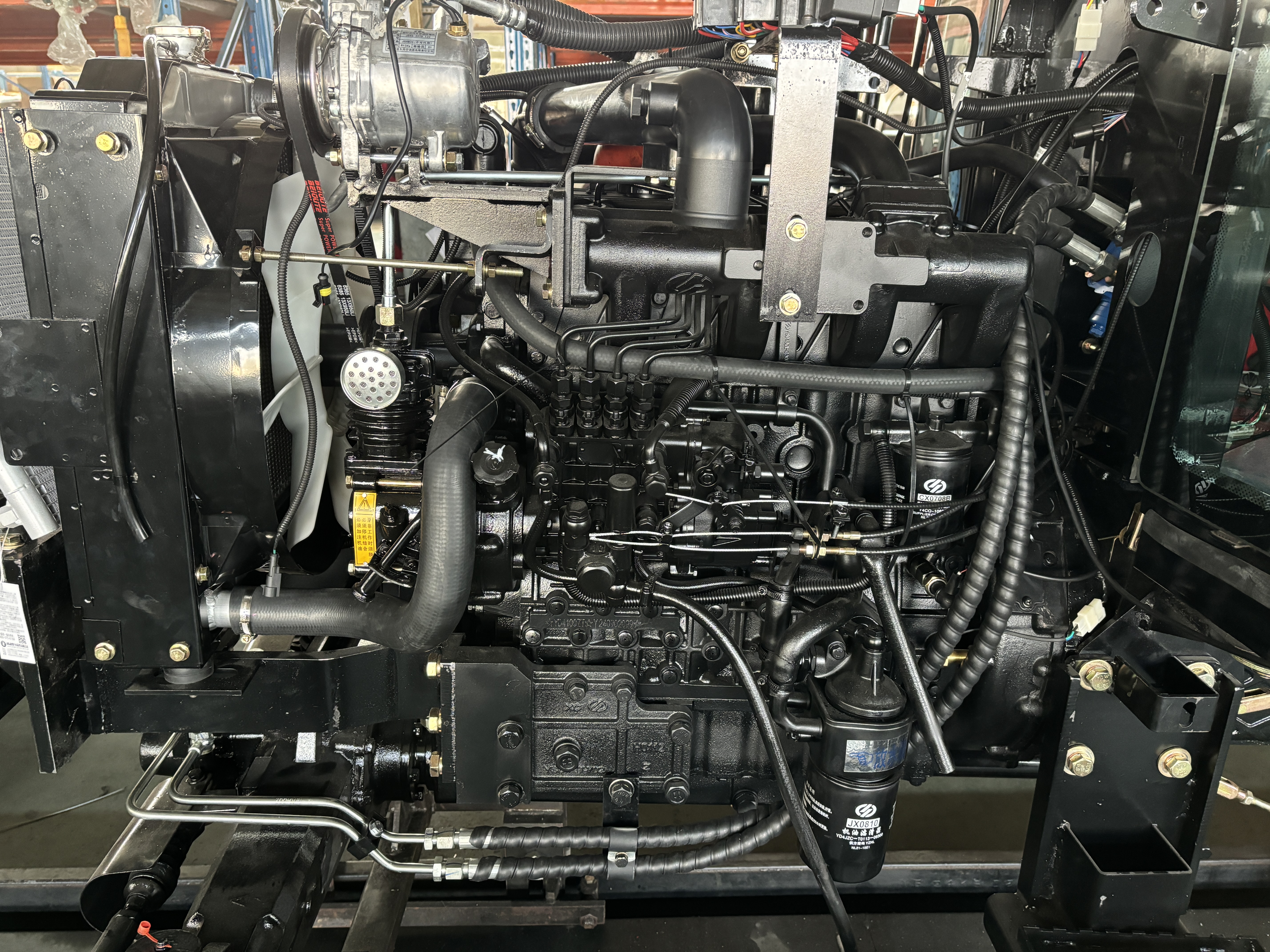

| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 10 |
| Fuel tank(L) | 60 | |
| Engine oil pan(L) | 5 | |
| Driveline oil (L) | 20 | |
| Lifter(L) | 9.5 | |
| This parameter table is for reference only, everything is based on actual products | ||
| Model | BX-4 | BX-5 | BX-6 | BX-7 | BX-8 | BX-9 |
| Width of scraper(mm) | 1200 | 1500 | 1800 | 2100 | 2400 | 2700 |
| Weight(kg) | 150 | 180 | 210 | 240 | 270 | 300 |
| Tractor power(hp) | 20 | 30 | 40 | 50 | 60 | 70 |
| Mounted cat | Three-point mounted | |||||

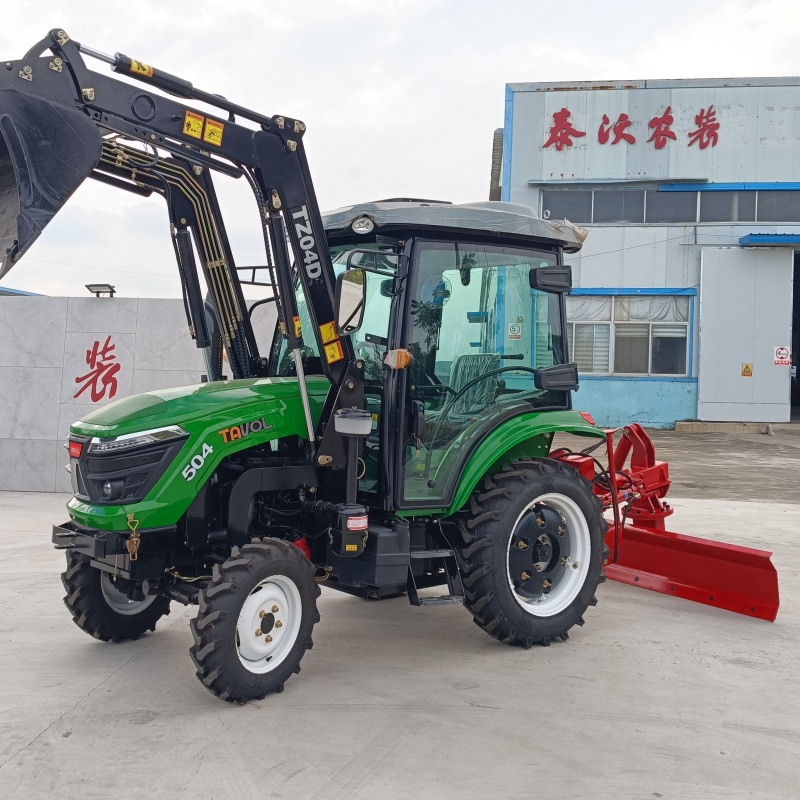

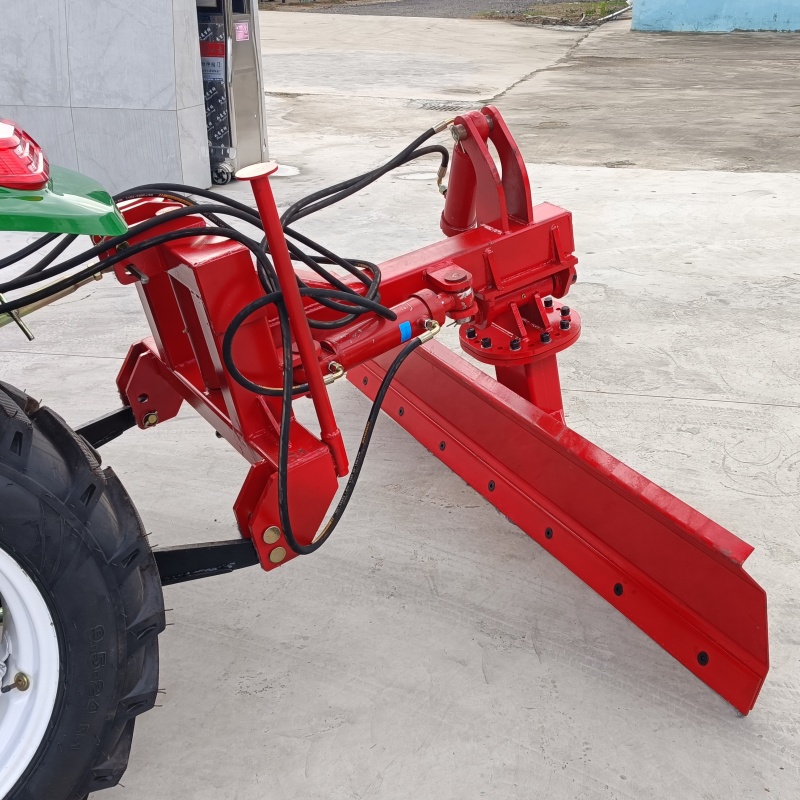

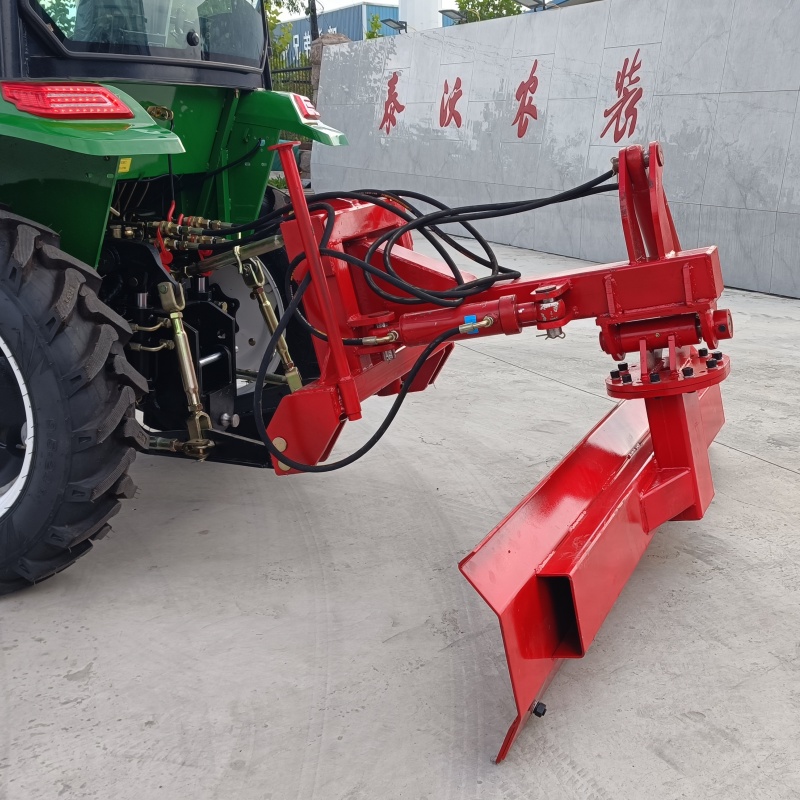

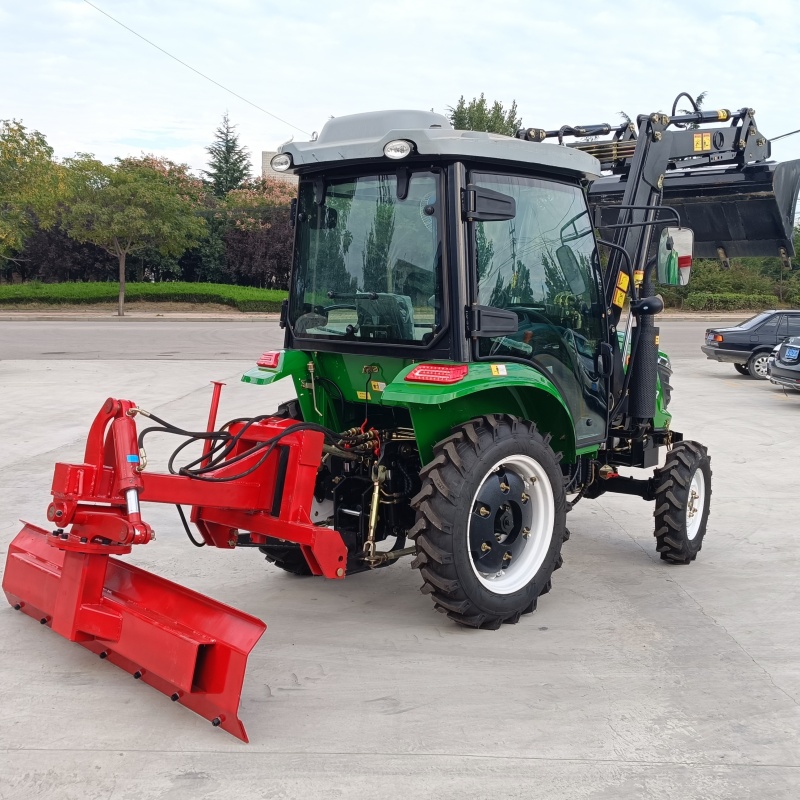

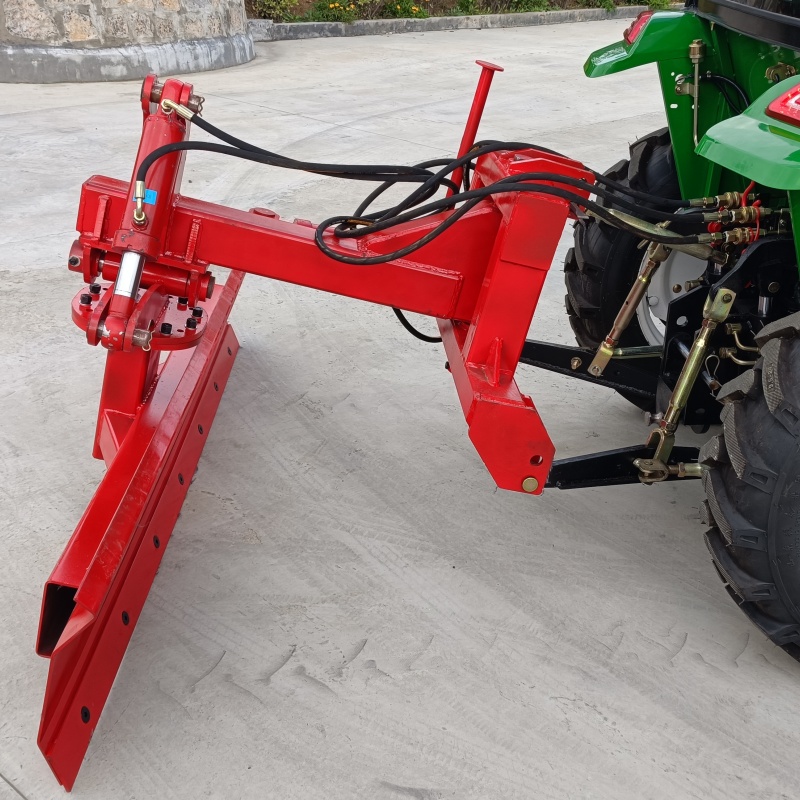

A tractor equipped with a hydraulic grader combines the versatility of a tractor with the precision of hydraulic leveling, becoming an indispensable tool for agriculture, construction, and road maintenance. Its core advantages and selling points are designed to meet practical needs while enhancing efficiency and cost-effectiveness, making it highly searchable for Google users.
The primary advantage is high precision and easy control. The hydraulic system connects to the tractor’s power take-off (PTO), enabling real-time adjustment of the grader’s blade height and angle with smooth, precise operations, achieving millimeter-level leveling accuracy and reducing rework costs. It also boasts strong adaptability, handling uneven terrain, rocky soil, and compacted ground effortlessly, suitable for both agricultural land preparation and road grading tasks.

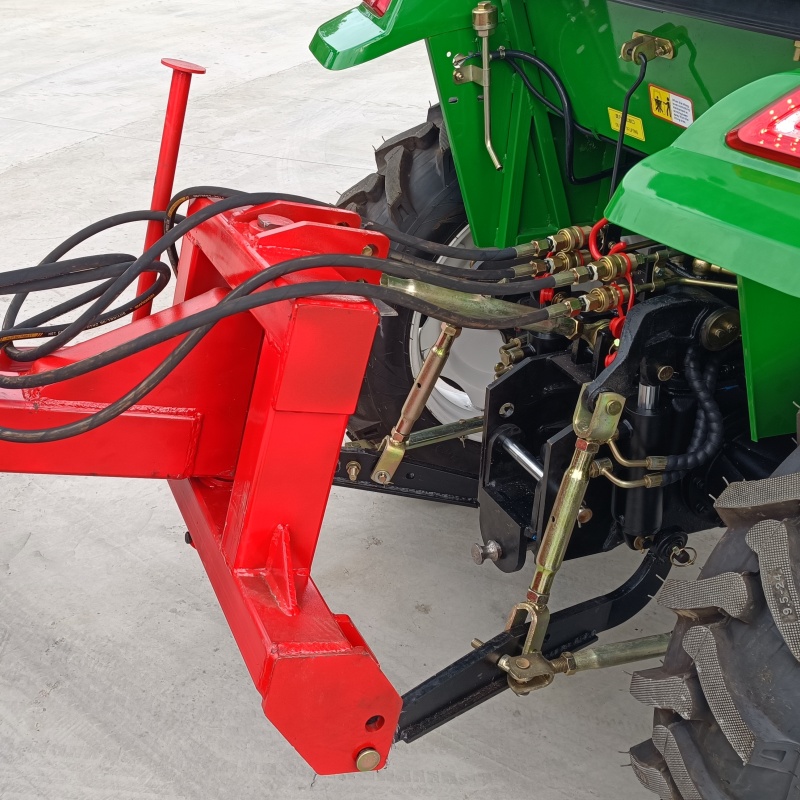

Key selling points include exceptional efficiency, reducing manual labor by up to 40% compared to traditional methods and shortening project timelines significantly. Made of high-grade structural steel and hardened wear components, it features durability and low maintenance, withstanding heavy-duty operations and lowering long-term use costs. Its versatility is another highlight—compatible with most tractor models via three-point hitch, it can perform multiple tasks like soil leveling, debris clearing, and slope trimming.
Cost-effectiveness is a major draw, eliminating the need for expensive dedicated grading equipment by converting existing tractors into professional leveling machines. With user-friendly hydraulic controls operable from the tractor cab, it reduces operator fatigue and requires minimal training, making it ideal for farmers, contractors, and small to large-scale operations.
Product Details:
Cloent Project
Welcome to contact us:
