CPQYD2.0
Tavol
The 2.0 ton dual fuel forklift is a forklift that combines traditional fuels (such as diesel) and clean energy (such as LPG, LPG or natural gas, CNG) to provide efficient and environmentally friendly material handling solutions. With its compact design and strong load capacity, the forklift truck is suitable for a variety of industrial and commercial environments, such as warehouses, factories, docks, etc.
Technical parameters
| 2.0 ton LPG forklift specifications | |||||
| type | CPQYD20H | ||||
| Rated capacity | kg | 2000 | |||
| Load center | millimetre | 500 | |||
| Lifting height (max) | millimetre | 3000 | |||
| Lift the height freely | millimetre | 60 | |||
| Mast tilt angle | F/R | degree | 6°/12° | ||
| Lifting speed (max) | load | mm/s | 400 | ||
| Traction (max) | Loaded/uninstalled | KN (English) | 15/10 | ||
| Travel speed (max) | Loaded/uninstalled | km/h | 17/19 | ||
| Grading ability below full score | Loaded/uninstalled | % | 15/20 | ||
| Load (max) | |||||
| Turning radius (minimum) | millimetre | 2450 | |||
| Minimum clearance from the ground | millimetre | 110 | |||
| Ground to upper frame height | millimetre | 2050 | |||
| wheelbase | millimetre | 1640 | |||
| Car tread covers | F/R | millimetre | 970/970 | ||
| Front overhang | millimetre | 451 | |||
| Size | length | With forks | millimetre | 3605 | |
| width | millimetre | 1160 | |||
| Enclosed mast height | millimetre | 2095 | |||
| Overhead guard height | millimetre | 2095 | |||
| Maximum working height | with/without backrest | millimetre | 4080 | ||
| Fork size | LXWXT | millimetre | 1220x122x40 | ||
| Standard fork length | millimetre | 1070 | |||
| dead weight | kg | 3600 | |||
| tired | 2 units | Pneumatic tires | |||
| 2 units | Pneumatic tires | ||||
| Motor | Brand | Guangqing/Nissan K25 engine | |||
Successful Cases

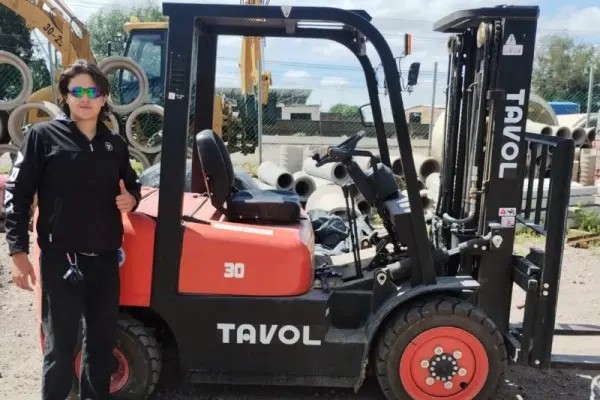

This is an LPG forklift that TAVOL customized for a well-known forklift rental company in Mexico. It is designed for the high-intensity, multi-scenario needs of the rental market. This model uses a durable Mitsubishi engine with low energy consumption and long endurance. It is also equipped with a reinforced gearbox to ensure stable performance under different working conditions. Rental customers pay special attention to the reliability and low maintenance cost of the equipment. The TAVOL LPG forklift, with its excellent performance and durability of up to 10,000 hours without major repairs, fully meets the strict requirements of the rental company for long-term stable operation of the equipment.
 |
|
|
 |
|
|
