CPCD25
Tavol

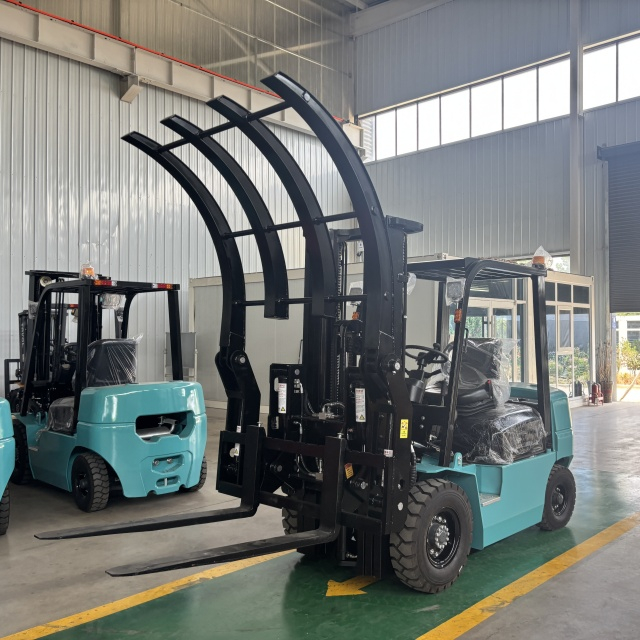

The 2.5-ton forklift equipped with a professional wood clamp attachment is engineered for high-performance material handling in demanding environments. Designed with a robust hydraulic system and adjustable clamp arms, it ensures secure gripping of logs, lumber, and timber bundles without causing damage. The clamp’s 360-degree rotation capability allows precise positioning and stacking in multiple directions. With a lifting capacity of up to 2.5 tons and enhanced stability from a reinforced chassis, this machine guarantees efficiency and safety. Its intuitive controls and ergonomic operator cabin further optimize productivity in intensive industrial operations.
This wood clamp forklift is ideal for forestry, sawmills, and timber processing facilities, where it efficiently handles raw logs, cut lumber, and packaged wood products. It excels in loading/unloading trucks, organizing storage yards, and feeding production lines. In construction and pallet manufacturing, it streamlines the movement of timber beams and wooden materials. Additionally, its versatility suits ports and warehouses for handling bulk wood shipments. By replacing manual labor and multiple machines, it reduces operational costs, minimizes material damage, and accelerates workflow, making it a vital asset for industries reliant on wood-based materials.
Model | CPCD25 | |||||
Rated capacity | KG | 2500 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1220x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3600 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Xinchai 4D29V41 | ||||
Maximum output power(Kw) | 36.8 | |||||
Rated speed(rpm) | 2400 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600-1800 | |||||
The engine form | Hydraulic | |||||
Forklift Attachment
Project in Armenia
Project in Azerbaijan
Project in Mexico
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Taian City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:5-15 days according to the different quantity.
Welcome to contact
