| Capacity(kg): | |
|---|---|
| Weight (kg): | |
| Wheelbase(mm): | |
| Quantity: | |
CPQYD
Tavol

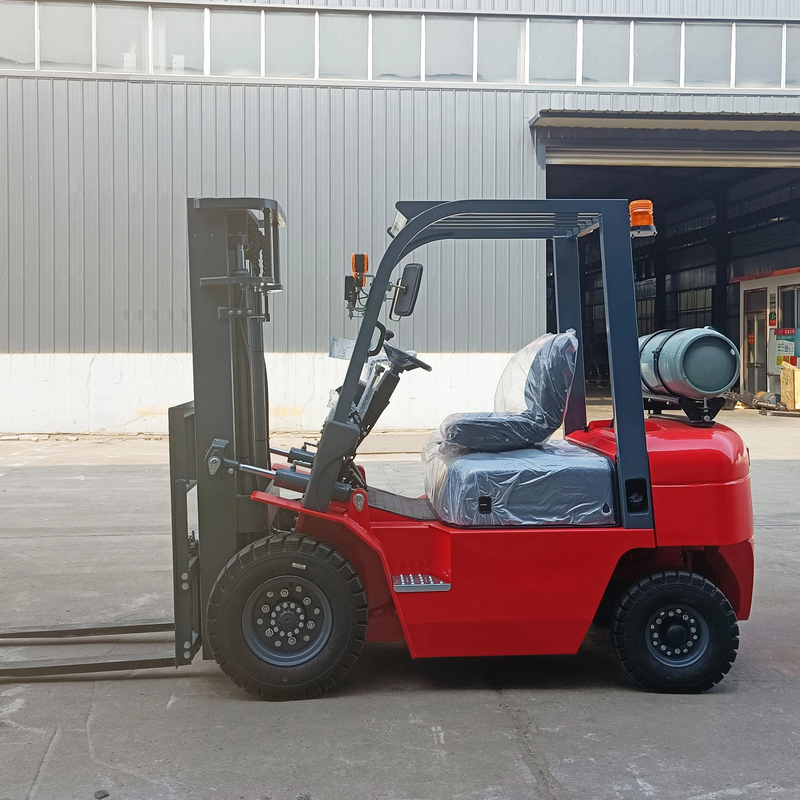

The 2-ton LPG forklift produces almost no harmful emissions during operation, greatly reducing environmental pollution. Its environmentally friendly features not only conform to the global trend of energy conservation and emission reduction, but can also win a good social reputation and brand image for your company.
With a powerful carrying capacity of 2 tons, this forklift can easily handle various heavyweight material handling tasks. Its stable driving performance and high operating efficiency ensure that you can maintain a high-efficiency production rhythm in any working environment.
Tavol LPG Forklift Truck Advantage
Environmental protection and energy saving Clean energy: LPG (liquefied petroleum gas) is a clean energy source. Compared with traditional diesel or gasoline forklifts, the exhaust gas produced by its combustion has lower levels of harmful substances, helping to reduce environmental pollution. |  |
 | Low emissions: LPG forklifts perform well in emission control and can significantly reduce emissions of harmful gases such as CO (carbon monoxide), HC (hydrocarbons) and NOx (nitrogen oxides), complying with increasinglystringent environmental regulations. |
| Stable power performance: LPG forklifts have stable power output, which can meet operating needs under various working conditions and improve work efficiency. |  |
Technical Parameters
Model | CPQYD20 | |||||
Rated capacity | KG | 2000 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 60 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 400 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 17/19 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2450 | ||||
The minimum clearance from the ground | MM | 110 | ||||
Wheelbase | MM | 1640 | ||||
Wheel tread | F/R | MM | 970/970 | |||
front overhang | MM | 451 | ||||
Dimensions | Length | With fork | MM | 3605 | ||
Width | MM | 1160 | ||||
Closed mast height | MM | 2095 | ||||
Overhead guard height | MM | 2095 | ||||
Max. Height at work | With/without backrest | MM | 4080 | |||
Fork size | LXWXT | MM | 1070x122x40 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 3470 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
Company Information
As a key subsidiary of Tavol Group, we leverage decades of industrial expertise and full-chain manufacturing capabilities, including machining, riveting, stamping, forging, electrical processing, heat treatment, painting, and precision mold manufacturing. This integrated production system ensures superior quality control, durability, and performance across every forklift we build.
Our R&D-driven factory specializes in designing and manufacturing a comprehensive range of material handling equipment:
✔ Diesel Forklifts (2-10 tons) – Robust power for heavy-duty operations
✔ Electric Forklifts (1-5 tons) – Eco-friendly solutions for indoor logistics
✔ Dual LPG Forklifts (2-4 tons) – Fuel-flexible and cost-efficient
✔ Off-Road Forklifts – Engineered for challenging terrains
✔ Electric Stackers – Compact and agile for warehouse efficiency
From raw material processing to final assembly, every Tavol forklift embodies innovation, reliability, and adaptability—meeting diverse industry demands worldwide.
Please Contact US for More Information
