CPD25
Tavol

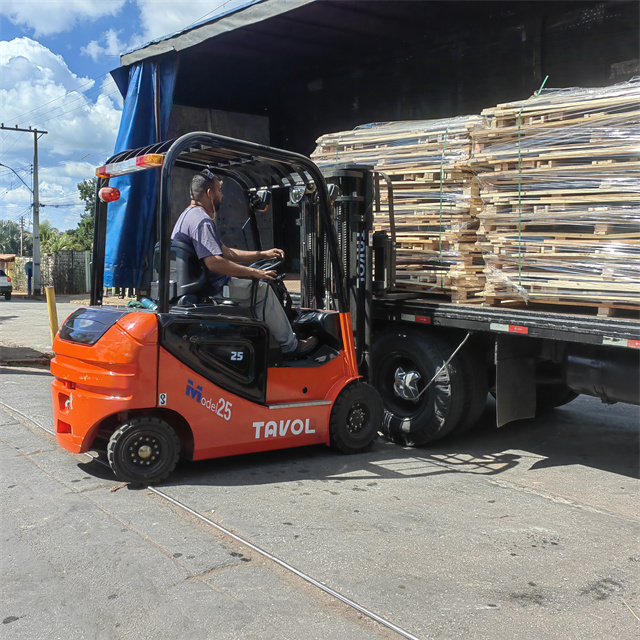

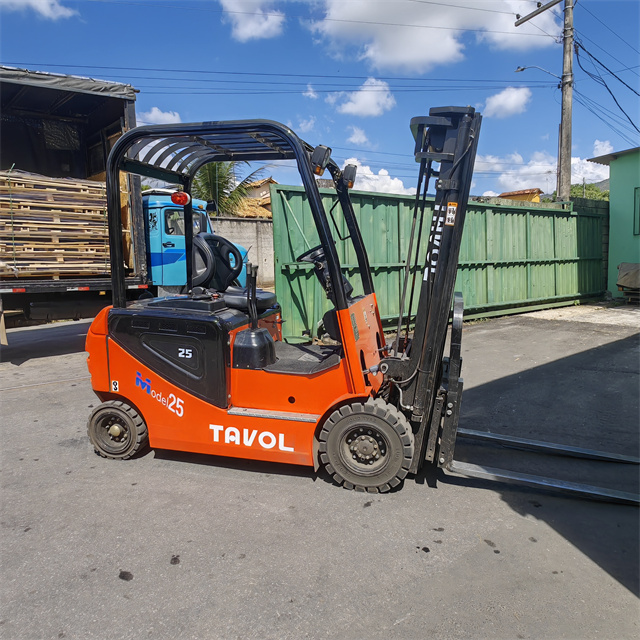

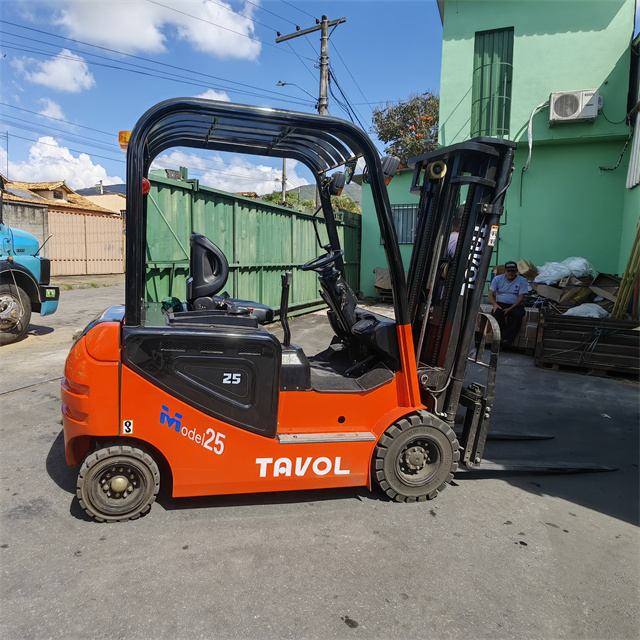

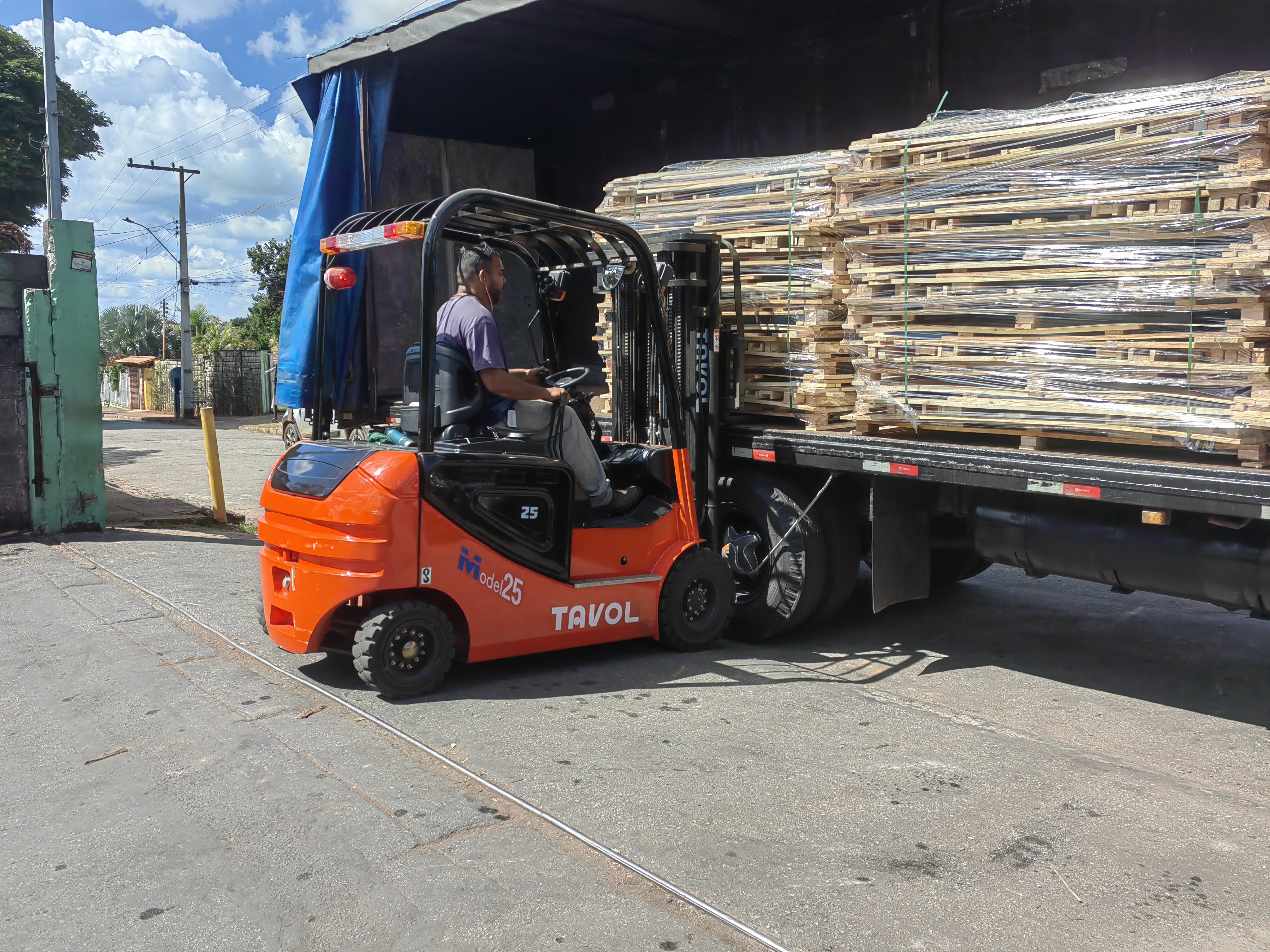

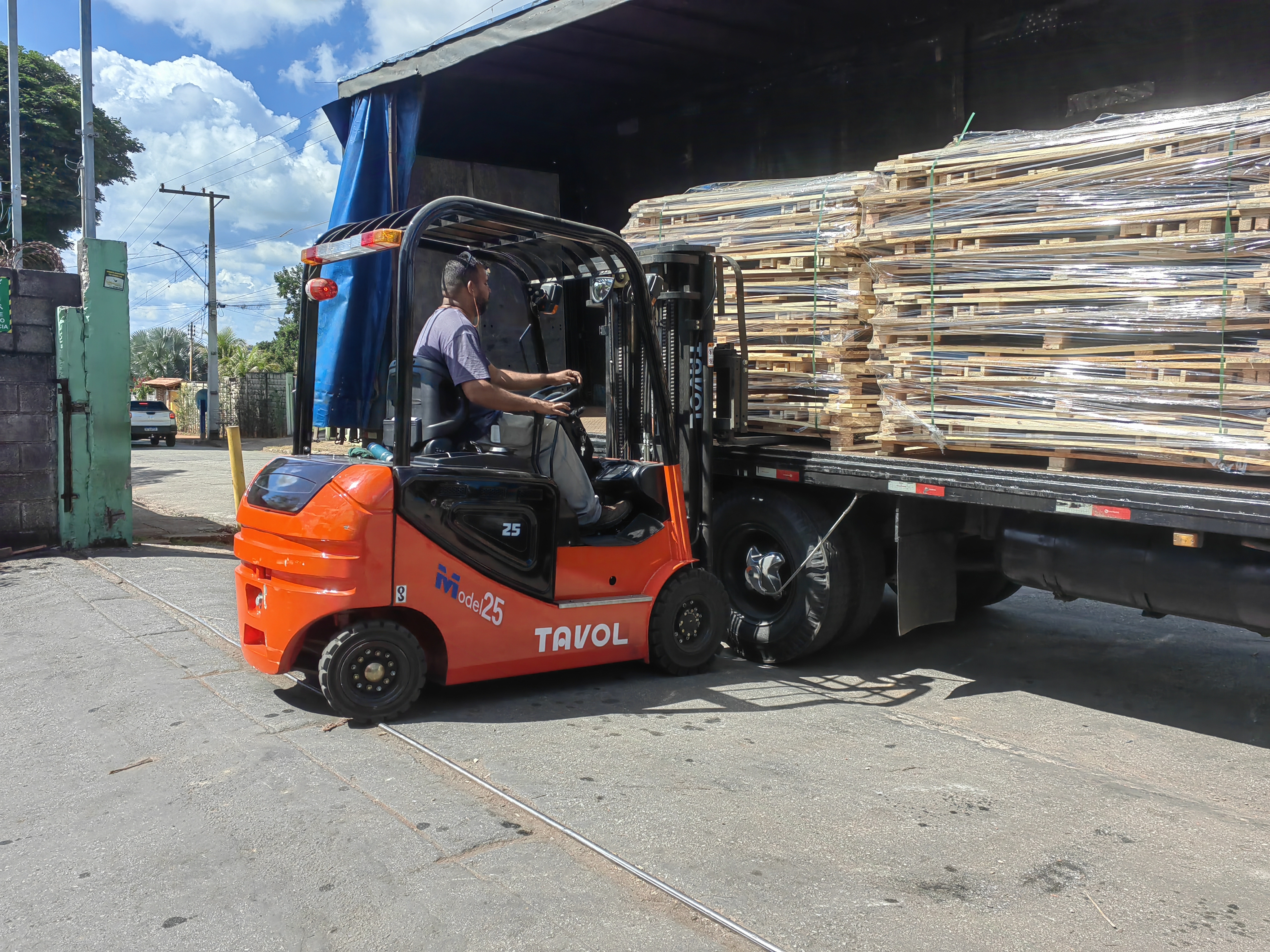

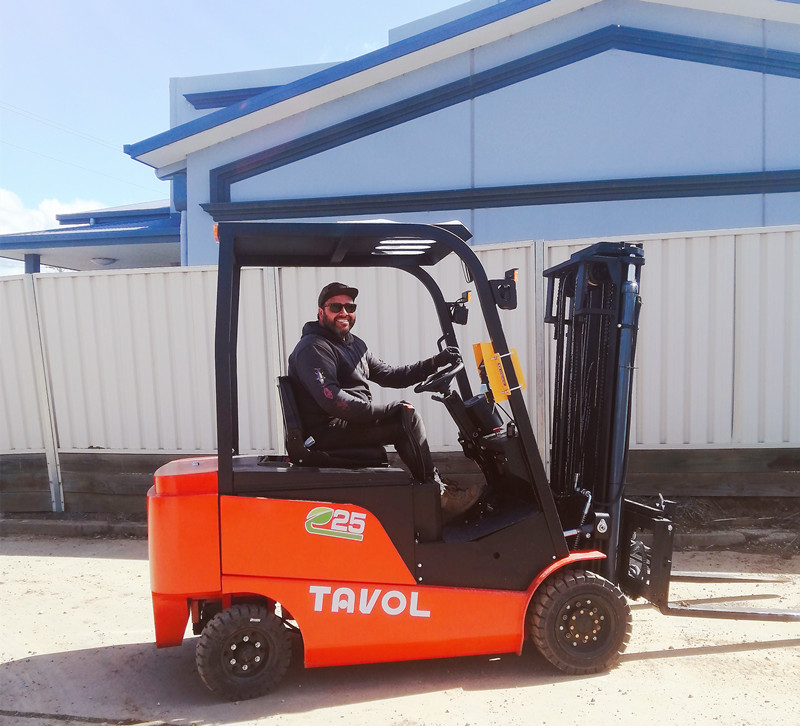

The 2.5-ton electric fork plays an important role in modern logistics and production fields with its high efficiency, flexible operation, safety and reliability, energy saving and environmental protection. It can quickly and accurately transport and stack various heavy goods, improve operating efficiency and optimize inventory management.
Technical Parameters
| Model | CPD25 |
| Loading Capacity(kg) | 2500 |
| Load Center Distance (mm) | 500 |
| Drive Form | battery |
| Fork Lifting Height (mm) | 3000 |
| Length (Including Fork) (mm) | 3605 |
| Width (mm) | 1160 |
| Height (Door Frame Indented) (mm) | 2095 |
| Max working Height (mm) | 4080 |
| Wheel Base (mm) | 1640 |
| Wheel Track (Front/Rear) (mm) | 970\970 |
| Front Overhang (mm) | 451 |
| Wheel Tyre (Front/Rear) | 20*8-10mm/16*6-8mm |
| Self Weight (kg) | 3050 |
| Fork Width (mm) | 120 |
| Fork Thickness (mm) | 40 |
| Standard Fork Length (mm) | 1070 |
| Battery (Voltage/Capacity) | 72V\210ah |
TAVOL Forklifts Can Provide You Different Solutions
Sorting and packaging of goods: In the logistics center, electric forklifts can quickly respond to instructions and perform sorting, packaging, loading and unloading of goods, improving overall operational efficiency. |  |
 | Product display and replenishment: In supermarkets, shopping malls and other commercial retail places, electric forklifts can be used for product display and replenishment, improving employee work efficiency and reducing product damage rates. |
Baggage handling: In large transportation hubs such as airports and stations, electric forklifts can easily handle high-intensity handling tasks, such as baggage checking, cargo loading and unloading, etc. |  |

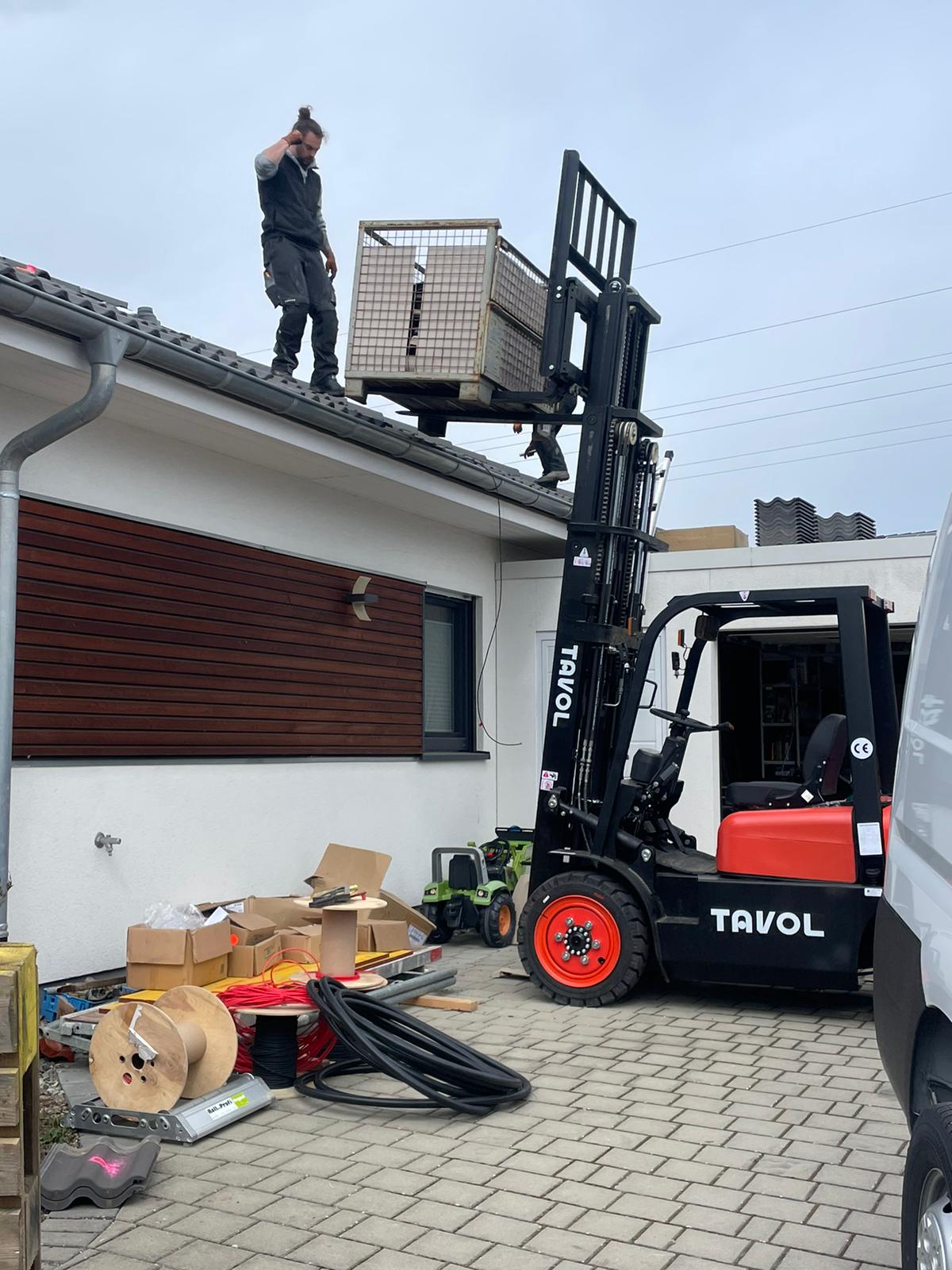

 | Expert in efficient handling at construction sites! Designed specifically for the transportation of heavy building materials such as steel bars, cement, and prefabricated parts, it is equipped with a large load capacity and puncture-proof solid tires to easily cope with complex construction site environments. Zero emissions, low noise, suitable for both indoor and outdoor operations, more than 3 times more efficient than manual handling, significantly shortening construction periods. Special dust-proof and moisture-proof models and professional clamps are available as options, providing a one-stop solution to the problem of handling construction materials! |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;

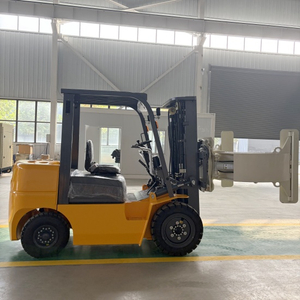

6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Please tell TAVOL about your logistics needs - whether it is warehousing and handling, heavy loading and unloading or special environment operations, we can tailor efficient solutions for you! From a full range of 1.5-ton to 25-ton forklifts to intelligent warehousing equipment, TAVOL can help you reduce costs and increase efficiency with a professional team, global service network and flexible leasing solutions. Contact us now to get exclusive material handling optimization suggestions!
