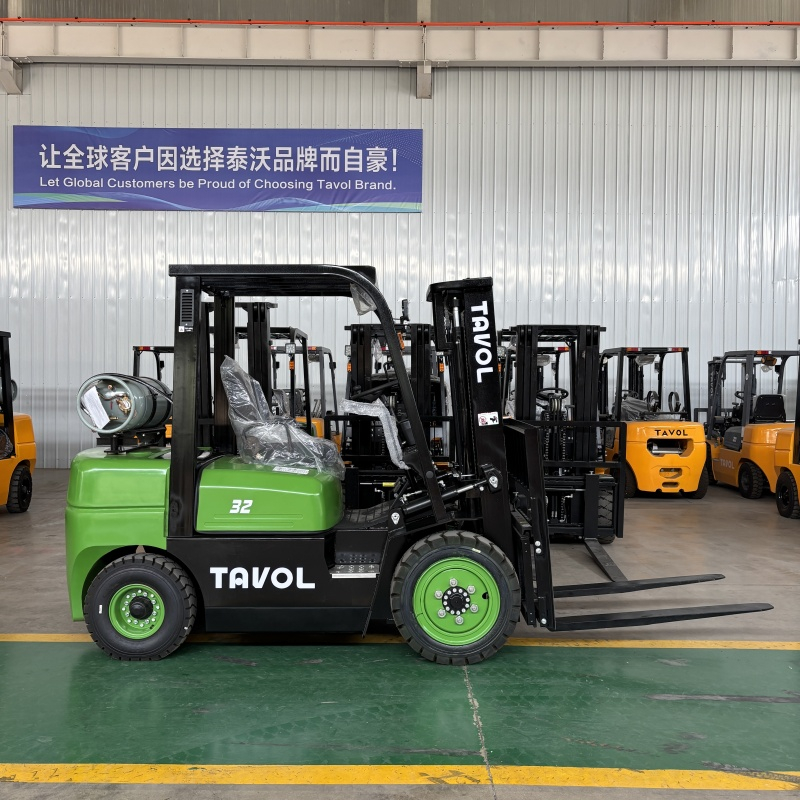

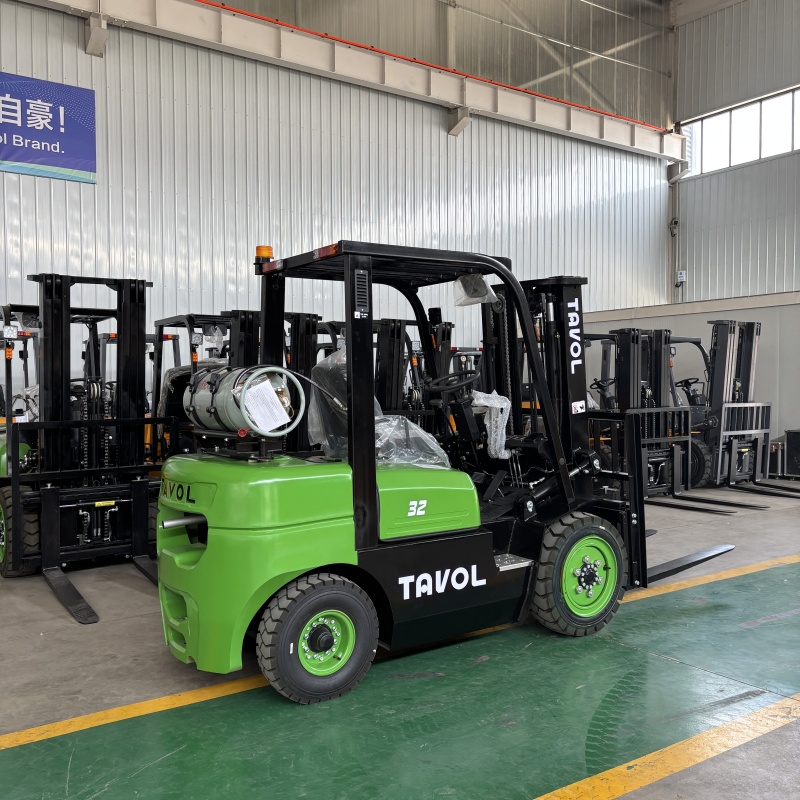

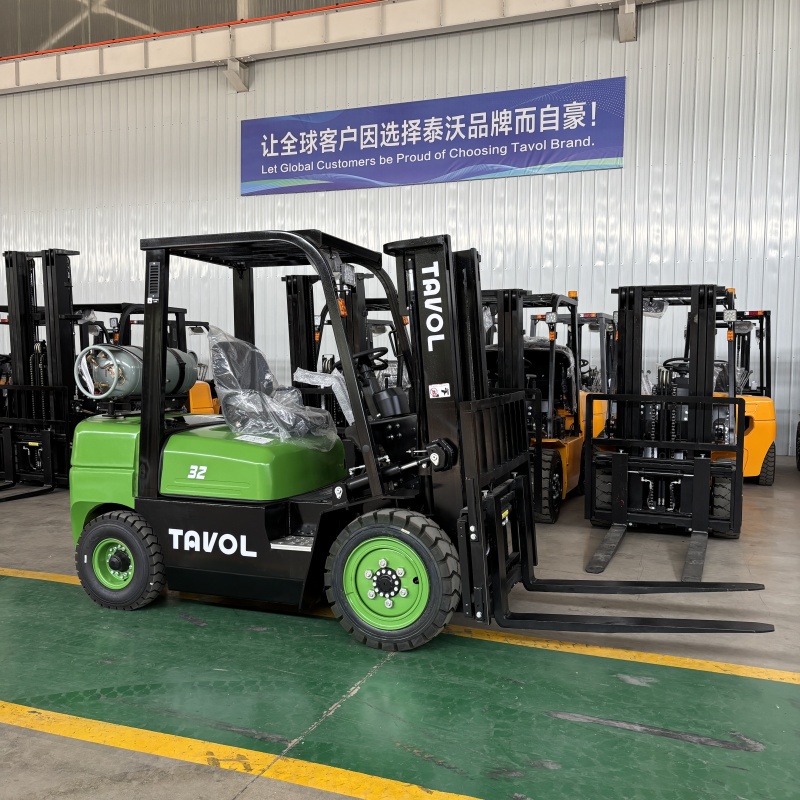

CPQYD32
Tavol
8427209000
With advanced steering technology, this forklift can be flexibly operated even in the narrowest aisles. The compact body design and precise control system enable it to move freely in crowded warehouses, greatly improving space utilization. Whether it is working between shelves or dense stacking, it can be completed efficiently, significantly reducing the risk of collision.
1. Environmental protection and energy saving: LPG, as a clean energy, has lower emissions and higher combustion efficiency than diesel, which helps reduce environmental pollution and reduce operating costs.
2. Low noise: LPG engine has low noise during operation, providing operators with a more comfortable working environment.
3. Efficient and stable: The advanced hydraulic system and transmission system are adopted to ensure the efficiency and stability of the forklift during handling and stacking.
4. Safe and reliable: Equipped with multiple safety protection devices, such as emergency braking system, fork limiter, etc., to ensure safety during operation.
5. Easy maintenance: The structural design is reasonable, easy to maintain and maintain, and reduces maintenance costs and time.
Model | CPQYD32 | |||||
Rated capacity | KG | 3200 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 80 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 470/420 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 18/20 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2540 | ||||
The minimum clearance from the ground | MM | 135 | ||||
Wheelbase | MM | 1775 | ||||
Wheel tread | F/R | MM | 1000/970 | |||
front overhang | MM | 465 | ||||
Dimensions | Length | With fork | MM | 4025 | ||
Width | MM | 1230 | ||||
Closed mast height | MM | 2110 | ||||
Overhead guard height | MM | 2105 | ||||
Max. Height at work | With/without backrest | MM | 4270 | |||
Fork size | LXWXT | MM | 1220x122x45 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 4600/4640 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
1.Factory workshops: handling raw materials, semi-finished products and finished products in production lines and workshops.
2. Distribution centers and distribution centers: rapid sorting, handling and distribution of goods.
3. Logistics warehousing: used for handling, stacking and sorting of goods in warehouses.
4. Port terminals: loading and unloading of containers and bulk cargo at ports and terminals.
With advanced steering technology, this forklift can be flexibly operated even in the narrowest aisles. The compact body design and precise control system enable it to move freely in crowded warehouses, greatly improving space utilization. Whether it is working between shelves or dense stacking, it can be completed efficiently, significantly reducing the risk of collision.
1. Environmental protection and energy saving: LPG, as a clean energy, has lower emissions and higher combustion efficiency than diesel, which helps reduce environmental pollution and reduce operating costs.
2. Low noise: LPG engine has low noise during operation, providing operators with a more comfortable working environment.
3. Efficient and stable: The advanced hydraulic system and transmission system are adopted to ensure the efficiency and stability of the forklift during handling and stacking.
4. Safe and reliable: Equipped with multiple safety protection devices, such as emergency braking system, fork limiter, etc., to ensure safety during operation.
5. Easy maintenance: The structural design is reasonable, easy to maintain and maintain, and reduces maintenance costs and time.
Model | CPQYD32 | |||||
Rated capacity | KG | 3200 | ||||
Load center | MM | 500 | ||||
Lifting height(max.) | MM | 3000 | ||||
Free lift height | MM | 80 | ||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Lifting speed (max.) | Loaded | MM/s | 470/420 | |||
Traction(max) | Loaded/Unloaded | KN | 15/10 | |||
Traveling speed(max.) | Loaded/Unloaded | KM/h | 18/20 | |||
Grade ability under full Load(max) | Loaded/Unloaded | % | 15/20 | |||
Turning radius(min) | MM | 2540 | ||||
The minimum clearance from the ground | MM | 135 | ||||
Wheelbase | MM | 1775 | ||||
Wheel tread | F/R | MM | 1000/970 | |||
front overhang | MM | 465 | ||||
Dimensions | Length | With fork | MM | 4025 | ||
Width | MM | 1230 | ||||
Closed mast height | MM | 2110 | ||||
Overhead guard height | MM | 2105 | ||||
Max. Height at work | With/without backrest | MM | 4270 | |||
Fork size | LXWXT | MM | 1220x122x45 | |||
Standard fork length | MM | 1220 | ||||
Service Weight | KG | 4600/4640 | ||||
Tire | 2 units | Inflatable Tyre | ||||
2 units | Inflatable Tyre | |||||
Motor | Brand | Nissan K25 | ||||
Maximum output power(Kw) | 37.4 | |||||
Rated speed(rpm) | 2300 | |||||
Max. Torque (Nm) | 177 | |||||
Maximum torque speed(rpm) | 1600 | |||||
The engine form | Hydraulic | |||||
1.Factory workshops: handling raw materials, semi-finished products and finished products in production lines and workshops.
2. Distribution centers and distribution centers: rapid sorting, handling and distribution of goods.
3. Logistics warehousing: used for handling, stacking and sorting of goods in warehouses.
4. Port terminals: loading and unloading of containers and bulk cargo at ports and terminals.
